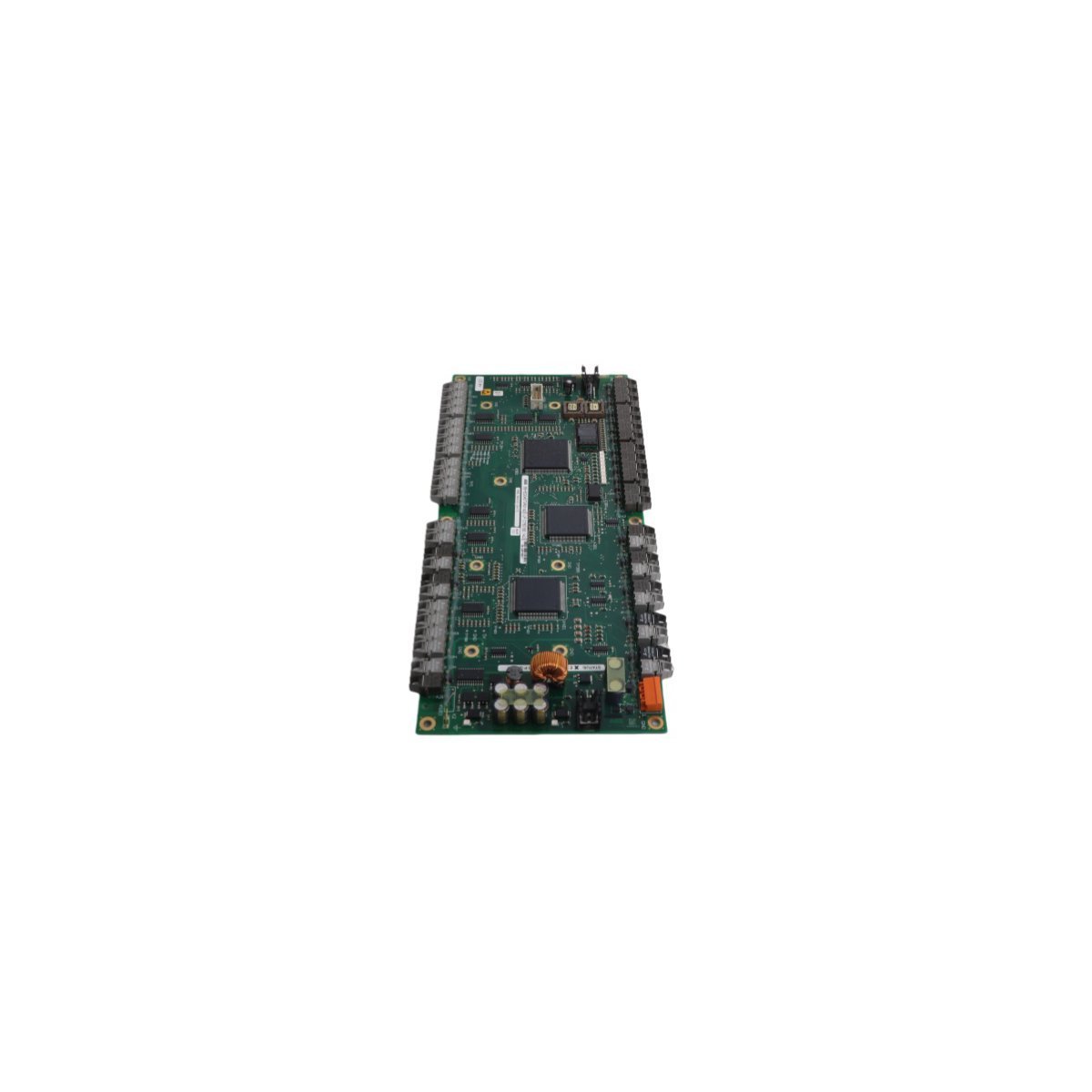

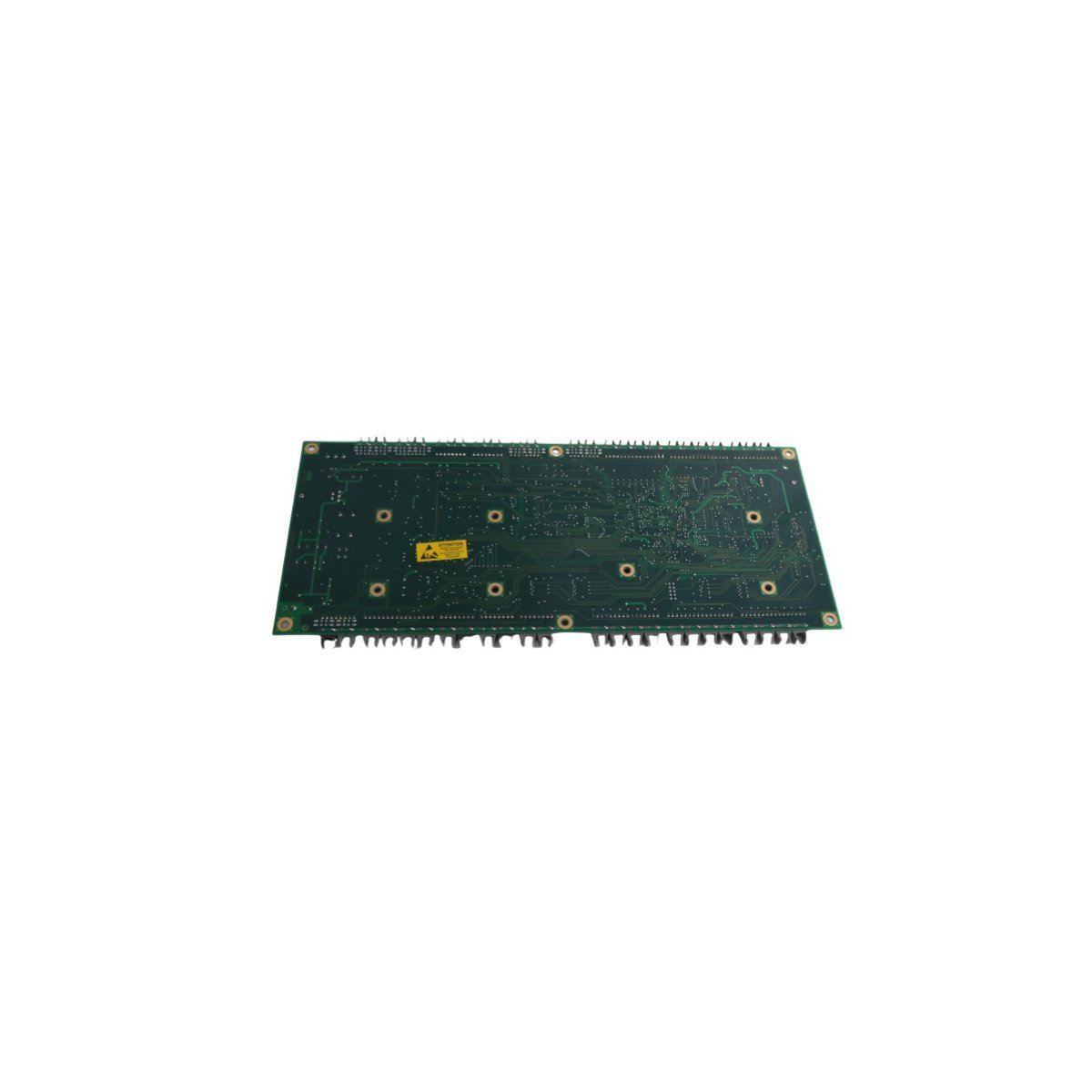

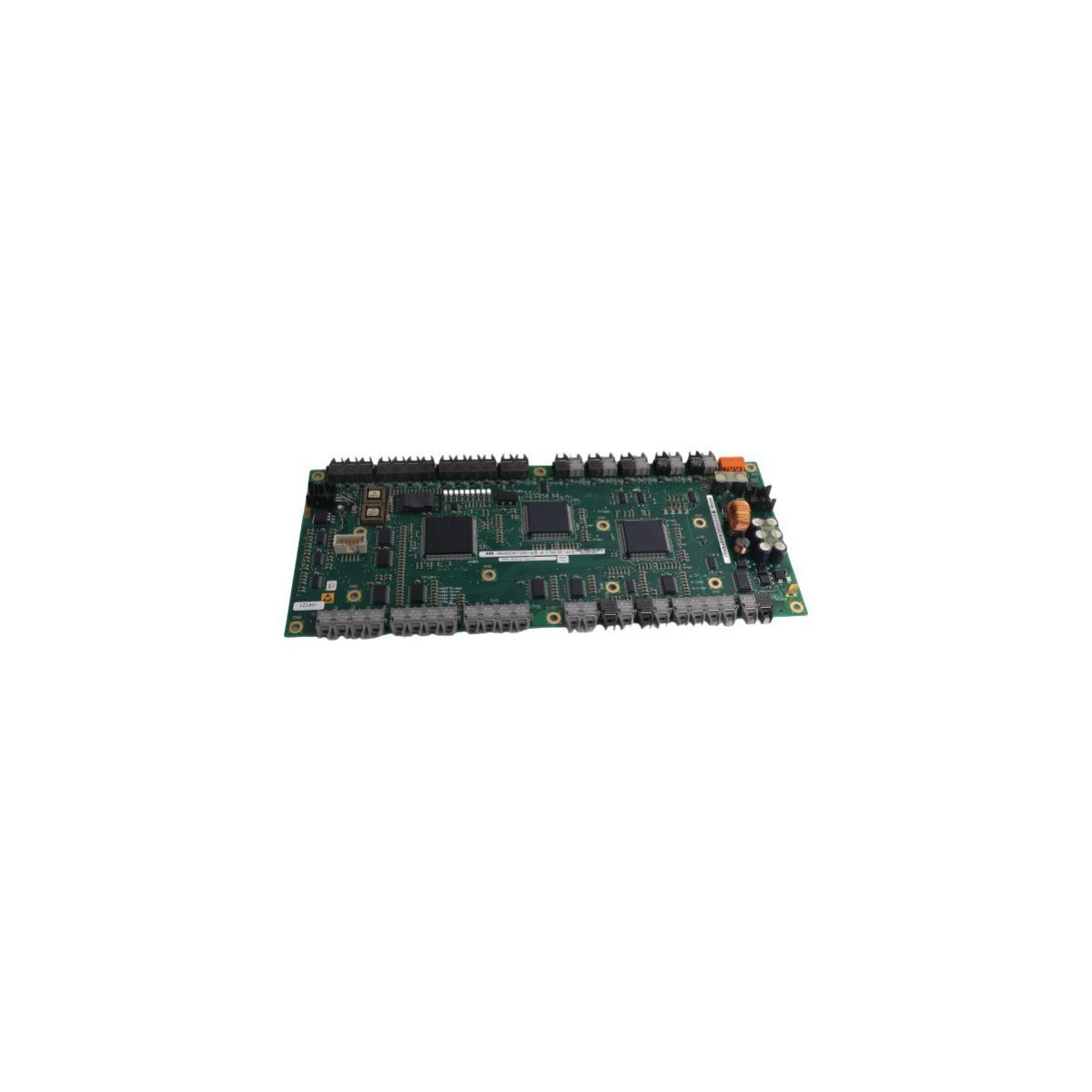

The ABB 3BHE004573R0142 (UFC760 BE142) serves as a specialized analog interface for UNITROL excitation systems. This module processes high-precision analog signals required for synchronized motor and generator control. It bridges the gap between primary excitation hardware and the central control processor.
Operational Performance
The module features an optimized PCB layout to handle high-performance signal processing. This design effectively reduces signal noise and prevents data corruption during transmission. Consequently, the hardware delivers the extreme accuracy necessary for power plant operations.
In addition, the UFC760 BE142 includes built-in protection for high-voltage isolation. This safety feature secures the logic side of the control system from field-side electrical surges. The module operates reliably within the demanding thermal profiles of power conversion cabinets.
Installation and Maintenance
The intuitive mounting structure enables rapid installation into standard UNITROL rack assemblies. Engineers can configure the I/O ports to match specific project requirements with ease. This flexibility simplifies the commissioning process for new automation projects.
Moreover, the modular architecture supports efficient maintenance and part replacement strategies. The robust construction ensures a long service life with minimal hardware intervention. Therefore, it remains a cost-effective solution for large-scale industrial excitation setups.
Core Technical Specifications
- Product Series: UNITROL Excitation Systems
- Model Number: UFC760 BE142
- Part Number: 3BHE004573R0142
- Device Type: Analog Input/Output Interface Module
- Net Weight: 0.36 kg
- Product Dimensions: 330 x 158 x 30 mm
- Country of Origin: Sweden
- System Application: DCS and Synchronous Machine Control
- Quality Standards: ISO 9001:2015 Certified Production
