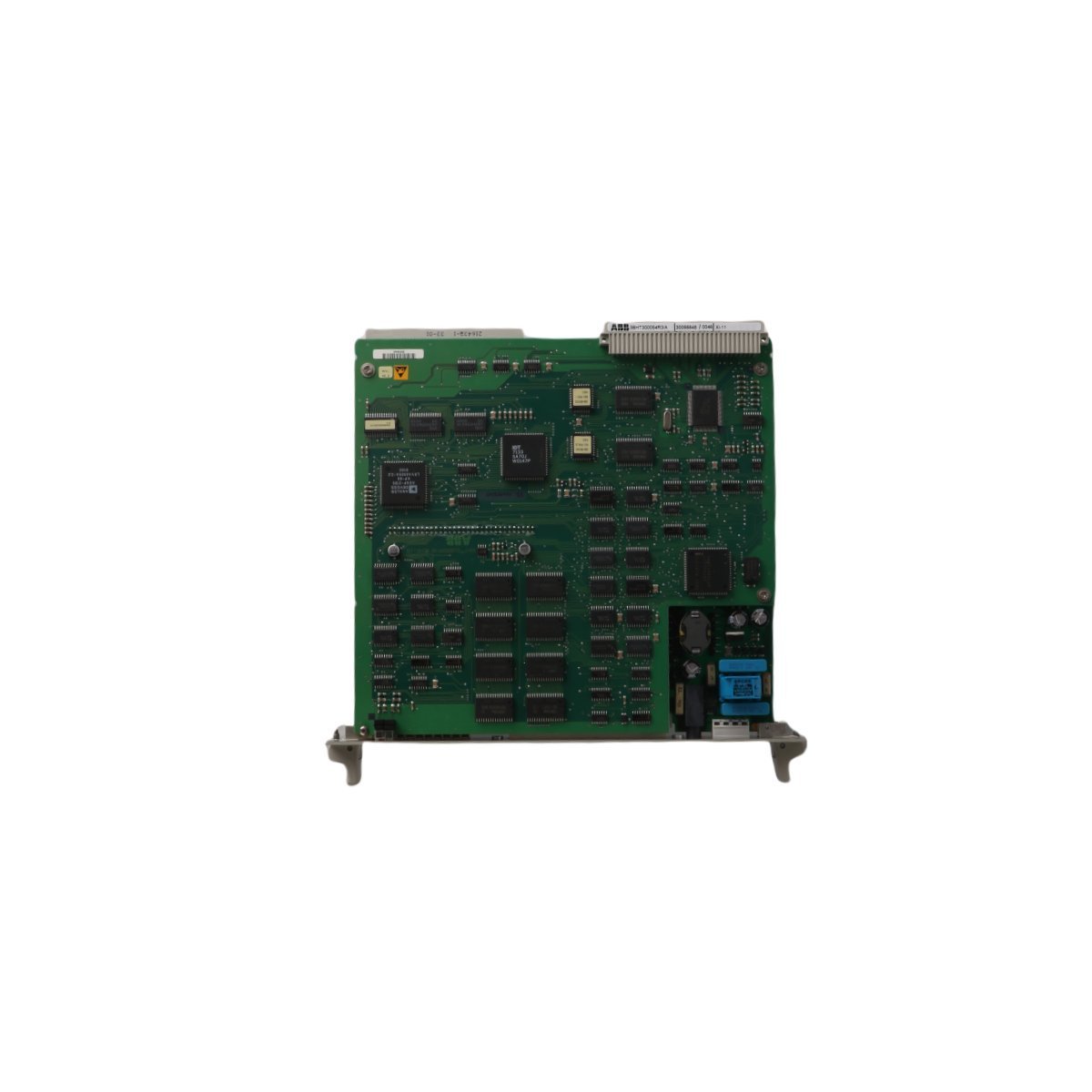

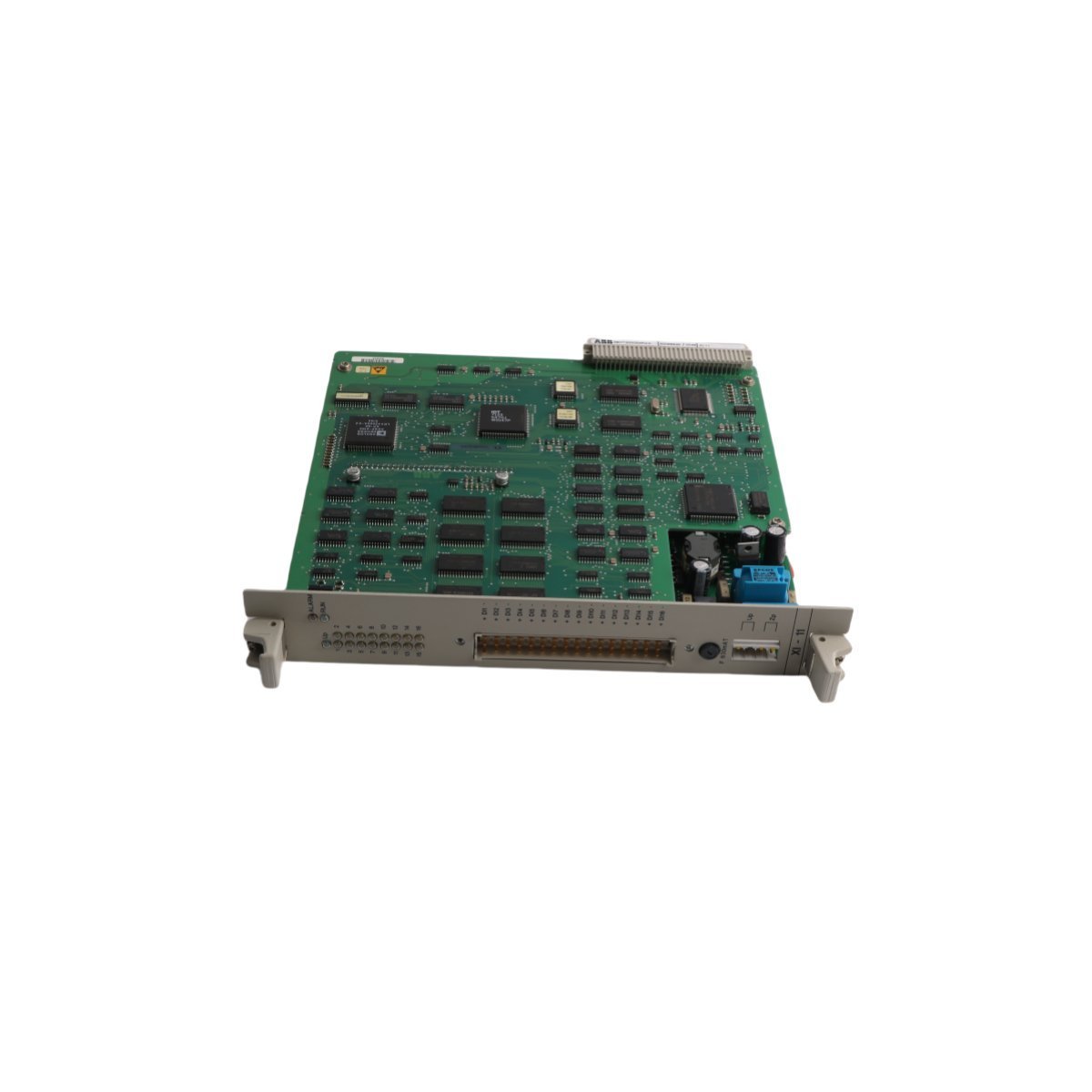

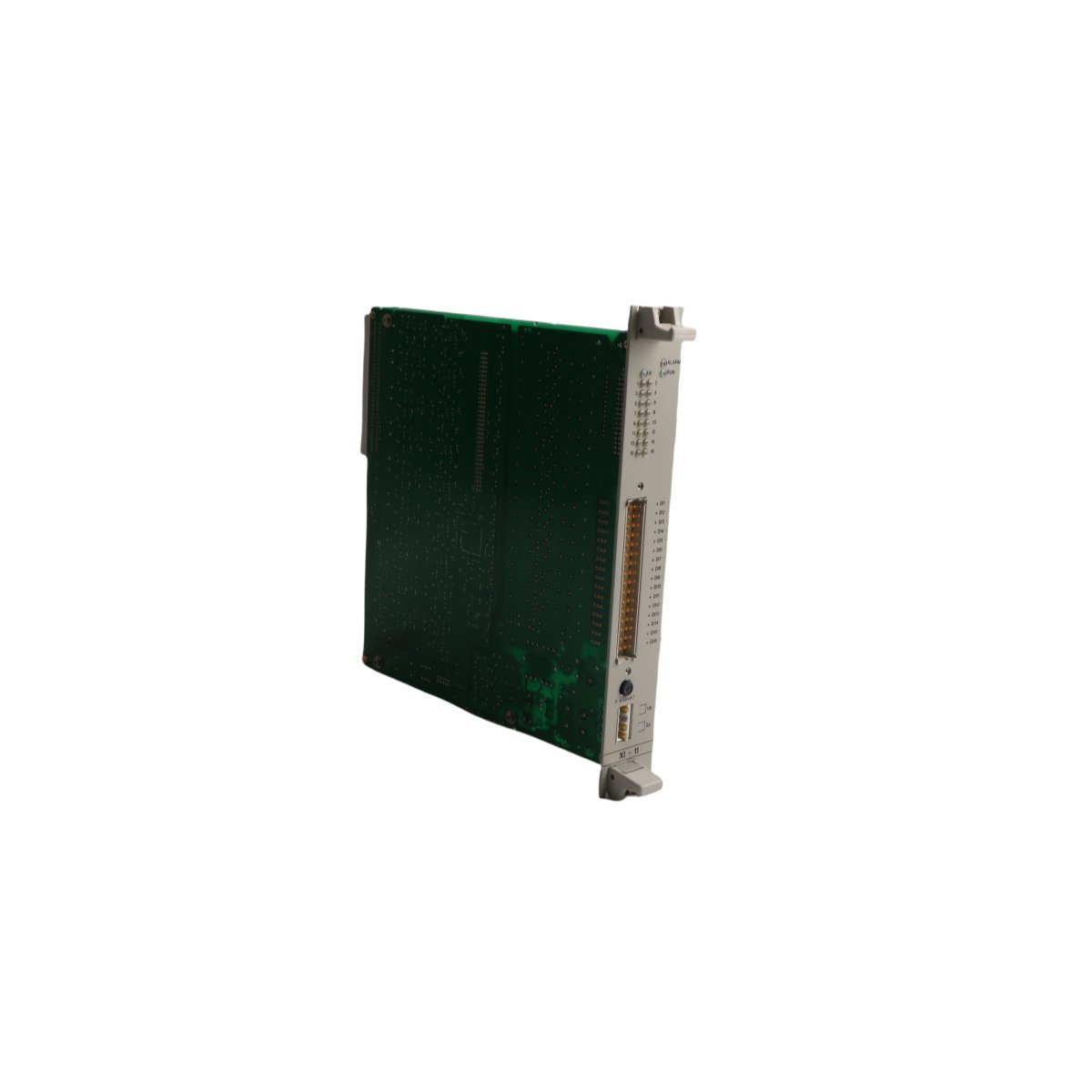

ABB 3BHT300054R3/A XI-11 AC800M Analog Input Board Module

ABB 3BHT300054R3/A XI-11 Analog Input Board

Configured for analog signal transformation in AC800M DCS environments, the ABB 3BHT300054R3/A (XI-11 Analog Input Board) provides direct physical signal acquisition and conversion. The module interfaces with field instrumentation, whereby raw electrical values are digitized for subsequent evaluation by the central control processor.

Hardware Specifications

Firmware Flash Compatibility and Bus Integration

The XI-11 board utilizes the AC800M backplane architecture to facilitate data exchange. Engineers must verify firmware compatibility before the initial power-up, as the host controller requires specific revision parity to maintain bus integrity. The system detects the board upon insertion; however, technicians should update the controller configuration files to ensure the processor accurately maps the input channels. ABB mandates that users perform these flash operations during scheduled maintenance windows to prevent communication interrupts.

Frequently Asked Questions

Q: Can the XI-11 board perform hot-swapping during active process execution?

A: No. You must de-energize the specific backplane segment before you remove or insert the module. This procedure prevents electrical arcing and protects the internal logic components from transient voltage spikes.

Q: How does the system handle signal drift or noise on the analog inputs?

A: The board employs internal filtering and sampling synchronization to reject common-mode noise. You can further improve signal quality by ensuring that you use shielded twisted-pair cabling for all field terminations.

Field Installation Guidelines

• Mechanical Placement: Insert the board into the designated AC800M rack slot. You should tighten the retaining screws securely; this action ensures the board maintains consistent contact with the backplane connector.
• Shielding and Grounding: You must terminate cable shields at the designated ground bar within the cabinet. This connection diverts induced noise away from the measurement circuit, which improves the precision of the analog conversion.
• Wiring Constraints: You should separate signal wiring from high-voltage power conduits by at least 15 cm. This spatial isolation limits inductive coupling, which otherwise degrades the analog signal accuracy.
• Terminal Inspection: Before you apply power, visually inspect all terminal blocks. Verify that no loose strands are present, as these can cause short circuits or intermittent signal behavior.
