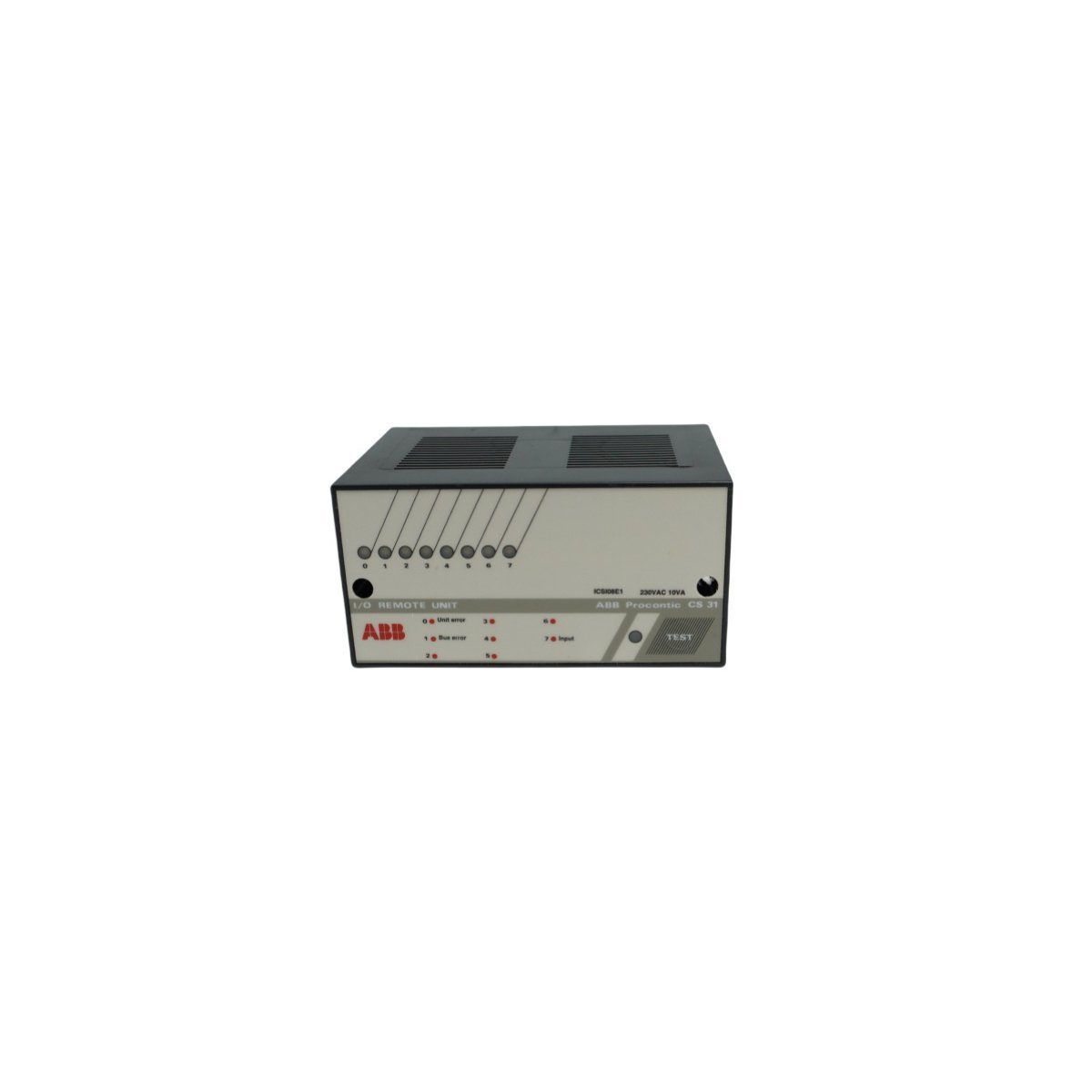

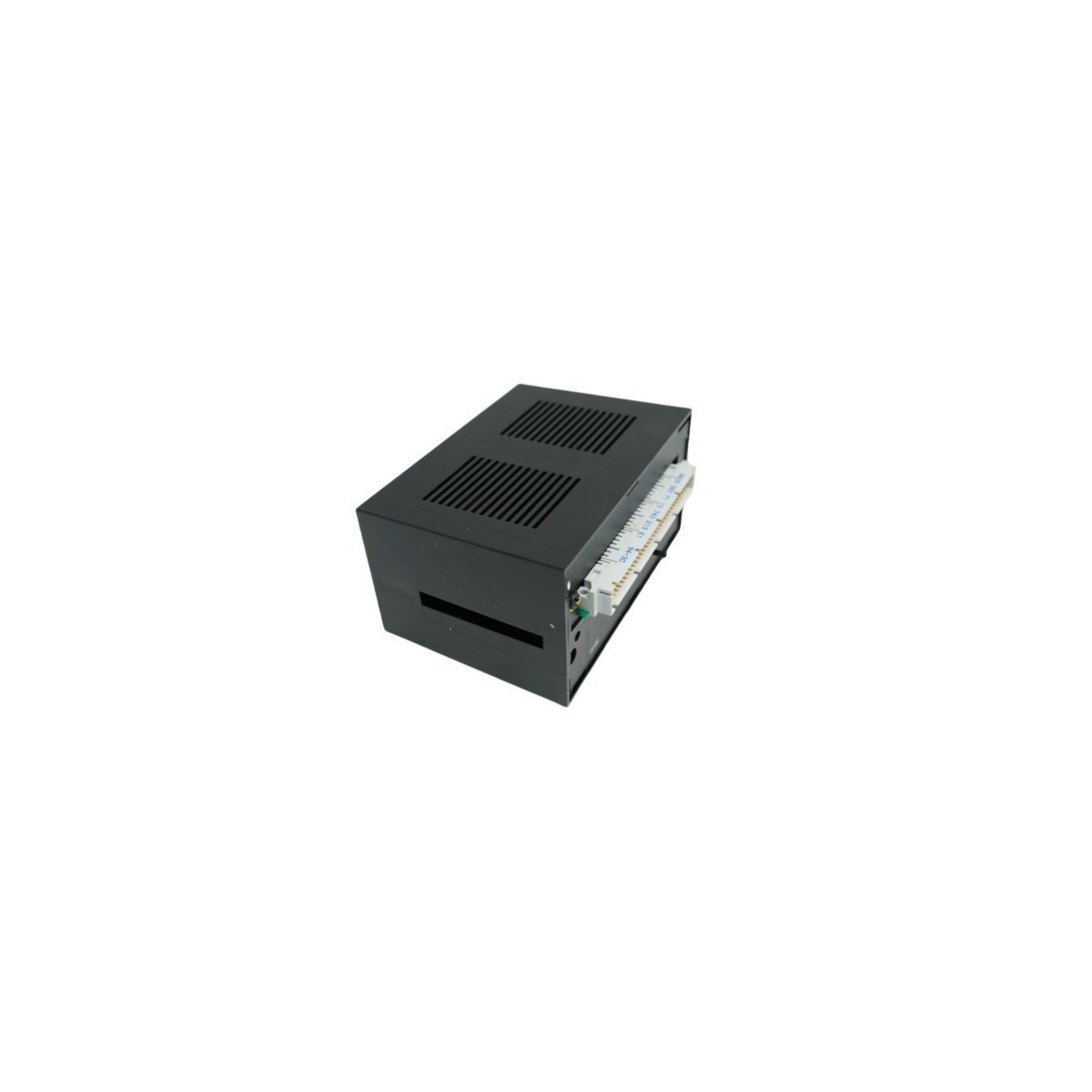

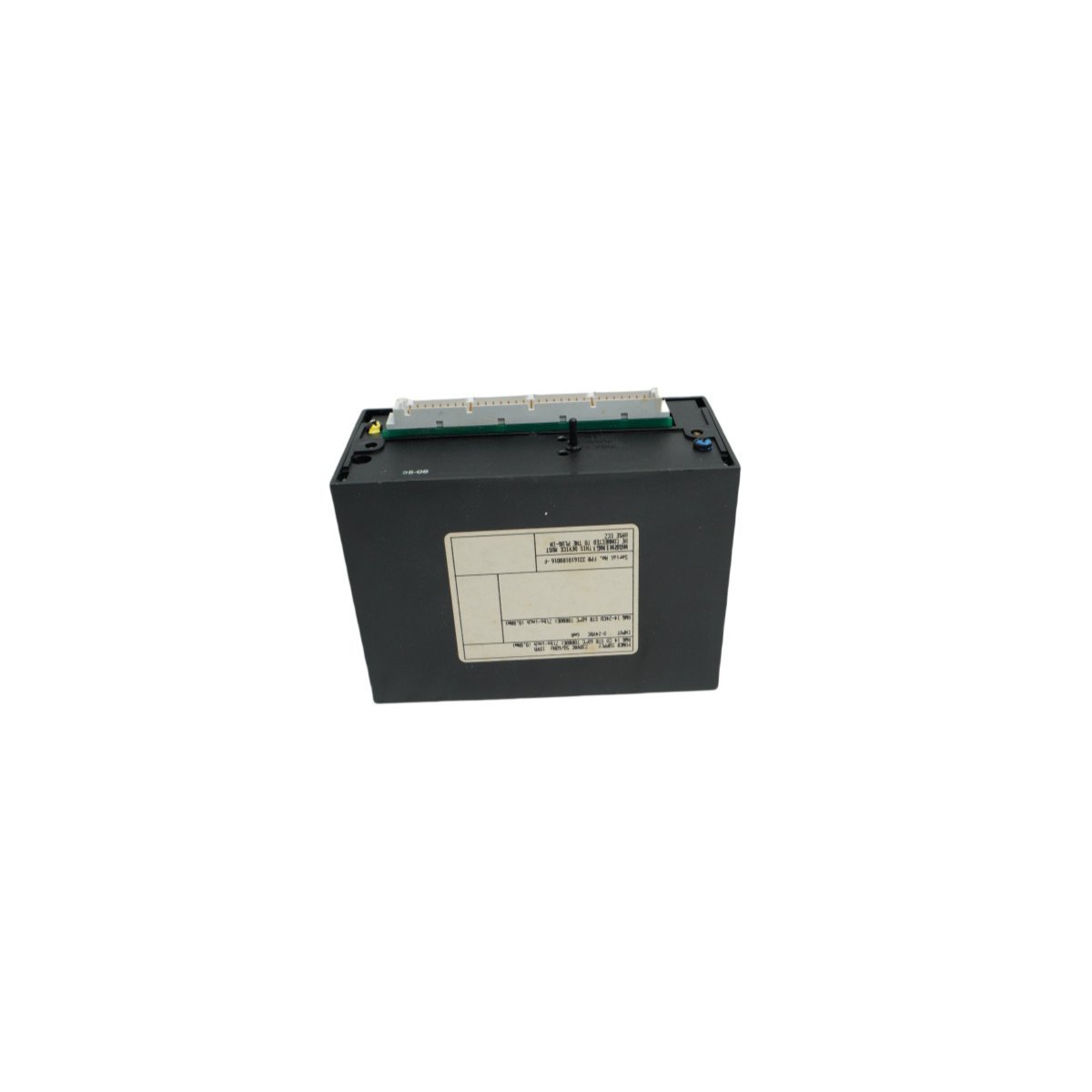

ABB ICSI08E1 ICSI08E1-230 FPR3316101R001 Input Module

The ABB ICSI08E1 operates as a primary digital interface within the Procontic CS31 automation family. This module converts incoming field signals into binary data for the central controller. Because it supports 230V AC inputs, it interfaces directly with high-voltage field devices. The unit handles discrete signals from switches, sensors, and contacts across industrial networks. Furthermore, the CS31 bus protocol ensures synchronized data transmission across the remote I/O architecture. Each input channel features electrical isolation to protect the internal logic from external surges.

Industrial Durability and System Integration

Engineers designed the FPR3316101R001 for long-term stability in harsh manufacturing zones. The module utilizes a compact housing that optimizes space inside distribution cabinets. Moreover, the hardware design minimizes heat generation during peak operational cycles. This thermal efficiency extends the lifespan of adjacent electronic components. The module also features a rugged terminal block for secure wire connections. Consequently, it maintains signal integrity even in high-vibration environments like power plants or refineries.

Real-Time Monitoring and Diagnostic Support

The ICSI08E1 includes built-in diagnostic tools for rapid fault identification. Local LED indicators display the status of each individual input channel clearly. If a communication error occurs, the module reports the failure to the DCS immediately. This functionality allows maintenance teams to troubleshoot field wiring issues without extensive testing. Furthermore, the intuitive configuration process speeds up initial system deployment. This module provides a scalable and cost-effective solution for expanding existing CS31 automation networks.

Technical Parameters and Physical Build
