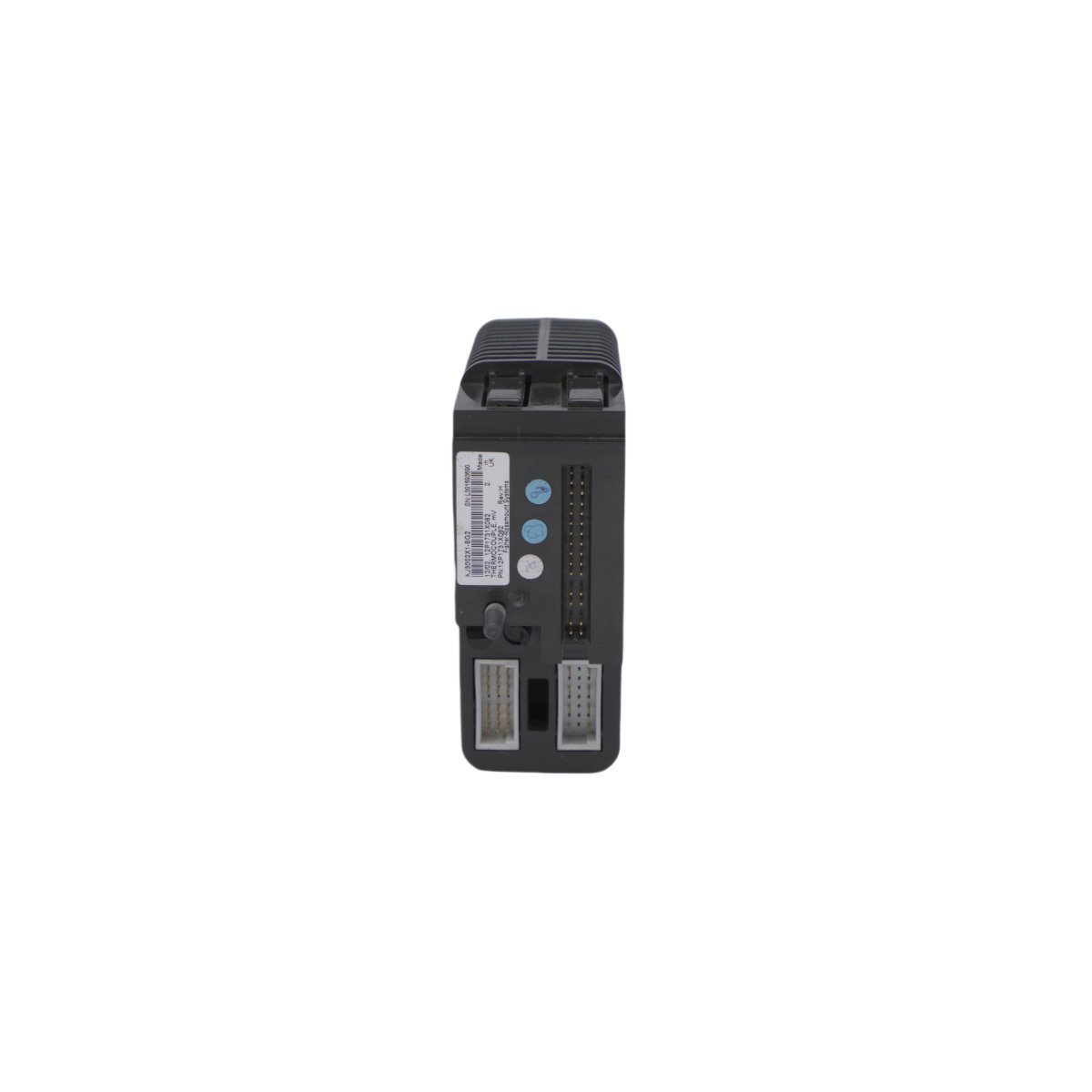

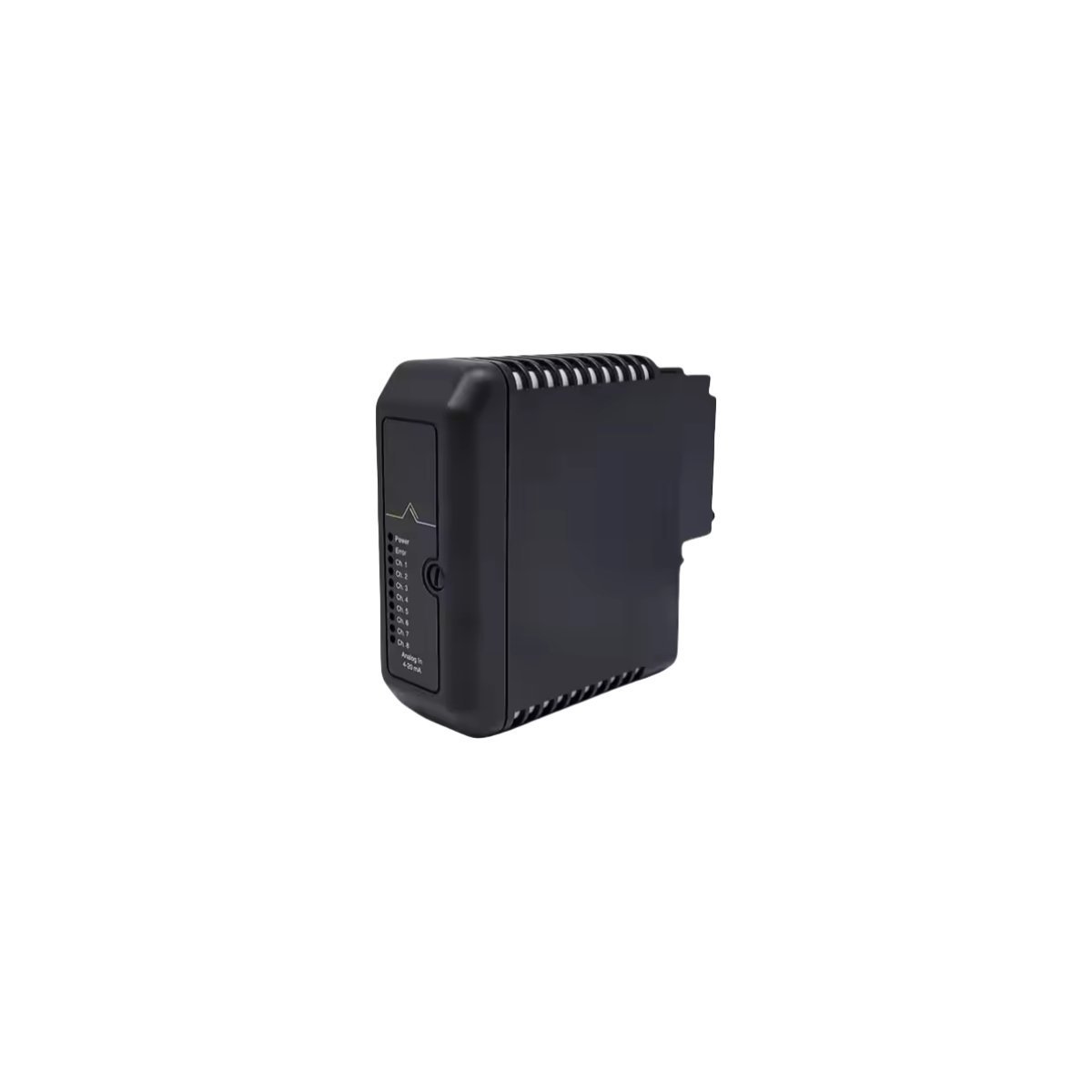

The Emerson KJ3002X1-BA1 serves as a specialized 8-channel analog input interface. This VE4003S2B2 module facilitates communication between HART-capable field instruments and the DeltaV system. It primarily processes 4-20 mA signals while extracting digital device variables. Consequently, engineers can access advanced diagnostics without secondary wiring. The module converts physical process measurements into high-resolution digital data. This ensures the Distributed Control System receives precise information for process regulation.
Technical Performance and Durability
This DeltaV M-series component features integrated electrical isolation for every channel. This design effectively shields the control logic from field-side electrical noise. Furthermore, the 12P0680X072 module operates reliably across a wide temperature spectrum. It sustains performance from -40°C up to +70°C in industrial cabinets. Because it supports high humidity levels, it suits coastal and tropical installations. The rugged construction minimizes signal drift over long-term operation. Additionally, the HART pass-through capability simplifies remote device configuration and calibration.
Technical Specifications
- Manufacturer: Emerson Process Management
- Model Number: KJ3002X1-BA1
- Order Number: 12P0680X072
- Series: DeltaV M-series / VE4003S2B2
- Input Type: 8-Channel Analog Input with HART
- Signal Range: 4-20 mA DC
- Operational Weight: 0.2 kg
- Dimensions: 8.1 x 7.9 x 8.8 cm
- System Type: Distributed Control System (DCS)
- Manufacturing Origin: USA
Industrial Sector Applications
The KJ3002X1-BA1 module is essential for modern oil and gas refineries. It also provides critical data for power generation and chemical processing plants. Operators utilize the HART data for predictive maintenance of smart transmitters. This reduces the need for manual field inspections in hazardous zones. The module also supports asset management software by providing device health alerts. Thus, it enhances overall plant safety and operational efficiency.
