ABB HIEE300831R0001 UAC346AE01 UNITROL 5000 Binary Input Module

Product Overview

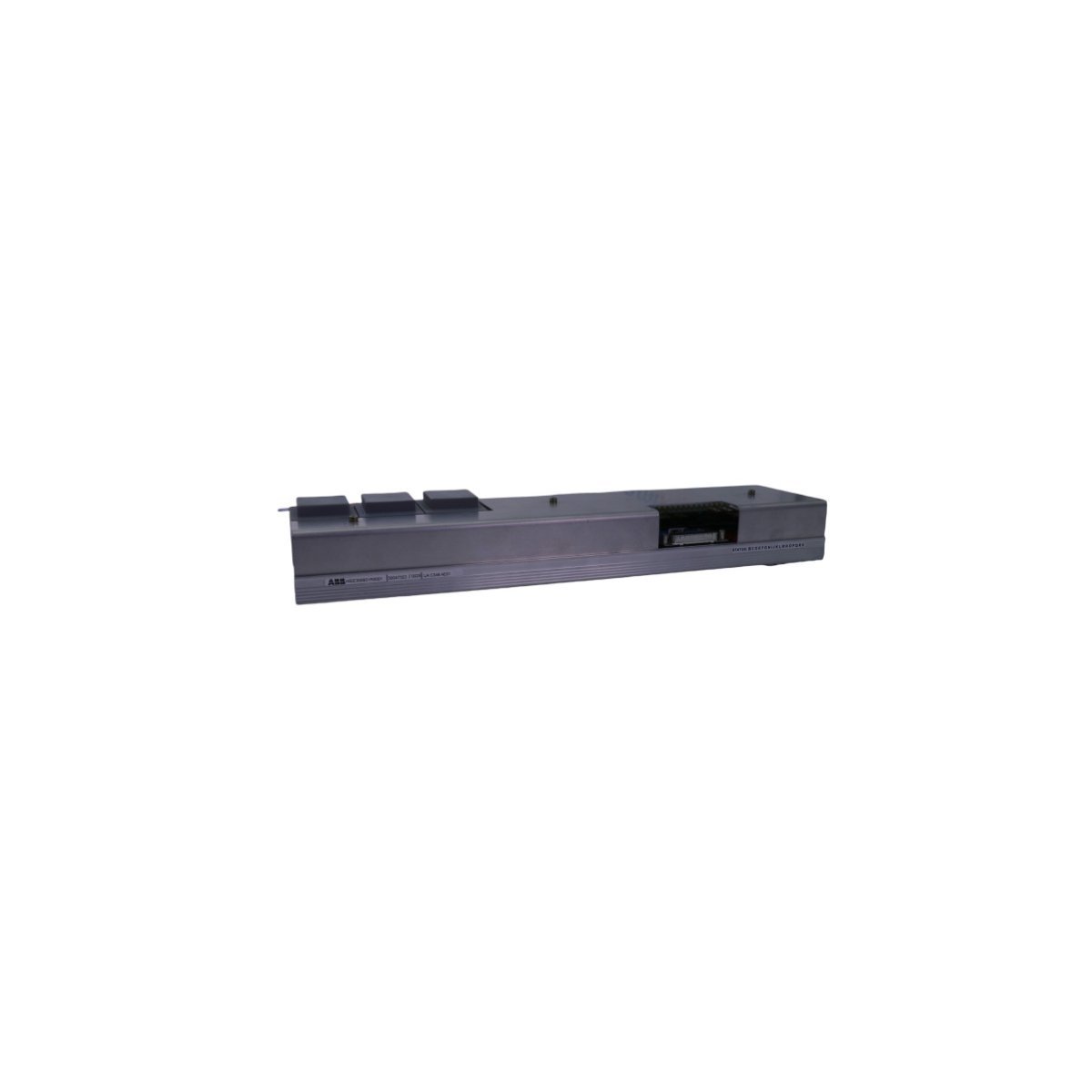

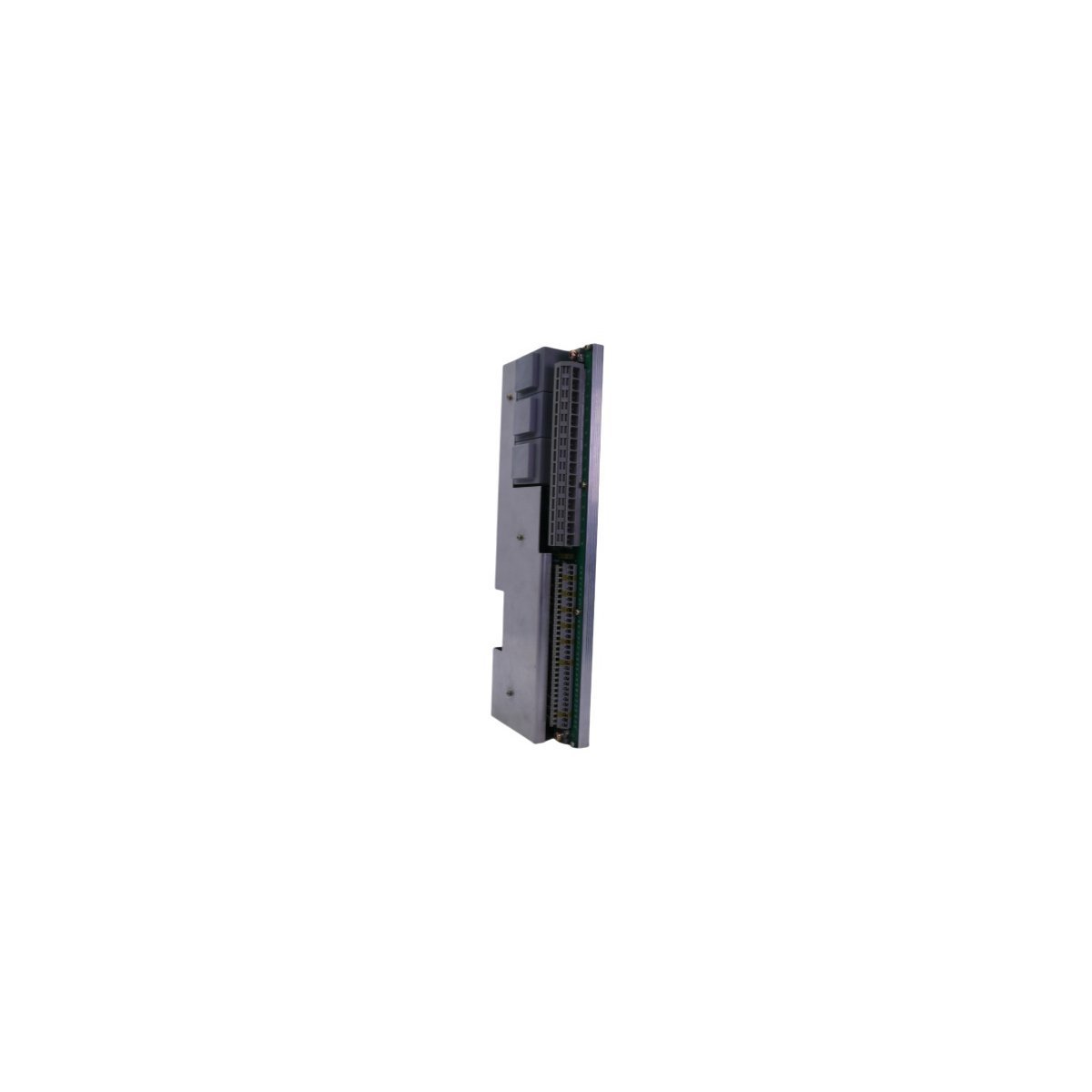

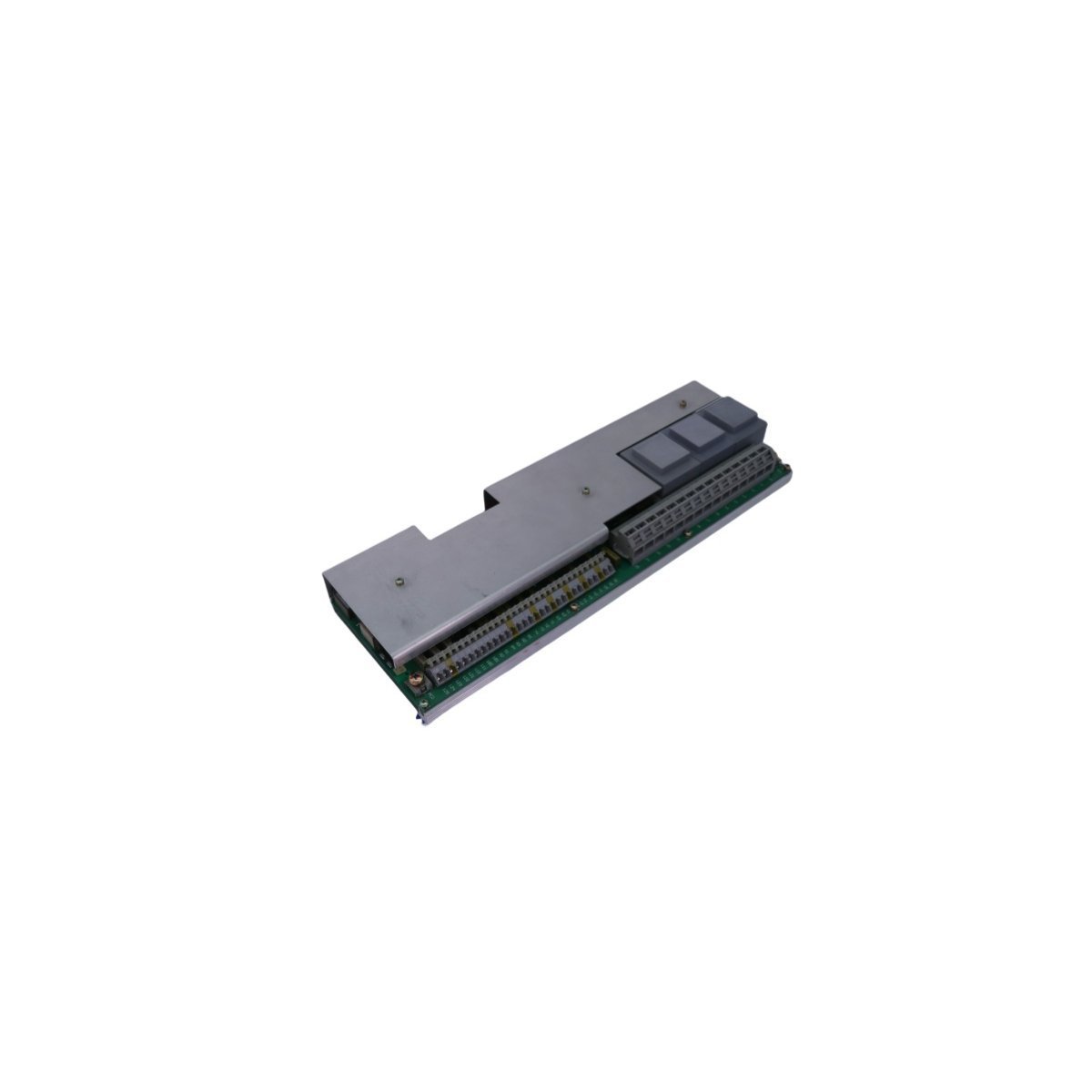

The ABB HIEE300831R0001 UAC346AE01 operates as a specialized binary input module engineered for the UNITROL 5000 control topology and heavy-duty turbine governor systems. By capturing discrete field signals, this processor board allows automated control infrastructure to monitor safety states, breaker positions, and trip logic.

Operational Function and Application

This interface card primarily handles real-time status acquisition within utility-scale power generation facilities and complex industrial driving systems. Because turbine control demands microsecond-level accuracy, the integrated microprocessor isolates and validates raw binary inputs before transmitting data to the main processing unit. Consequently, the board prevents electromagnetic interference from corrupting critical system decisions. The modular design enables direct integration into standard DCS racks, which helps engineers scale their plant automation infrastructure seamlessly.

Technical Characteristics and Design

• Excitation System Integration: Designed specifically for optimal performance inside ABB UNITROL 5000 excitation cabinets.
• Signal Isolation: Features advanced galvanic isolation to shield sensitive internal control logic from external field surge voltages.
• Compact Mechanical Profile: Utilizes an elongated form factor that optimizes cabinet density while supporting passive thermal dissipation.
• Industrial Construction: Built with rugged components that endure the continuous vibrations and thermal stresses typical of turbine decks.

Product Specifications
