ABB SDCS-IOB-23 COAT DCS800 Digital Connection Board 3ADT220090R0023

ABB SDCS-IOB-23 COAT Digital Connection Board

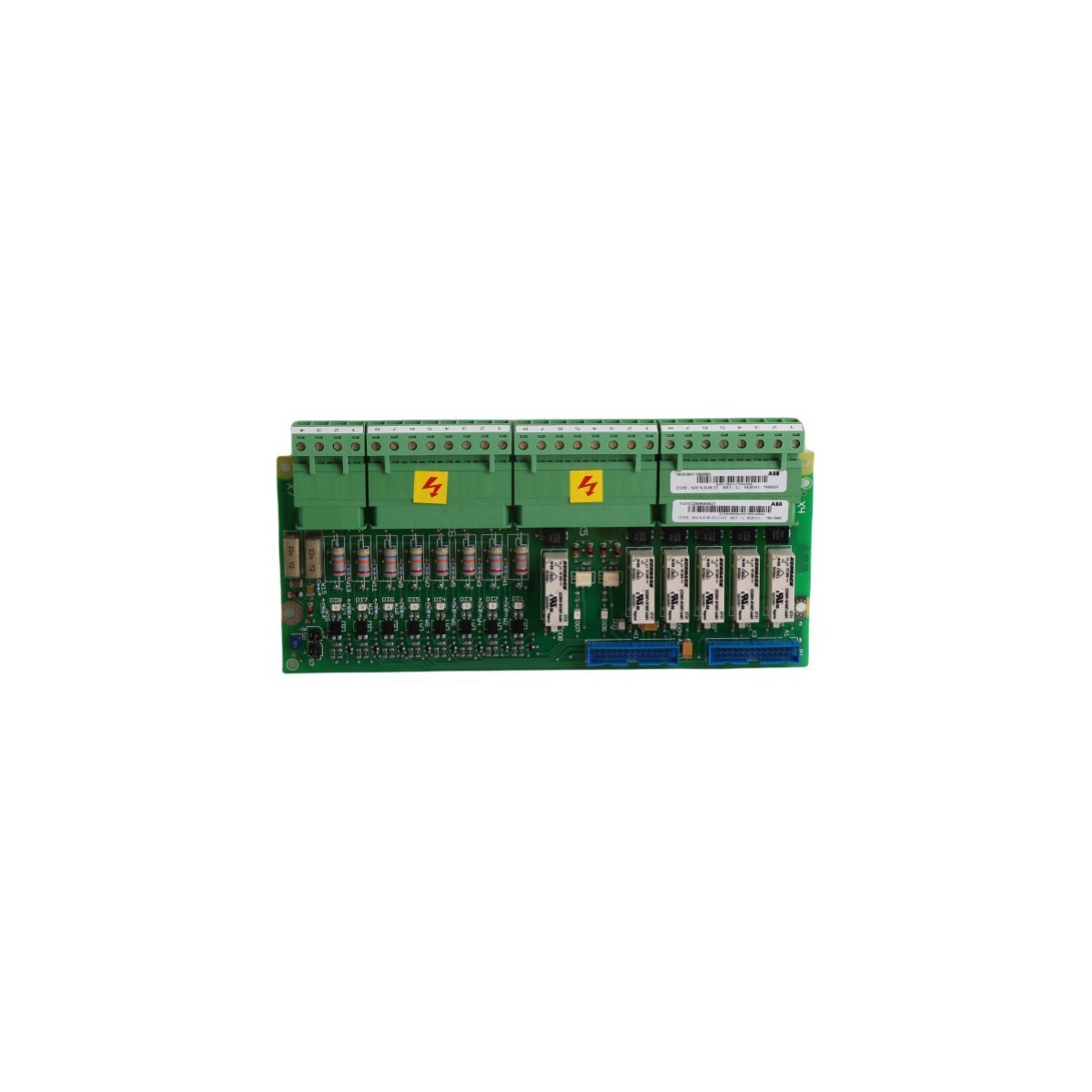

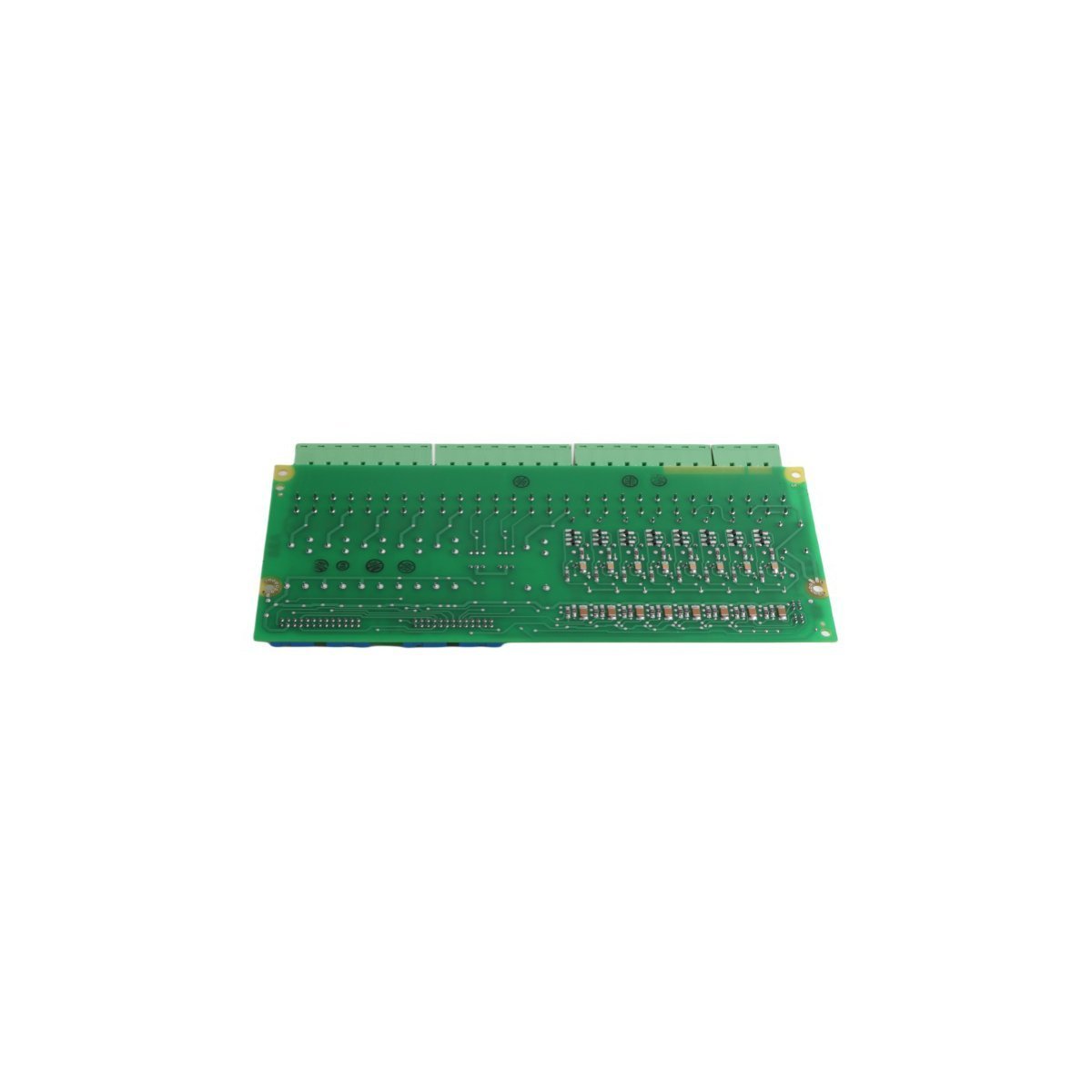

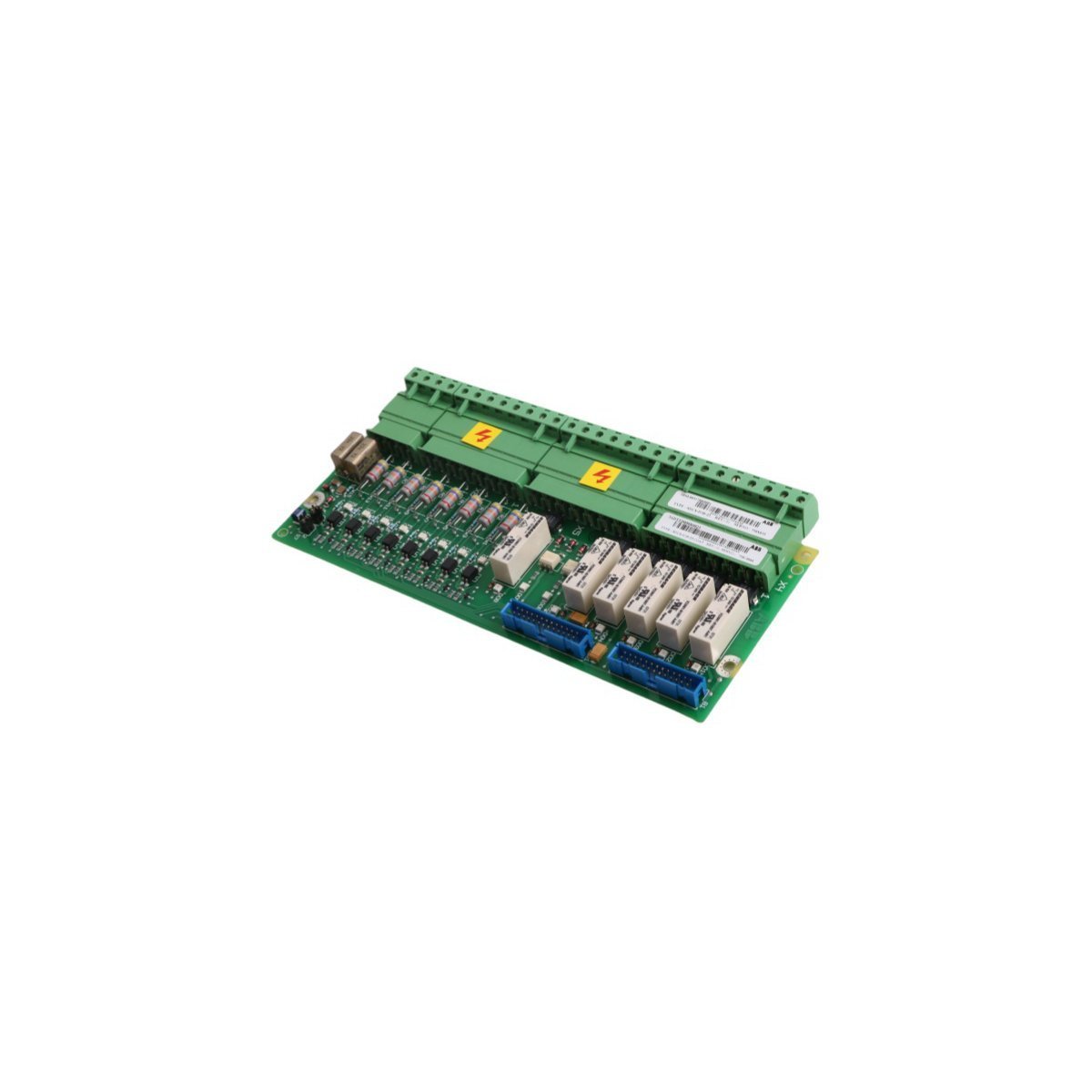

The ABB SDCS-IOB-23 COAT 3ADT220090R0023, also cataloged as the ABB SDCS-IOB-23 Digital Connection Board, operates as a dedicated hardware component for digital I/O signal coupling and galvanic isolation within DCS800 industrial drive systems.

Hardware Specifications

Firmware Flash Compatibility and Interface Bus Scaling

The hardware interface board connects directly to the main controller using standard flat-ribbon cables, which maintains signal path integrity and minimizes latency. This layout allows the module to align with DCS800 controller firmware versions instantly, meaning technicians do not need to perform manual firmware flash procedures or purchase extra backplane communication licenses during deployment. The onboard circuitry manages high-voltage 230 VAC digital inputs and outputs, scaling the drive physical I/O density while protecting the main CPU board through electrical isolation barriers.

Frequently Asked Questions

Q: Does the SDCS-IOB-23 COAT require external power for its internal logic?

A: No, the board draws its operating power directly from the main controller card through the ribbon cable interface, although the field-side circuits connect to external 230 VAC loops.

Q: How does the “COAT” designation affect deployment in industrial environments?

A: The conformal coating on this module protects exposed copper traces and solder joints from airborne particulates, moisture, and corrosive gases, which prevents parasitic leakage currents.

Field Installation Guidelines

• Mounting Stability: Mount the board securely inside the drive cabinet enclosure using the specified mounting standoffs to mitigate vibrational stress.
• Wiring Separation: Route high-voltage 230 VAC field wiring in separate wire ducts away from low-voltage control and ribbon cables to suppress electromagnetic interference.
• Cable Strain Relief: Ensure all flat-ribbon interface cables have adequate slack and that their physical locking clips engage completely upon connection.
• Cabinet Grounding: Bond the cabinet backplate to a low-impedance industrial ground system to divert transient electrical noise away from the signal channels.
