ABB HIEE451116R0001 FM9925A-E UNITROL DCS Excitation Control Modules

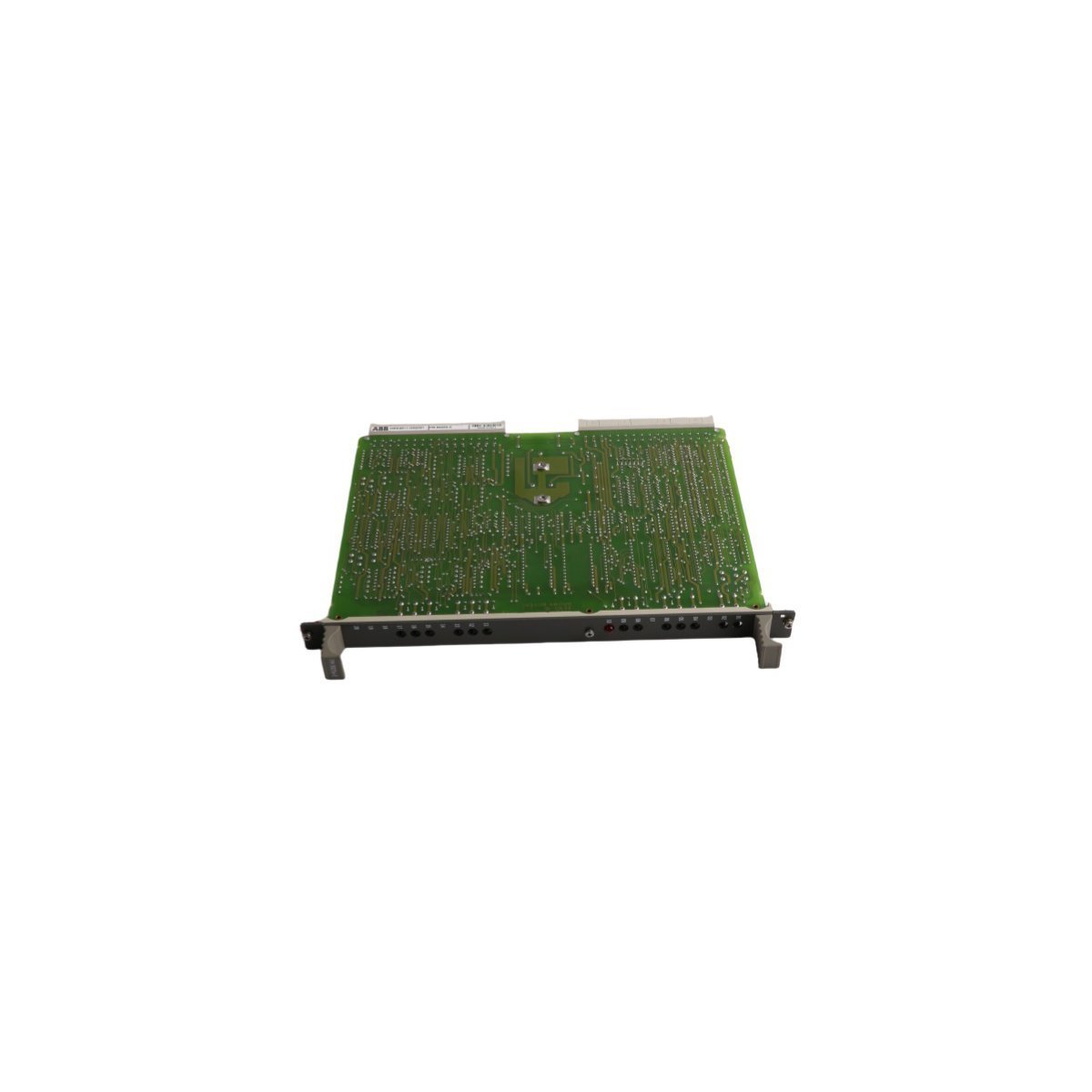

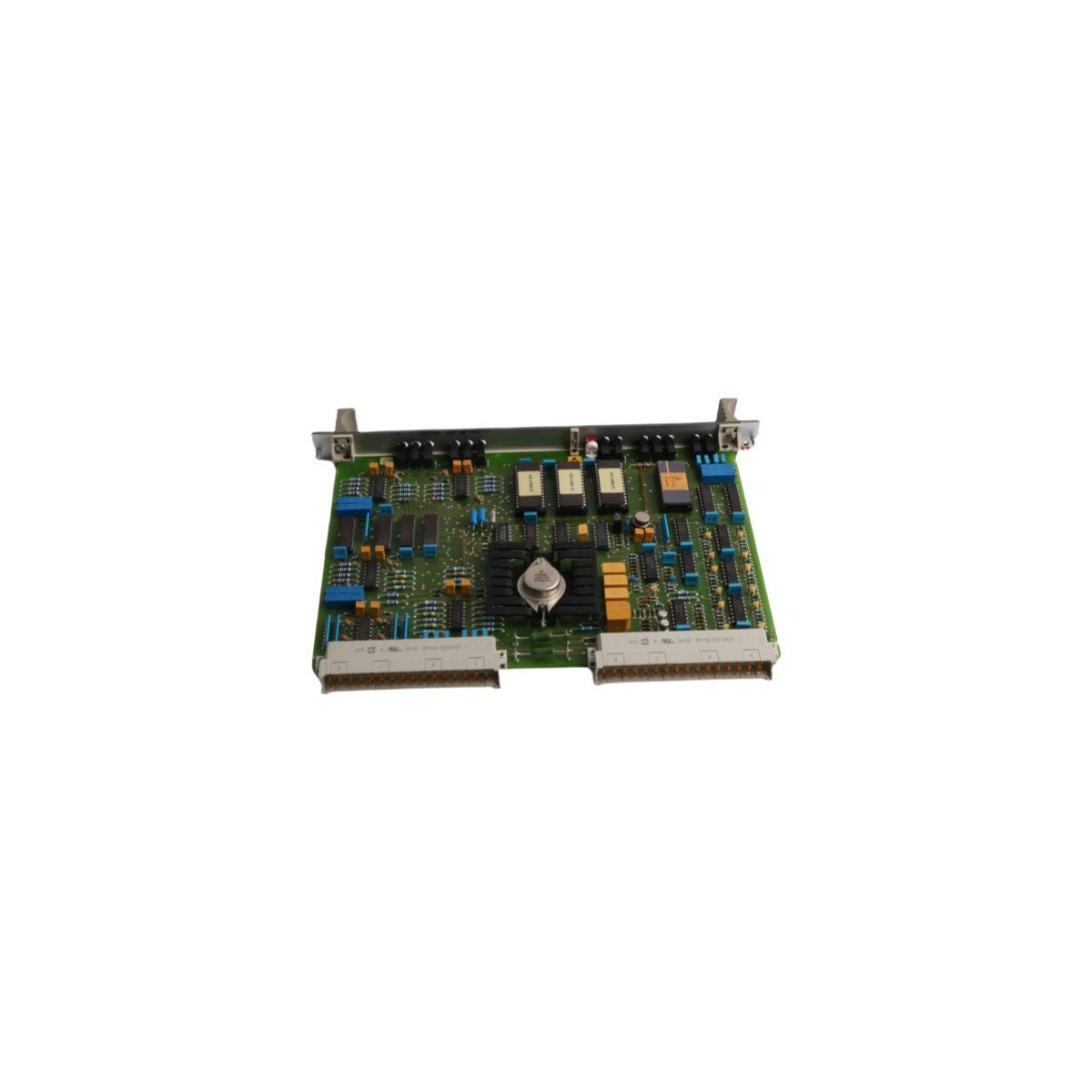

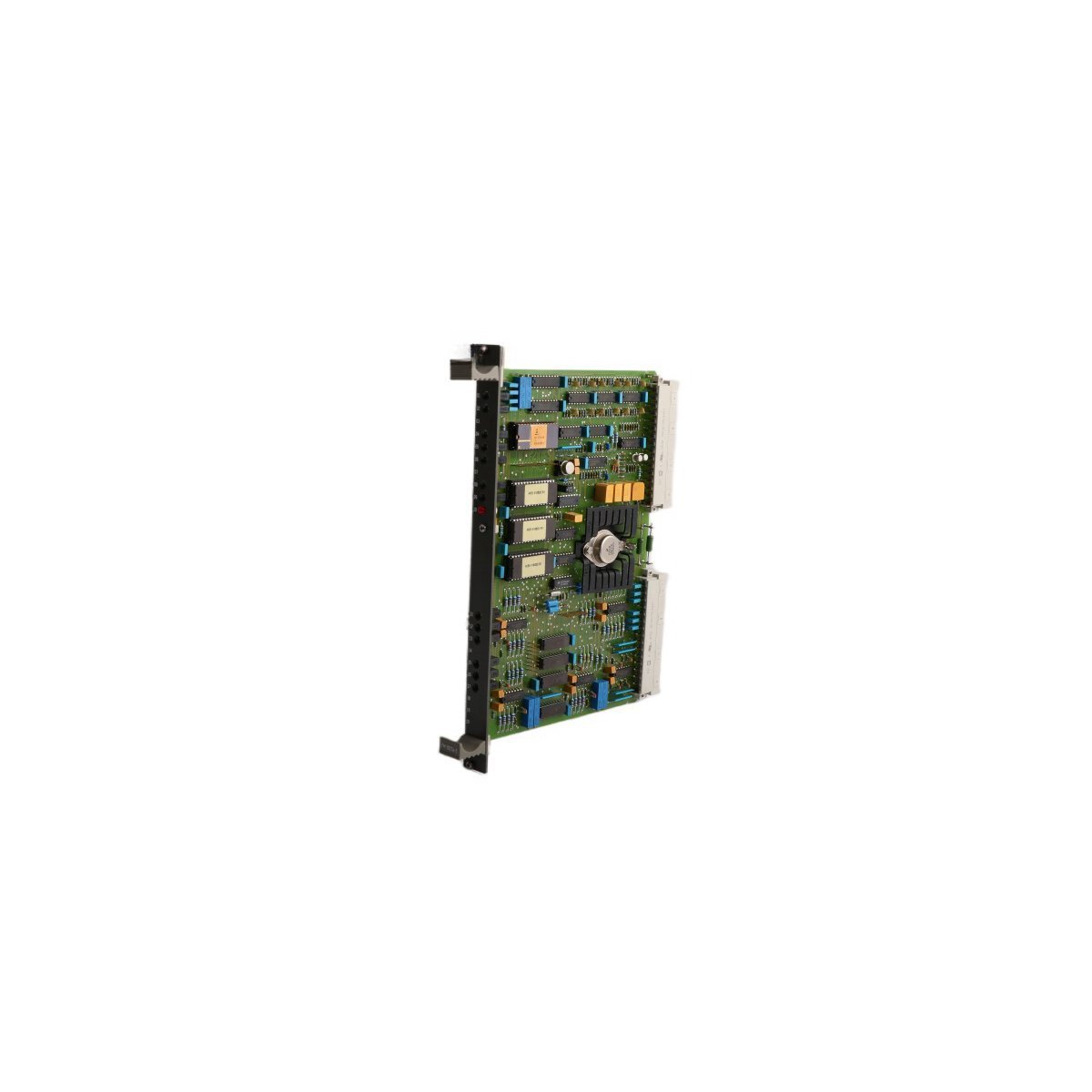

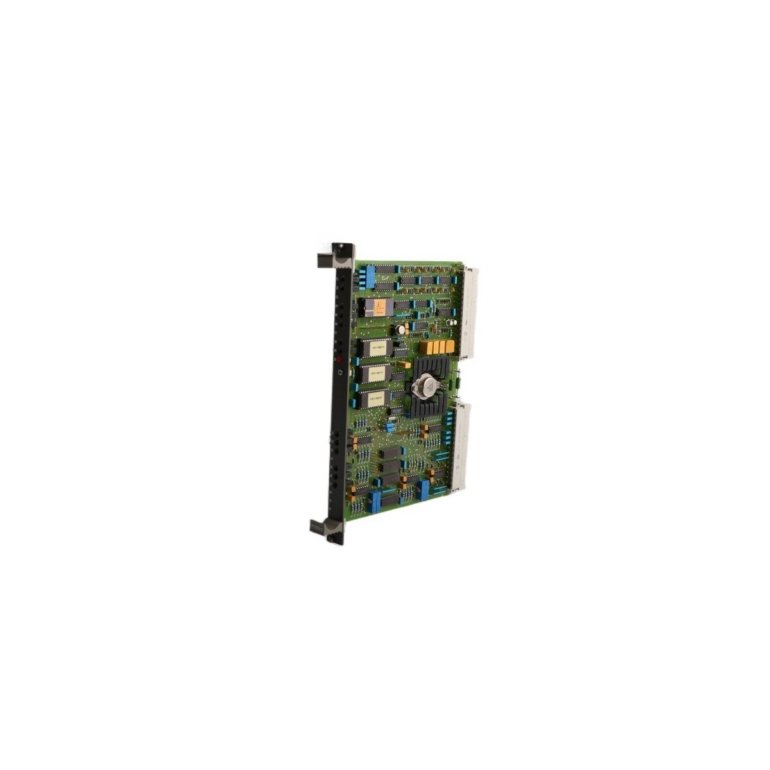

ABB HIEE451116R0001 FM9925A-E Control Module

The ABB HIEE451116R0001 FM9925A-E, also cataloged as the FM9925A-E Control Module, operates as a dedicated hardware component for closed-loop signal processing and firing pulse regulation within UNITROL Excitation Systems. The unit mounts inside the excitation system subrack, where onboard microprocessors decode real-time voltage and current telemetry. While processing primary control algorithms, the hardware streams diagnostic status frames across integrated RS485 serial ports and Ethernet router interfaces to the host DCS. Consequently, the board ensures precise field voltage execution and rapid system fault response.

Hardware Specifications

Backplane Bus Communication Velocity & Network Integrity

The control board relies on backplane bus communication velocity licenses to govern high-speed data transfers across the UNITROL internal rack bus. Integrated optocouplers maintain galvanic channel-to-channel isolation, which shields processing components from field-side voltage spikes and noise. Concurrently, onboard logic engines process incoming RS485 and Ethernet router streams without introducing protocol translation latencies. Firmware flash compatibility allows maintenance personnel to update operating system binaries directly over the network bus, thereby preserving deterministic loop execution across parameter adjustments.

Frequently Asked Questions

Q: How do technicians perform firmware flash updates without removing the circuit module?

A: Technicians flash new operating system images directly across the Ethernet router port using standard ABB software utilities. The internal flash memory validates binary checksums before executing the bootloader sequence.

Q: What precautions prevent communication latencies on the onboard RS485 interface?

A: Installers must connect 120 ohm line termination resistors at both physical ends of the RS485 bus segment. This impedance matching eliminates signal reflections and maintains high data throughput during heavy excitation loop cycling.

Q: Can maintenance staff swap this control card while the subrack remains powered?

A: Operating guidelines require isolating control power before pulling the module. Hot-swapping can induce voltage transients across backplane contacts, which risks interrupting active excitation control algorithms.

Field Installation Guidelines

1. Power down the subrack assembly and verify zero voltage potential across backplane supply rails before starting card replacement procedures.
2. Attach an ESD grounding wrist strap to a bare metal point on the cabinet frame. Static discharges will damage sensitive surface-mount microprocessors during handling.
3. Slide the circuit card carefully into the designated subrack guide rails until rear multi-pin connectors align fully with the backplane receptacle.
4. Push the front panel handles firmly inward to seat the backplane contacts, then tighten the top and bottom retaining screws to 0.4 Nm.
5. Route RS485 shielded twisted-pair cables and Ethernet lines through designated wire trays. Maintain at least 200 mm physical separation from heavy power busbars to avoid electromagnetic coupling.
6. Ground cable shield drain wires at the cabinet ground bar, ensuring a minimum thread engagement of 5 full turns on grounding studs before restoring system power.
