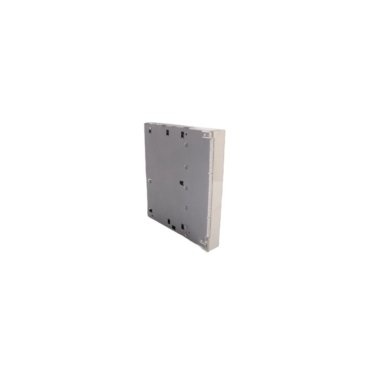

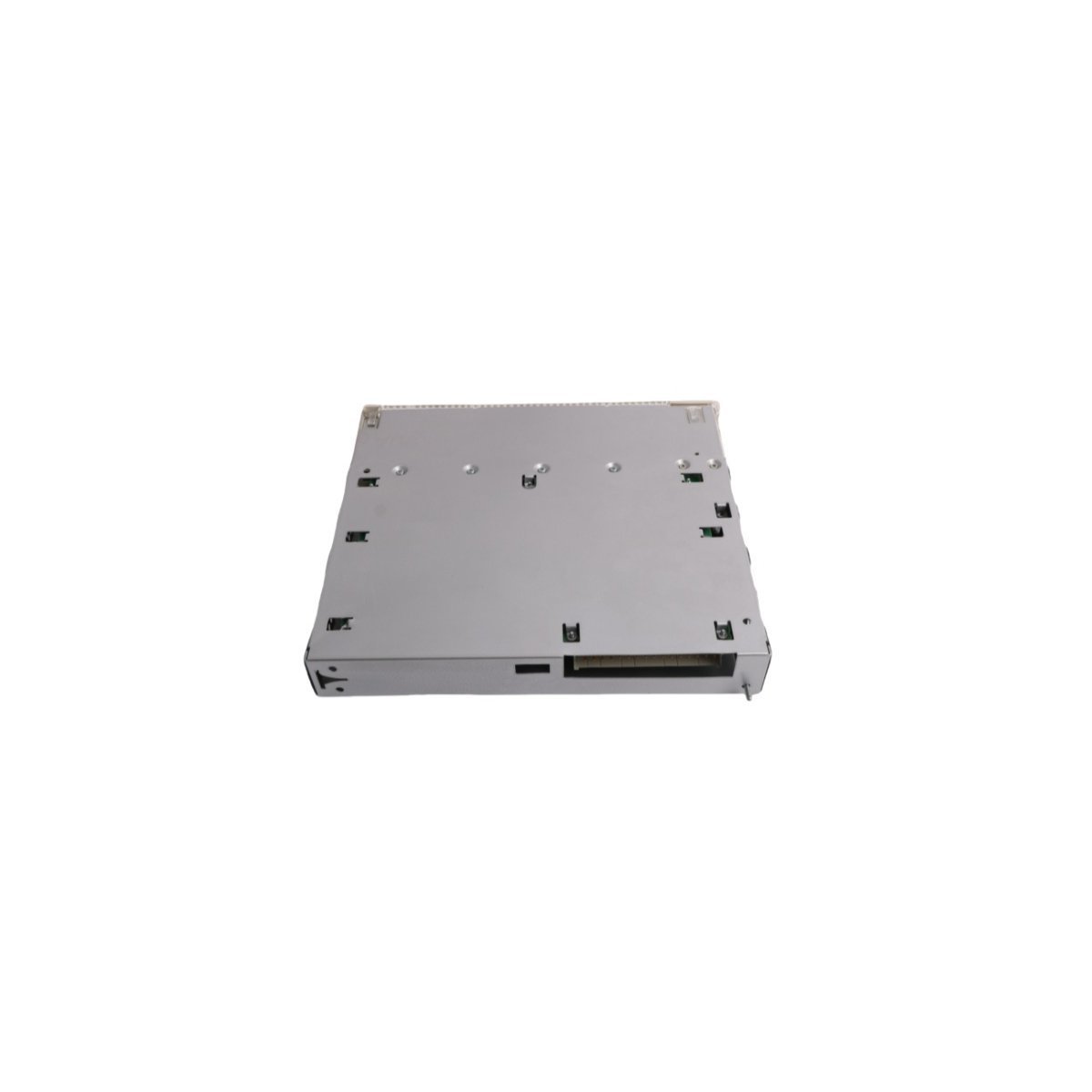

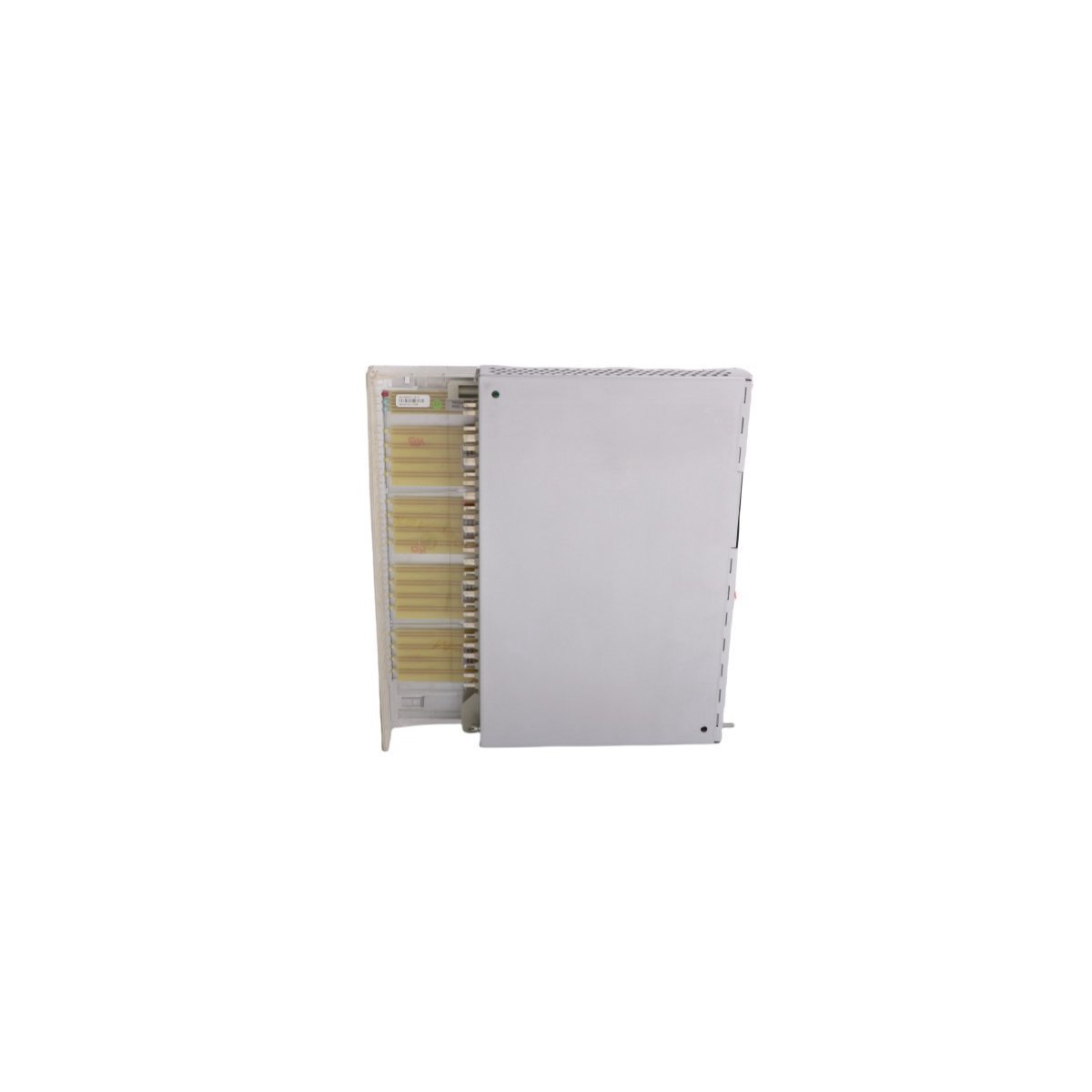

The ABB DO630 (3BHT300007R1) provides high-performance binary signal switching for complex industrial automation. This module translates internal controller logic into physical output states to drive field equipment. It features 16 independent channels designed to manage 250V AC loads efficiently. Consequently, the unit allows for precise control of relays, actuators, and motor starters. This hardware serves as a critical link between central processing and field-level execution.
Superior Hardware Protection and Longevity
ABB engineers utilized high-grade industrial materials to ensure maximum durability in stressful environments. The DO630 includes an IP65-rated frontal protection to resist dust and moisture ingress. Furthermore, the robust 1.28kg chassis maintains structural integrity during high-vibration operations. This protective design significantly reduces the need for frequent maintenance or part replacement. As a result, operators experience consistent reliability in both indoor and outdoor cabinet installations.
Optimized Integration and System Expansion
The DO630 module features a compact form factor for high-density DIN-rail or rack mounting. Its lightweight construction simplifies the installation process for technicians in the field. Moreover, the modular interface supports fast configuration within existing S600 I/O architectures. This flexibility facilitates rapid system scaling without requiring extensive hardware overhauls. The unit also communicates effectively through Ethernet routers for centralized status monitoring.
Technical Specifications
- Brand: ABB
- Model: DO630
- Order Number: 3BHT300007R1
- Product Type: Digital Output Module
- Channel Count: 16 Channels
- Maximum Output Voltage: 250V AC
- Protection Rating: IP65 (Frontal)
- Product Series: S600 I/O
- Net Weight: 1.28 kg
- Dimensions: 4 x 26.1 x 27 cm
- Manufacturing Origin: Sweden
