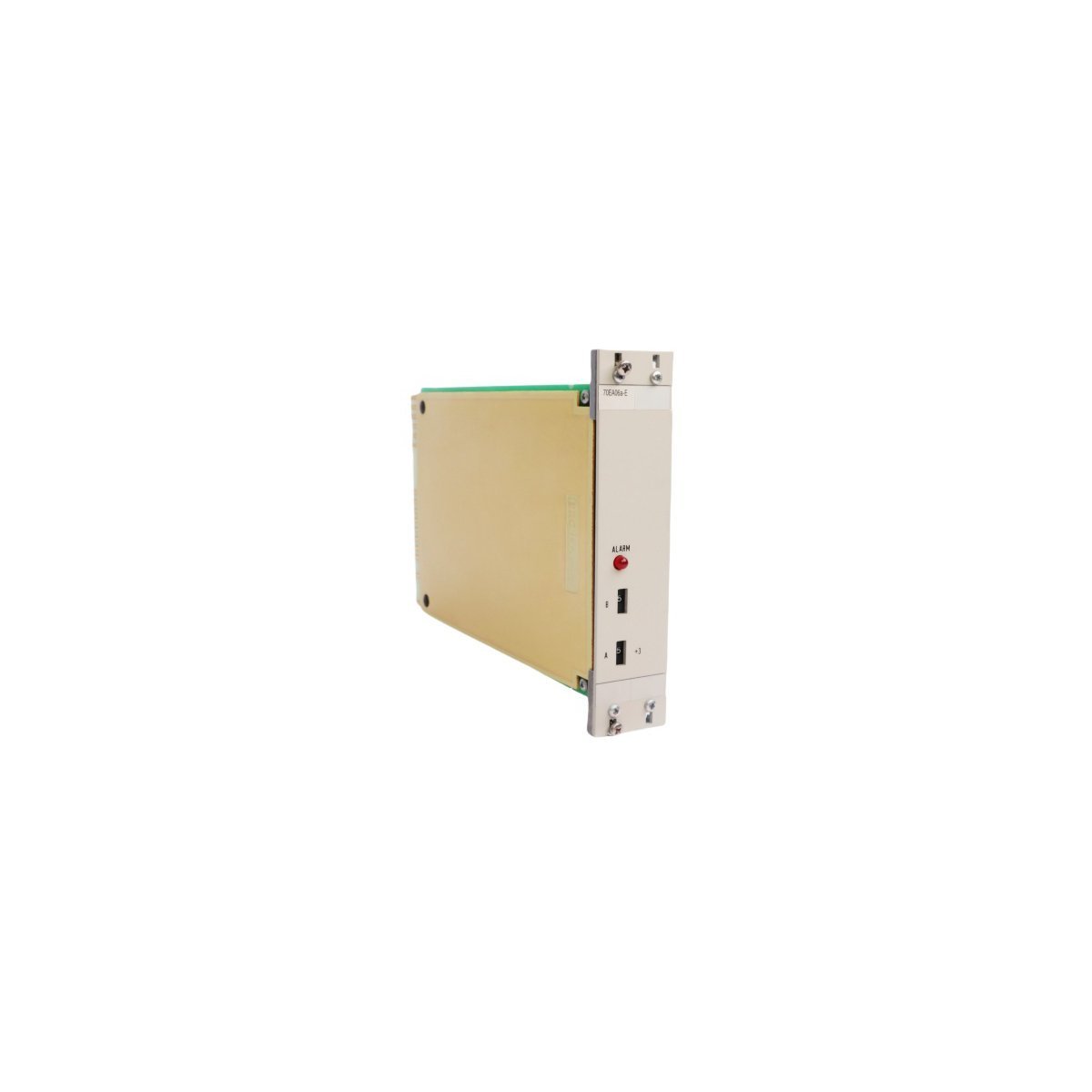

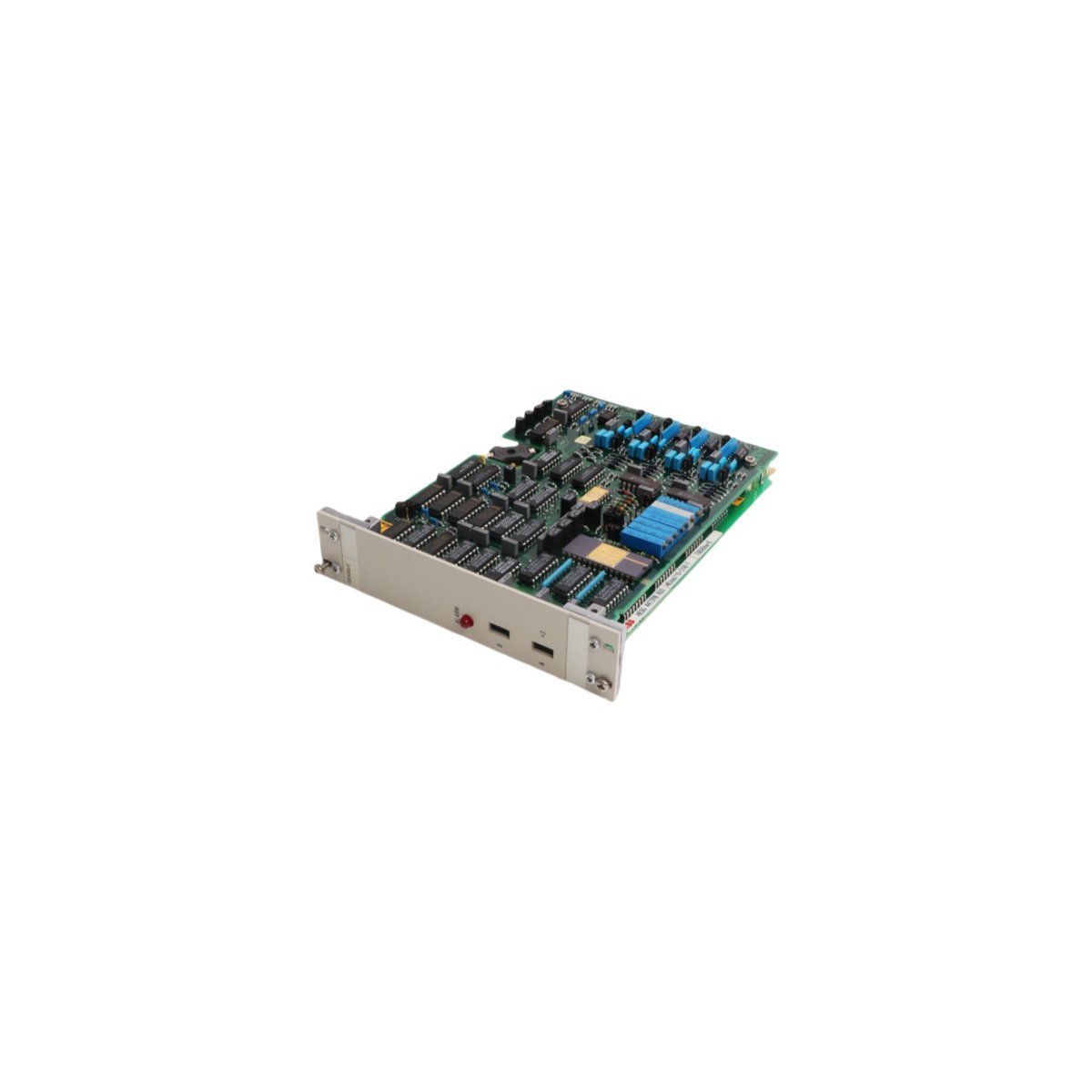

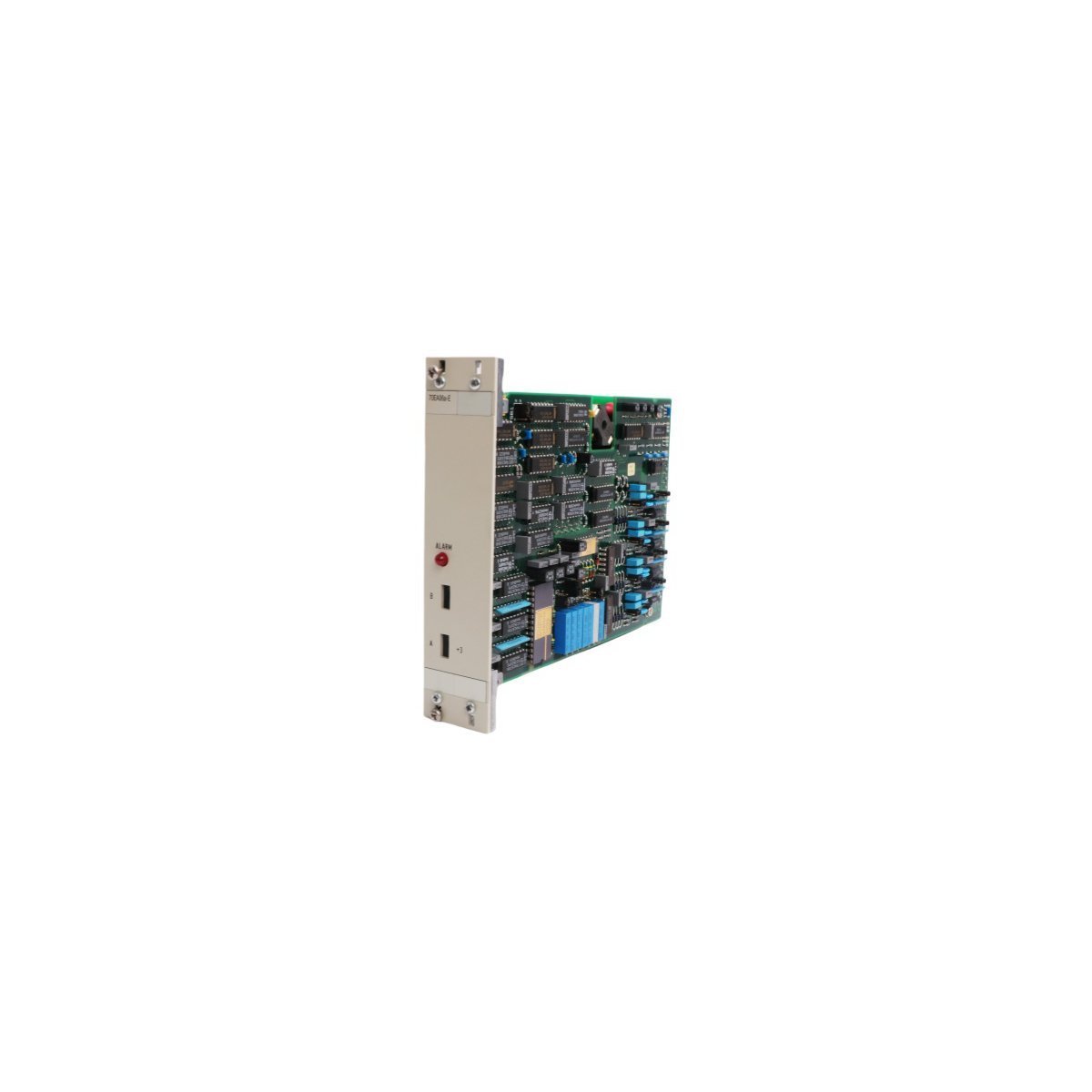

The ABB HESG447398R20 serves as a specialized analog input interface for the Procontrol P13 system architecture. This module captures continuous variables from field sensors to monitor critical plant parameters. It precisely converts incoming electrical currents or voltages into digital values for the DCS processor. Consequently, the unit enables real-time observation of pressure, temperature, and flow rates. This reliable data flow supports the stable operation of large-scale power generation facilities.
Precision Engineering and Thermal Stability
Engineers developed the 70EA06A-E module to maintain high accuracy across varying industrial conditions. The hardware features advanced signal filtering to eliminate electromagnetic interference from the environment. Furthermore, the Sweden-made internal circuitry operates efficiently within broad temperature ranges. This thermal resilience prevents signal drift during intense manufacturing cycles. The 0.42kg robust chassis provides excellent protection for the sensitive electronic components inside.
System Integration and Communication Capabilities
This module integrates seamlessly into existing Procontrol P13 racks via standard bus connectors. It supports efficient data exchange protocols to ensure rapid updates to the controller. Moreover, the user-friendly terminal design facilitates quick wiring during initial setup or maintenance. These features allow technicians to minimize installation errors and reduce commissioning time. The unit also communicates effectively with external Ethernet routers for remote system monitoring.
Technical Specifications
- Brand: ABB
- Model Number: HESG447398R20
- Alternative Code: 70EA06A-E / HE666710-318/1
- Product Series: Procontrol P13
- Module Type: Analog Input
- Net Weight: 0.42 kg
- Chassis Dimensions: 3.4 x 20.0 x 14.8 cm
- Manufacturing Origin: Sweden
- System Category: Distributed Control System (DCS)
