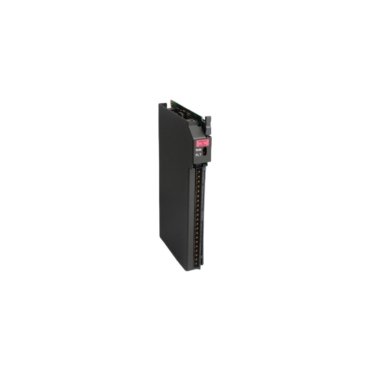

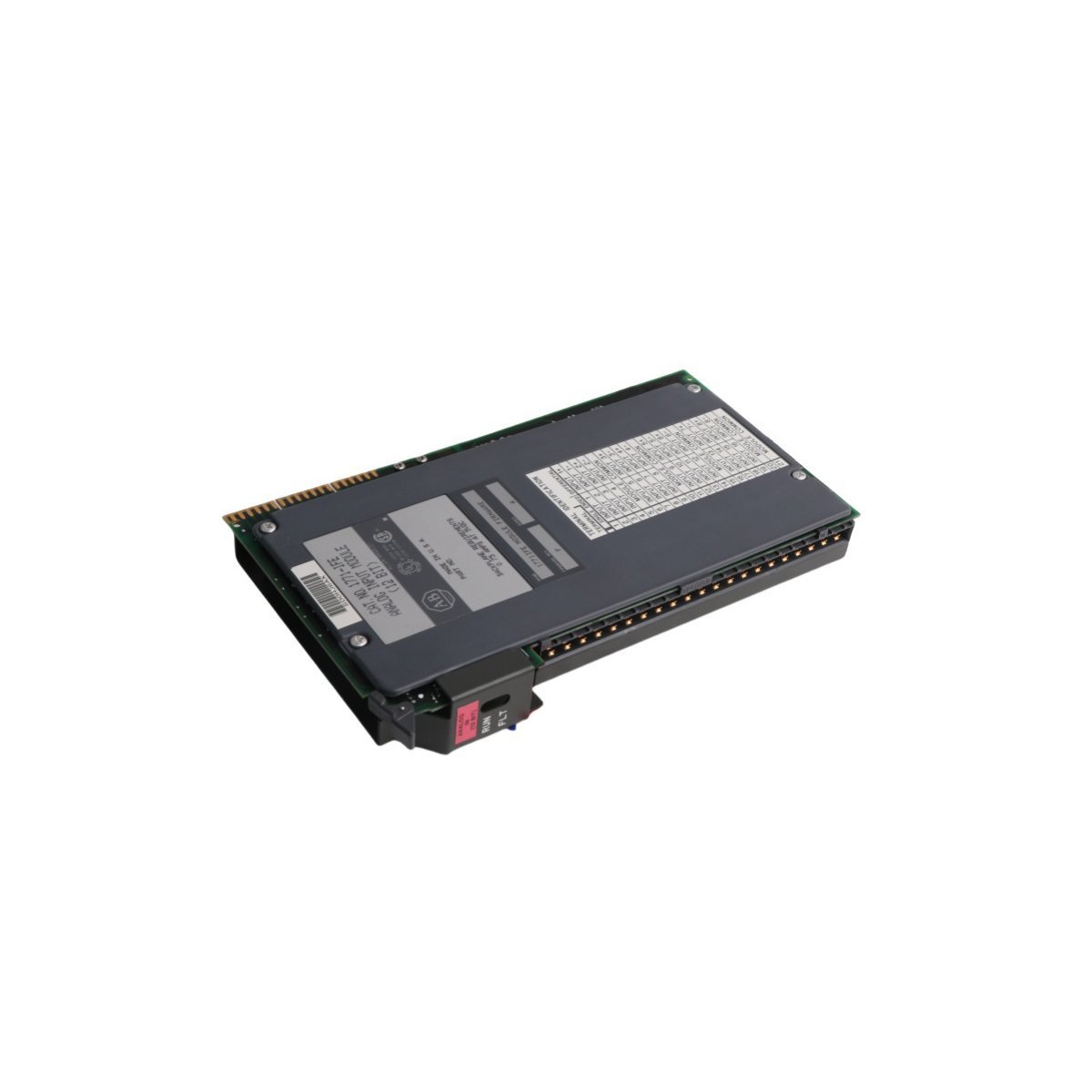

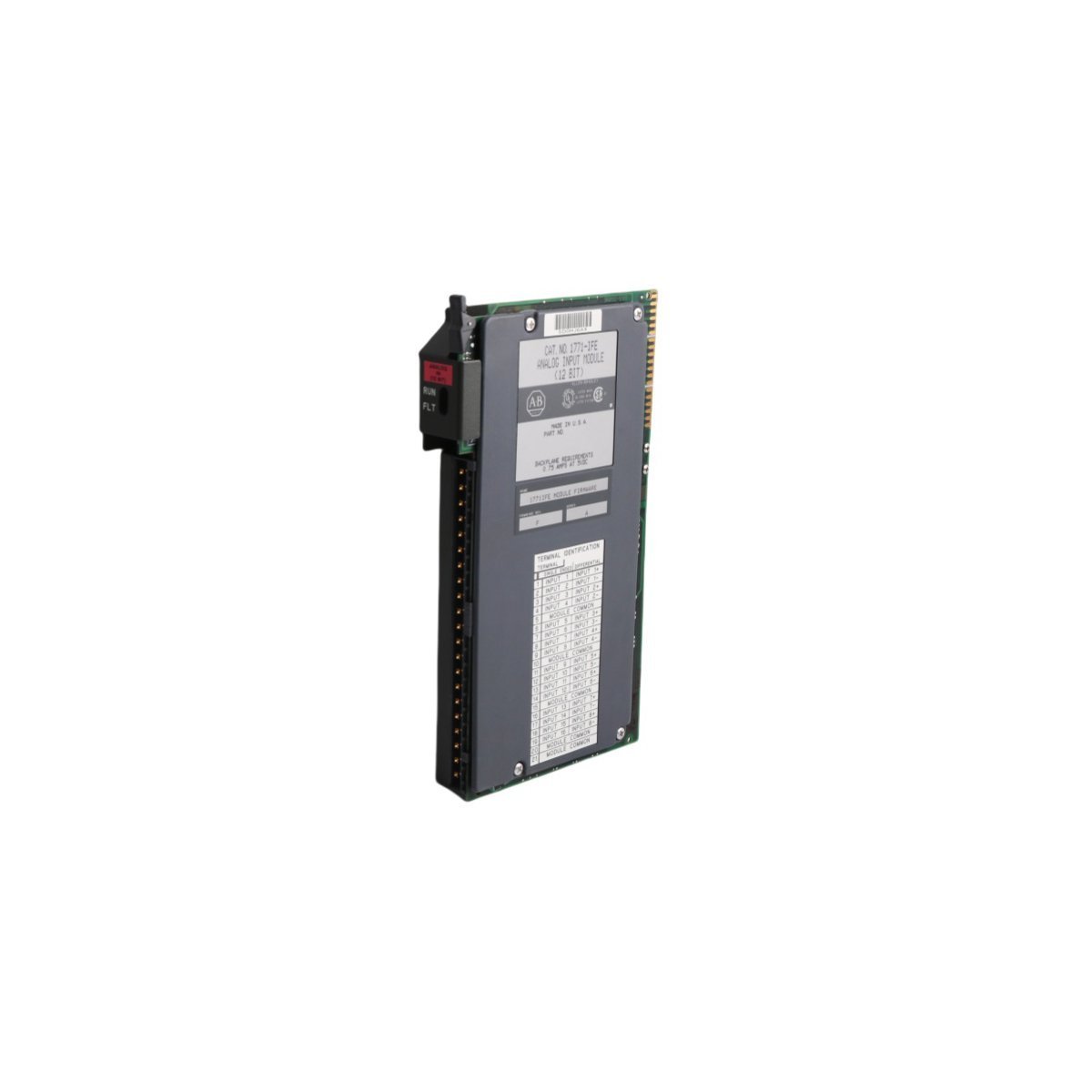

Allen Bradley 1771-IFE Analog Input Module

Technical Specifications

Key Operational Characteristics

• Flexible Signal Compatibility: The module accepts a wide variety of standard industrial signal types, including both bipolar and unipolar voltage/current inputs. This versatility allows engineers to standardize on a single module type for diverse sensor arrays.
• High-Speed Data Processing: Internal circuitry manages rapid sampling rates, achieving 8ms for 8 channels or 36ms when utilizing all 16 channels. This speed ensures that the PLC-5 processor receives real-time updates for fast-moving process variables.
• Intelligent Data Scaling: Users can select between Natural Binary for raw data processing or BCD for human-readable scaled values (±9999). This reduces the programming burden on the main CPU by handling data conversion at the module level.
• Robust Hardware Protection: The 1771-IFE utilizes specific mechanical keying (pins 10-12 and 24-26) to prevent accidental insertion into an incompatible chassis slot. Furthermore, the 1771-WG wiring arm allows for “hot-swapping” the electronics without disturbing the field terminal connections.
• Proactive Diagnostics: Integrated status indicators on the front panel provide immediate visual feedback. A green RUN LED confirms normal operation, while a red FAULT LED alerts maintenance staff to internal hardware issues or communication errors.
