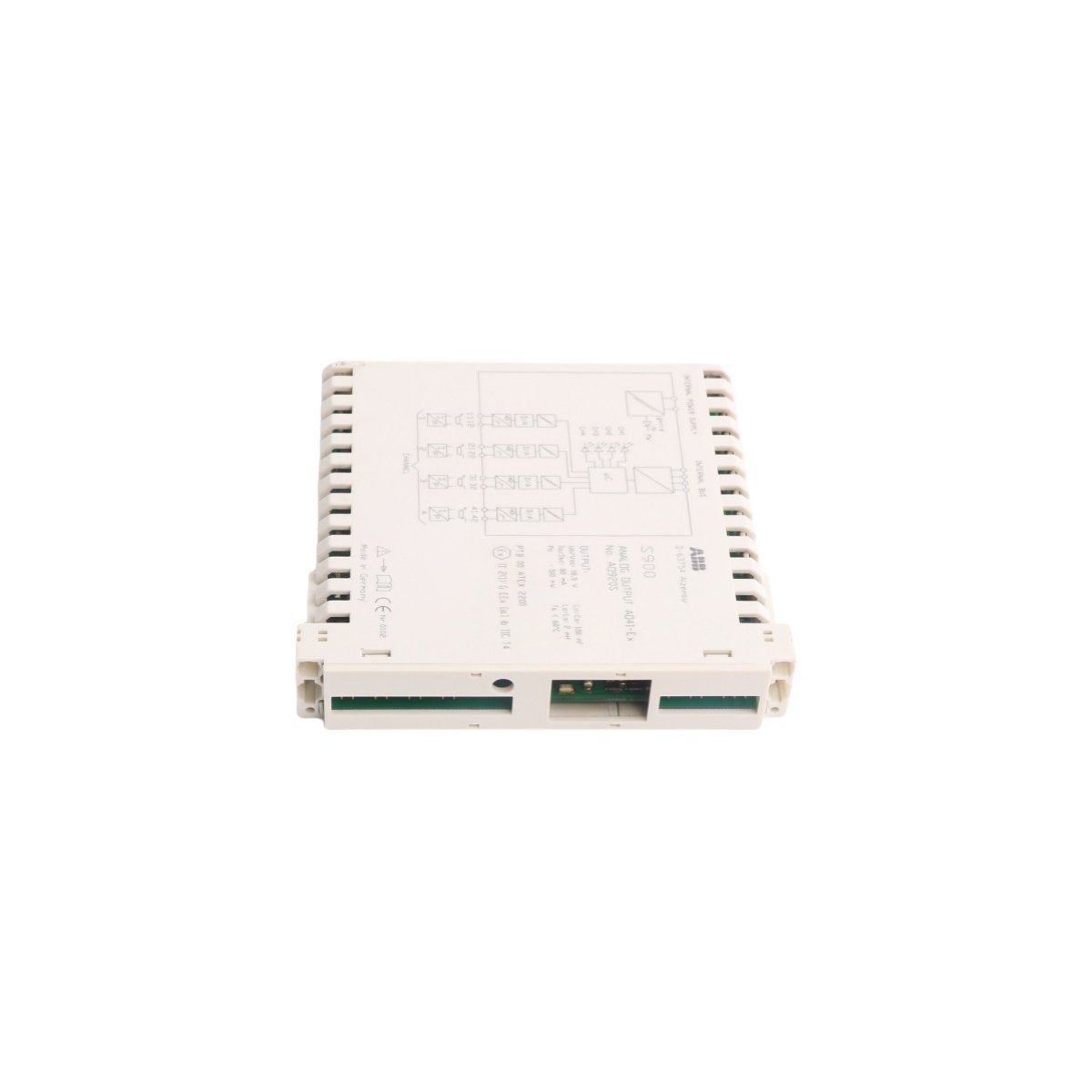

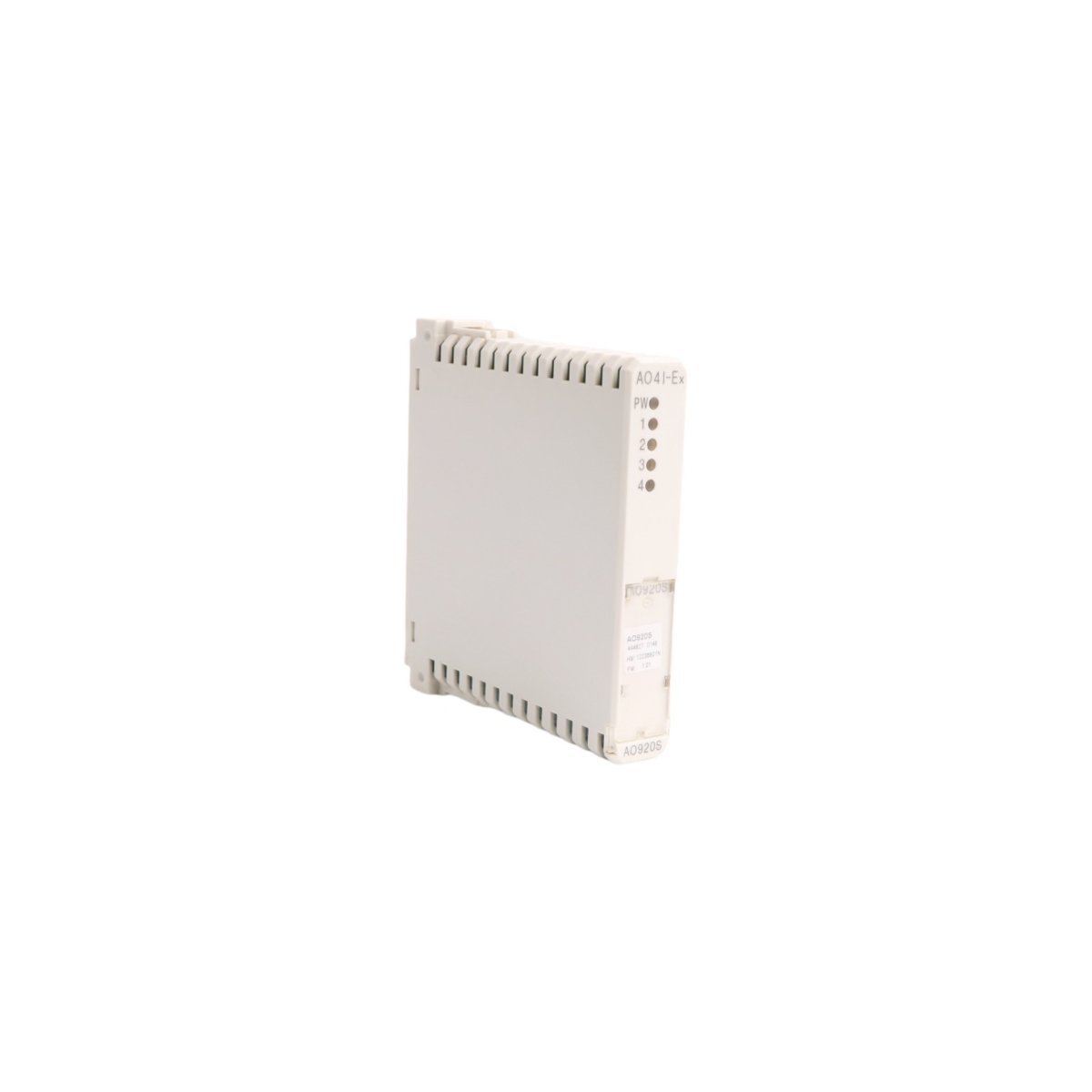

The ABB AO920S (3KDE175531L9200) serves as a high-integrity interface for the S900 Remote I/O system. This module converts digital control commands into precise analog signals for field instruments. It primarily drives proportional valves, actuators, and positioners in complex process loops.
Furthermore, the module provides galvanic isolation between the system bus and field devices. This barrier prevents ground loops and protects the DCS from external electrical faults. Consequently, the unit ensures stable operation within hazardous and noisy industrial environments.
Core Technical Specifications
- Product Range: S900 Remote I/O
- Model Designation: AO920S
- Order Reference: 3KDE175531L9200
- Output Signal Types: 0-20 mA / 4-20 mA
- Supply Voltage: 24 V DC
- Protection Class: IP20 Enclosure
- Module Mass: 0.12 kg
- Casing Dimensions: 2 x 10.5 x 11 cm
- Operating Range: -25°C to +60°C
- Origin: Sweden
Operational Accuracy and Versatility
The AO920S supports standard current loops to ensure compatibility with global automation standards. It maintains high signal linearity for superior control of critical process variables. Additionally, the internal circuitry minimizes current consumption to reduce heat buildup in small enclosures.
Moreover, the hardware allows for flexible software configuration through the control system. Engineers can adjust output parameters without changing physical wiring or hardware jumpers. This digital adaptability simplifies the commissioning process for large-scale industrial projects.
