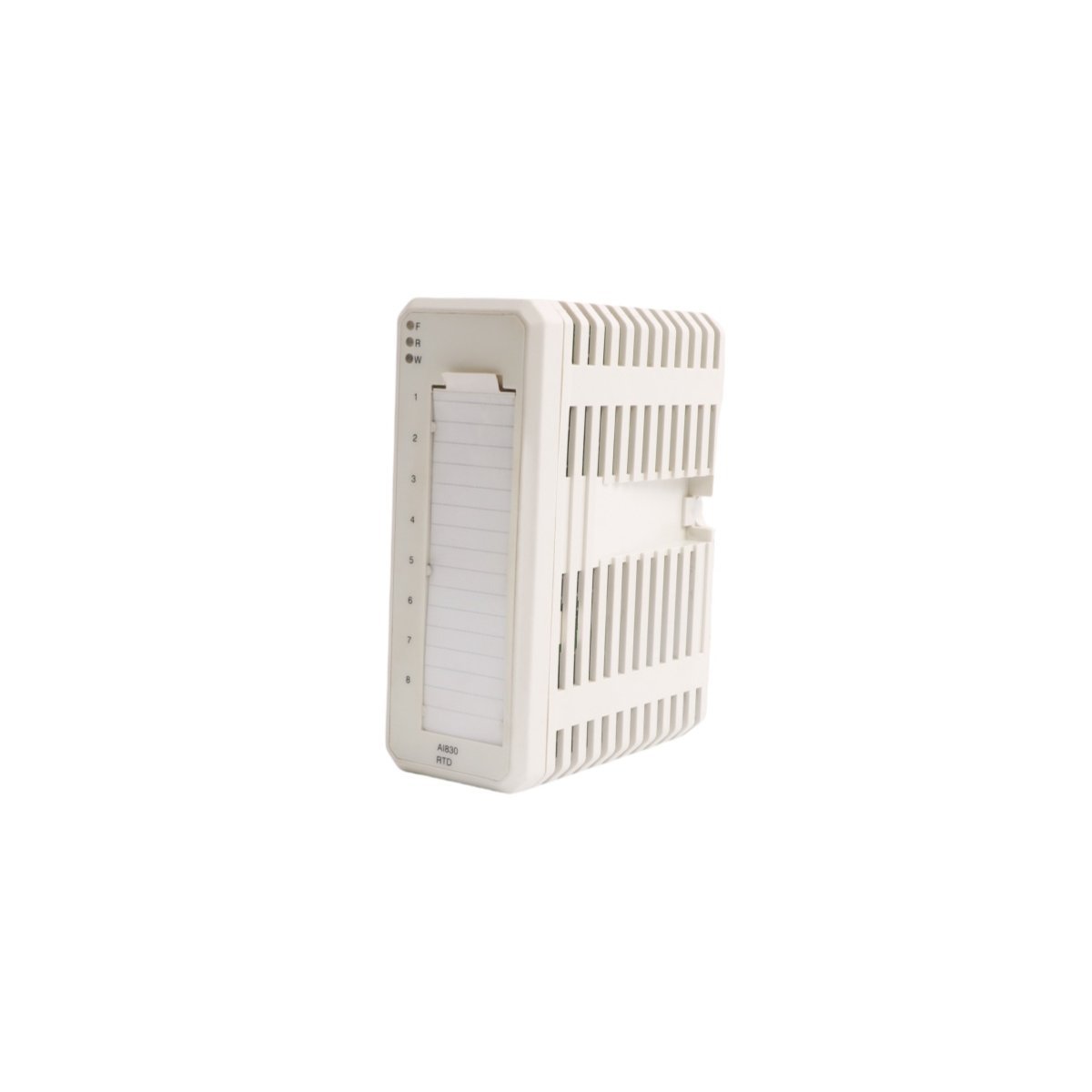

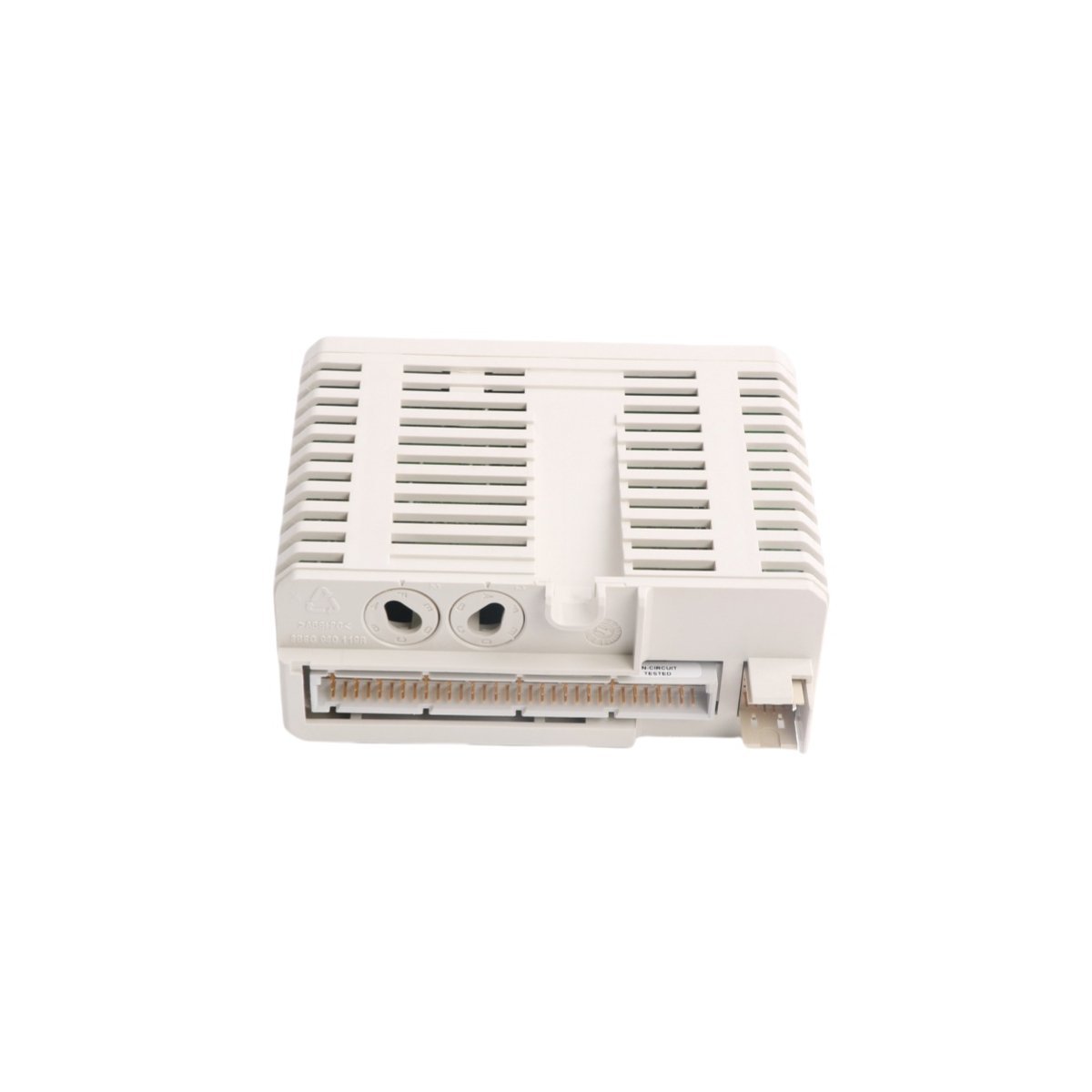

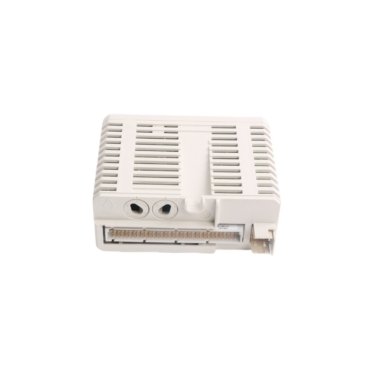

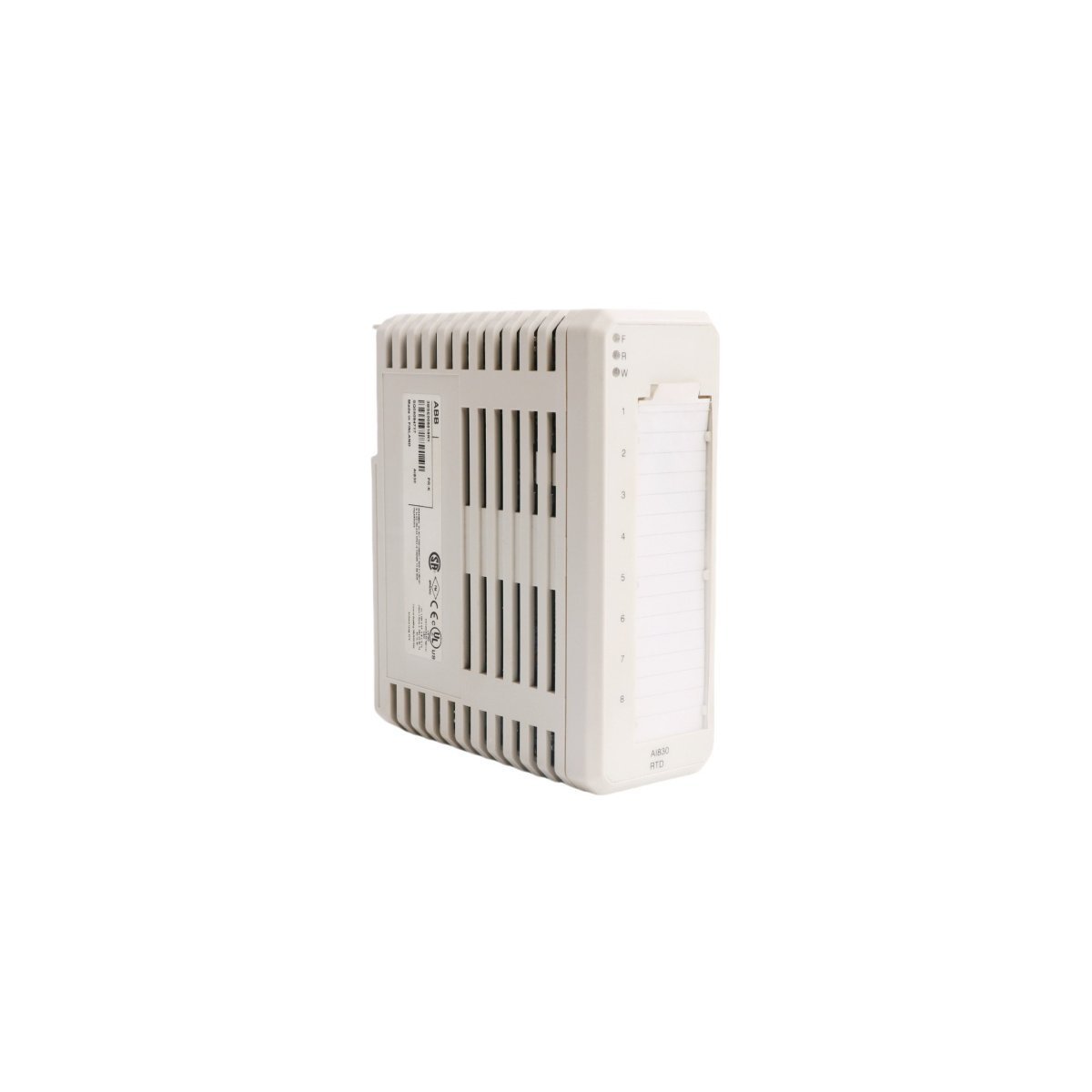

ABB AI830 3BSE008518R1 Analog Input Module

The ABB AI830 functions as a specialized measurement interface within the Advant OCS and 800xA control architectures. This module provides eight dedicated channels for Resistance Temperature Detector (RTD) sensors. It supports a variety of sensor types including Pt100, Ni100, Ni120, and Cu10 elements. Furthermore, the internal processor performs automatic linearization of raw resistance data. This ensures the system receives accurate temperature values in either Celsius or Fahrenheit. The AI830 therefore simplifies the integration of thermal sensors into complex distributed control systems.

Technical Specifications

Key Technical Characteristics

• Eight high-precision channels allow for dense temperature sensor clustering in single I/O racks.
• The 3-wire connection configuration provides effective compensation for lead wire resistance.
• Configurable mains frequency filters (50Hz/60Hz) actively suppress electrical noise and signal hum.
• Individual channel configuration enables the use of different RTD types on one module.
• High-resolution analog-to-digital conversion ensures stable readings for sensitive process loops.
• The compact Sweden-made hardware occupies minimal DIN-rail space within control cabinets.
• Integrated diagnostics identify sensor lead breaks or short circuits during active operation.
• Galvanic isolation protects the system bus from field-side electrical surges and ground loops.

Practical Applications and Utility

Engineers typically implement the AI830 in chemical processing, power plants, and oil refineries. The module excels at monitoring bearing temperatures, reactor vessels, and ambient environmental conditions. Because it handles multiple RTD types, it offers great flexibility for diverse sensor networks. Although this specific model is now a legacy part, it remains vital for maintaining existing S800 I/O installations. Proper operation requires that all connected RTDs remain isolated from the local ground. This module continues to deliver reliable thermal data acquisition for critical infrastructure globally.
