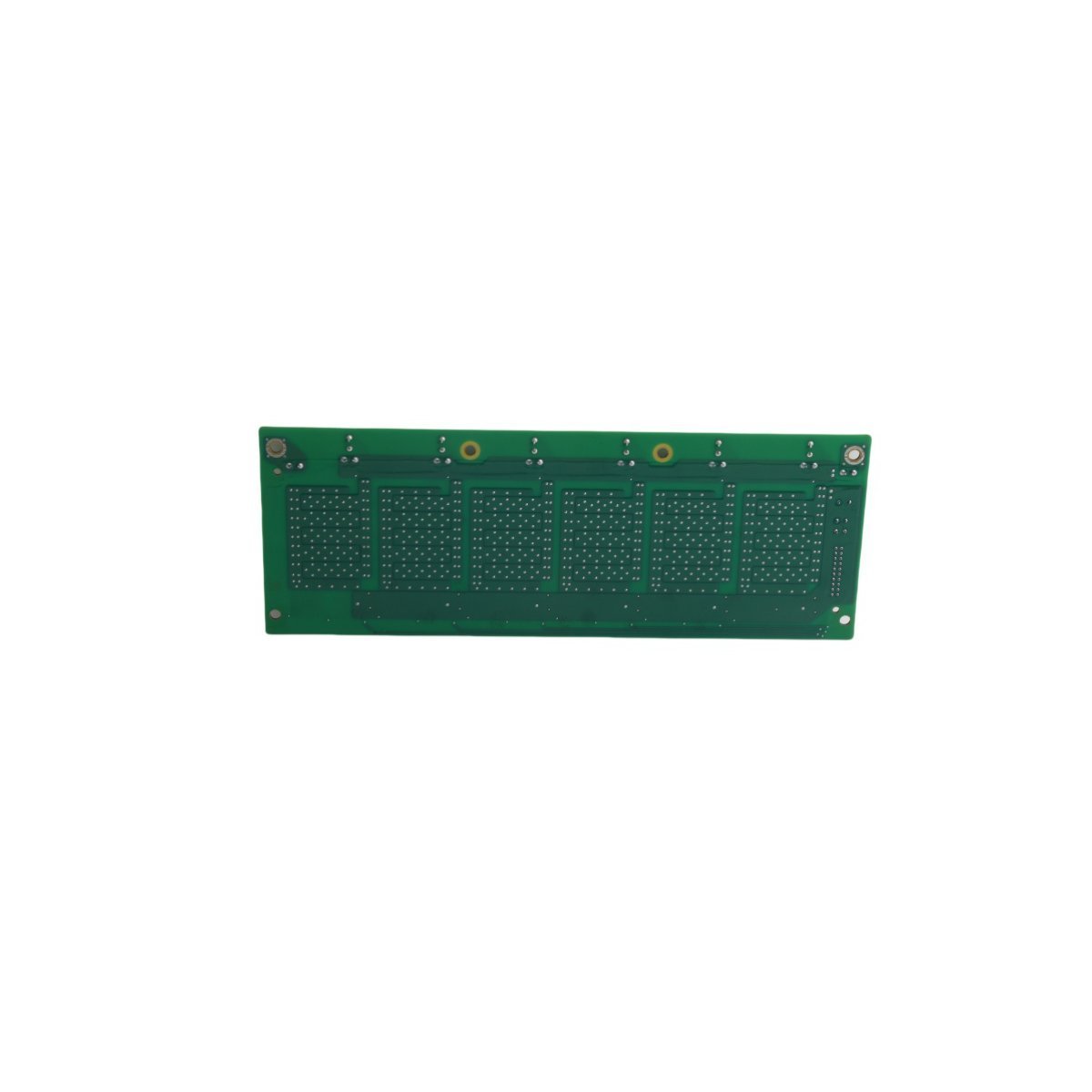

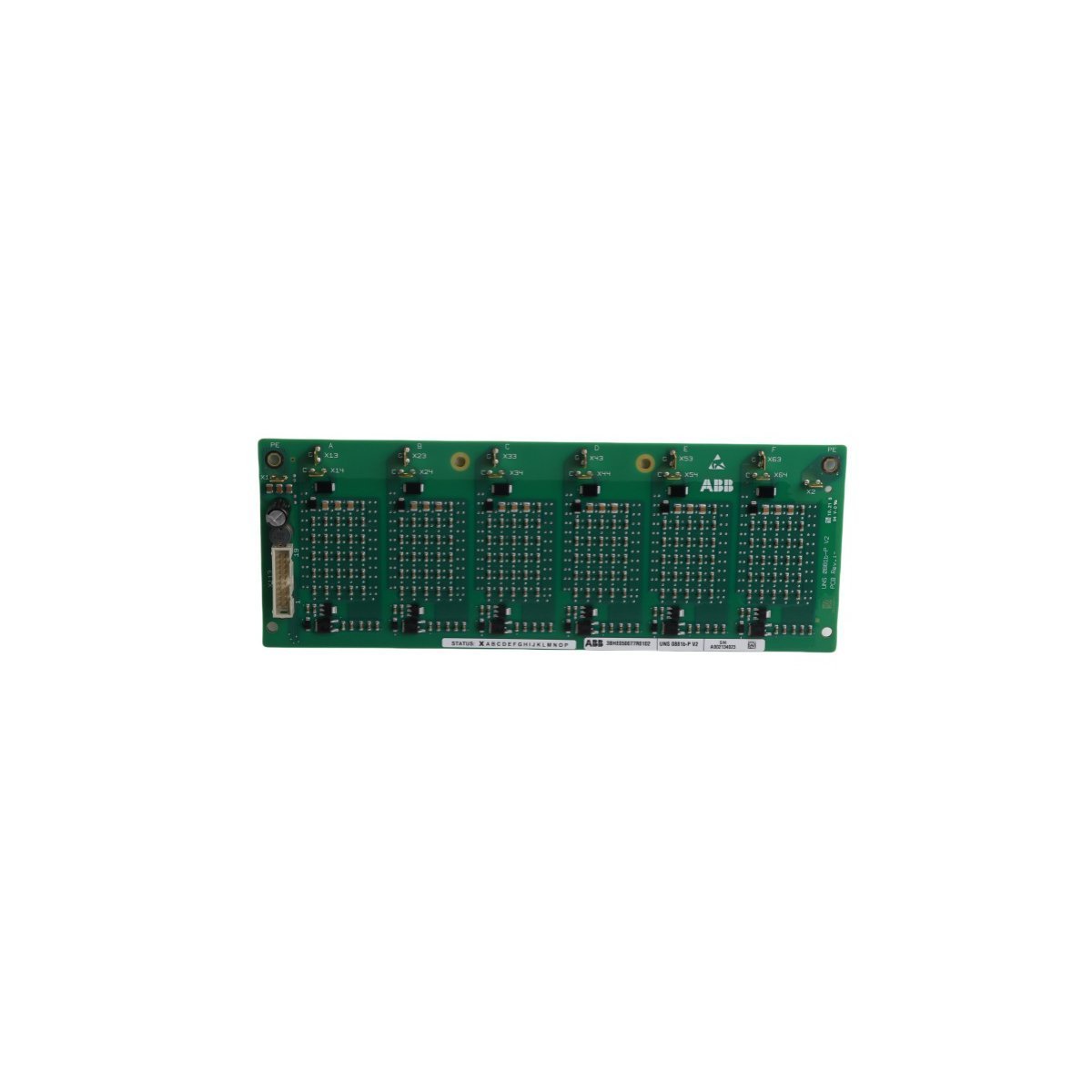

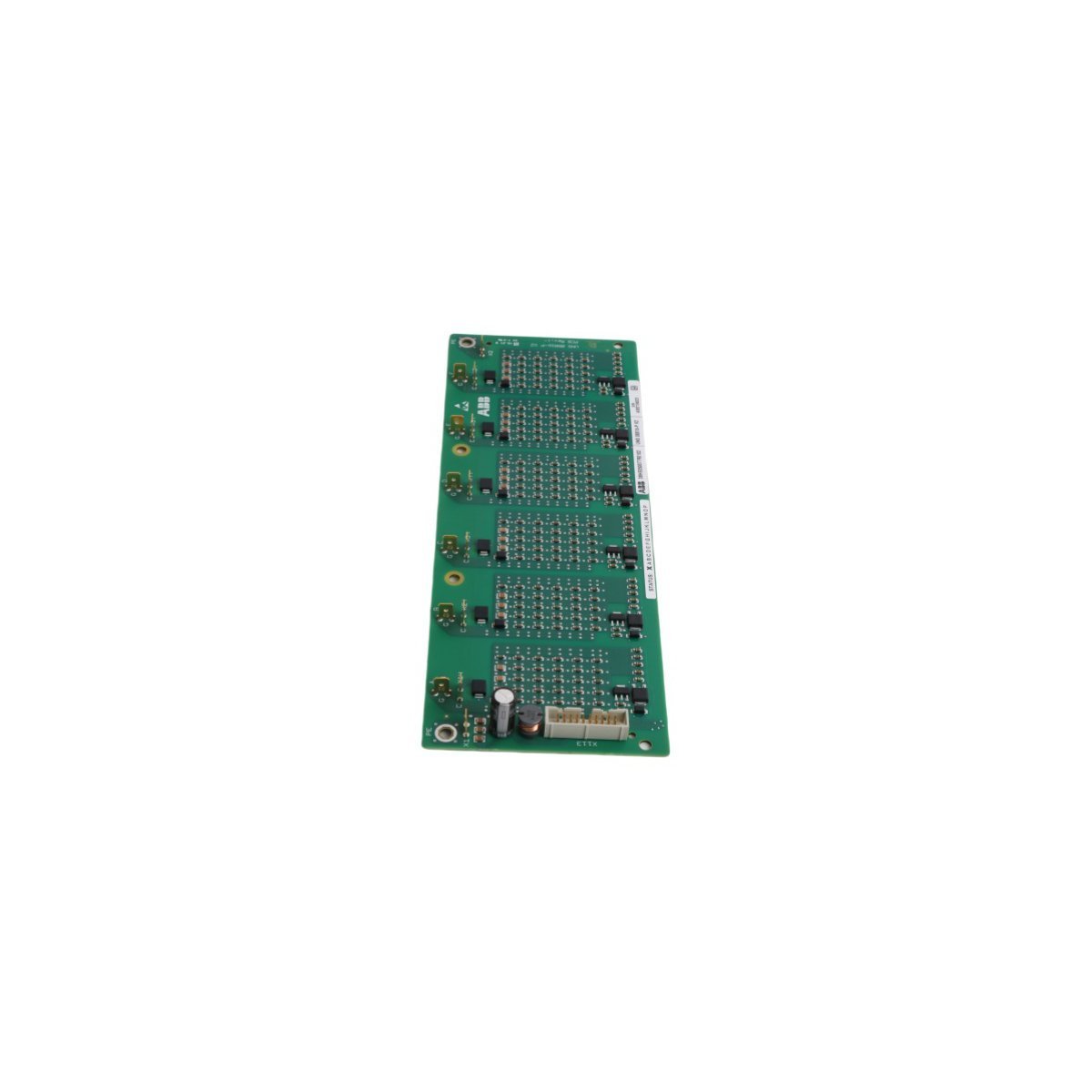

ABB 3BHE050077R0102 UNS0881B-P V2 UNITROL 1000 Control Board

ABB 3BHE050077R0102 UNS0881B-P V2 UNITROL Control Board

The ABB 3BHE050077R0102 UNS0881B-P V2, also cataloged as the UNS0881B-P V2 PCB Circuit Board, operates as a dedicated hardware component for managing complex control signals and serial communication data exchange within UNITROL 1000 Series DCS platforms. The circuit board processes digital control instructions while executing MODBUS RTU serial transmission over its dedicated RS-232 interface.

Hardware Specifications

Backplane Bus Velocity and Firmware Flash Alignment

The board maintains continuous communication across internal system racks by leveraging high backplane bus communication velocity. Onboard logic circuits execute processing subroutines while firmware flash compatibility allows engineers to synchronize system software revisions across host controllers. Furthermore, the embedded RS-232 serial interface routes Modbus frames directly to supervisory networks without introducing processing overhead or signal degradation.

Frequently Asked Questions

Q: Does the 3BHE050077R0102 UNS0881B-P V2 board support hot-swapping during active system operation?

A: No, technicians must isolate and disconnect external power supplies prior to removing the card, because pulling live printed circuit boards damages backplane gold finger contacts and disrupts serial communication loops.

Q: How do engineers configure the RS-232 serial port for MODBUS RTU execution?

A: Field personnel adjust network parameters, node addresses, and baud rates through the host software interface while ensuring physical cable lengths stay within standard RS-232 distance limits.

Field Installation Guidelines

Install the printed circuit board into the assigned rack slot using anti-static handling protocols, and secure the board retaining fasteners to establish proper chassis grounding. Connect the RS-232 serial cable using high-quality shielded twisted-pair cabling, and tie the cable shield directly to the cabinet Earth ground point at one end only to eliminate ground loops. Route low-voltage serial and signal wires away from heavy three-phase motor leads and high-power excitation lines. Maintain the IP20 environmental enclosure rating by installing the card inside a clean, dust-free industrial control cabinet with adequate airflow.
