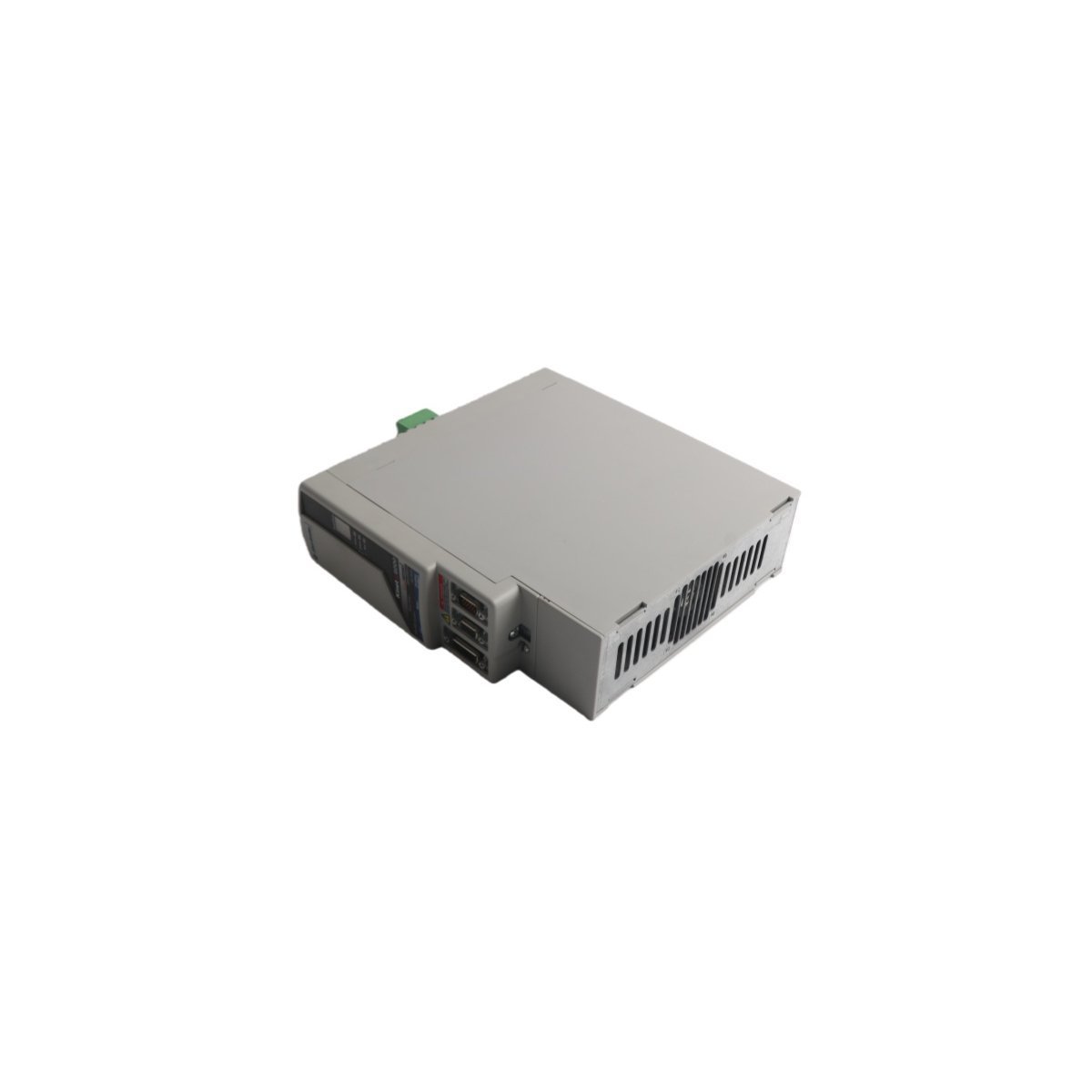

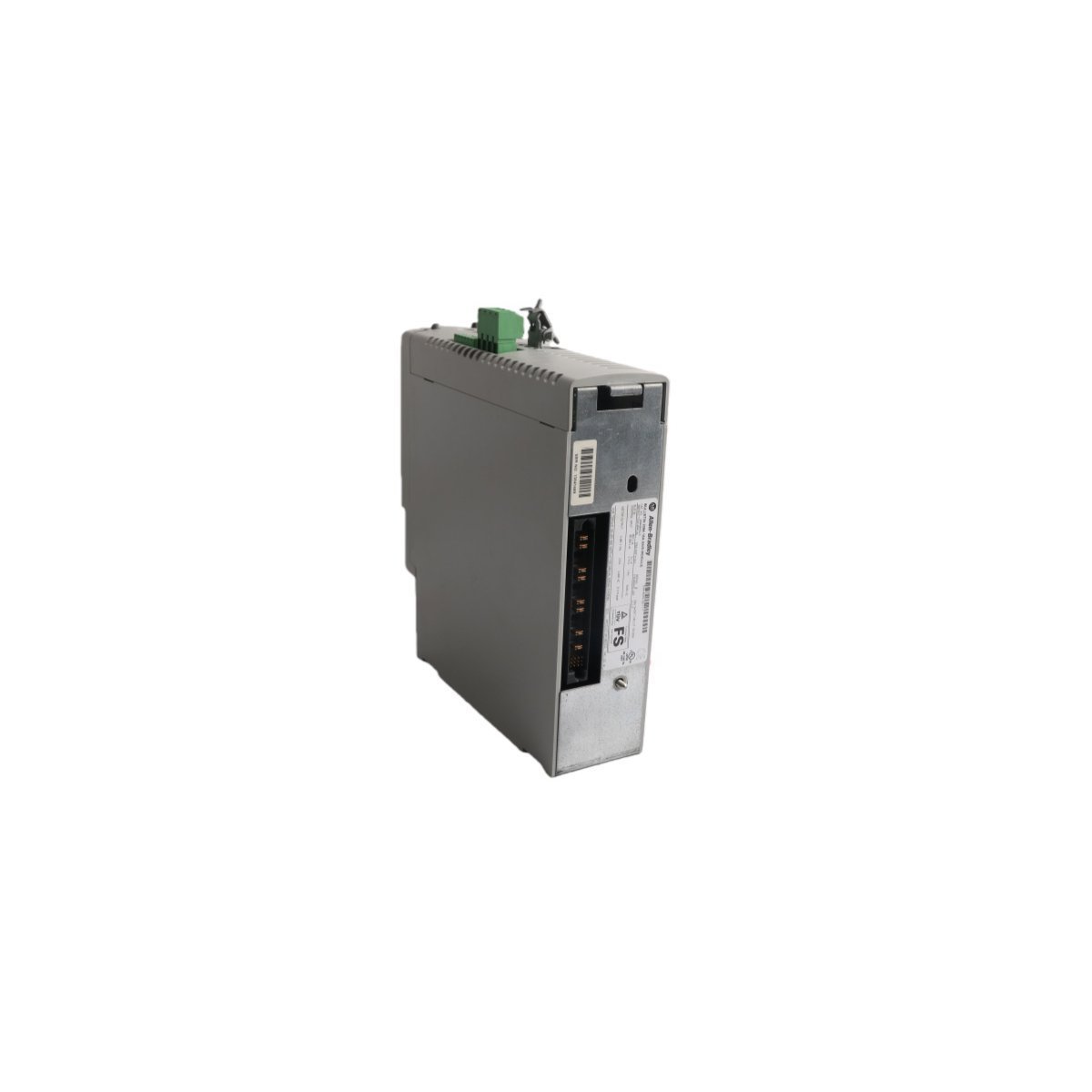

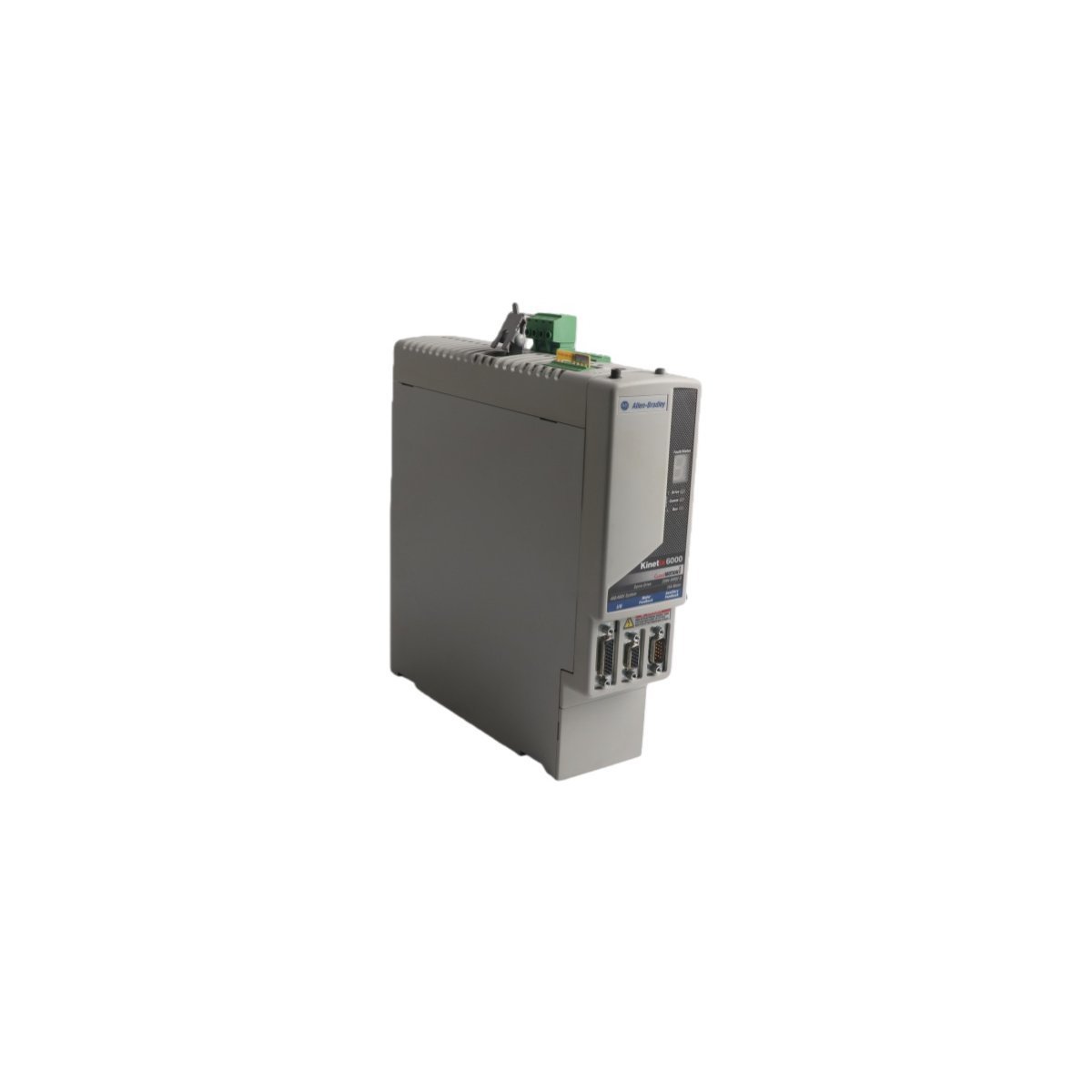

2094-BM02-M Allen-Bradley Kinetix 6000 Axis Power Module

Allen-Bradley 2094-BM02-M Kinetix 6000/6200/6500 Axis Module

Configured for precise motion control execution and integrated inverter driving within Kinetix multi-axis servo systems, the Allen-Bradley 2094-BM02-M, also cataloged as the 2094-BM02-M Axis Module, provides direct physical/electrical execution for high-performance industrial drives. It regulates motor power delivery across high-density backplane architectures while delivering integrated safety execution.

Hardware Specifications

Deterministic Ethernet & Backplane Bus Integrity

The 2094-BM02-M interfaces directly with high-speed backplane bus structures to deliver low-latency drive synchronization across EtherNet/IP and SERCOS networks. The internal logic leverages high backplane bus communication velocity to process motion commands without cycle jitter. Furthermore, the firmware flash compatibility ensures seamless firmware alignment across legacy control units and modernized EtherNet/IP control interfaces. The modular power rail interface handles severe dynamic current transitions while maintaining signal integrity across neighboring drive slots.

Frequently Asked Questions

Q: Can engineers replace the 2094-BM02-M axis module under active backplane power?

A: No, technicians must disconnect main 460 VAC three-phase power and control power before removing the module from the power rail to prevent bus arcing and control system damage.

Q: How does the power module interact with external safety hardware?

A: The module incorporates built-in Safe Torque Off (STO) and Safe Speed Monitor execution circuits, which eliminate the requirement for external power contactors or external safety relays.

Field Installation Guidelines

Mount the axis module directly onto the Kinetix power rail, ensuring that the top locking mechanism seats completely into the rail slots. Maintain a minimum vertical clearance of 50 mm above and below the housing to facilitate natural thermal heat sink dissipation. When connecting the motor power leads, route shielded cable through dedicated grounding clamps to secure a low-impedance 360-degree shield termination. Keep high-voltage AC motor cabling physically isolated from low-voltage encoder feedback lines to prevent cross-talk noise and signal corruption.
