Bently Nevada 21000-33-10-00-070-04-02 21000 Proximity Probe Housing Assemblies

Bently Nevada 21000-33-10-00-070-04-02 Proximity Probe Housing Assemblies

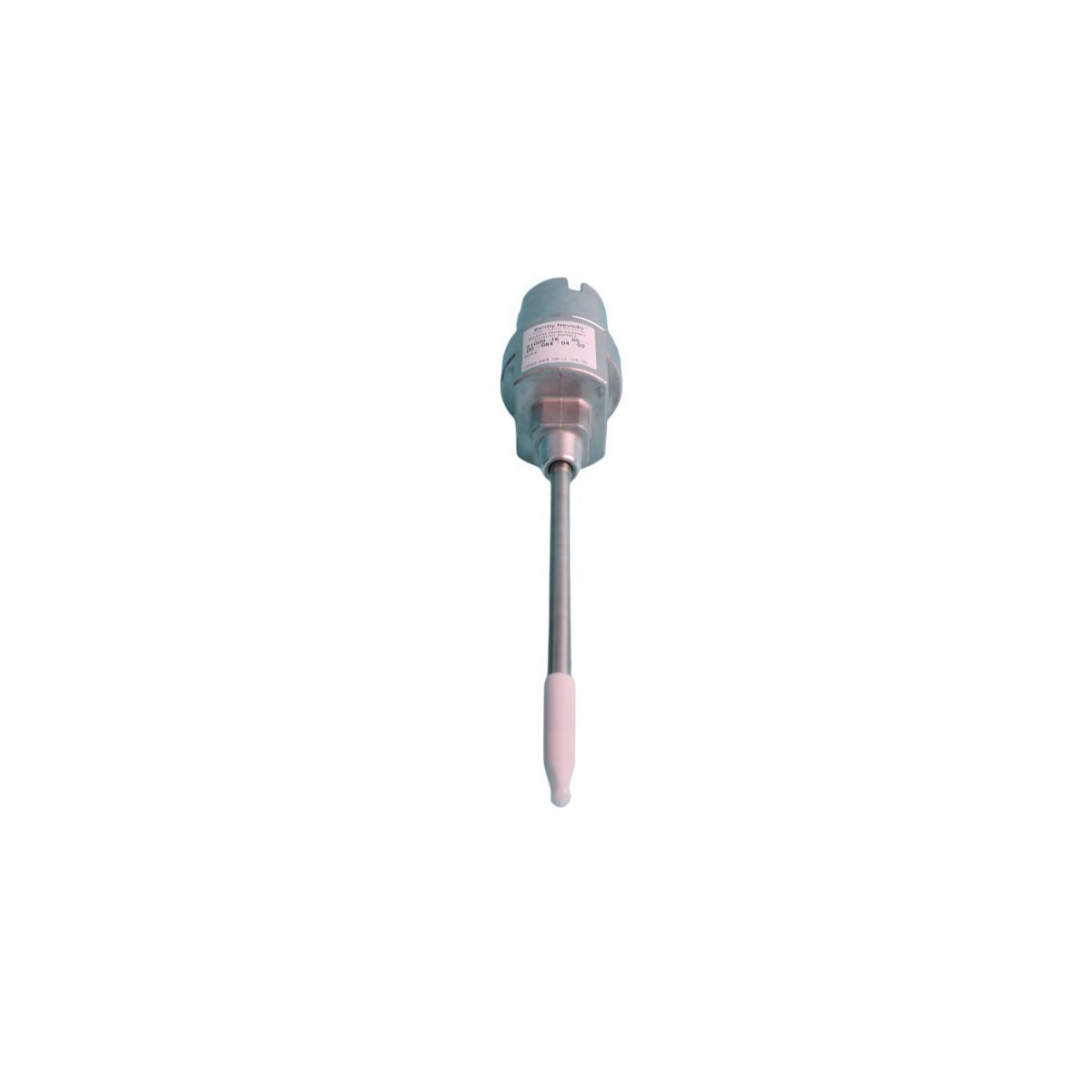

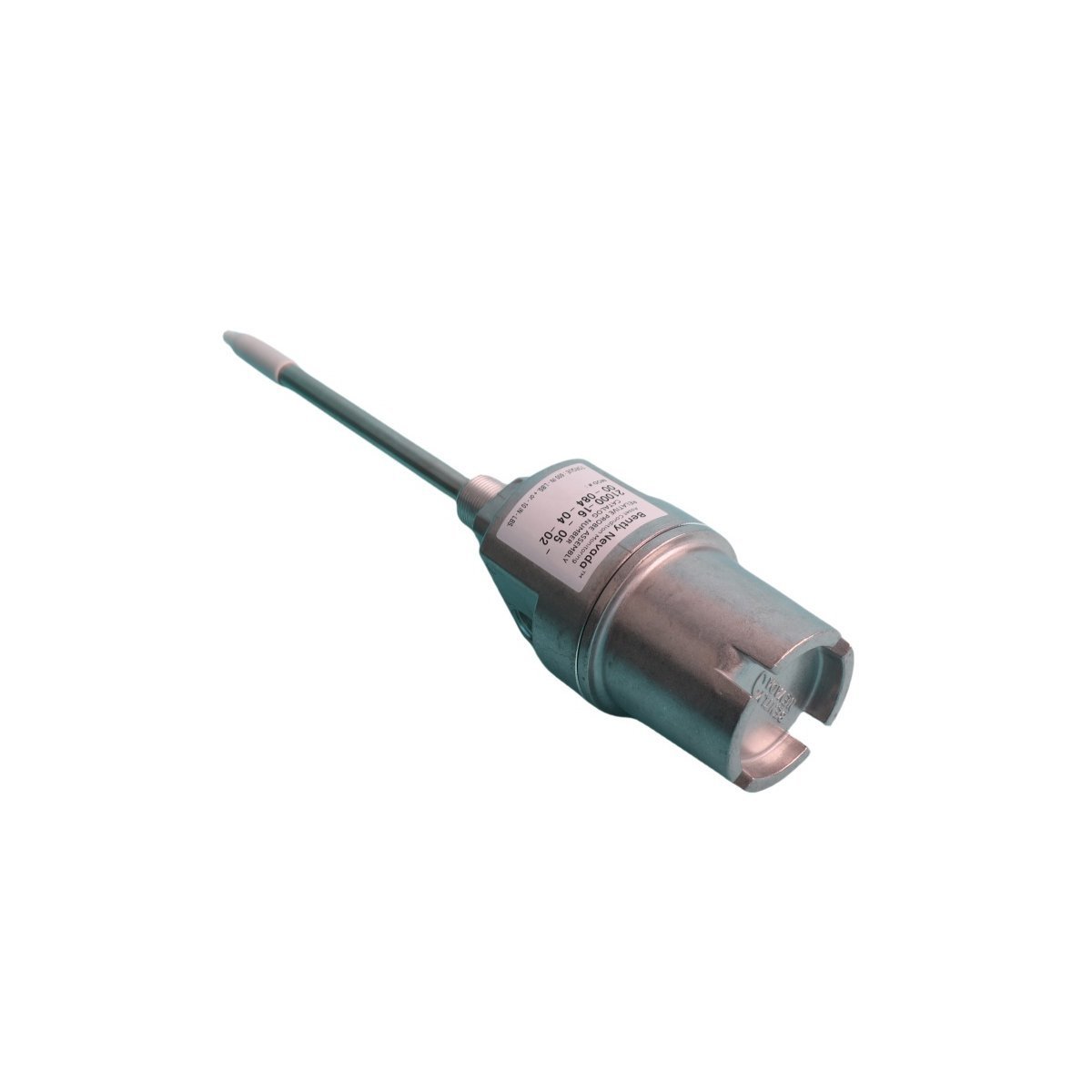

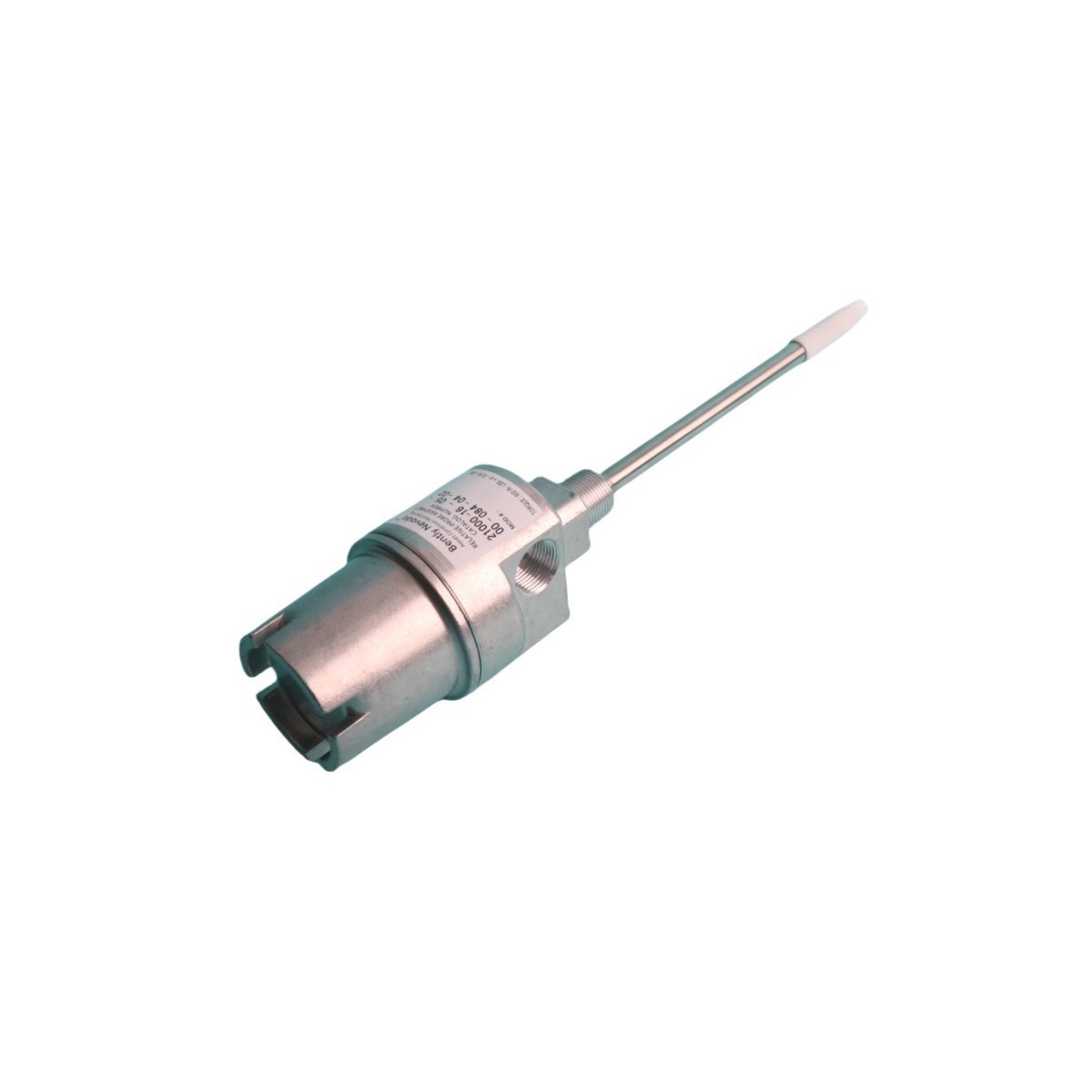

Configured for external probe mounting and physical sensor protection in TSI platforms, the Bently Nevada 21000-33-10-00-070-04-02 (21000 Proximity Probe Housing Assembly) provides direct physical/electrical execution. This assembly integrates an aluminum housing structure, a 304 stainless steel sleeve, and an internal reverse-mount proximity probe to maintain continuous vibration and position signal integrity across rotating machinery shafts.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Transducer Scaling and Rotor Dynamics Monitoring

The 21000 assembly protects the internal 3300 XL 8 mm proximity probe while maintaining exact eddy-current probe scaling against the rotating target shaft. As the shaft moves, the probe generates a high-frequency magnetic field that interacts with the metal surface, which the Proximitor converts into a linear gap voltage. Field technicians verify gap voltage validation by adjusting the sleeve mounting position until the multimeter output registers -10 VDC targets at the center of the 80 mil (2.0 mm) linear range.

This mechanical enclosure mitigates cross-talk suppression issues and protects internal signal leads against harsh environmental conditions. By isolating the sensor from external debris and structural flexing, the assembly preserves phase-accurate rotor dynamics measurement data, which directly feeds into TSI monitoring racks to execute real-time machinery protection functions.

Frequently Asked Questions

Q: How do technicians verify correct probe gap voltage (-10 VDC targets) during installation inside the housing assembly?

A: Technicians connect a multimeter to the raw output terminals of the associated Proximitor Sensor while applying power. They then adjust the threaded sleeve position inside the bearing housing until the signal output reads exactly -10 VDC, thereby establishing optimal linear measurement bias before tightening the locking seals.

Q: What procedure ensures explosion-proof integrity for the 3/4-14 NPT conduit connection ports?

A: Installers must apply conductive thread sealant to the 3/4-14 NPT threads and achieve at least 5 full threads engagement into the conduit housing. Consequently, this seals the explosion-proof enclosure against gas migration in accordance with CSA hazardous area compliance standards.

Field Installation Guidelines

Installers must inspect all internal O-rings and thread seals to verify clean sealing surfaces prior to mounting the housing assembly. Secure the aluminum housing body directly onto the machine casing using the designated mounting studs, and engage at least 5 full NPT thread turns to seal all conduit entry ports.

Position the internal 3300 XL 8 mm reverse-mount probe carefully relative to the shaft target. Route the 1.0-meter probe lead through the internal sleeve body without bending the coaxial cable beyond its minimum bend radius of 25.4 mm. Installers must ground the cable shielding strictly at the monitor panel end to prevent ground loops across the machine train housing.

Torque the outer dome cover securely to compress the elastomer O-ring seal, which prevents moisture ingress and maintains explosion-proof rating integrity under continuous operational vibration.
