51304542-100 Honeywell DCS Universal Control Network Converter Card

Product Summary

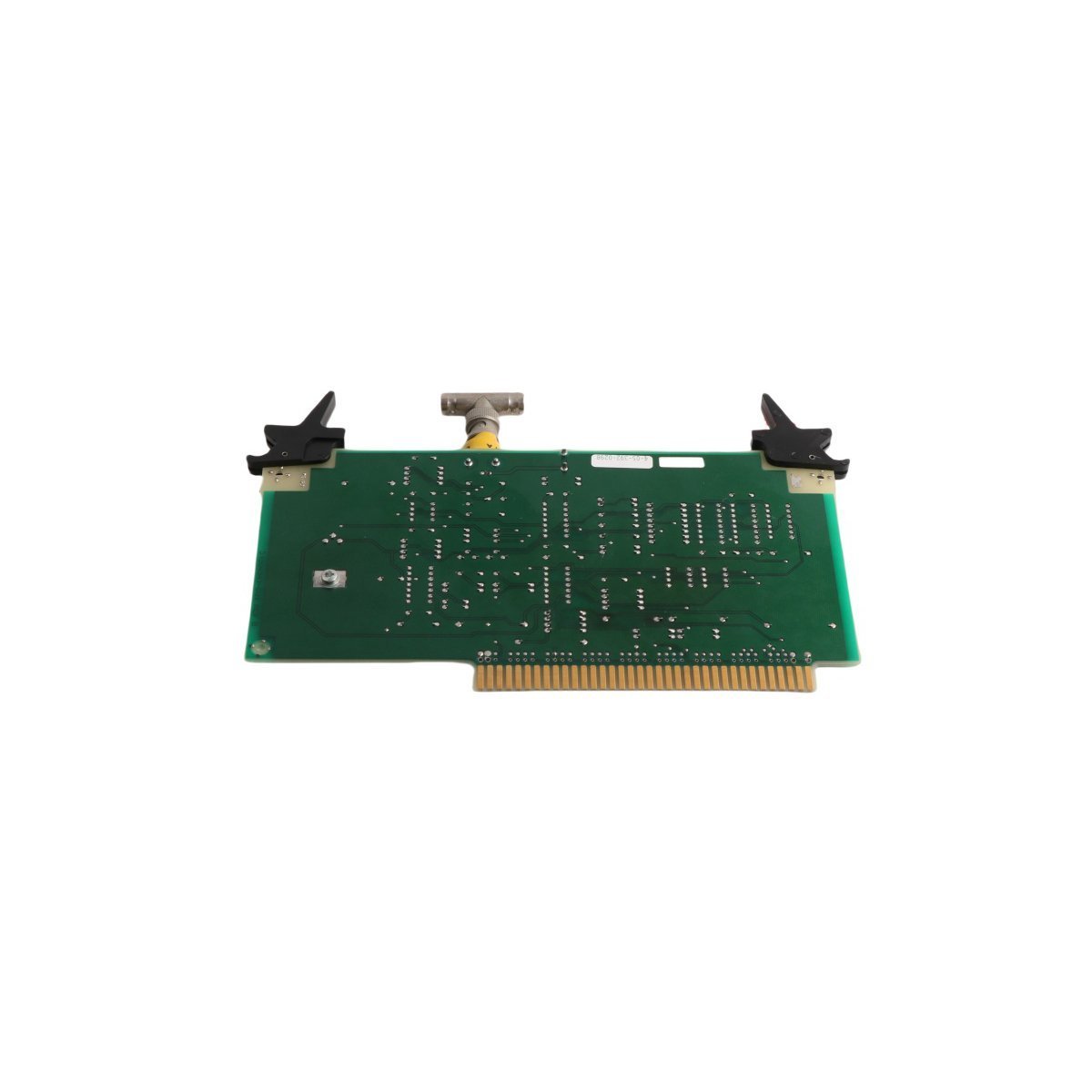

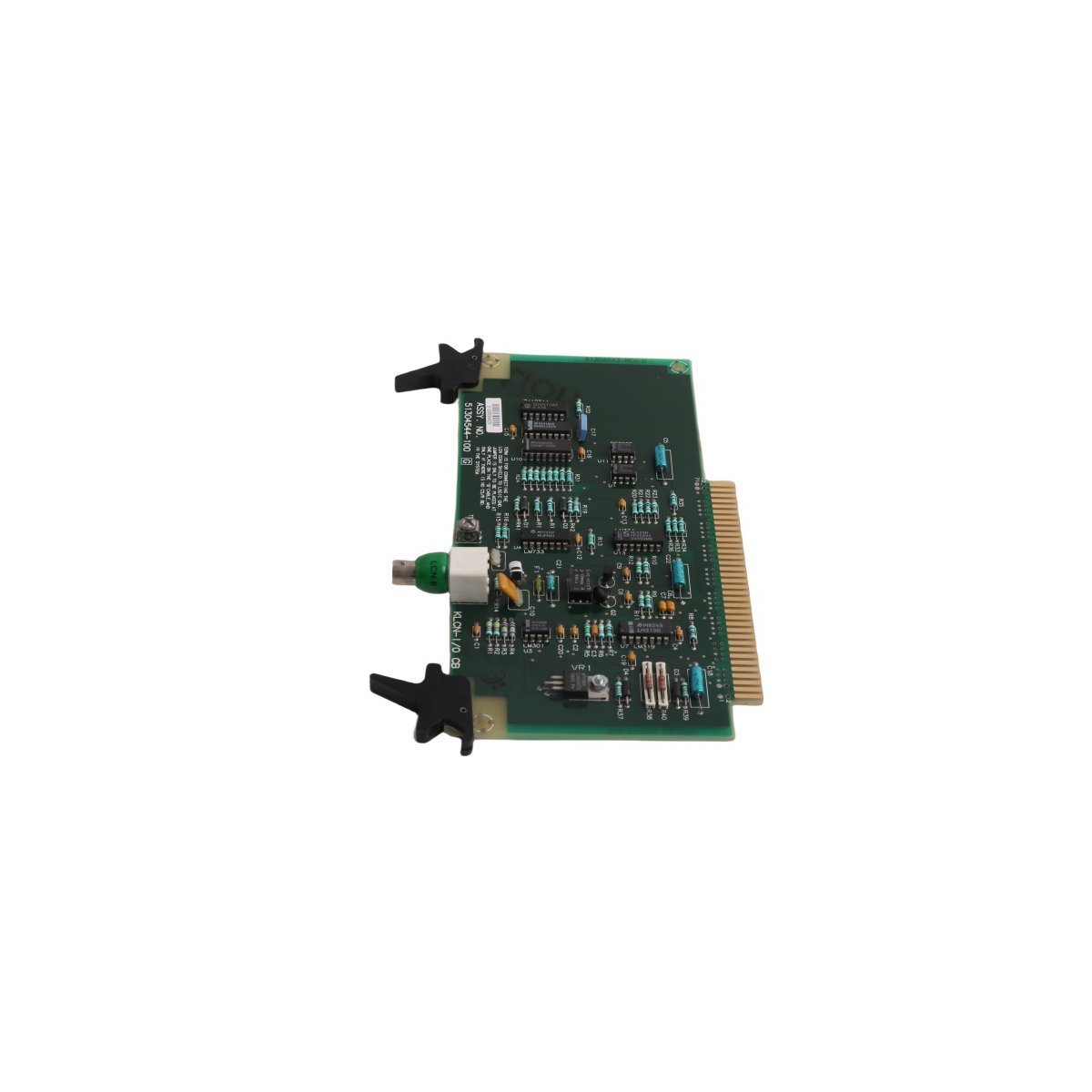

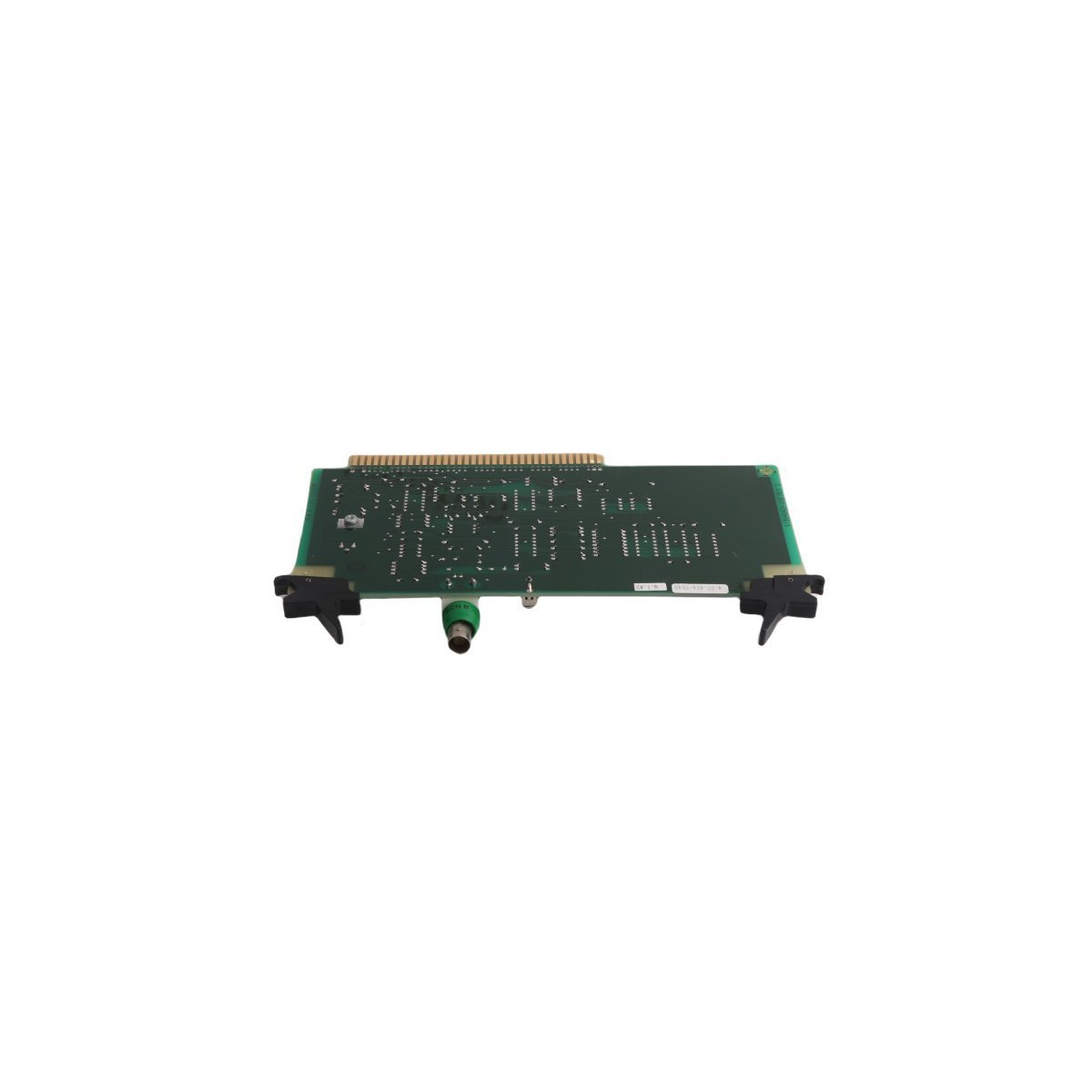

The Honeywell 51304542-100 is a specialized communication interface converter designed to maintain deterministic data exchange within the TDC 3000 Distributed Control System (DCS). It serves as a hardware bridge that ensures signal integrity and synchronization across Universal Control Networks (UCN).

Technical Functionality and Overview

The 51304542-100 (51304542100) functions as a mission-critical Interface Converter Board within the legacy and active Honeywell TDC 3000 Distributed Control System (DCS) infrastructure. This module executes the essential task of protocol translation and signal conditioning required for the Universal Control Network (UCN). By providing a robust link between controllers, I/O processors, and higher-level operator stations, the board ensures that real-time process data flows without latency. Large-scale industrial operations in oil refining, petrochemical synthesis, and power generation utilize this board to maintain high-speed coordination across thousands of field points. The board’s architecture prioritizes fault-tolerant communication, allowing the DCS to sustain operational visibility even during localized network disturbances.

System Integration and Operational Benefits

Engineers deploy the Honeywell 51304542-100 to optimize the reliability of the communication backbone in complex automation environments. The card utilizes specialized circuitry to filter electrical noise and prevent signal degradation over long-distance cable runs within the plant. Because it integrates directly into the standard TDC 3000 rack assembly, the 51304542-100 supports rapid hot-swapping and seamless system expansion. Furthermore, the board facilitates the deterministic timing required for safety-instrumented functions and critical control loops. This hardware reliability directly translates to reduced operational risk and lower maintenance costs, as the board provides a stable bridge for data exchange between legacy control hardware and modernized Ethernet router communication services.

Technical Specifications

• Model Number: 51304542-100
• Manufacturer: Honeywell
• Series: TDC 3000 Series
• Device Category: Interface Converter Board / Communication Card
• System Application: Distributed Control System (DCS)
• Network Support: Universal Control Network (UCN)
• Power Consumption: Typical for TDC 3000 Communication Modules
• Operating Temperature: 0 to 60 Celsius
• Physical Dimensions: 22.3 x 15 x 2.2 cm
• Net Weight: 1.6 kg
• Country of Origin: USA
• HS Code: 8537101190
