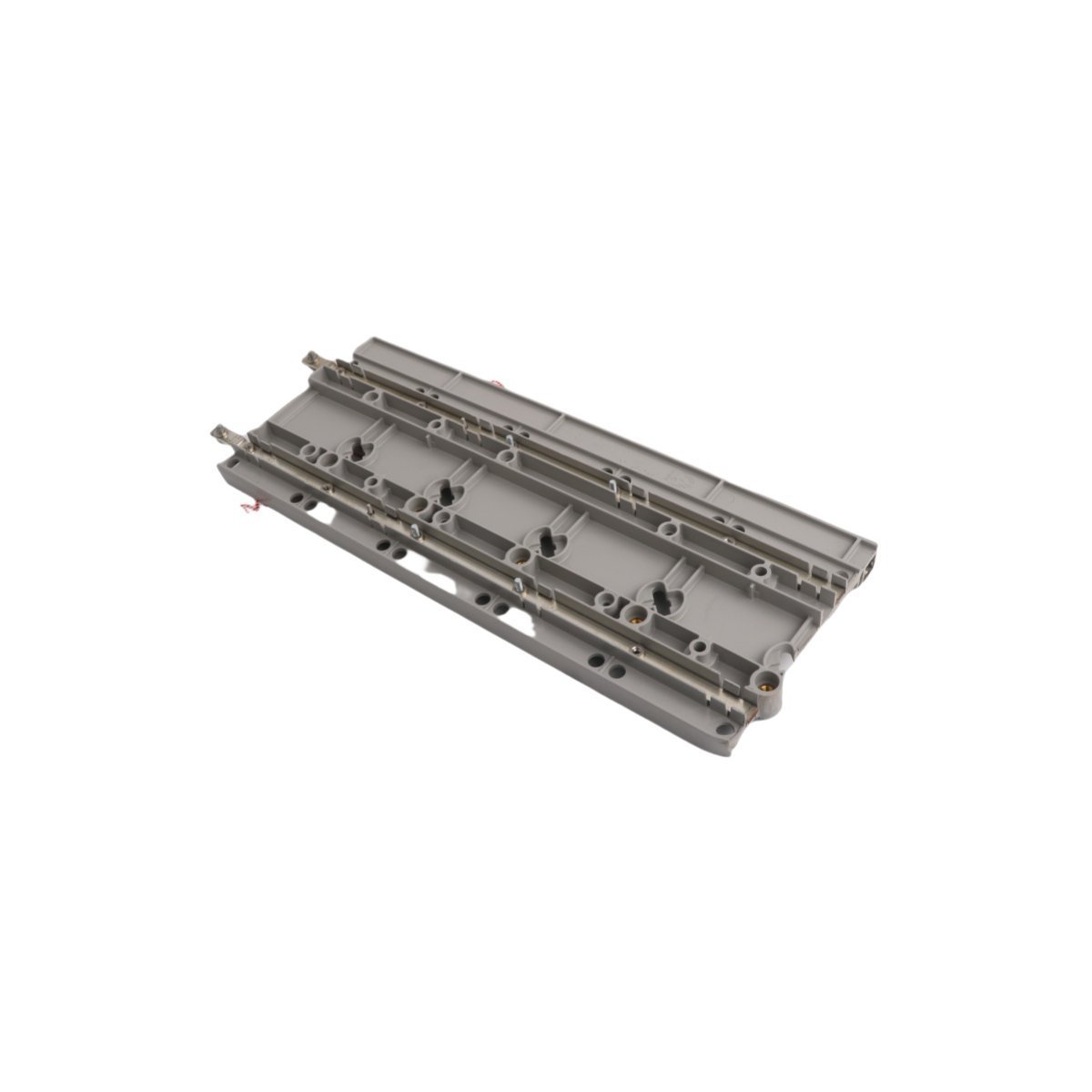

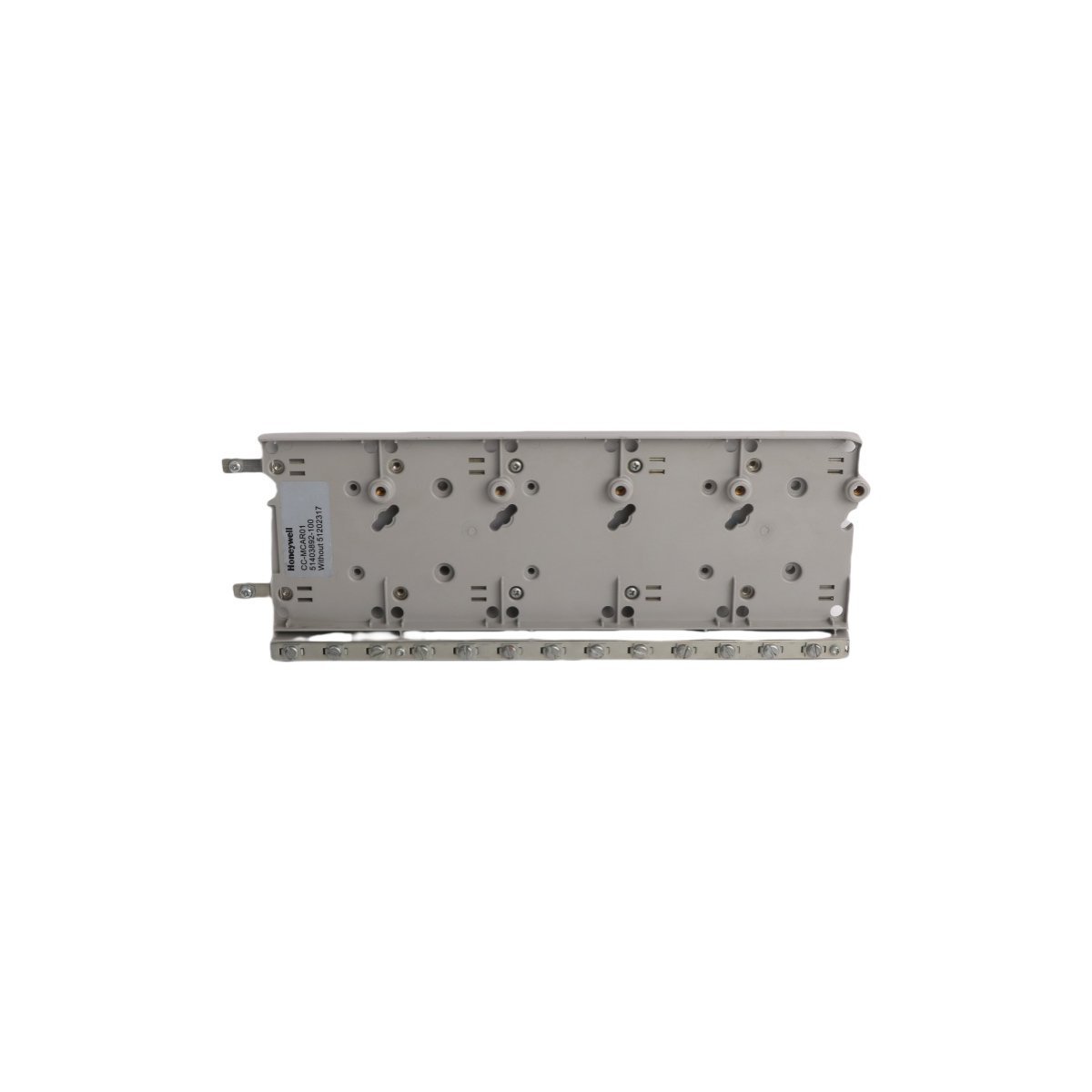

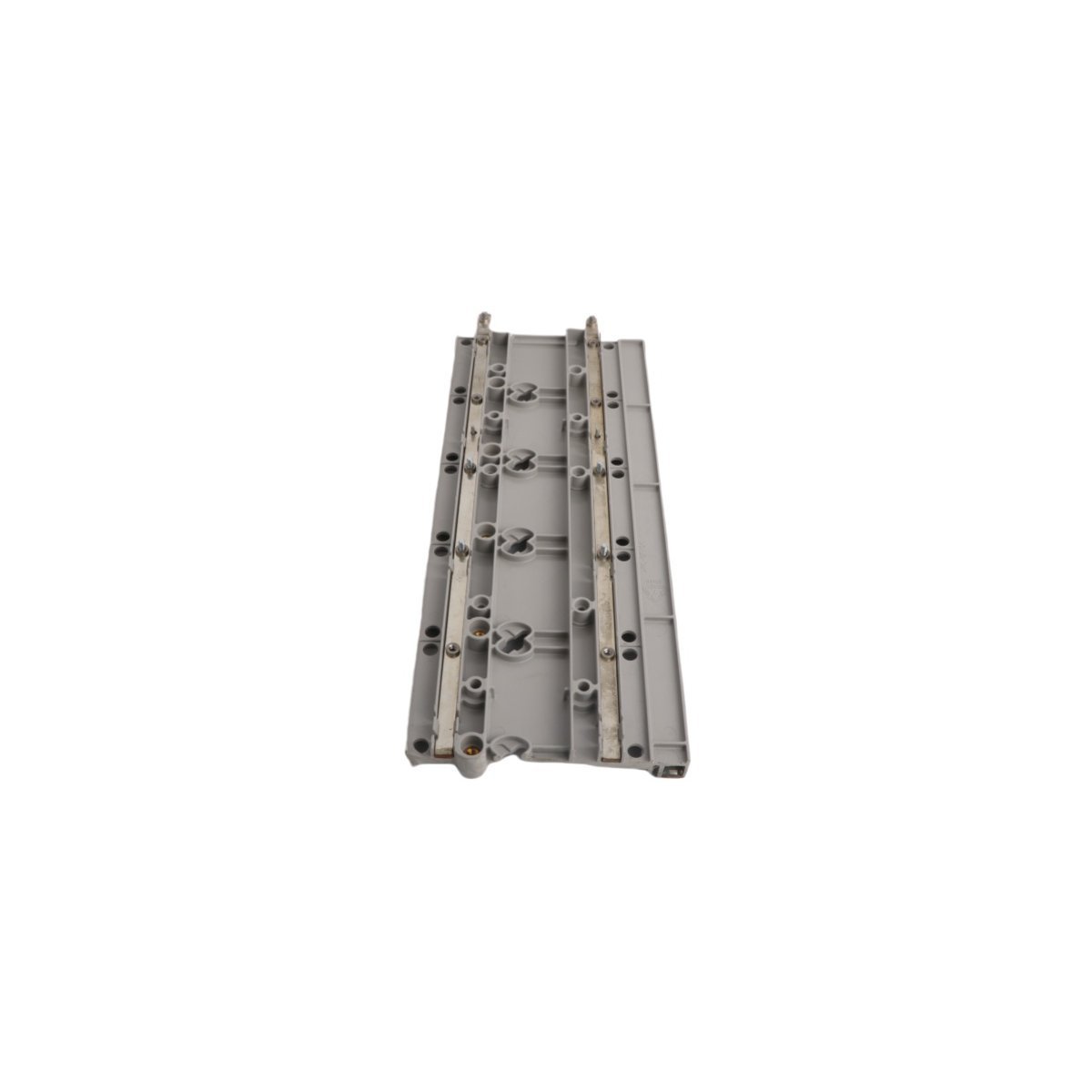

Honeywell CC-MCAR01 51403892-100/51403884-100 Carrier Channel

Technical Specifications

Rugged Engineering and Safety Compliance

Honeywell engineered this module to thrive in challenging industrial settings. It maintains operational stability in temperatures ranging from -20°C to +60°C and tolerates up to 95% non-condensing humidity. Safety remains a priority, as the hardware supports Safe Torque Off (STO) and Safe Stop 1 (SS1) functions according to IEC 61800-5-2 standards. Additionally, the unit features dual firmware slots. This design allows for seamless field updates, ensuring that the system remains current without risking operational downtime.

Strategic Operational Benefits

Implementing the CC-MCAR01 carrier channel into your DCS infrastructure offers several advantages:

• AI-Driven Maintenance: Integrated algorithms monitor motor health and estimate ball screw wear for predictive servicing.
• Versatile Motor Support: The modular interface connects easily with linear, stepper, and servo motor types.
• Simplified Integration: The 40.5cm long form factor fits efficiently into standard Series C cabinets.
• Rapid Deployment: Compatibility with PLCopen Motion Control function blocks streamlines the programming phase.

High-Precision Multi-Axis Motion Integration

The Honeywell CC-MCAR01, designated by part numbers 51403892-100 and 51403884-100, is a specialized carrier channel module developed for the Experion PKS Series C environment. This hardware provides a robust foundation for multi-axis motion control, enabling synchronized movement across up to 8 axes. Because it utilizes high-speed communication protocols, the module achieves micron-level positioning accuracy. This performance is essential for complex robotics, automated packaging lines, and CNC machining centers that require exact spatial coordination.
