3BHE300016R1 ABB DP620 5/24VDC High Speed Counter Interface

Product Brief

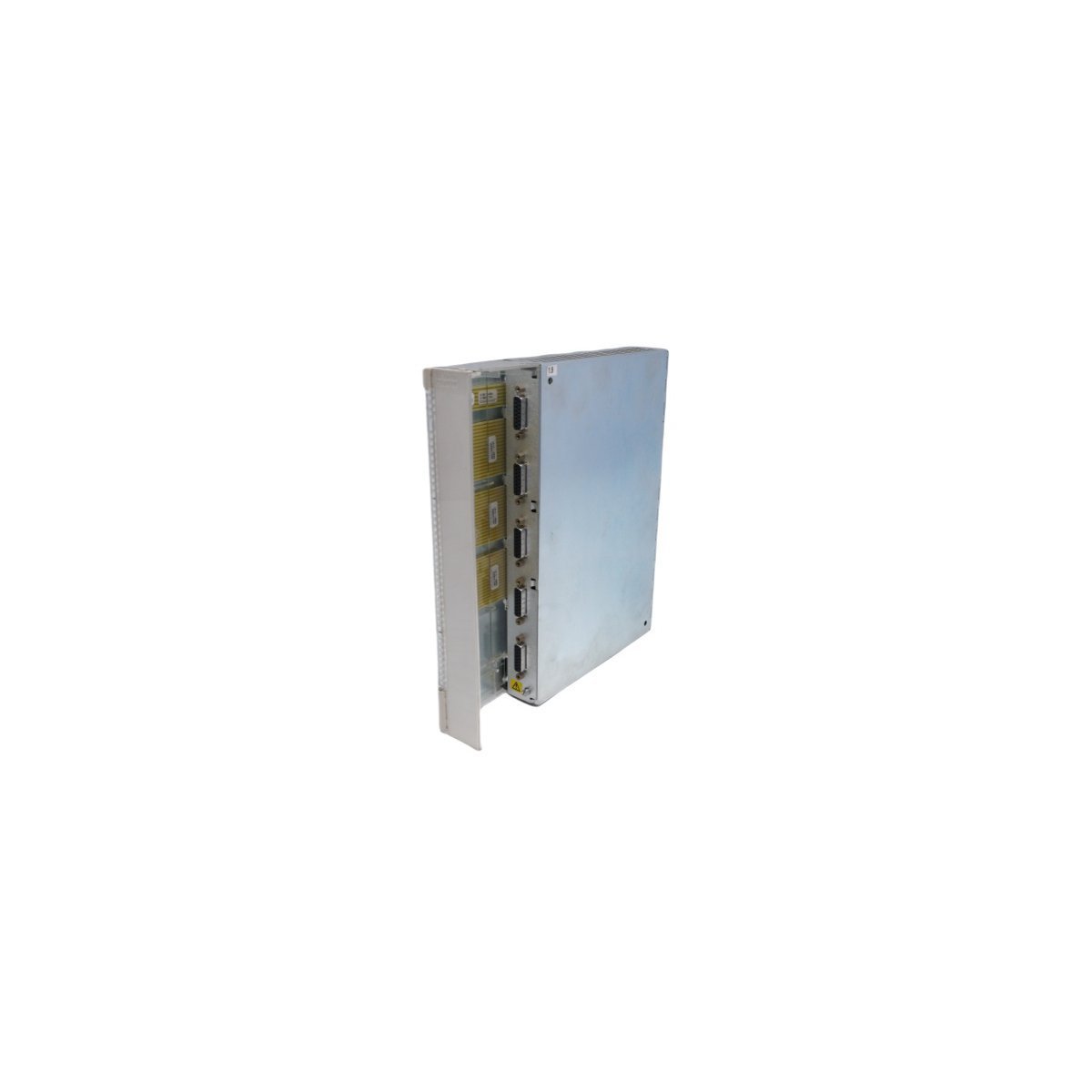

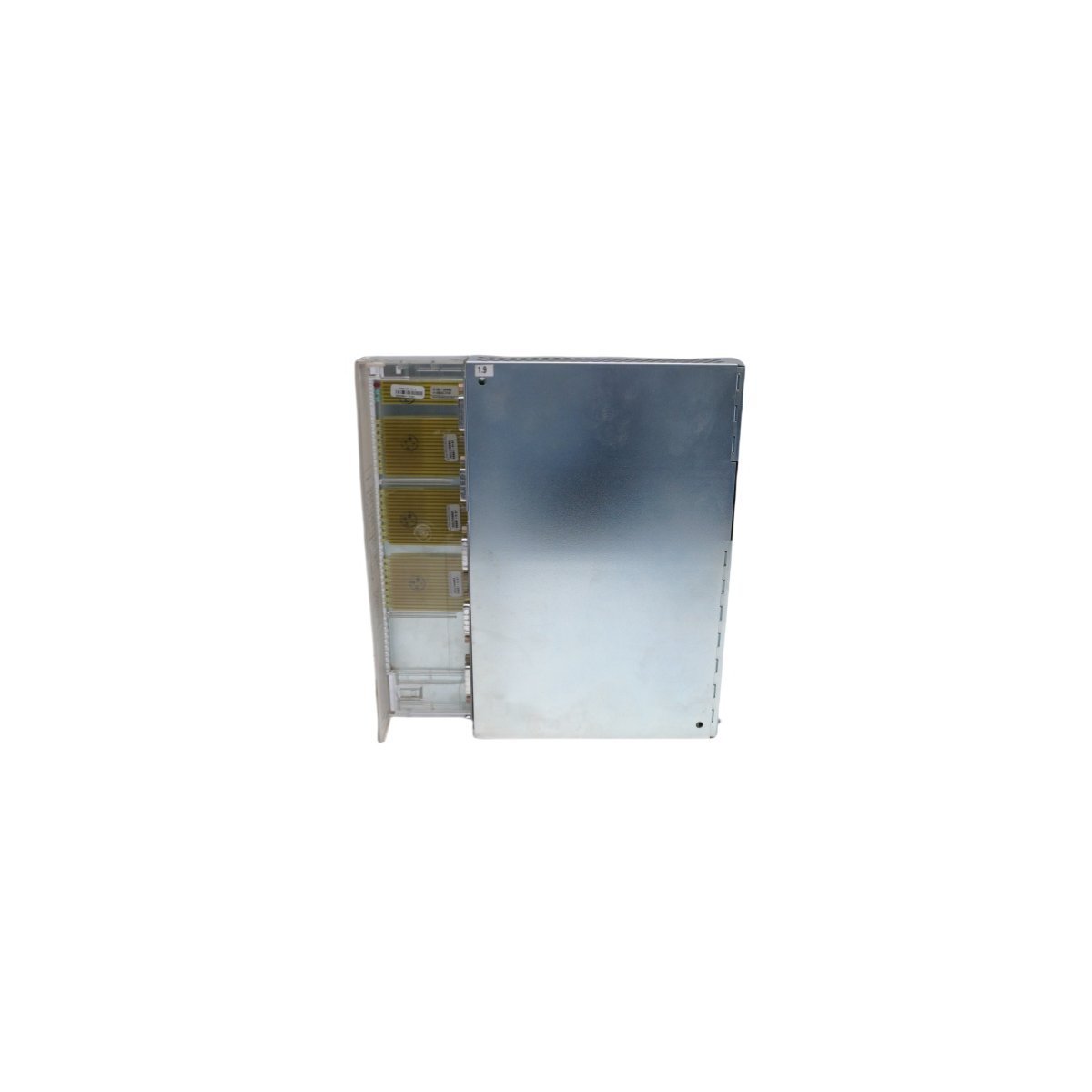

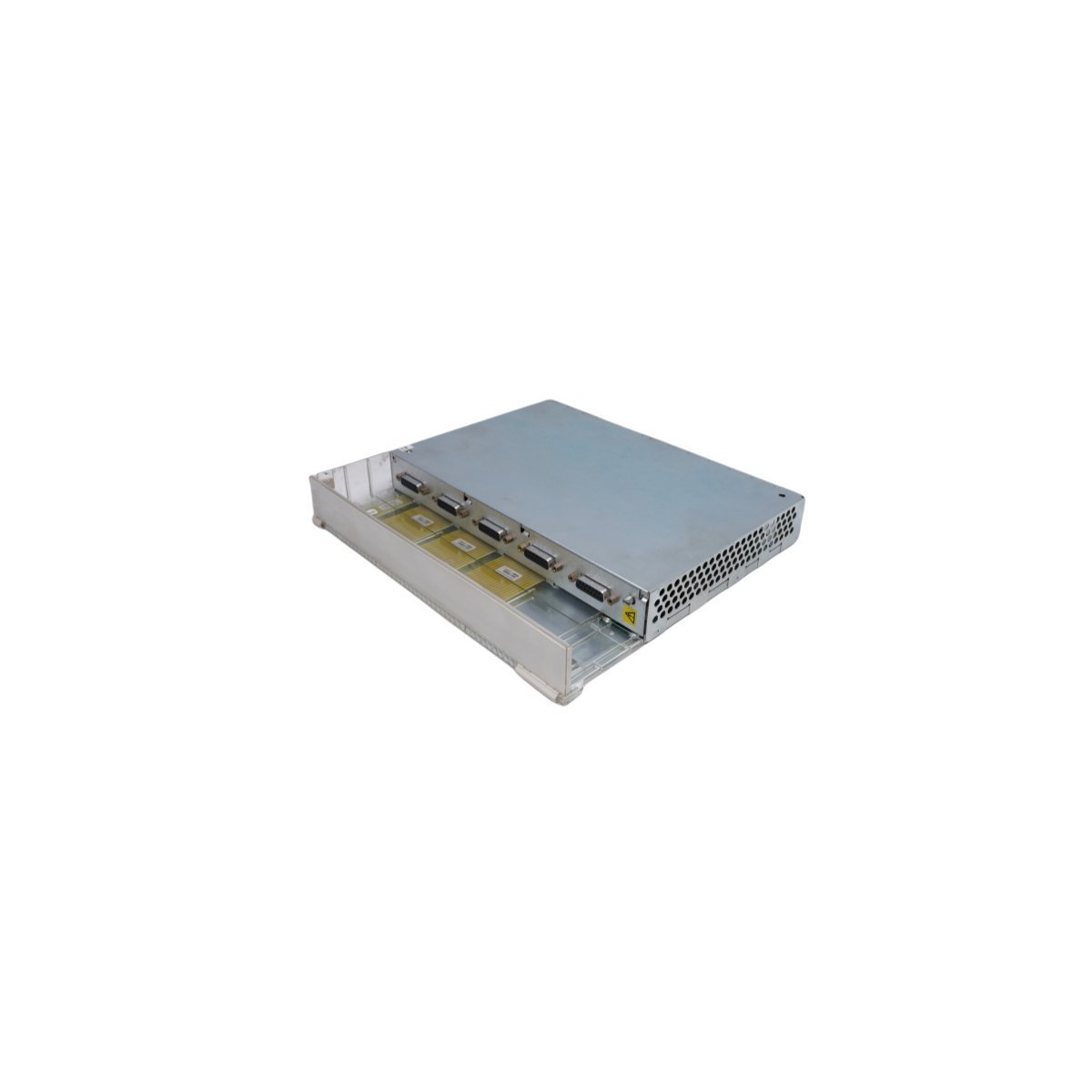

The ABB DP620 3BHE300016R1 is a high-precision S800 I/O pulse counter module designed for ultra-fast signal processing in distributed control systems. This 5/24VDC interface effectively tracks high-frequency industrial pulses, providing critical velocity and position data for complex automation tasks.

​Technical Specifications

High-Precision Counter Functionality

The DP620 3BHE300016R1 provides the high-speed processing capabilities necessary for modern motion control and flow measurement. By utilizing a 1-microsecond time resolution, this module captures rapid pulse trains with exceptional precision. It supports a frequency range reaching up to 10 MHz, which allows the system to handle demanding timing applications without signal loss or data lag.

Robust Performance in Harsh Environments

Engineers designed this pulse counter to maintain a strict accuracy tolerance of +/- 0.01% across its entire operational envelope. Because it features a wide operating temperature range from -20°C to +70°C, the module performs reliably in unconditioned industrial zones. Furthermore, the hardware withstands extreme storage conditions from -40°C to +85°C, ensuring that the internal components remain protected during transport or facility shutdowns.

Seamless System Integration

This S800 I/O series module facilitates rapid installation through its compact, space-saving architecture. Since it integrates natively with ABB DCS platforms, the DP620 optimizes data exchange between field sensors and the controller. The lightweight design simplifies maintenance routines and allows for high-density mounting in standard control cabinets. Consequently, facility operators can enhance their network capabilities while minimizing the overall hardware footprint.
