UNS4684A-P ABB HIEE305114R0001 High-Performance OVP Circuit Board

Product Brief

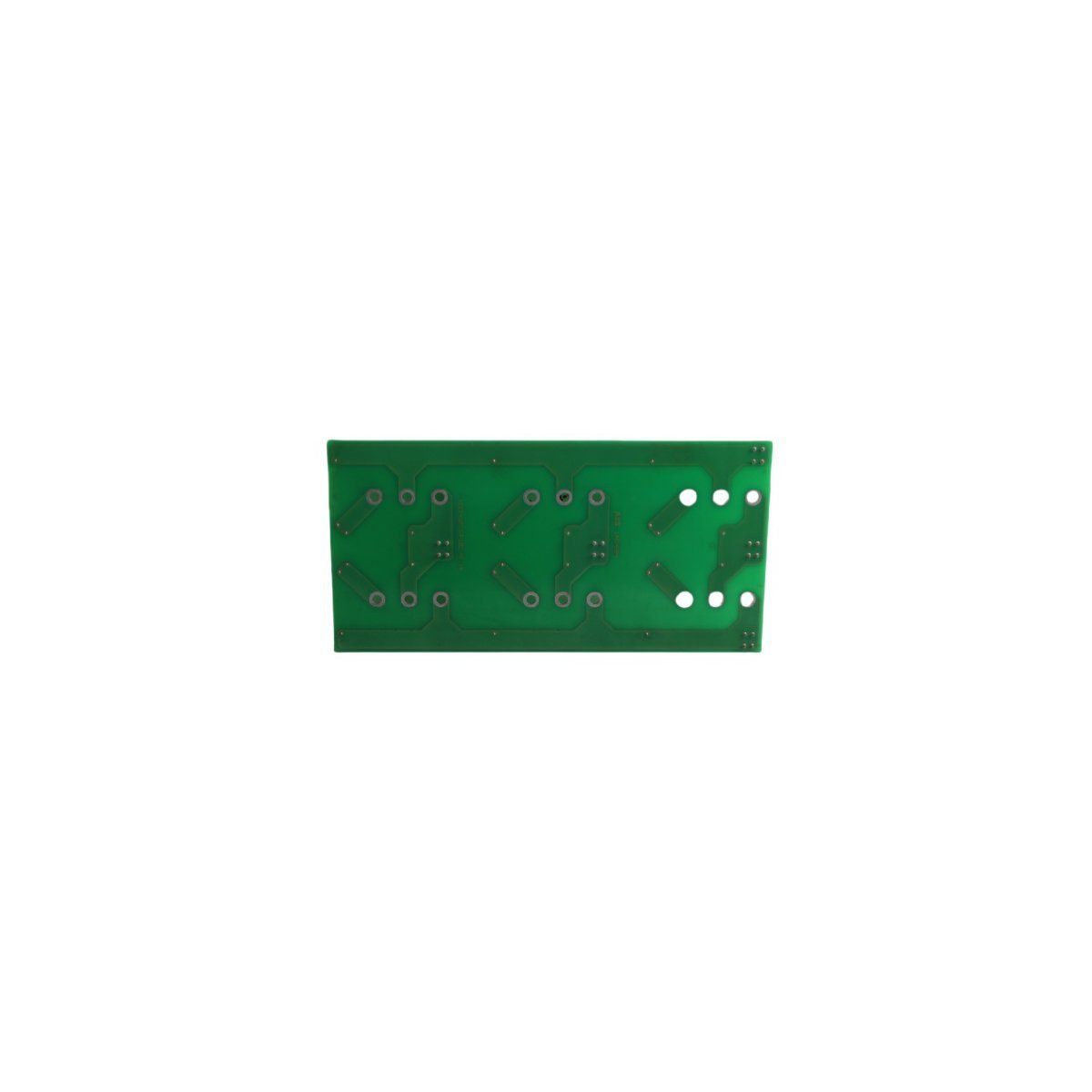

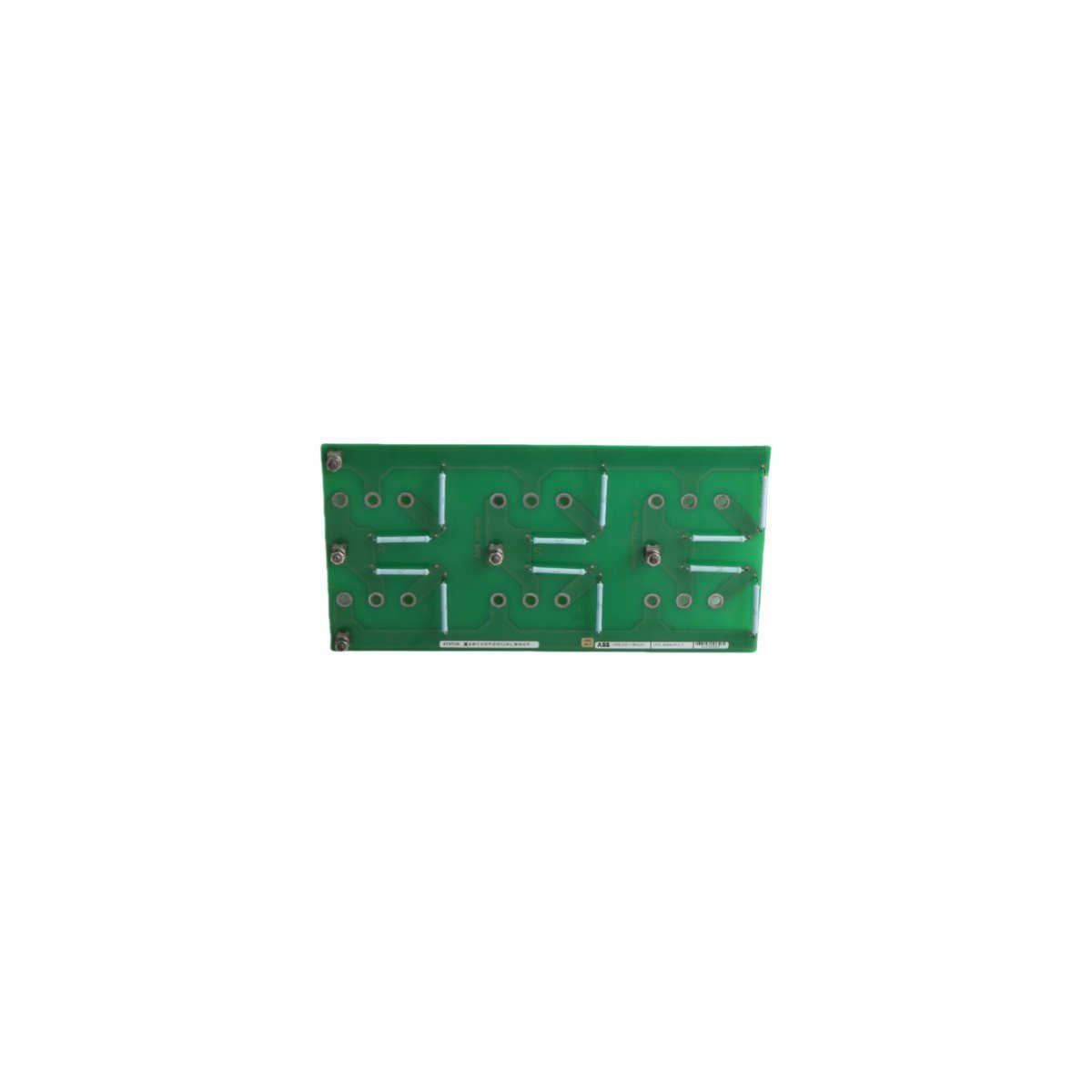

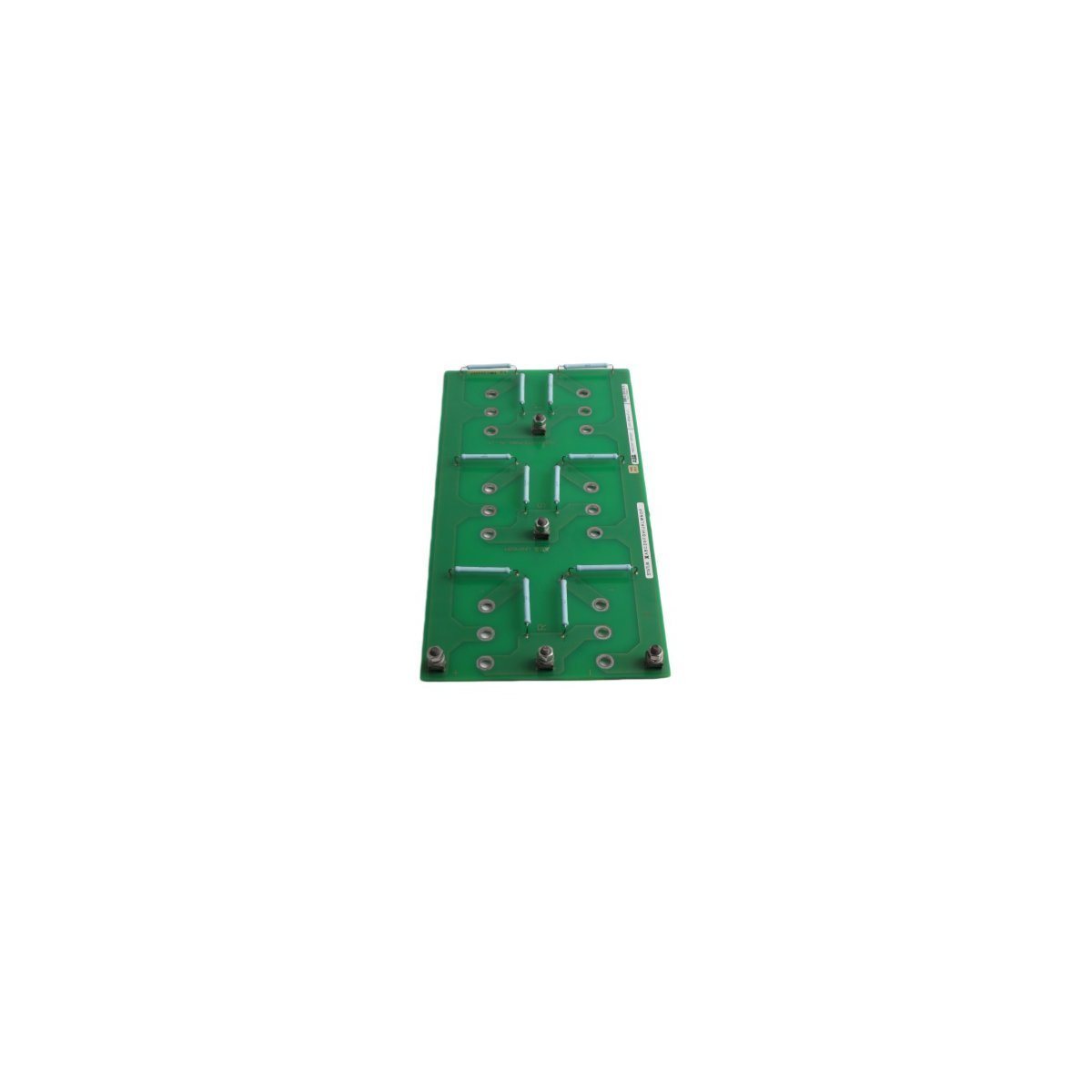

The ABB HIEE305114R0001 UNS4684A-P is a critical printed circuit board assembly designed for the UNITROL 6000 excitation system and advanced DCS applications. This module provides essential over-voltage protection and signal processing to maintain the stability of large-scale industrial power automation networks.

​Technical Specifications

Core Functional Description

The HIEE305114R0001 UNS4684A-P assembly serves as a specialized Over-Voltage Protection (OVP) and signal regulation interface within ABB’s premier excitation platforms. By leveraging high-density SMT architecture, the board ensures precise electrical conductivity while maintaining a compact footprint. This circuit board effectively filters electrical noise and manages voltage spikes, thereby safeguarding the broader control system from potential transient damage.

Engineering and Durability

ABB engineers this board using flame-retardant FR-4 epoxy resin to provide superior mechanical rigidity and thermal dissipation. Consequently, the module operates reliably throughout a broad temperature spectrum, making it perfectly suited for the rigorous environments found in power plants and heavy manufacturing facilities. The optimized layout significantly improves signal integrity, which directly translates to higher system uptime and reduced electromagnetic interference across the automation cabinet.

Application and System Integration

This PCB assembly integrates seamlessly into UNITROL 6000 racks and DCS environments via standard communication interfaces. Furthermore, the active lifecycle status of the HIEE305114R0001 ensures that facilities can maintain long-term operational continuity with genuine replacement parts. Because the board features high-conductivity traces and precision-placed components, it simplifies the maintenance of complex excitation systems while delivering the robust performance required for mission-critical industrial processes.
