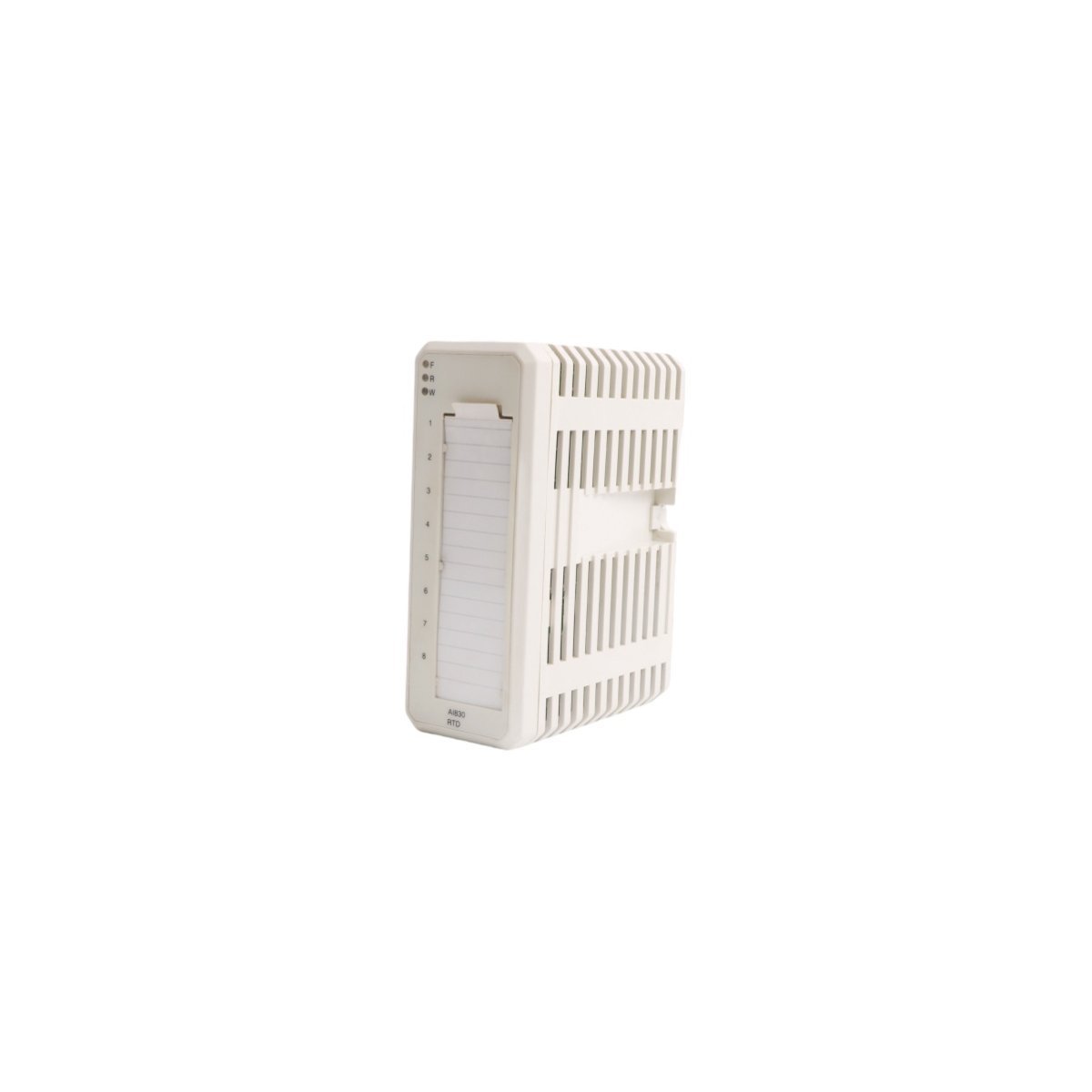

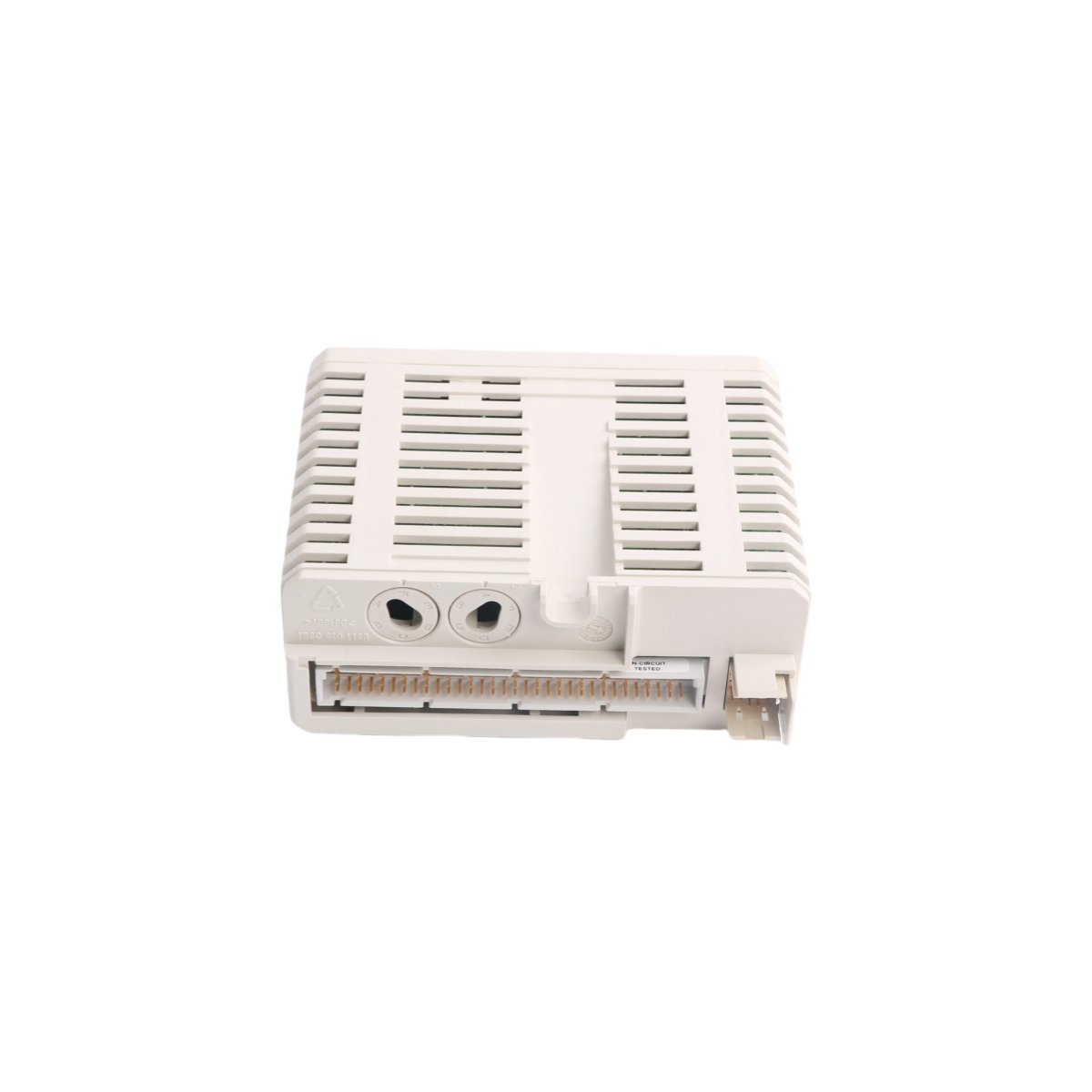

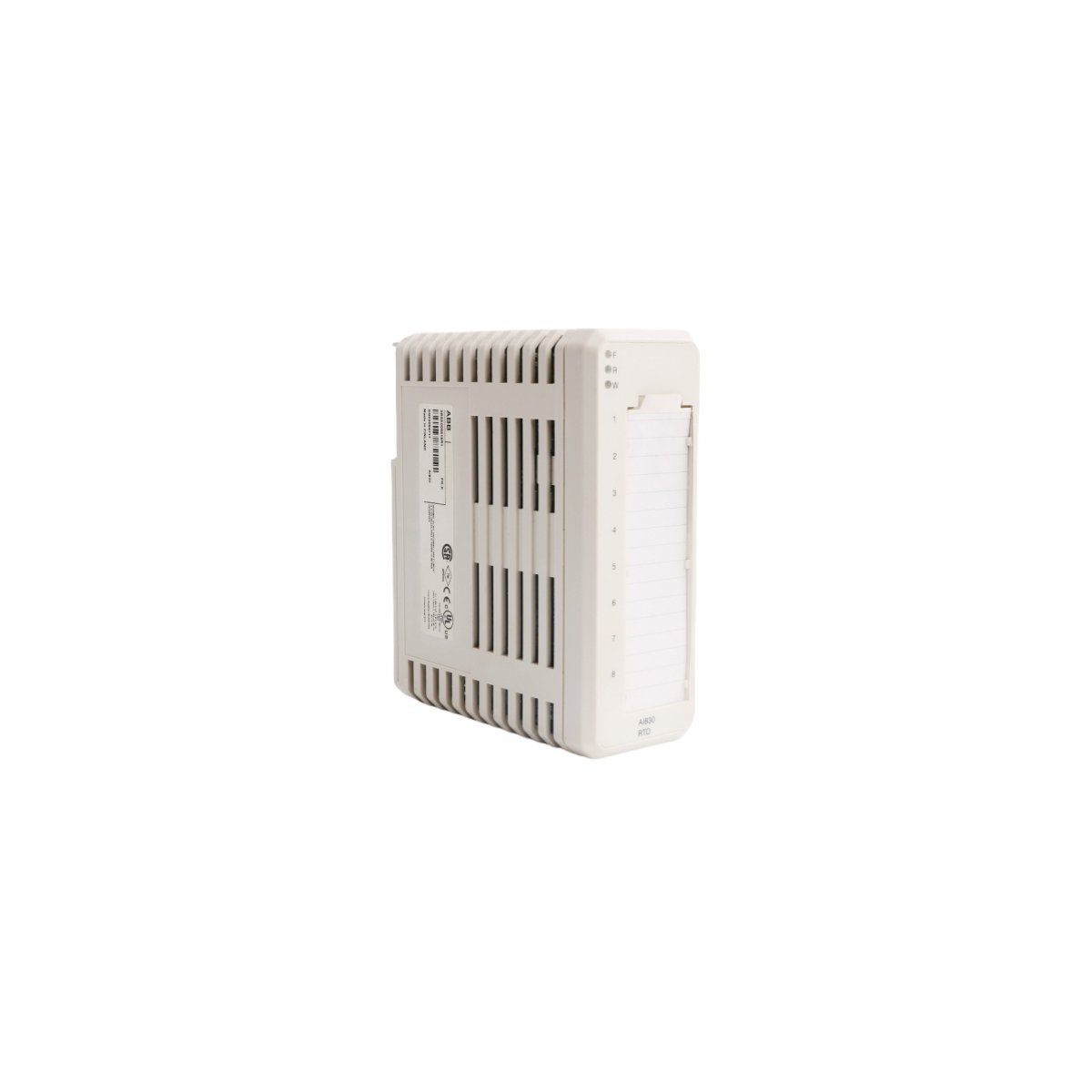

The ABB AI830 (3BSE008518R1) functions as a high-precision analog input interface for the S800 I/O system. This module specifically targets temperature measurement using Resistance Temperature Detectors (RTDs). It converts resistance variations from field sensors into digital values for the controller. Consequently, the unit provides critical data for thermal process regulation and machinery protection.
Furthermore, the hardware handles eight independent channels for comprehensive site monitoring. Each channel supports various RTD types to ensure broad industrial compatibility. The module manages signal linearization and wire resistance compensation automatically to maintain data integrity.
Primary Technical Specifications
- Manufacturer: ABB
- Model Number: AI830
- Order Reference: 3BSE008518R1
- Input Type: 8-Channel RTD (Pt100, Cu10, Ni100, Ni120)
- Resolution: 14-bit (Higher precision than standard 12-bit units)
- Power Usage: Less than 2 W
- Operational Mass: 0.24 kg
- Housing Size: 4.5 x 10.5 x 12 cm
- Temperature Range: -25°C to +70°C
- Country of Origin: Sweden
Data Conversion and Network Integration
The AI830 utilizes a sophisticated Analog-to-Digital Converter for superior measurement stability. This 14-bit architecture offers high granularity for detecting minute temperature shifts. Moreover, the module integrates seamlessly with S800 clusters via the ModuleBus interface.
Additionally, the hardware supports various communication services including Ethernet routers for distributed architectures. The system can transmit diagnostic data alongside primary process values. Therefore, maintenance teams can identify sensor faults or open circuits without manual field inspections.
