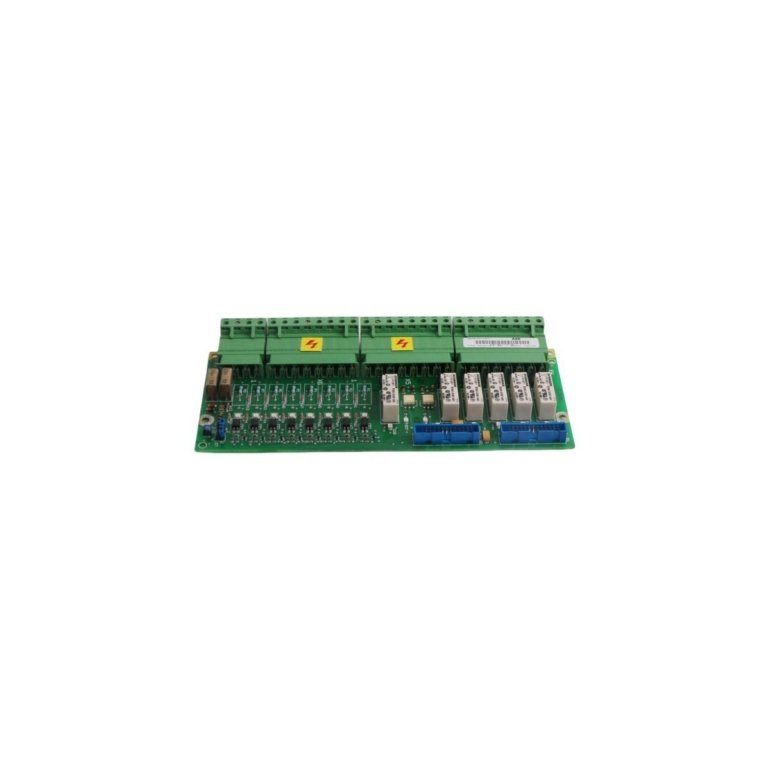

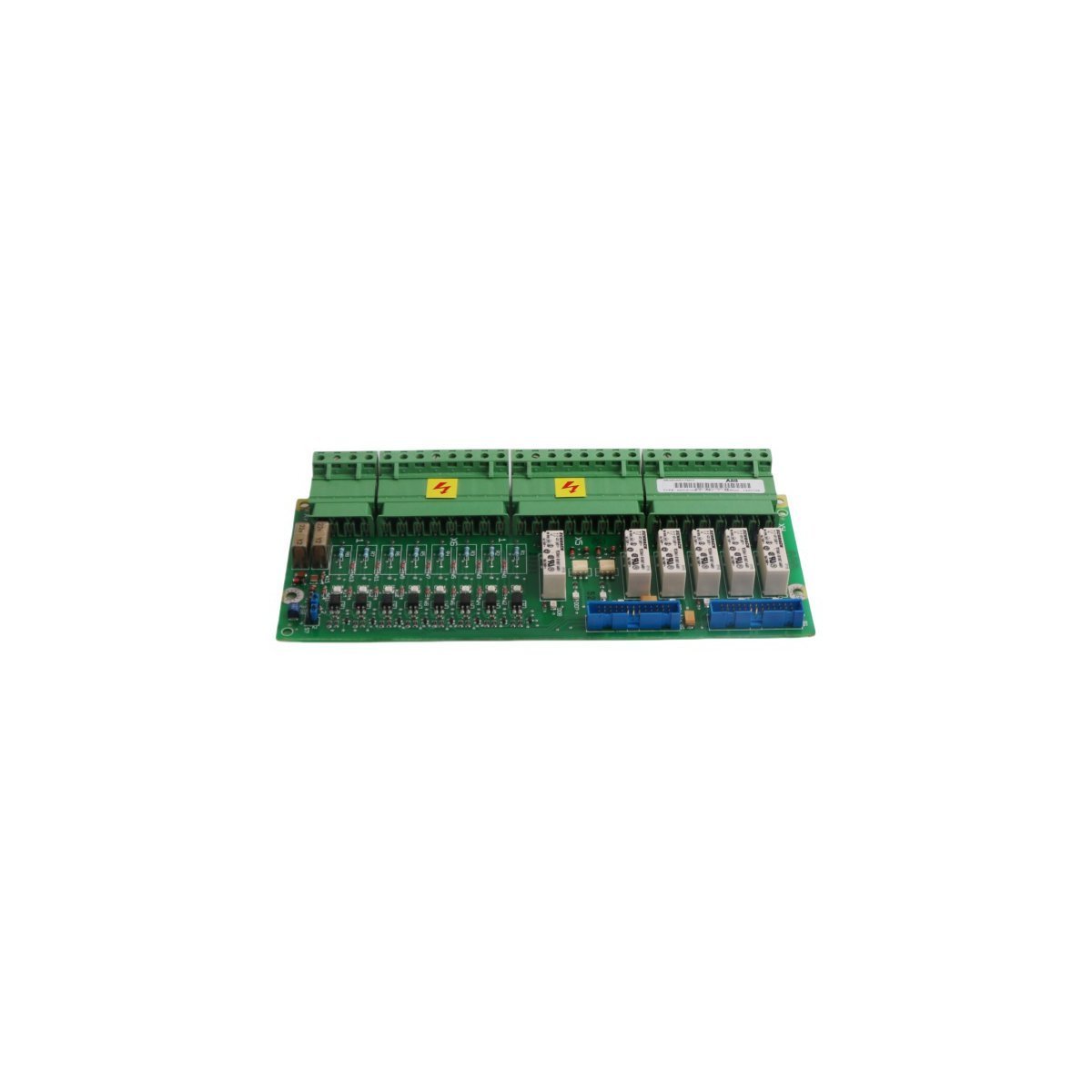

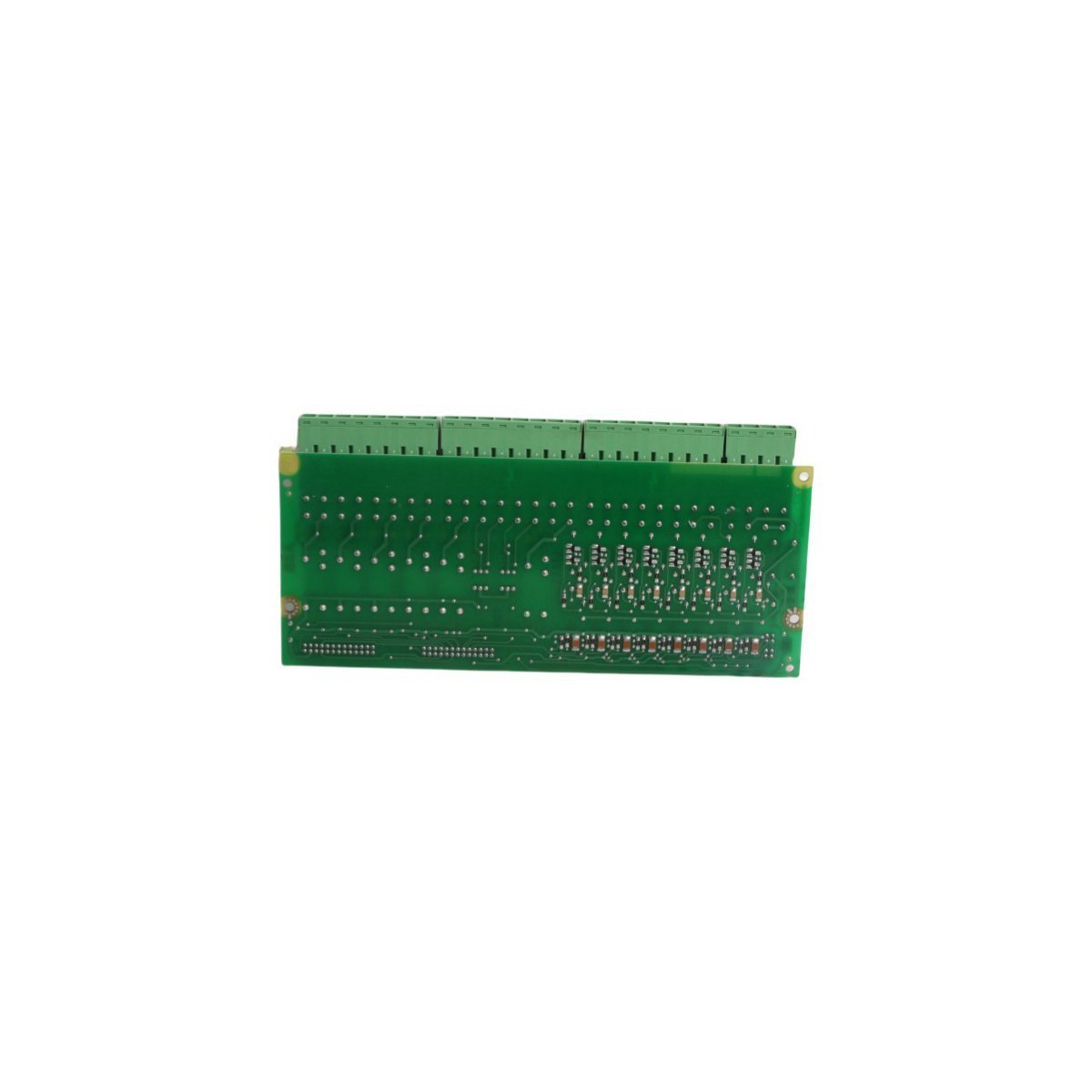

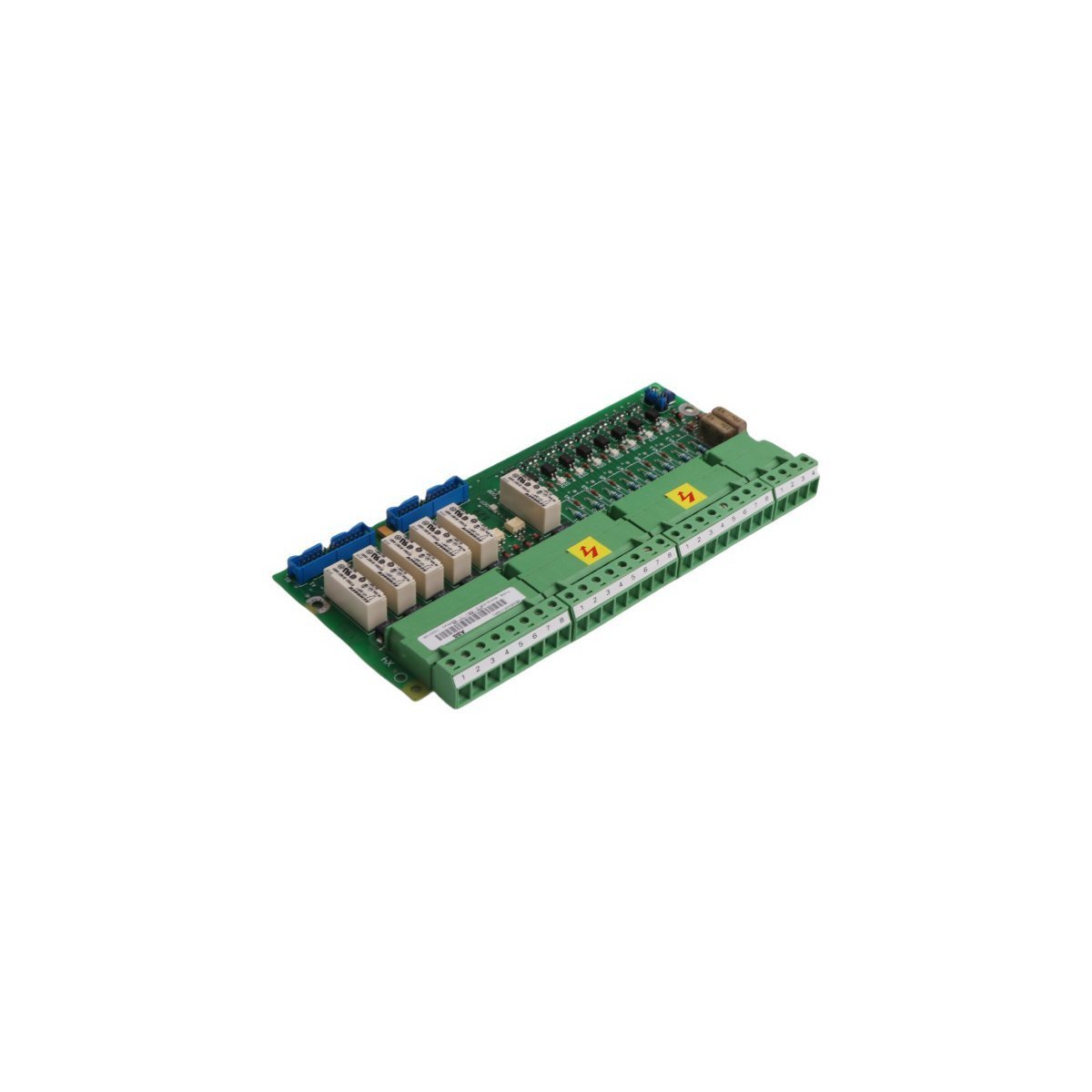

ABB SDCS-IOB-21 Isolated Digital Input/Output Board 3BSE005176R1

Product Brief

The ABB SDCS-IOB-21 3BSE005176R1 is a high-performance external isolated digital interface board specifically engineered for the DCS800 drive system. This module provides critical galvanic isolation and signal conditioning for 16 digital inputs and 16 digital outputs, ensuring secure communication between control logic and field devices.

​Technical Specifications

Core Functional Capabilities

The SDCS-IOB-21 serves as a vital bridge in industrial power conversion, primarily facilitating isolated signal processing for ABB DCS800 drives. By implementing a robust 1500V AC isolation barrier, this board prevents high-voltage transients and electrical noise from damaging sensitive control electronics. The module utilizes high-quality relay contacts capable of switching 2A loads at 250V AC, which allows it to interface directly with heavy-duty industrial actuators and indicators without the need for additional interposing relays.

Operational Reliability and Environment

This digital IO board excels in process control and machinery monitoring where signal integrity is paramount. Because the hardware supports a wide operational temperature range of -20°C to +70°C, it maintains consistent performance in unconditioned industrial environments. Furthermore, the board employs advanced circuitry to mitigate electromagnetic interference (EMI), ensuring that data exchange remains accurate even when located near high-power switching components.

System Integration and Architecture

Integration remains straightforward due to the board’s compact footprint and standardized mounting requirements. Although often utilized in DCS800 drive setups, its versatile 16-in/16-out architecture supports a variety of automation protocols and monitoring tasks. Consequently, this module simplifies control panel wiring and reduces the overall complexity of the automation network. Its lightweight yet durable construction ensures a long service life, making it a reliable choice for critical plant infrastructure.
