Name: 2300/20-00 Machinery Protection System | Bently Nevada 2300 Series
Brand: Bently Nevada
SKU: 2300/20-00
Availability: InStock

Product Description

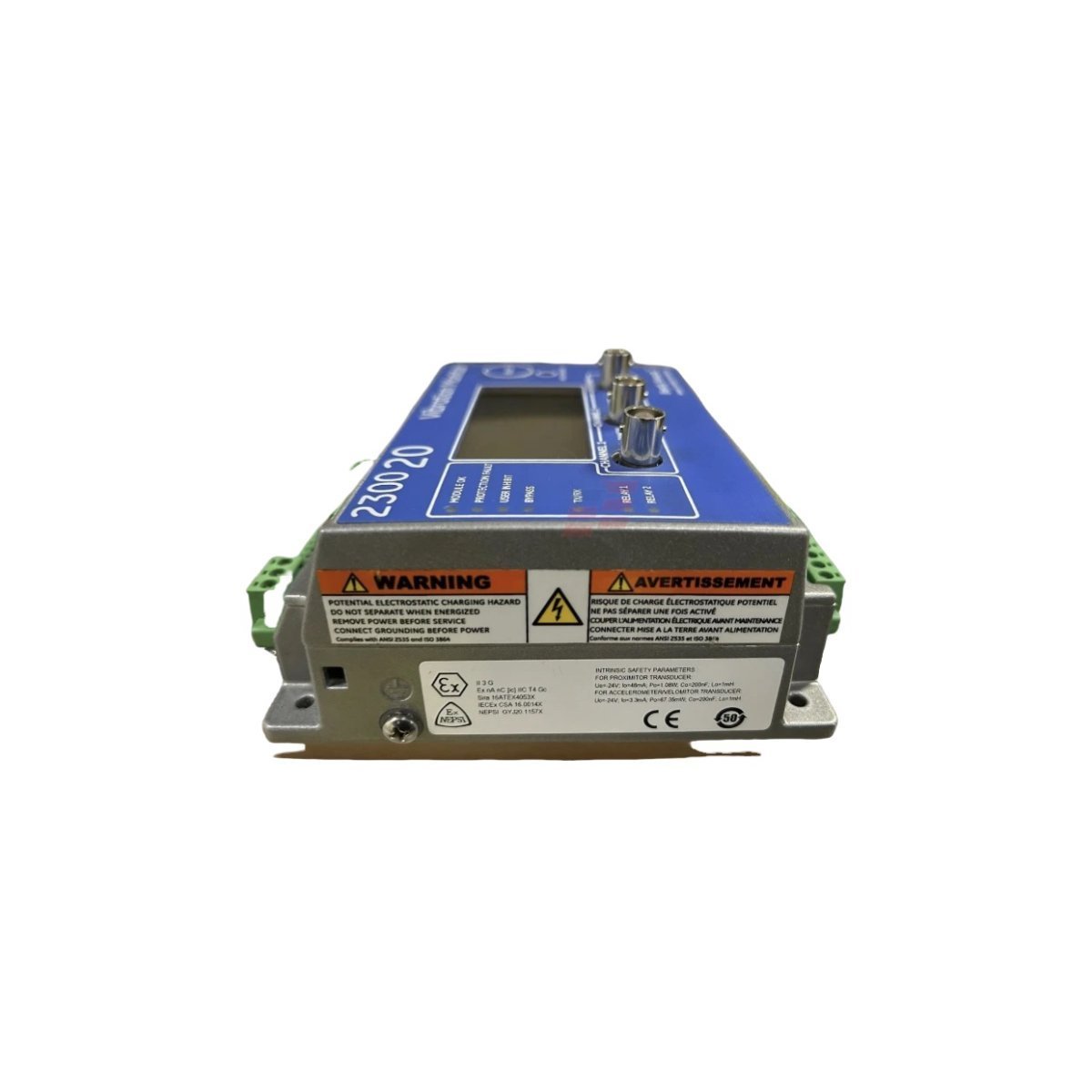

The Bently Nevada 2300/20-00 serves as a compact and self-contained machinery protection monitor designed for balance-of-plant assets. It processes real-time condition monitoring data to prevent unexpected equipment failures.

Technical Specification Matrix

Feature	Specification
Manufacturer	Bently Nevada
Model Number	2300/20-00
Monitoring Channels	2 Seismic or Proximity Inputs
Tachometer Inputs	1 Dedicated Speed/Keyphasor Channel
Current Loop Outputs	Dual Configurable 4-20 mA Outputs
Relay Infrastructure	2 Programmable Dry-Contact Relays
Network Interface	Ethernet 10/100 Base-T (RJ-45)
Power Consumption	18 to 36 Vdc Input, Max 7.5 W
Bandpass Filtering	Configurable from 0.2 Hz to 20 kHz
Device Weight	1.03 kg (2.26 lbs)
Physical Enclosure	127 mm x 127 mm x 76.2 mm

Operational Function and Field Applications

This industrial monitor delivers highly reliable condition monitoring for assets that do not require larger rack-based infrastructure. Industrial facilities deploy this hardware across essential spare machinery, including cooling tower fans, centrifugal pumps, and small electric motors.

The system utilizes advanced internal signal processing to calculate crucial parameters such as Direct Peak, True RMS, and integrated velocity values. By evaluating these distinct variables, plant operators gain immediate insight into mechanical faults like structural looseness or bearing degradation. The device transmits diagnostic values through dual 4-20 mA current loops directly to central Distributed Control Systems (DCS).

Performance Characteristics and Defensive Engineering

Synchronous Phase Tracking: The unit combines an isolated tachometer channel with twin 24-bit analog-to-digital converters to perform precise synchronous data sampling.
Dual Output Architecture: The hardware integrates two separate dry-contact relays that initiate automatic machinery trip sequences during dangerous over-vibration events.

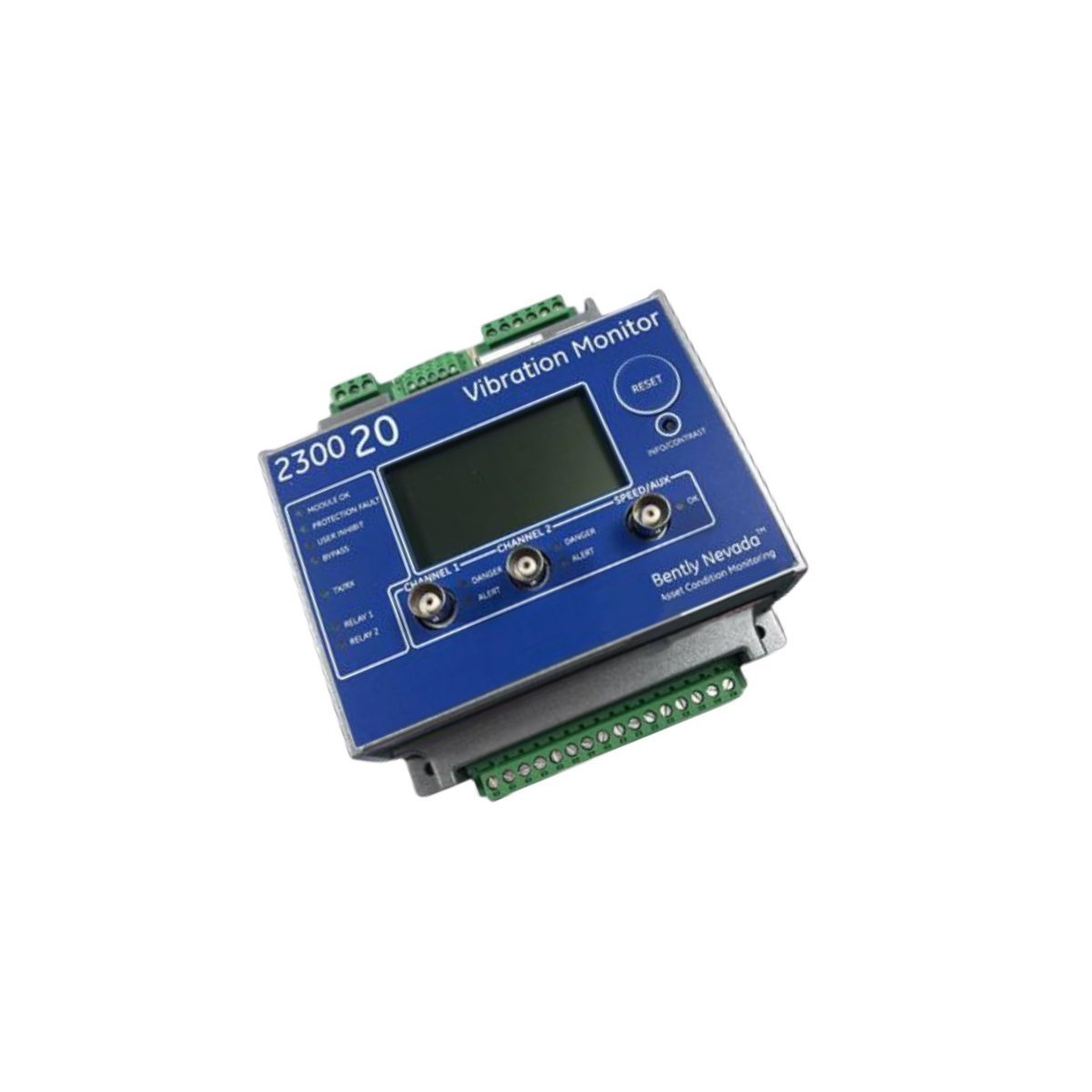

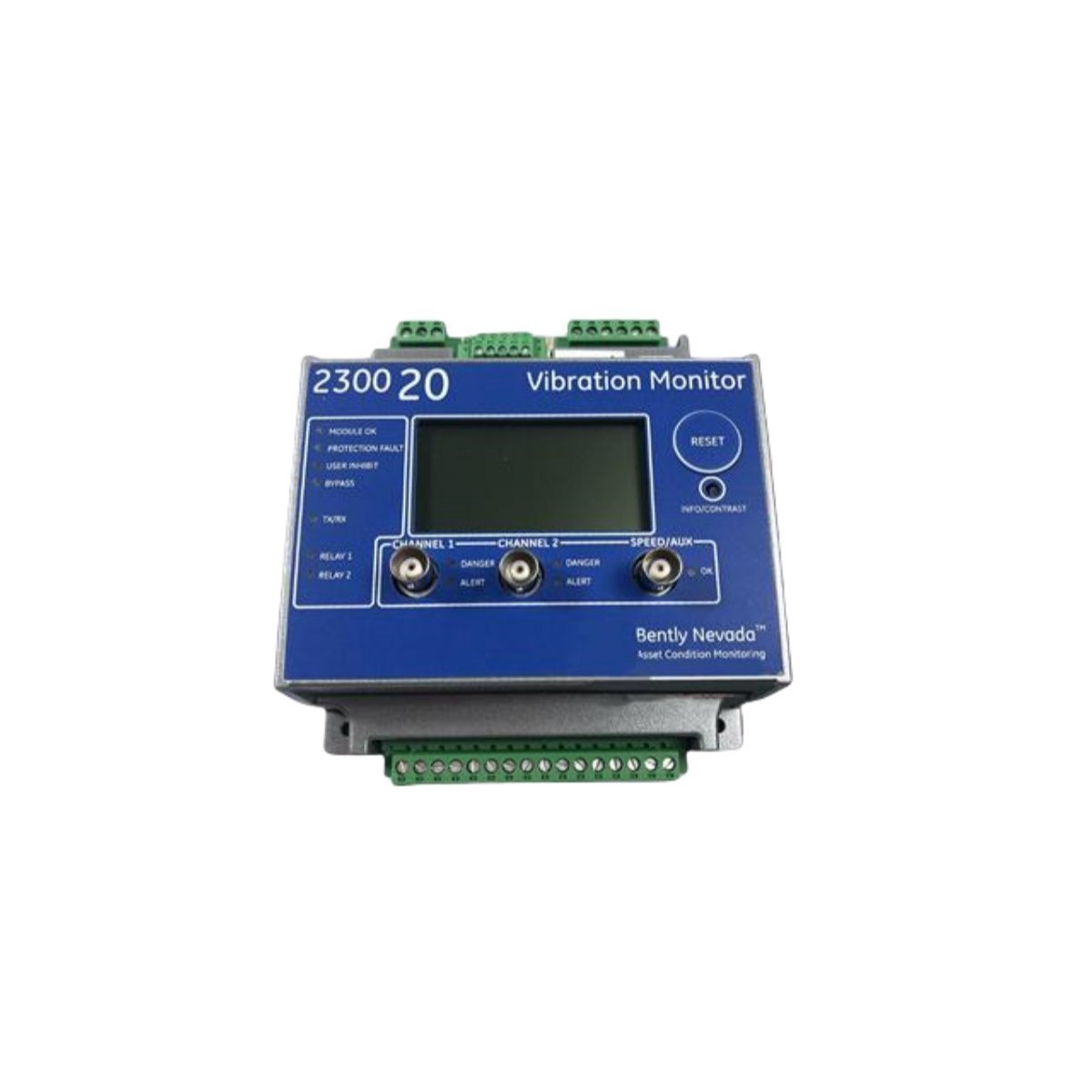

On-Board Diagnostic Interface: An integrated local LCD screen displays real-time vibration amplitudes, current speed readings, and programmed alarm setpoints.
Buffered Transducer Access: Three front-facing BNC connectors output raw 1:1 voltage signals to give portable data collectors risk-free access without disturbing operations.
Industrial Network Support: Built-in Ethernet ports allow seamless connection to software platforms for remote device configuration and automated modbus communication.
