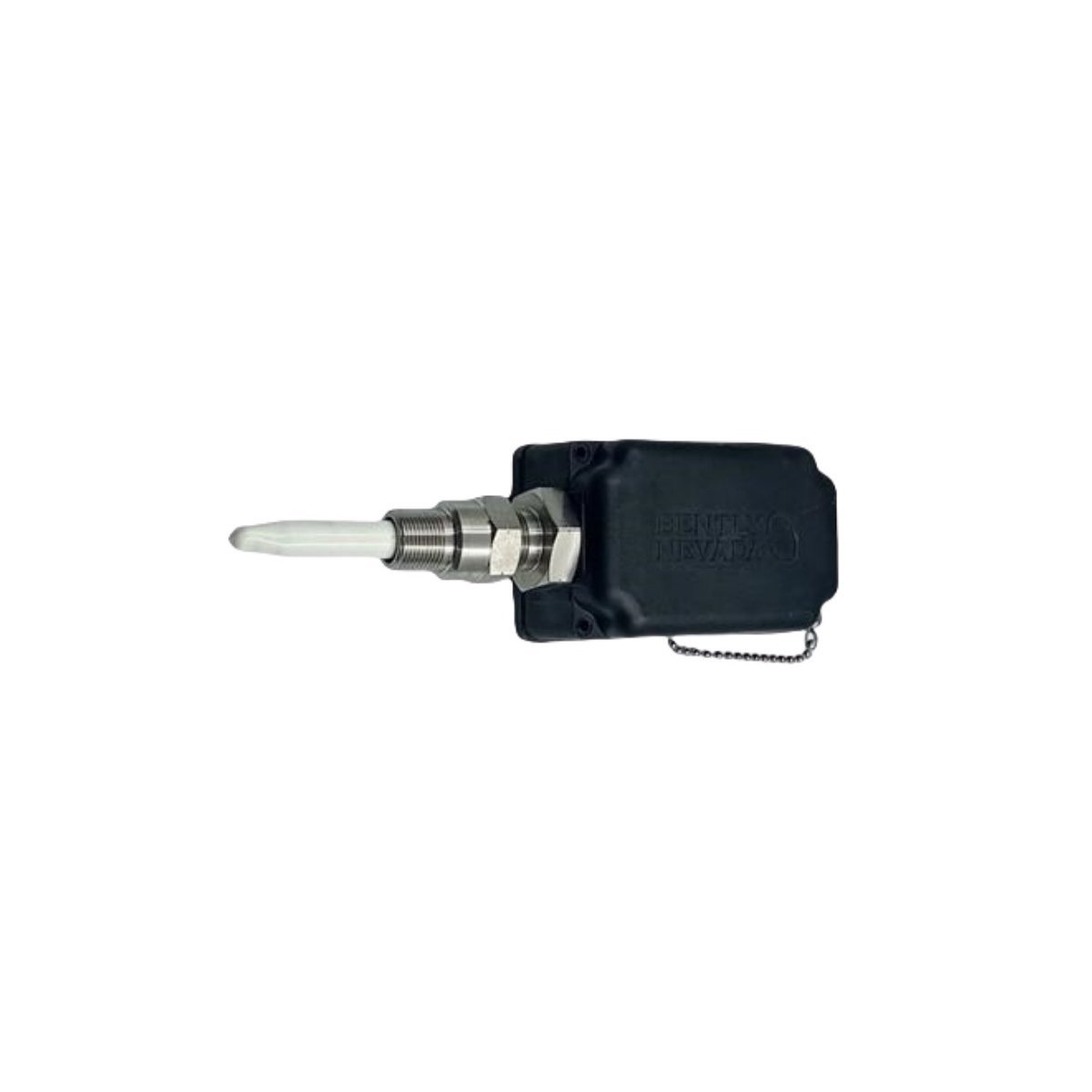

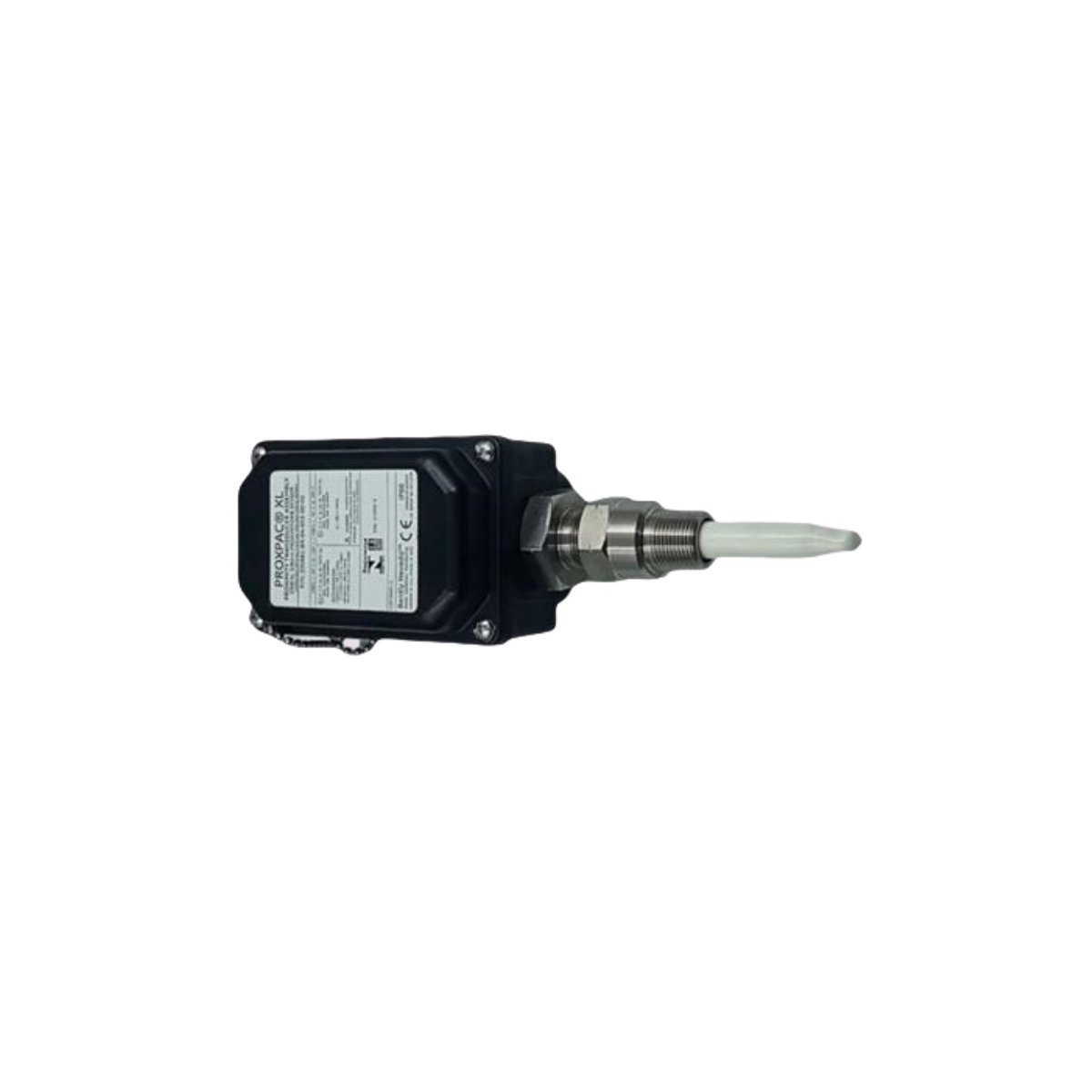

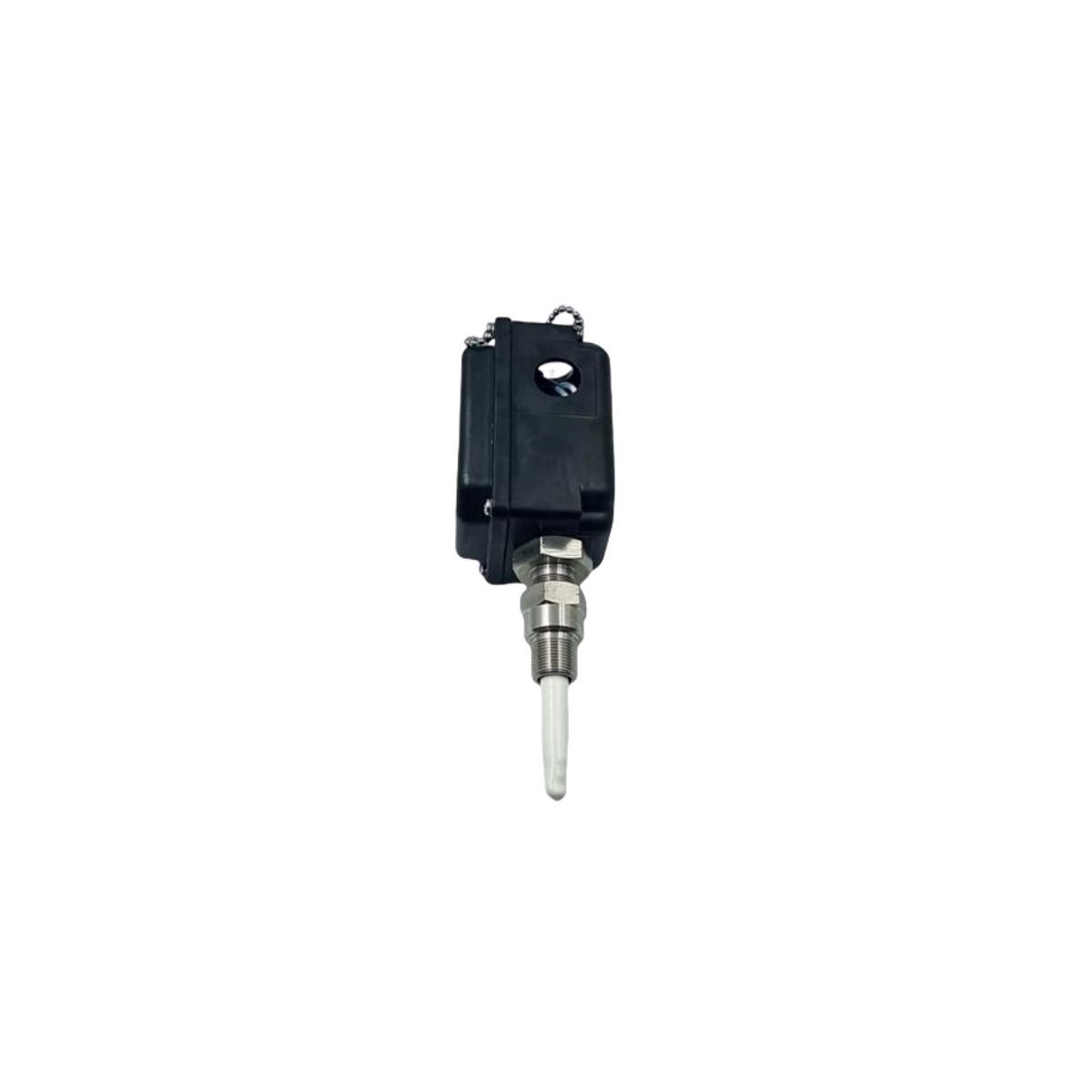

Bently Nevada 330800-16-00-039-03-02 PROXPAC XL Proximity Transducer Assembly

Product Description

The Bently Nevada 330800-16-00-039-03-02 operates as an all-in-one proximity transducer assembly for heavy-duty industrial machinery. This rugged device measures shaft vibration and position variables without requiring standalone external sensor housings.

Technical Specification Matrix

Operational Function and Field Applications

This integrated hardware simplifies Turbomachinery Instrumentation (TSI) layouts by combining separate components into a unified mechanical package. Engineers install these specialized assemblies directly on machine casings to monitor fluid-film bearing performance. Consequently, the streamlined design eliminates external matching cables and remote sensor enclosures entirely.

The device excels at tracking axial shaft displacement, radial vibration profile changes, and precise rotational speed. Therefore, plant operators deploy this system on critical machinery trains, including steam turbines, massive cooling pumps, and gas compressors. The internal sensor creates a localized eddy-current field that accurately tracks metal target behavior. Finally, field technicians can execute mechanical gap calibration adjustments externally without opening the main enclosure.

Performance Characteristics and Structural Advantages

• Unified Sensor Integration: The internal mounting structure holds a built-in 3300 XL Proximitor sensor securely to eliminate common field-cabling failure loops.
• Direct Monitor Connection: The streamlined layout routes output signals straight to control room monitors to reduce intermediate junction boxes.
• Thermal Performance Drift Stability: High-grade internal components restrict temperature drift deviations to tight margins for consistent year-round monitoring.
• Robust Mechanical Design Base: The structural design upgrades classic 31000 and 32000 housing installations with much stronger environmental protection layers.
• High Signal Resolution Performance: Fine physical measurement processing allows the internal driver circuit to recognize subtle microscopic machine shaft movements.
