Honeywell 51195153-001 Experion PKS DCS UCN Cable and Wire

Honeywell 51195153-001 Experion PKS Cable Assembly

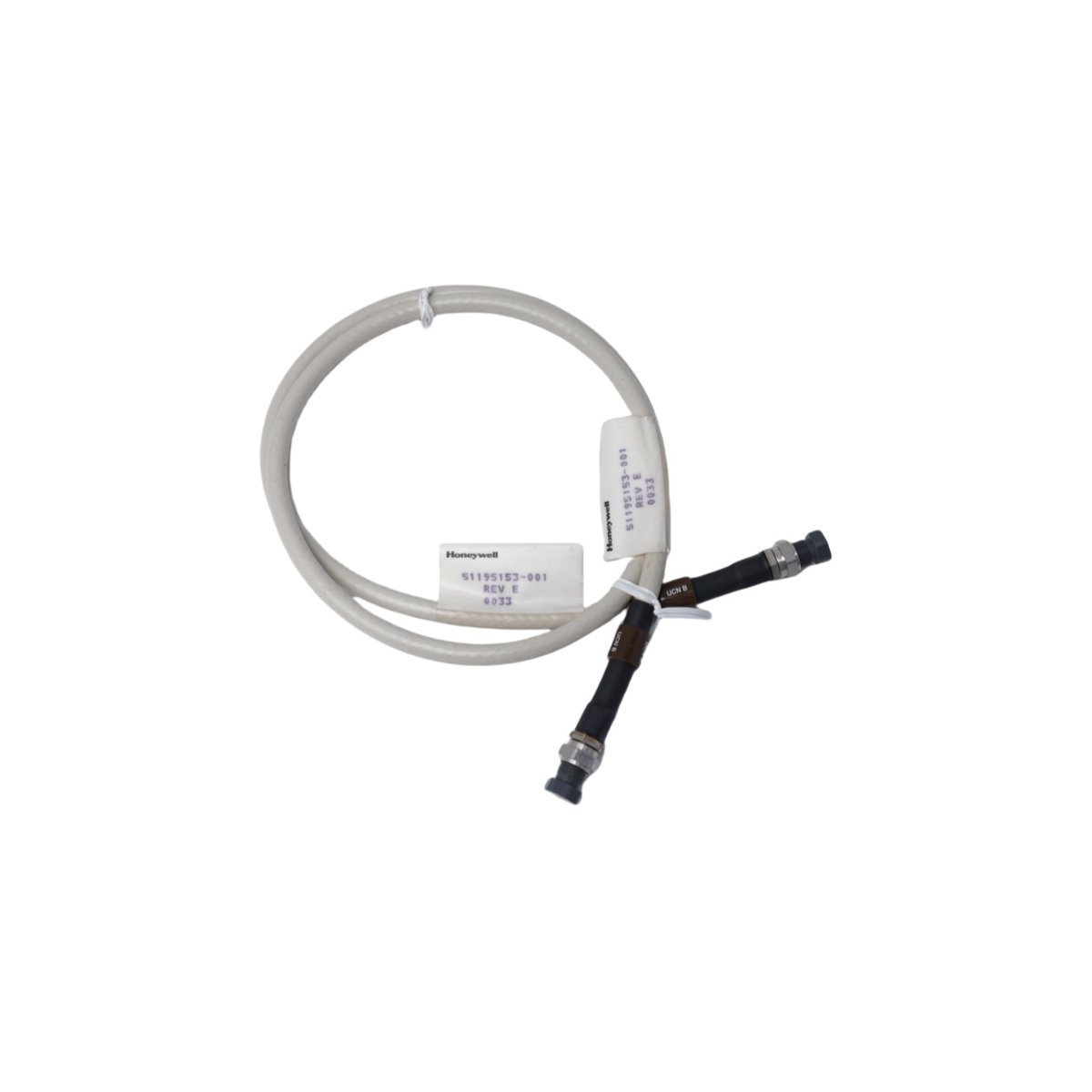

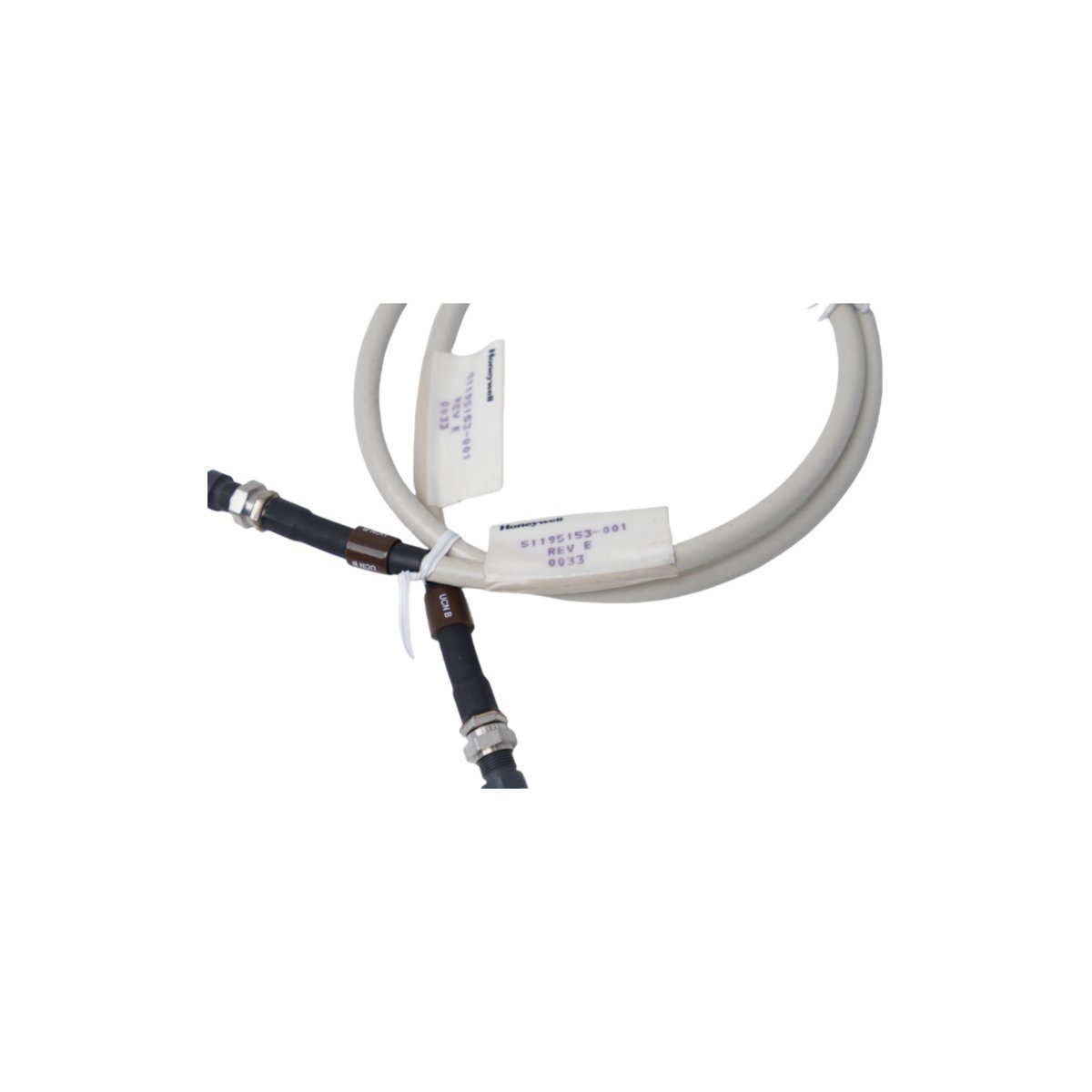

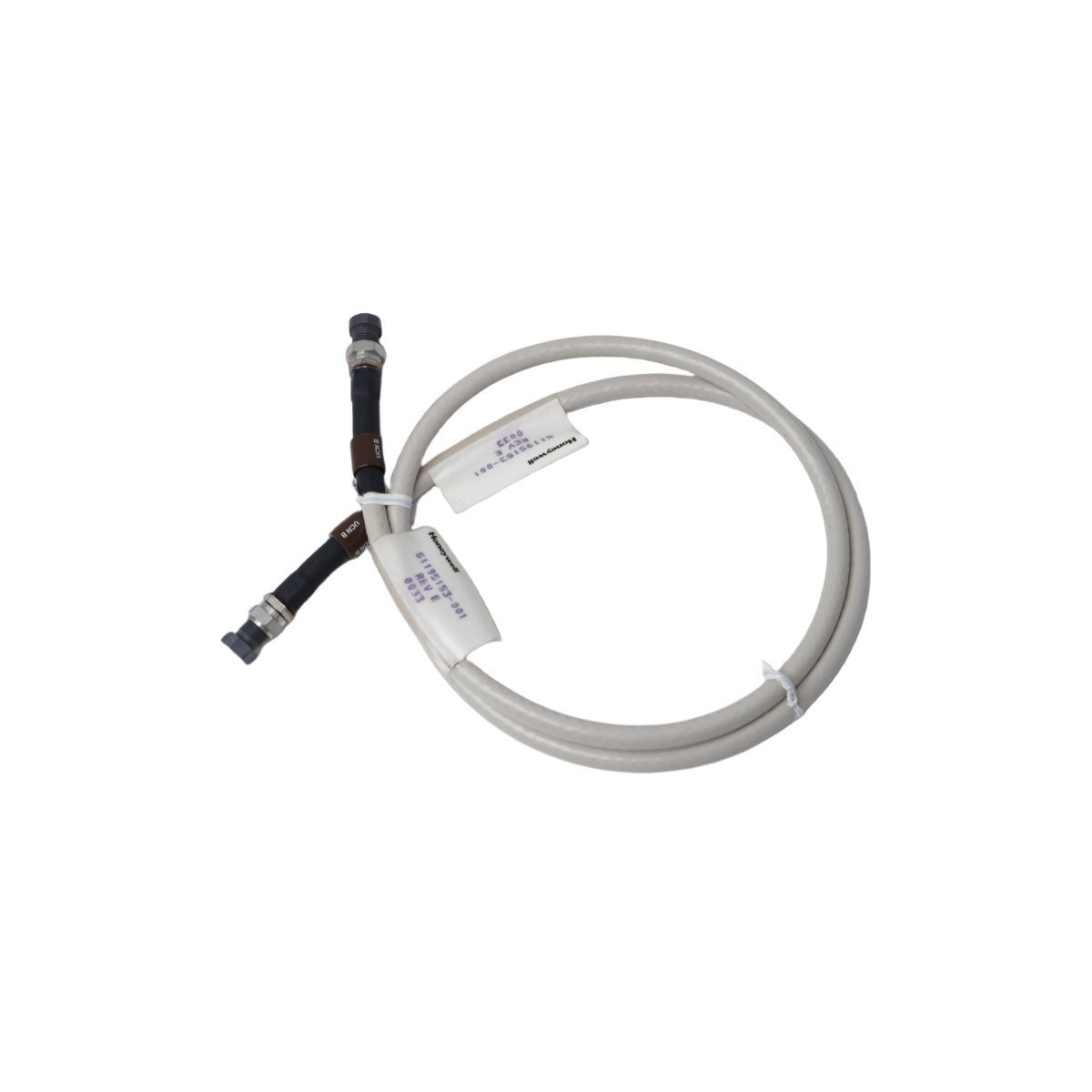

The Honeywell 51195153-001, also cataloged as the 51195153-001 Cable and Wire Assembly, operates as a dedicated hardware component for high-integrity data transmission and physical bus interconnectivity within Experion PKS DCS platforms.

Hardware Specifications

Process Control & Channel Isolation Characteristics

This shielded interconnect assembly transfers high-frequency digital telemetry while maintaining galvanic signal isolation between controller interfaces and field-mounted termination blocks. The outer braided shielding absorbs ambient electromagnetic interference (EMI), whereas low-attenuation copper conductors minimize signal loss across extended cabinet runs. Furthermore, high-dielectric insulation barriers mitigate channel-to-channel cross-talk, which ensures clean signal delivery and prevents common-mode noise from corrupting delicate 4-20 mA HART loops or high-speed communication trunks.

Frequently Asked Questions

Q: How does the cable construction suppress ground loops in high-density DCS cabinets?

A: The cable utilizes an overall foil and braided shield that engineers bond at a single low-impedance ground point, thereby preventing stray circulating currents from inducing voltage noise into differential signal conductors.

Q: What physical bend radius limits must technicians observe during cable tray routing?

A: Installers must maintain a minimum static bend radius of eight times the outer cable diameter, as excessive flexing risks deforming the internal shield geometry and altering line impedance.

Q: Can maintenance personnel hot-swap the drop cable while active communication bus traffic continues?

A: Field personnel can disconnect and reattach the drop cable assembly while the main bus remains energized; however, they must ensure redundant channel coverage to prevent node dropouts during maintenance.

Field Installation Guidelines

1. Safety Precautions & ESD Handling: Discharge static electricity by grounding all tools, and confirm panel isolation guidelines before routing conductors near live terminal strips.
2. Conduit Separation: Route data communication cables in dedicated metal raceways separate from high-voltage AC lines, keeping at least 30 cm clearance to eliminate electromagnetic induction.
3. Shielding Termination: Connect the cable drain wire directly to the main cabinet grounding bus bar; however, leave the remote end ungrounded unless system topology explicitly requires dual-ended grounding.
4. Mechanical Cable Retention: Secure the cable at regular 50 cm intervals using nylon ties, and ensure strain-relief clamps hold the outer jacket firmly without crushing internal pairs.
5. Pre-Commissioning Continuity Checks: Perform end-to-end resistance and shield isolation tests with a multimeter before powering connected network cards, verifying at least five full thread turns on threaded locking connectors.
