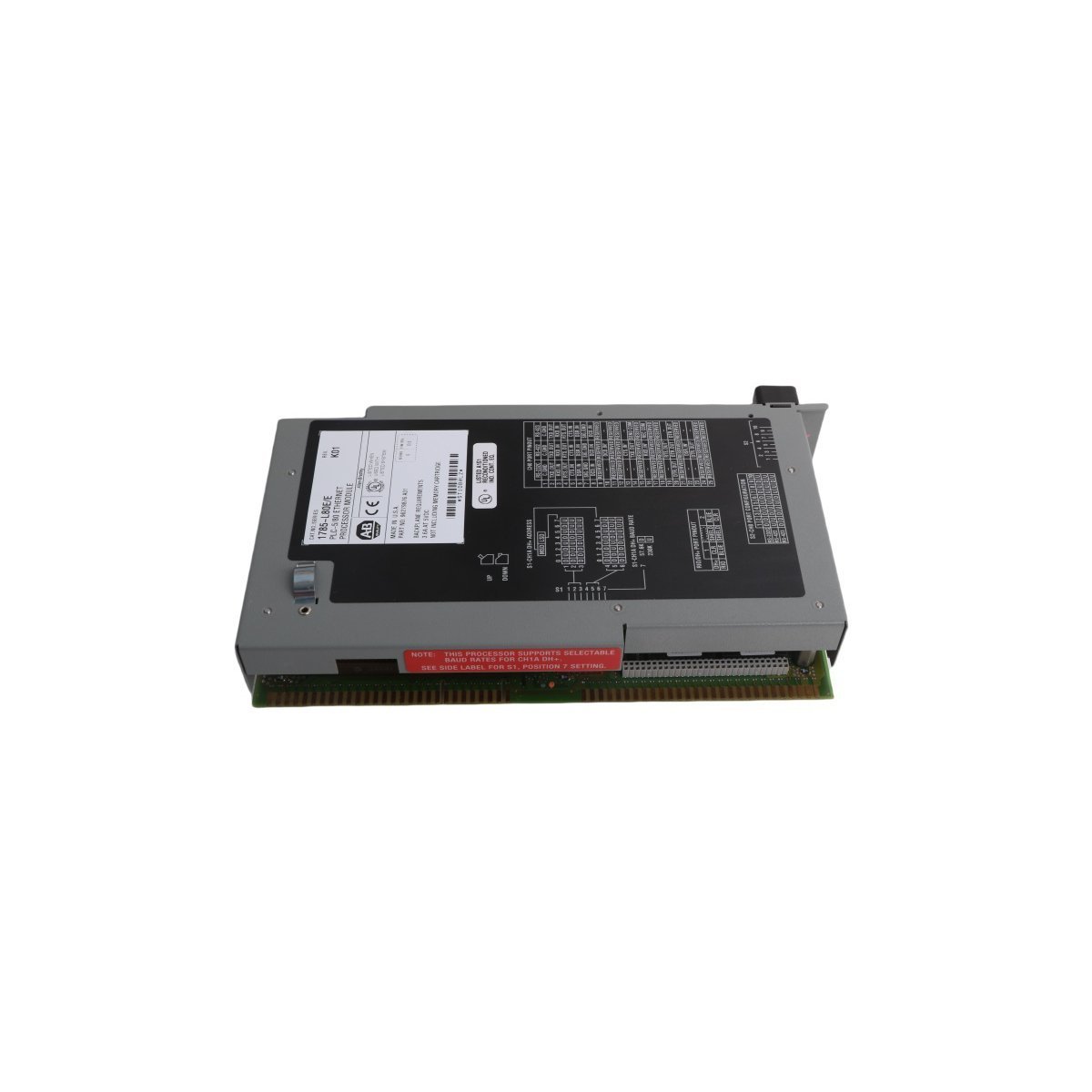

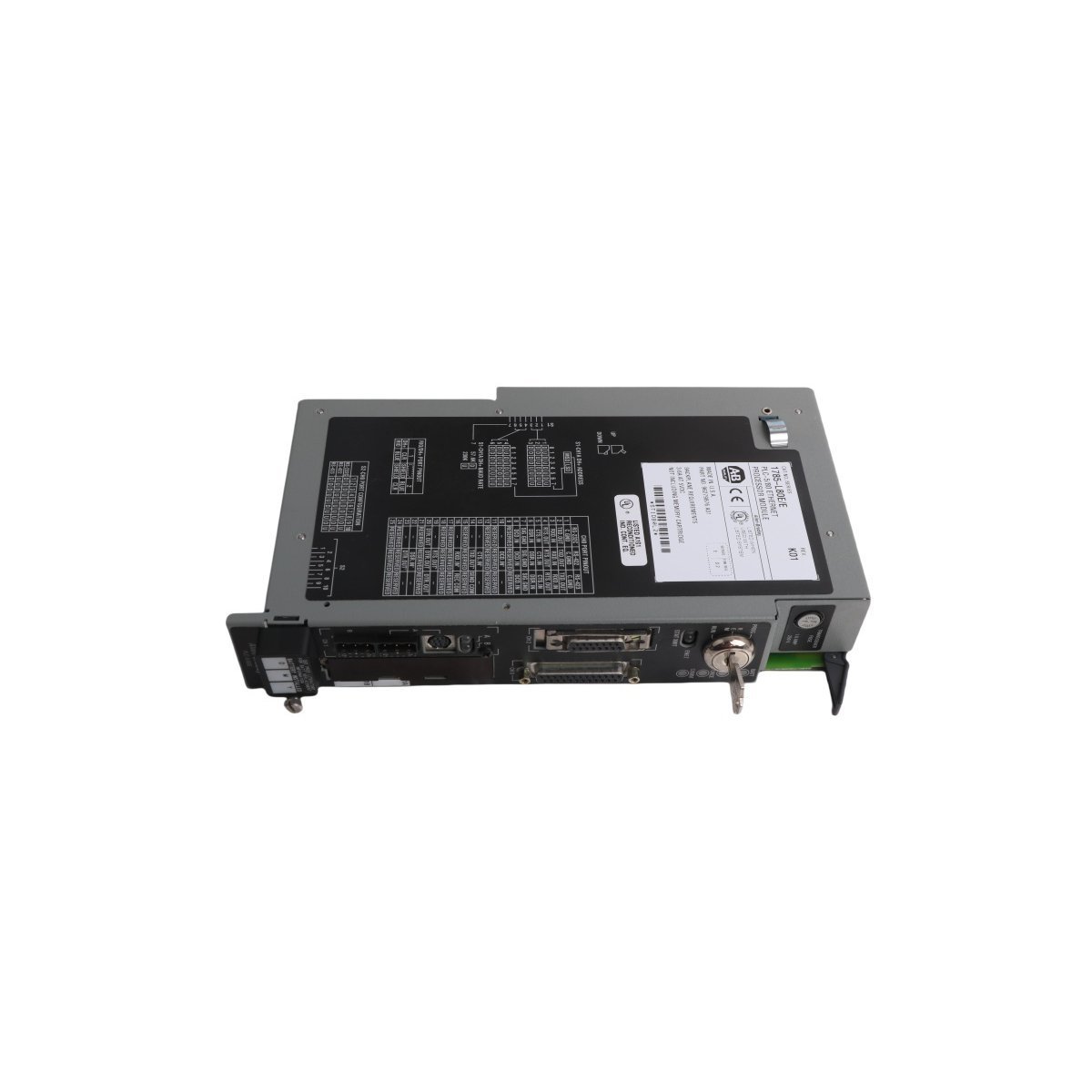

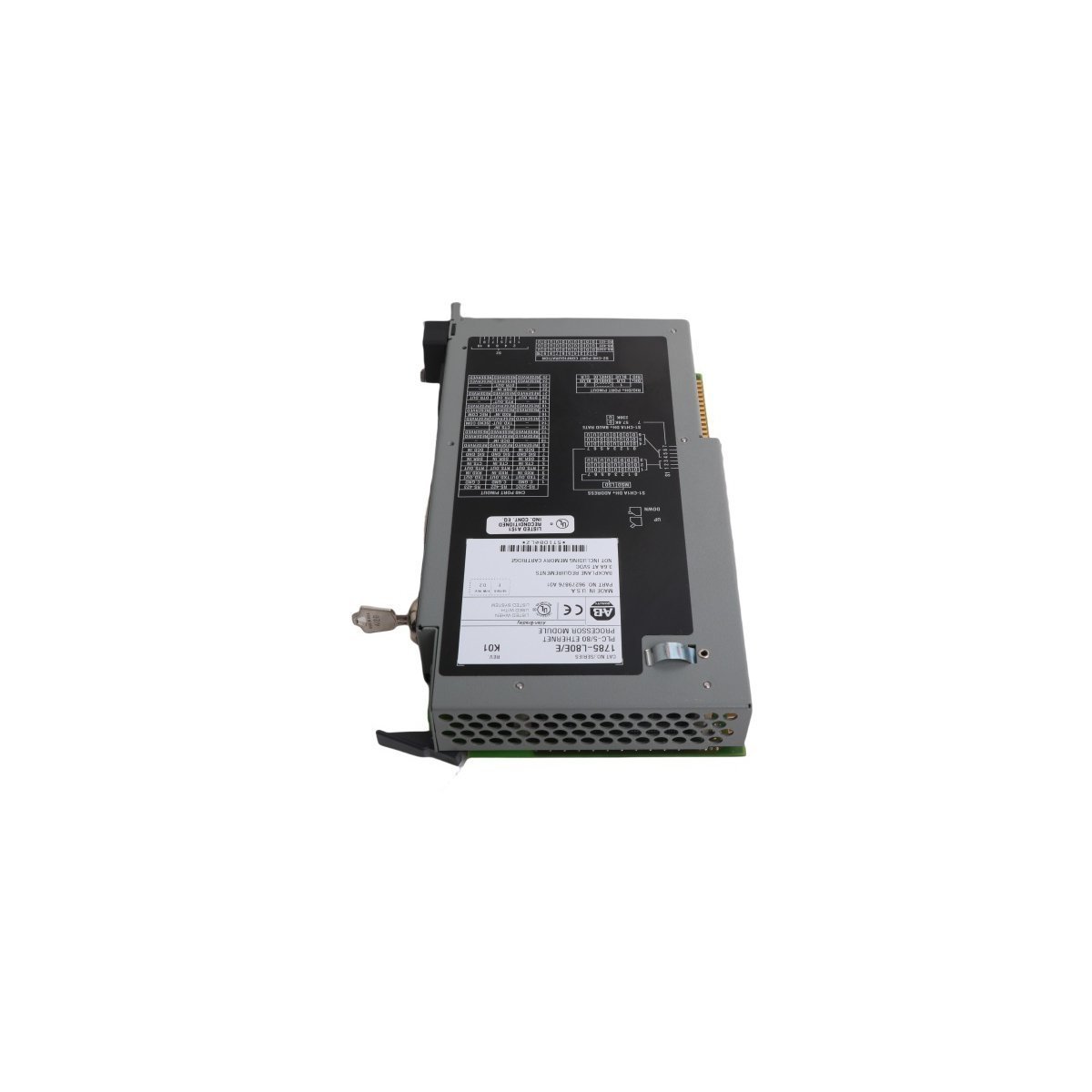

Allen-Bradley 1785-L80B Controller Module

The Allen-Bradley 1785-L80B belongs to the renowned PLC-5 Enhanced family of industrial processors. This module acts as the central intelligence for large-scale automation architectures. It manages extensive I/O counts while maintaining high-speed logic execution. With a user memory capacity of 100K words, it handles complex instructions with ease. This processor excels in environments requiring robust reliability and long-term hardware stability. Consequently, it remains a standard choice for critical manufacturing and process control systems.

Integrated Network Communication

Communication flexibility defines the 1785-L80B through its multiple onboard ports. The unit features four specialized channels labeled 1A, 1B, 2A, and 2B. These ports support Data Highway Plus (DH+) for peer-to-peer messaging between controllers. Additionally, they function as Remote I/O scanners to interface with distributed racks. A dedicated 25-pin RS-232C port (Channel 0) facilitates local programming and ASCII device connectivity. These diverse options ensure seamless data exchange across the entire factory floor.

Performance Specifications and Ratings

• User Memory: 100,000 Words
• Total I/O Capacity: 3072 maximum (Any mix)
• Backplane Current (5V DC): 3.3 Amperes
• Communication Ports: 4 DH+/Remote I/O ports and 1 RS-232C port
• Front Panel Indicators: PROC, BATT, FORCE, and COMM status LEDs
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Physical Weight: 1.32 kg (2.9 lb)
• Dimensions: 4.8 x 15.2 x 27.3 cm

System Diagnostics and Reliability

The front interface provides immediate visual feedback through several dedicated status indicators. These LEDs monitor processor health, battery levels, and active communication states. Furthermore, the 1785-L80B supports force functions for testing field devices during commissioning. This module fits into any standard 1771 Universal I/O chassis. It provides a bridge between legacy systems and modern control requirements through its versatile port configurations. This combination of power and connectivity ensures the integrity of high-demand industrial operations.
