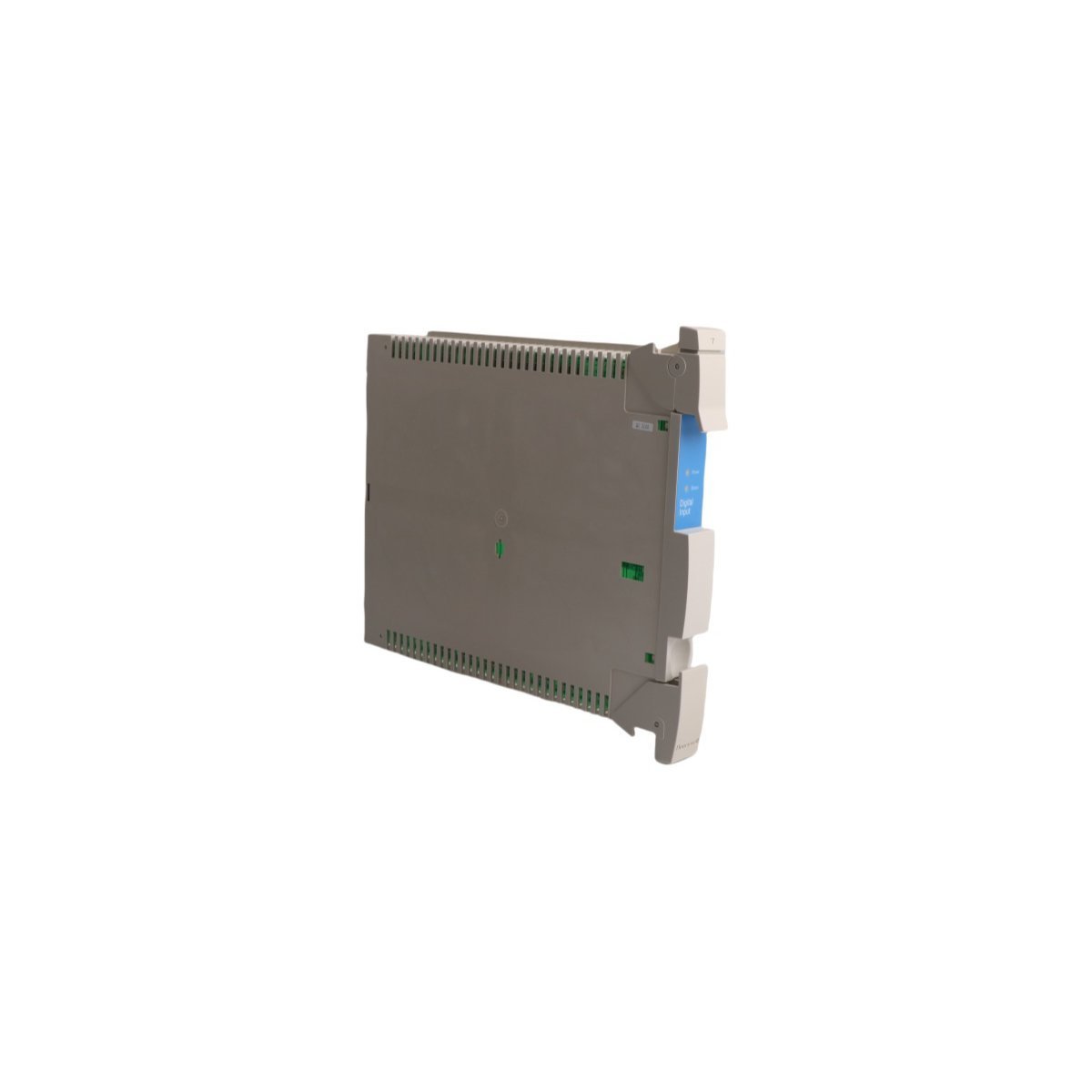

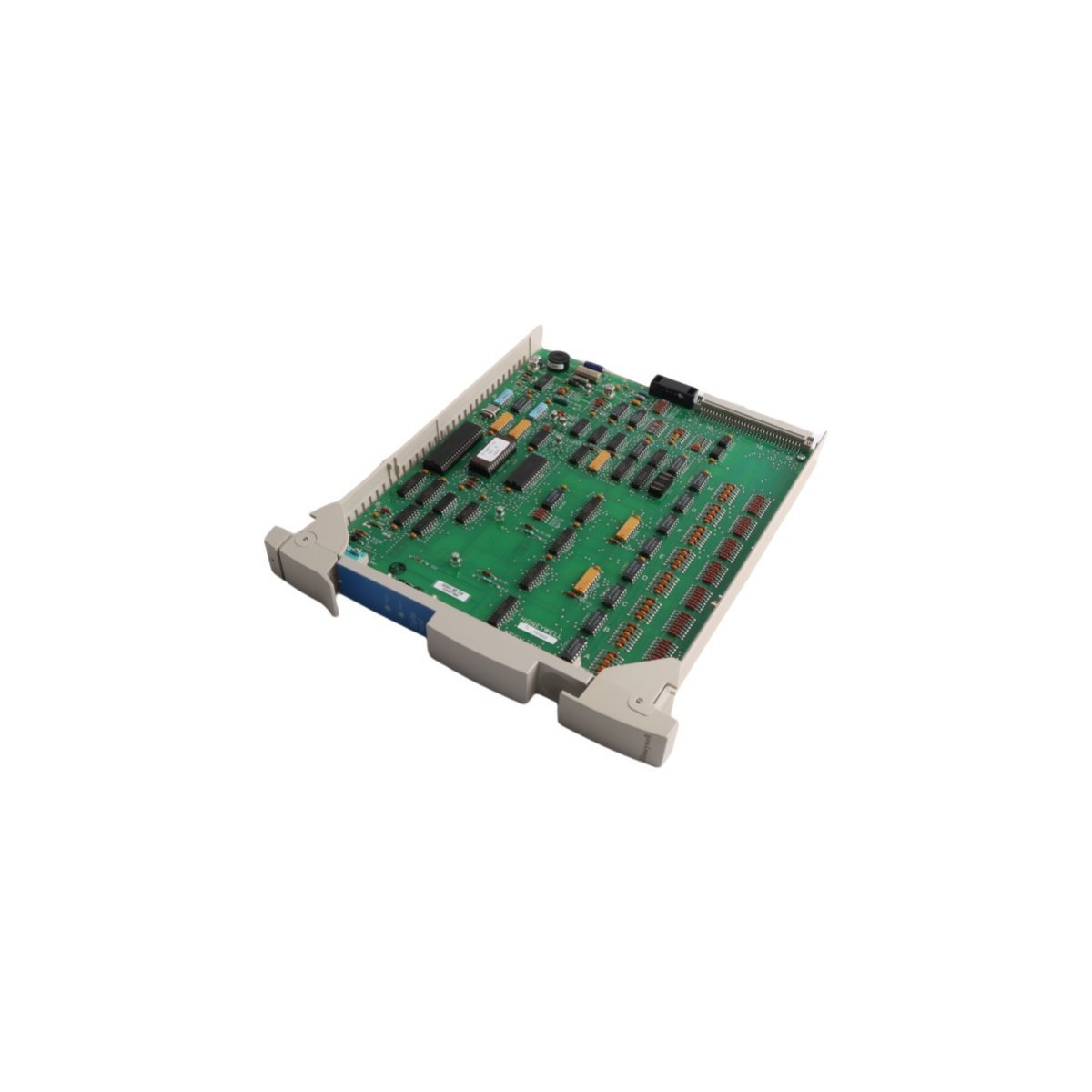

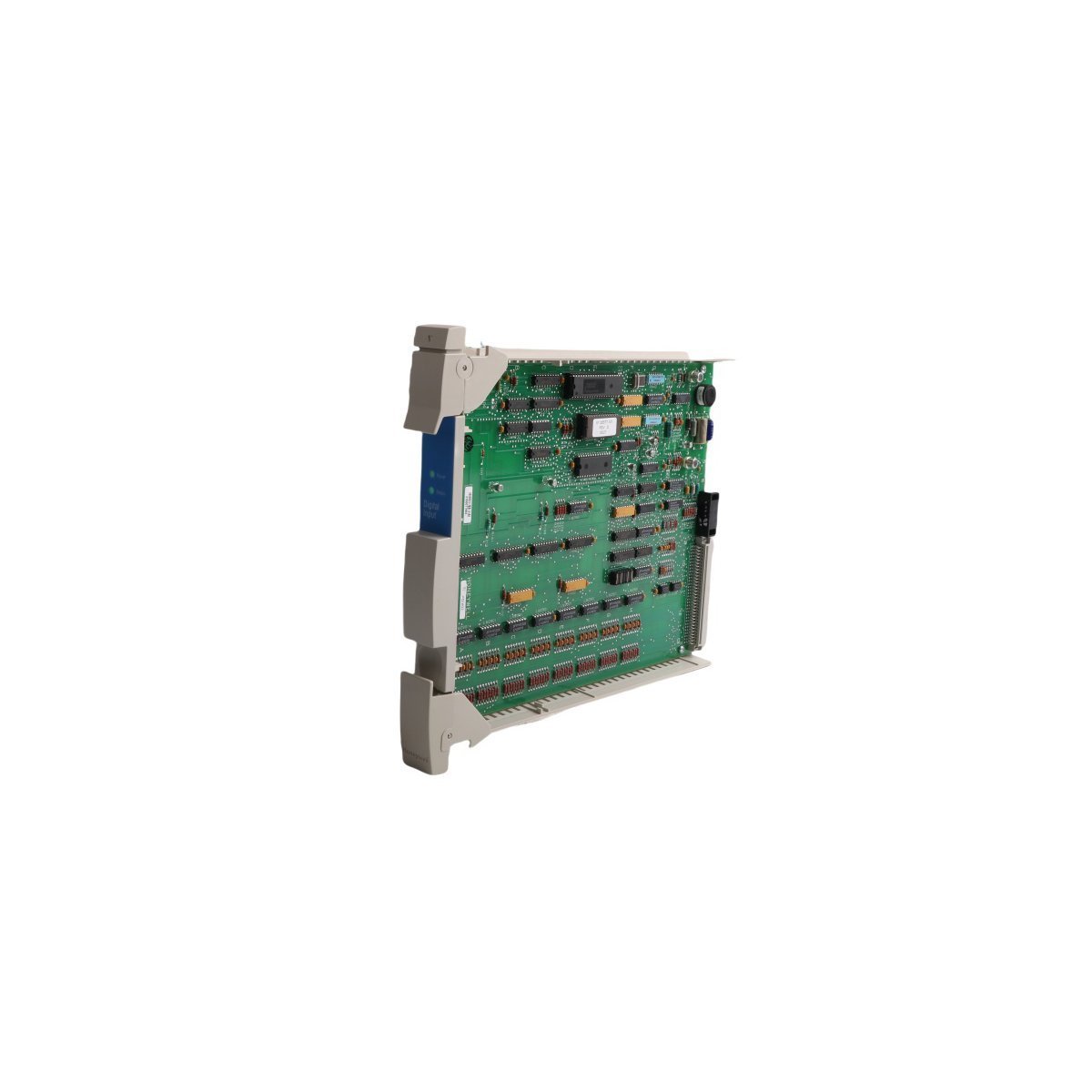

Honeywell MU-PDIX02 Digital Input Processor Board Part 51304485-100

Product Brief

The Honeywell MU-PDIX02 digital input processor samples discrete signals from binary field instrumentation. This module updates process variables within the automated network to maintain real-time process monitoring.

Functional Overview

The MU-PDIX02 Digital Input Processor manages signal scanning and electrical isolation for discrete field devices within Honeywell MU-T control networks. Operating inside a Distributed Control System (DCS) framework, this specialized card monitors 16 individual digital inputs simultaneously. The onboard circuitry actively filters raw signal bounce, which prevents electrical noise from transmitting corrupt data to the system processor.

Automation engineers specify this processor card to track limit switches, safety interlocks, and push-button status inputs. Because the module possesses an internal RS-485 communication link, it coordinates peripheral device registers efficiently. The integrated electronics handle high-speed signal processing locally to optimize global network reaction times during sudden plant state changes.

Technical Specifications

• Manufacturer: Honeywell
• Model Identifier: MU-PDIX02
• Part/Order Number: 51304485-100
• Component Type: Digital Input Processor Module
• System Family Compatibility: Honeywell MU-T Series / Experion TDC 3000 DCS
• Total Discrete Input Channels: 16 isolated digital inputs
• Maximum Power Consumption: Less than or equal to 5W
• Serial Interface Support: Integrated RS-485 data port
• Physical Housing Dimensions: 3.0 cm x 31.8 cm x 28.0 cm
• Net Weight: 0.64 kg
• Country of Origin: United States
• International HS Code: 8537101190
• Mechanical Mounting Layout: Standard DIN rail cabinet placement
• Operating Temperature Range: -40°C to +85°C environmental tolerance
• Ingress Protection Rating: IP20 safety enclosure classification
• Lifecycle Status: Active product for field maintenance and system upgrades

Key Operational Features

Extended Thermal Performance

Extreme process locations encounter wide temperature fluctuations. Honeywell builds the module using high-grade industrial components that survive across a -40°C to +85°C window. This wide thermal range prevents signal drift and component failures in remote unconditioned field enclosures.

Reliable Ingress and Electrical Shielding

Dust buildup and humidity alter sensitive electronic resistance pathways. The IP20-rated casing keeps solid debris away from internal components while maintaining compact spacing. Furthermore, built-in isolation barriers separate the field-side wiring loops from sensitive backplane microprocessors.

Low Power and Efficient Density

High-density control cabinets run hot when filled with old processing hardware. This module limits power consumption to under 5W, which drastically drops cabinet heat generation. Standard DIN rail clips allow fast tool-free module attachment during plant turnarounds.
