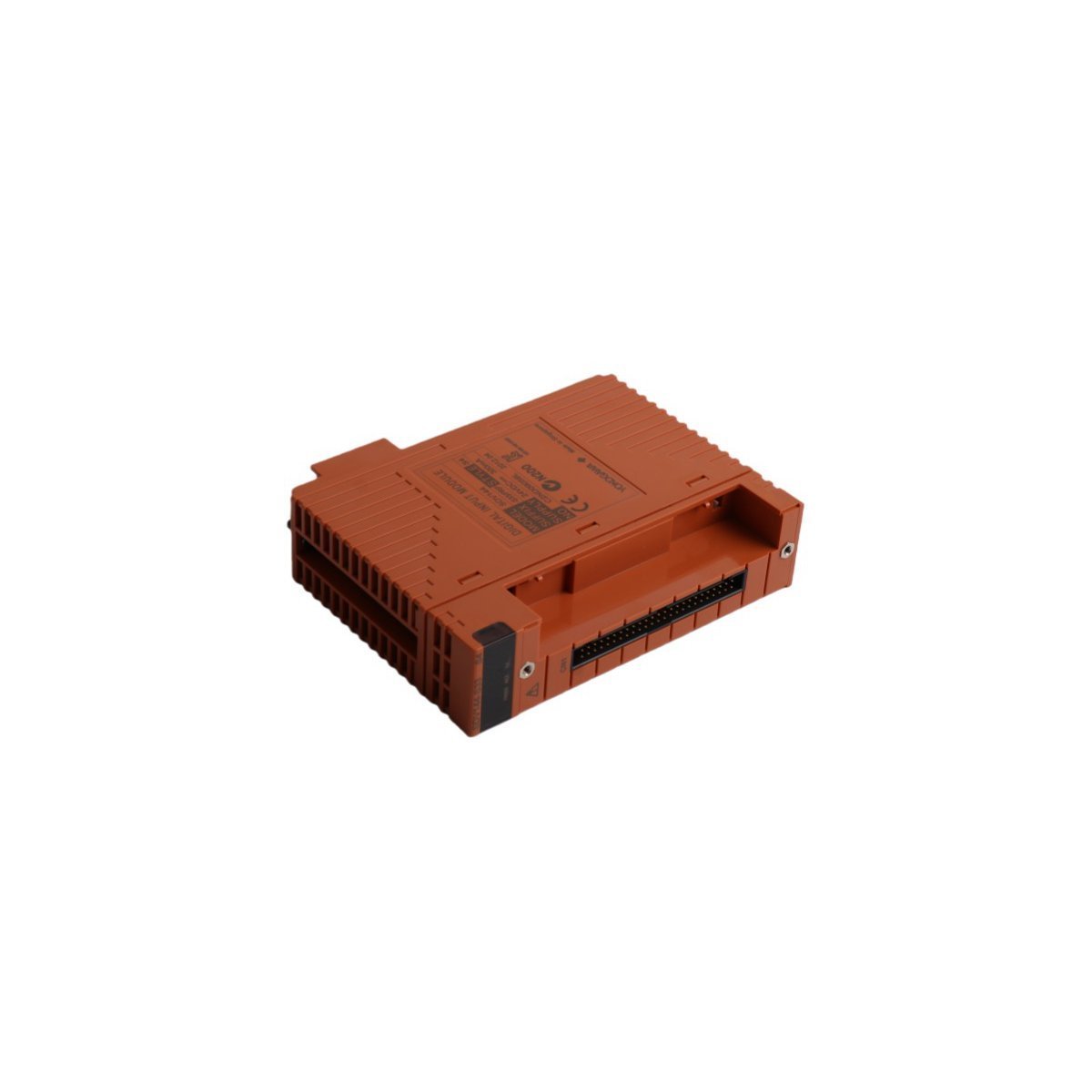

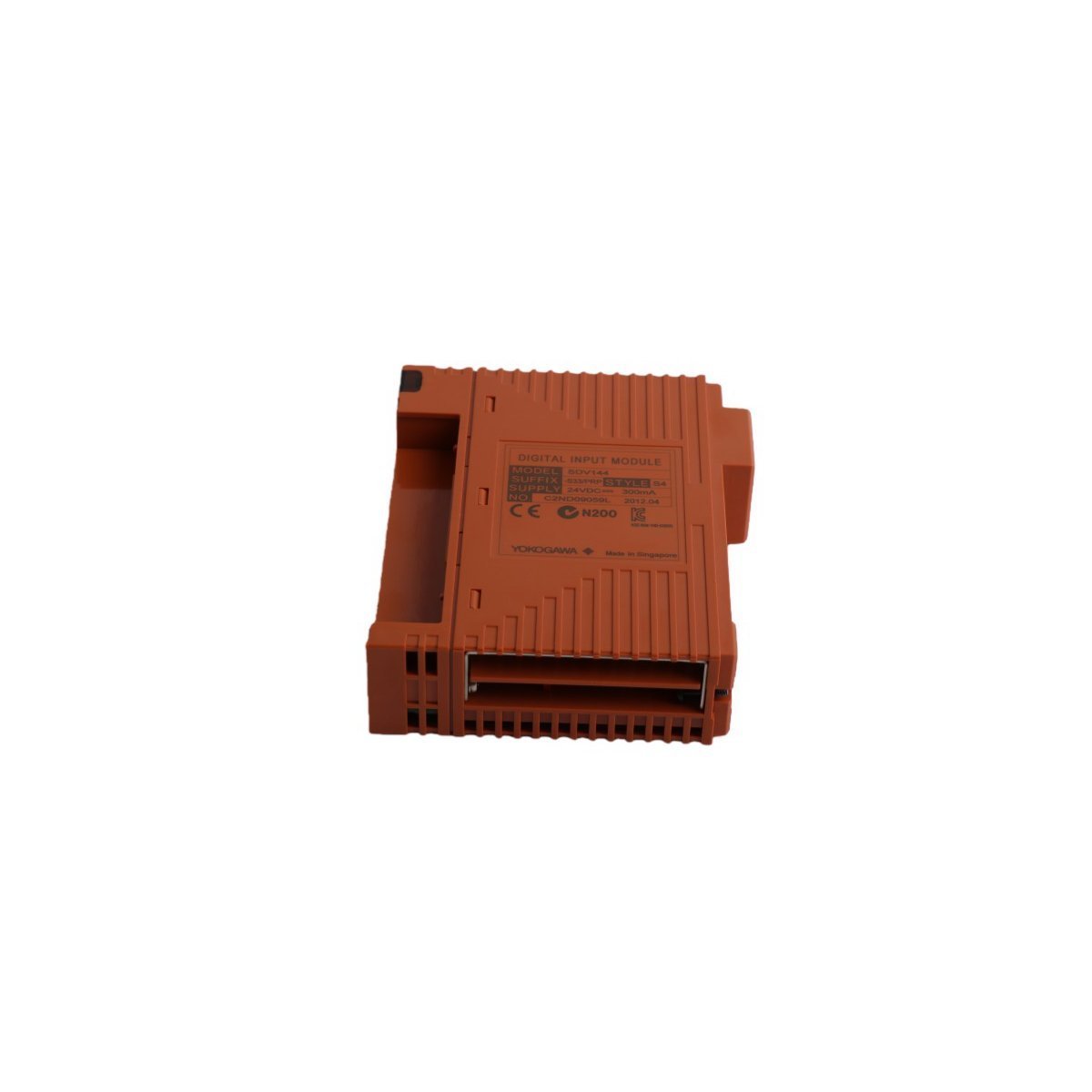

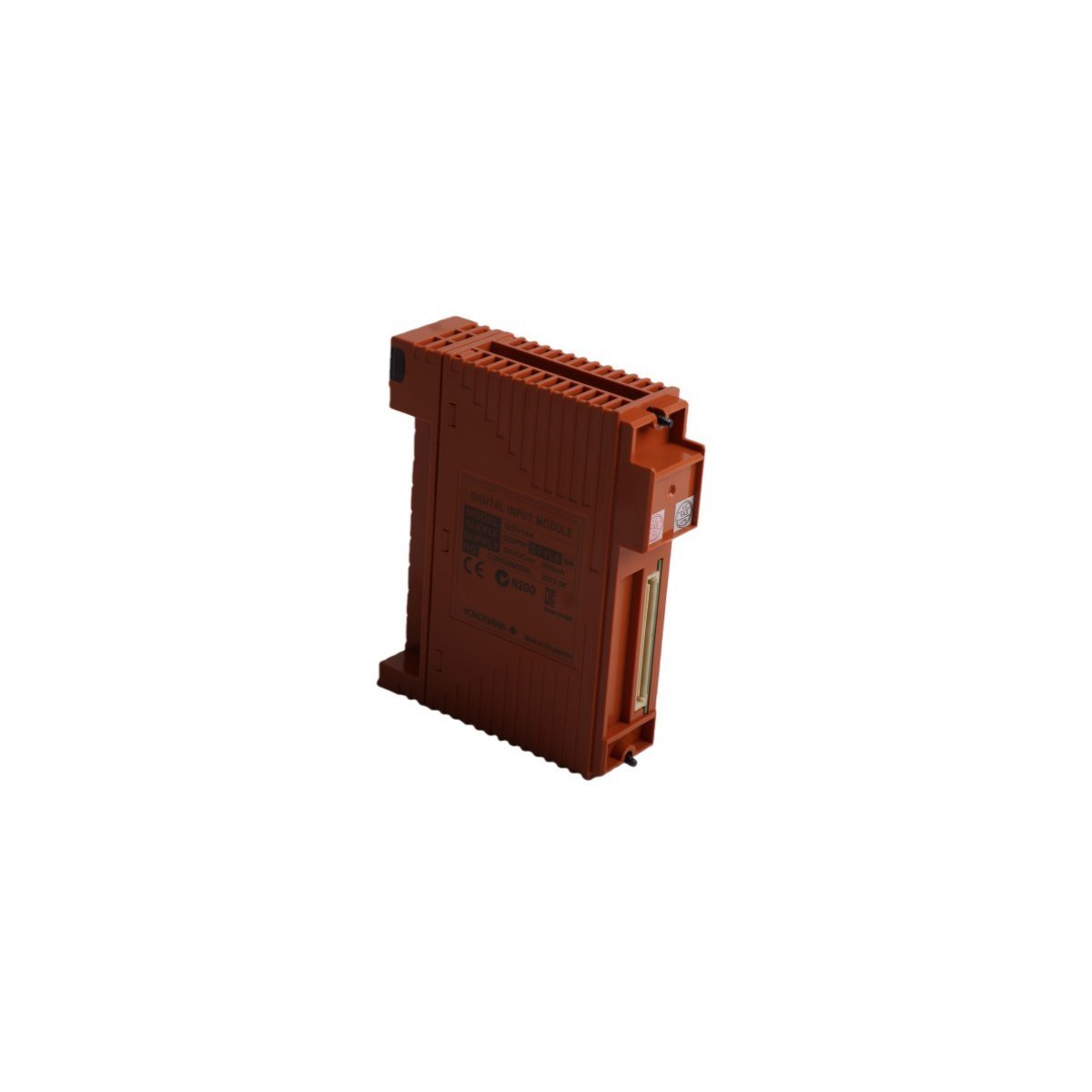

The SDV144-S33 acts as a high-reliability interface for Yokogawa ProSafe-RS safety instrumented systems. This 16-channel module detects discrete states from field-side dry contacts. It performs vital roles in emergency shutdown (ESD) and fire and gas (F&G) systems. Because safety is paramount, the module employs rigorous self-diagnostics to ensure signal integrity. It provides a secure bridge between hazardous field areas and the safety controller logic.
Superior Signal Integrity and Safety Features
This digital input module utilizes advanced isolation technology to protect system circuitry. It withstands up to 2 kV AC between input channels and the internal system bus. Furthermore, the unit features a fast 40 ms response time for real-time monitoring. This speed allows the safety system to react instantly to changing plant conditions. The module specifically accepts non-voltage contact signals to simplify field wiring requirements. Consequently, it reduces the need for external power distribution at the sensing point.
Technical Performance Specifications
| Parameter | Detailed Specification |
| Number of Channels | 16-channel isolated inputs |
| Input Type | Dry Contact (Non-voltage) |
| Rated Input Voltage | 24 VDC |
| ON State Resistance | 1 kΩ or less |
| OFF State Resistance | 100 kΩ or more |
| Input Current | 6 mA (±20% at 24 VDC) |
| Isolation Voltage | 2000 V AC |
| Weight | Approximately 0.3 kg |
Installation and Environmental Resilience
The SDV144-S33 supports various connection methods including pressure clamp terminals and MIL cables. This flexibility assists engineers during the integration phase of a project. The hardware operates reliably within a broad temperature spectrum from -20°C to +70°C. Therefore, the module remains stable in unconditioned equipment rooms or harsh climates. Its compact dimensions allow for high-density mounting on standard DIN rails. Such design choices optimize the footprint of the safety control cabinet.
