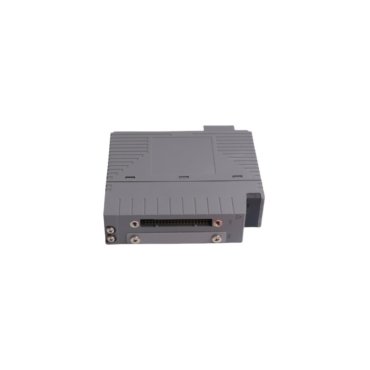

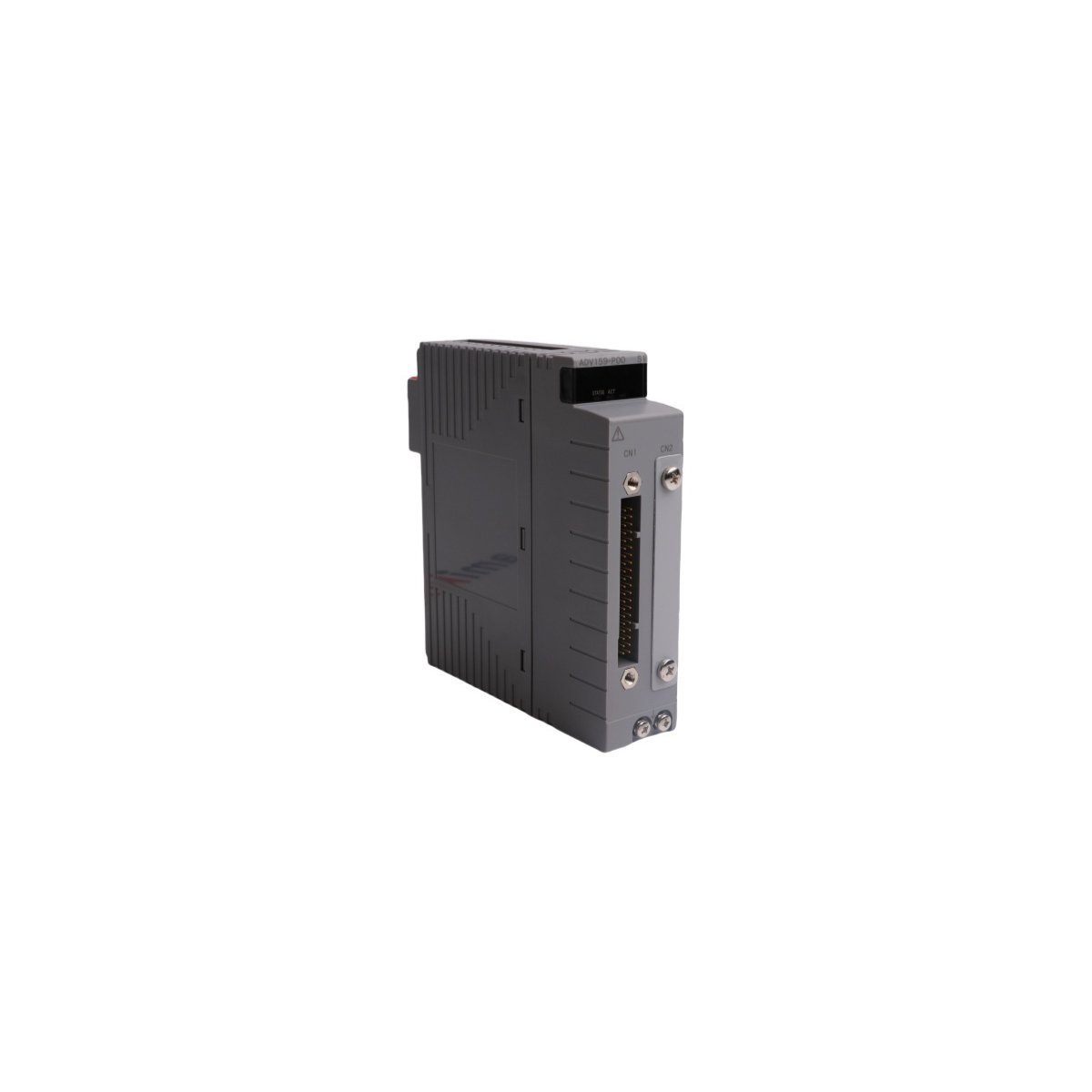

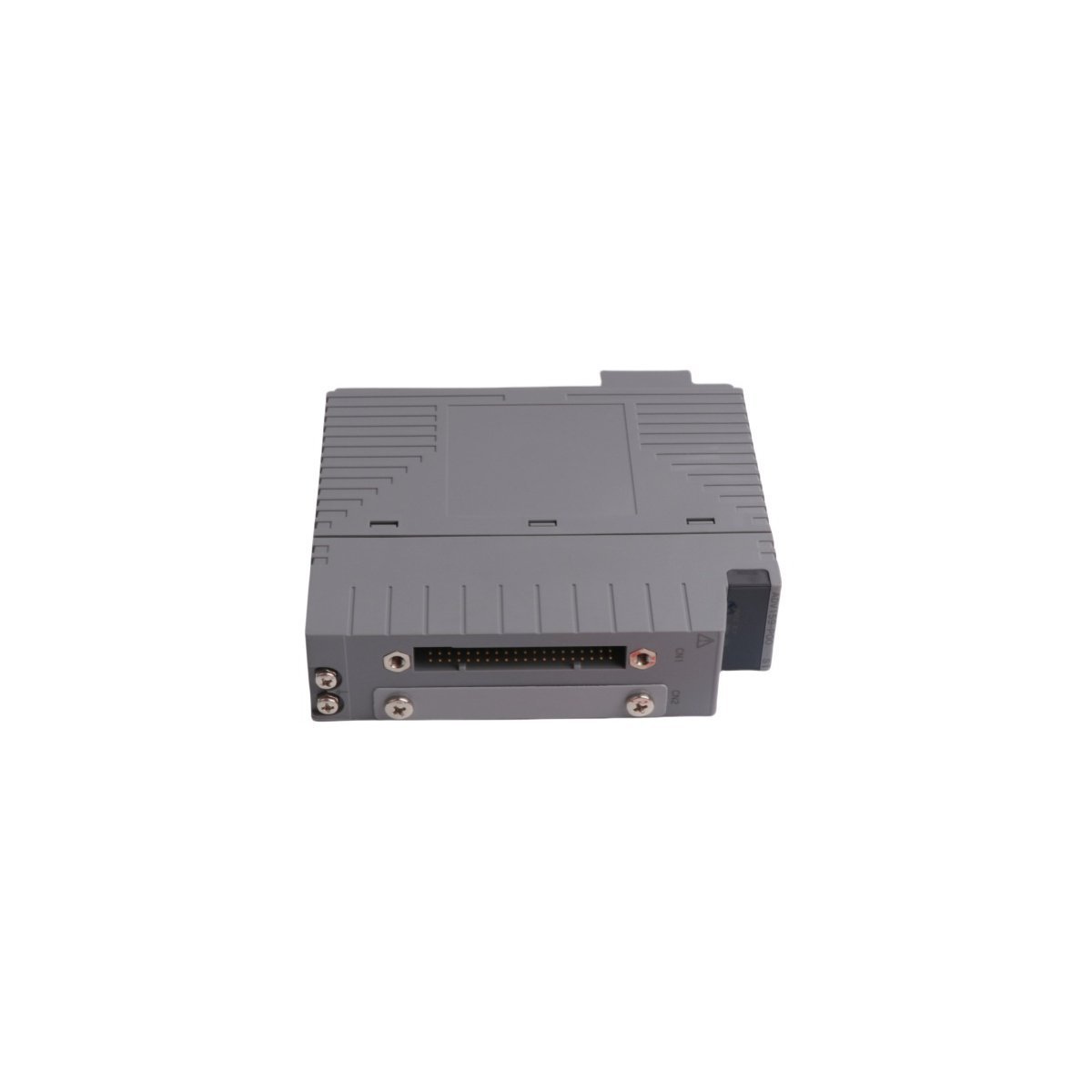

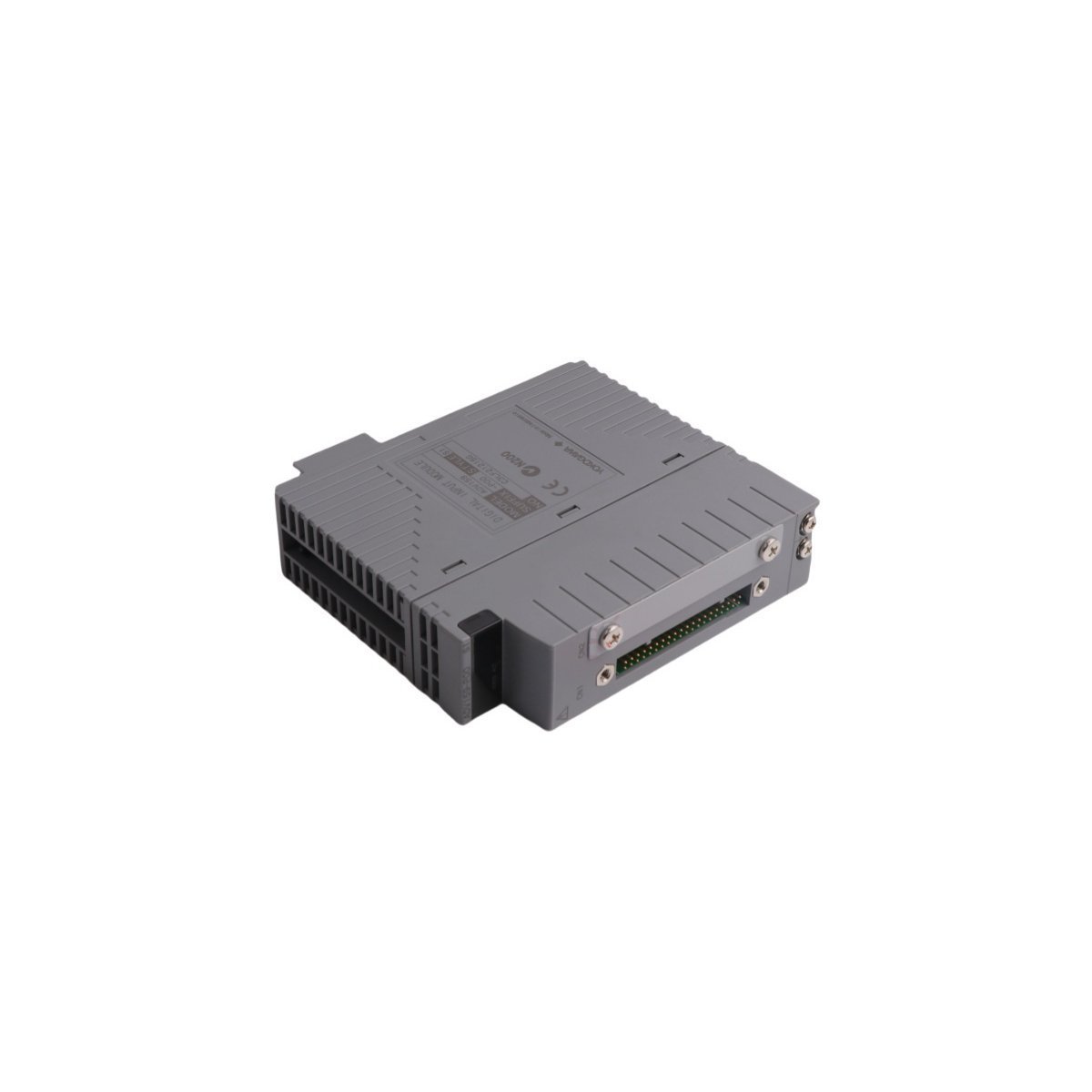

The ADV159-P00 functions as a high-density discrete signal interface within the Yokogawa CENTUM VP Distributed Control System. This module provides 32 individual channels to monitor field-side contact statuses. It translates external binary signals into digital data for the process controller. Engineers frequently deploy this unit in large-scale manufacturing and energy facilities. Its design prioritizes signal accuracy and high-speed processing for real-time automation logic.
Technical Performance and Signal Integrity
This digital input module utilizes advanced galvanic isolation to protect the system bus from field noise. It specifically supports 32 channels with a common ground architecture. The unit accepts a rated input voltage of 24 VDC for industrial standard compatibility. Furthermore, the internal circuitry filters out electrical spikes that occur in heavy industrial environments. This ensures the DCS receives clean and reliable status information from every connected switch.
Hardware Specifications
| Parameter | Specification Details |
| Channel Count | 32-channel inputs |
| Input Rating | 24 VDC |
| Isolation Type | Photocoupler Isolation |
| System Range | CENTUM VP / FIO Series |
| Power Consumption | 100 mA (at 5 VDC internal) |
| Module Weight | 0.28 kg |
| Physical Dimensions | 3.2 x 12 x 13 cm |
| Country of Origin | Japan |
Redundancy and System Availability
The ADV159-P00 supports dual-redundant configurations to maximize plant uptime. This setup allows two modules to work in parallel for critical safety paths. If one unit fails, the backup module maintains continuous signal acquisition. Consequently, operators avoid unplanned process shutdowns during hardware maintenance. This high-availability architecture makes it an essential component for mission-critical control loops.
