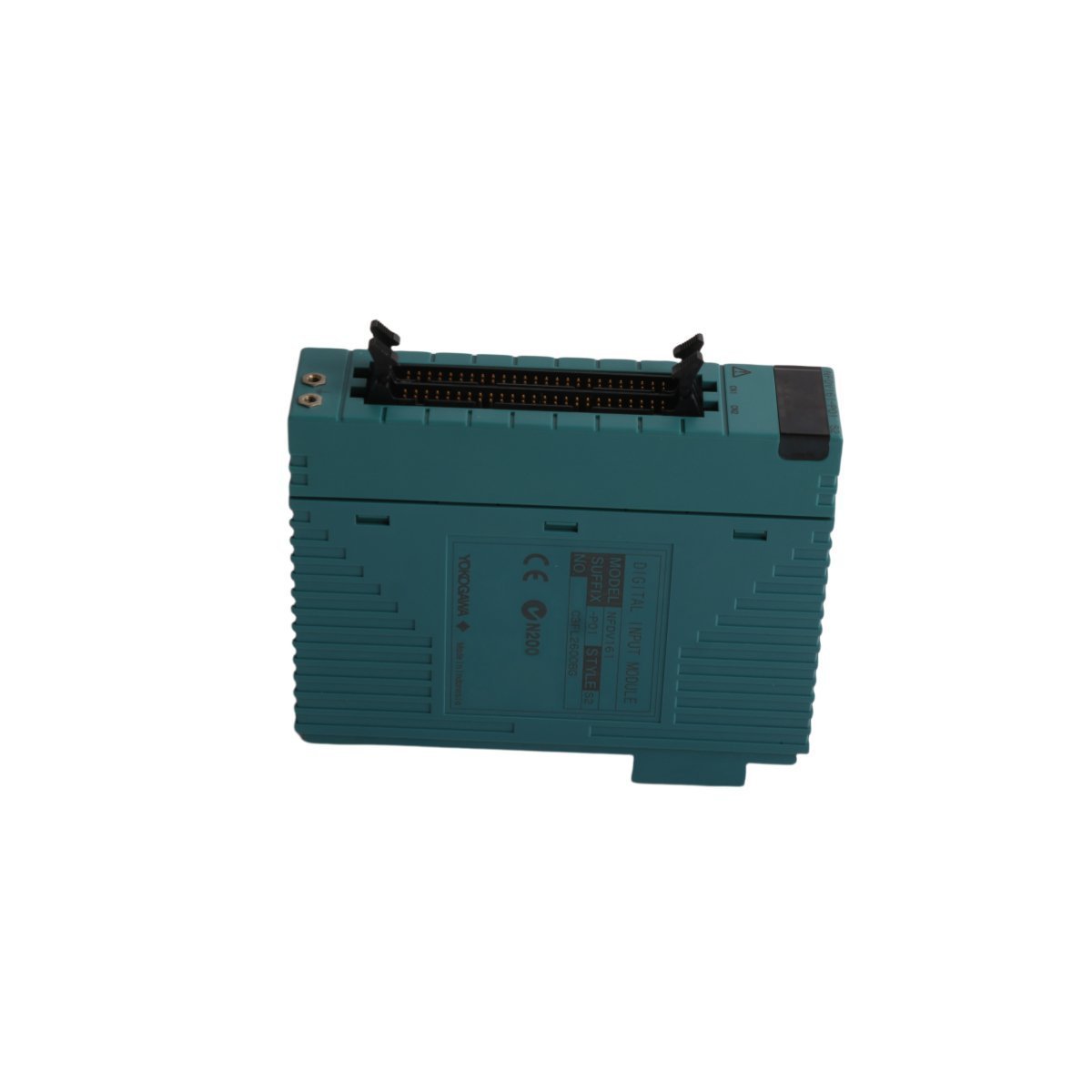

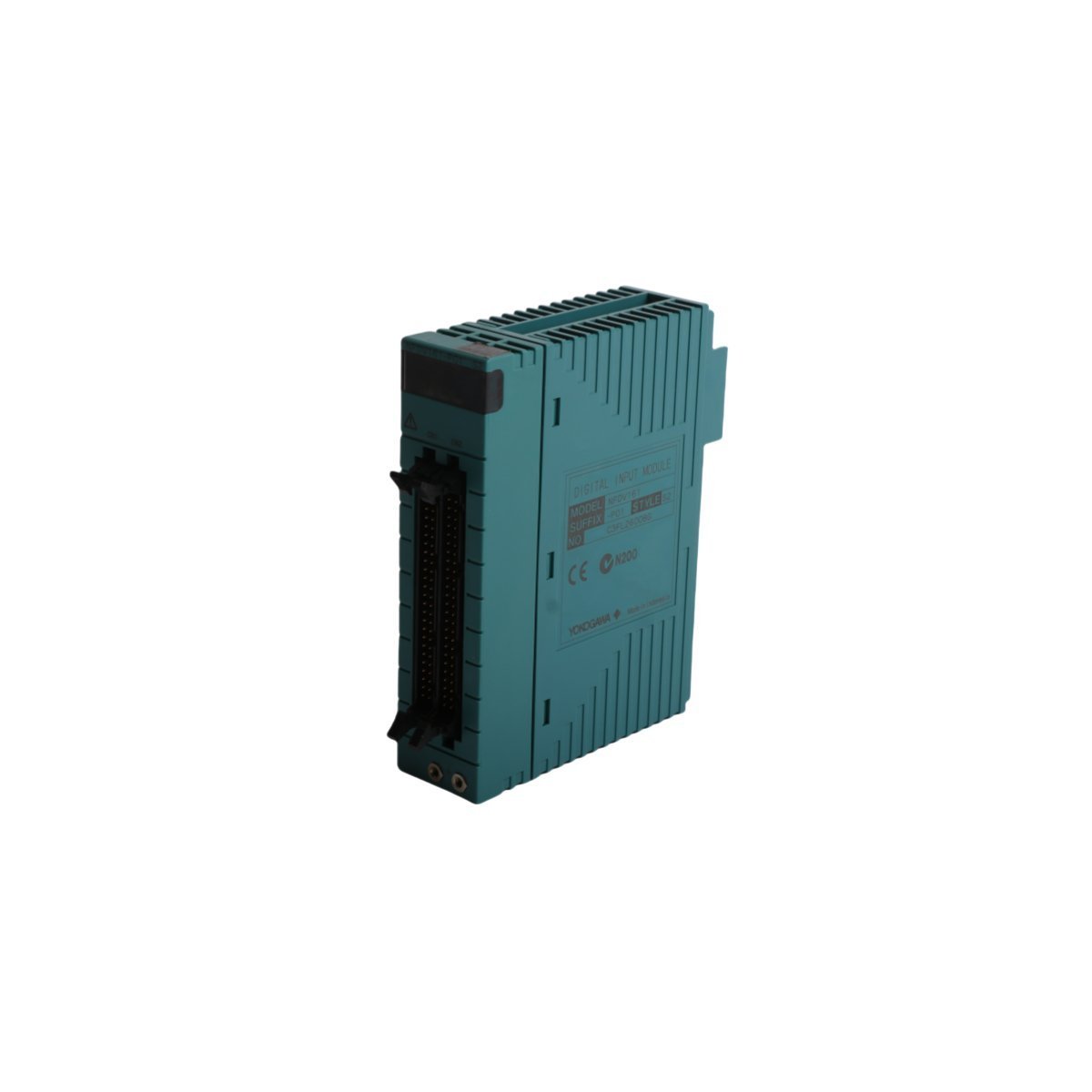

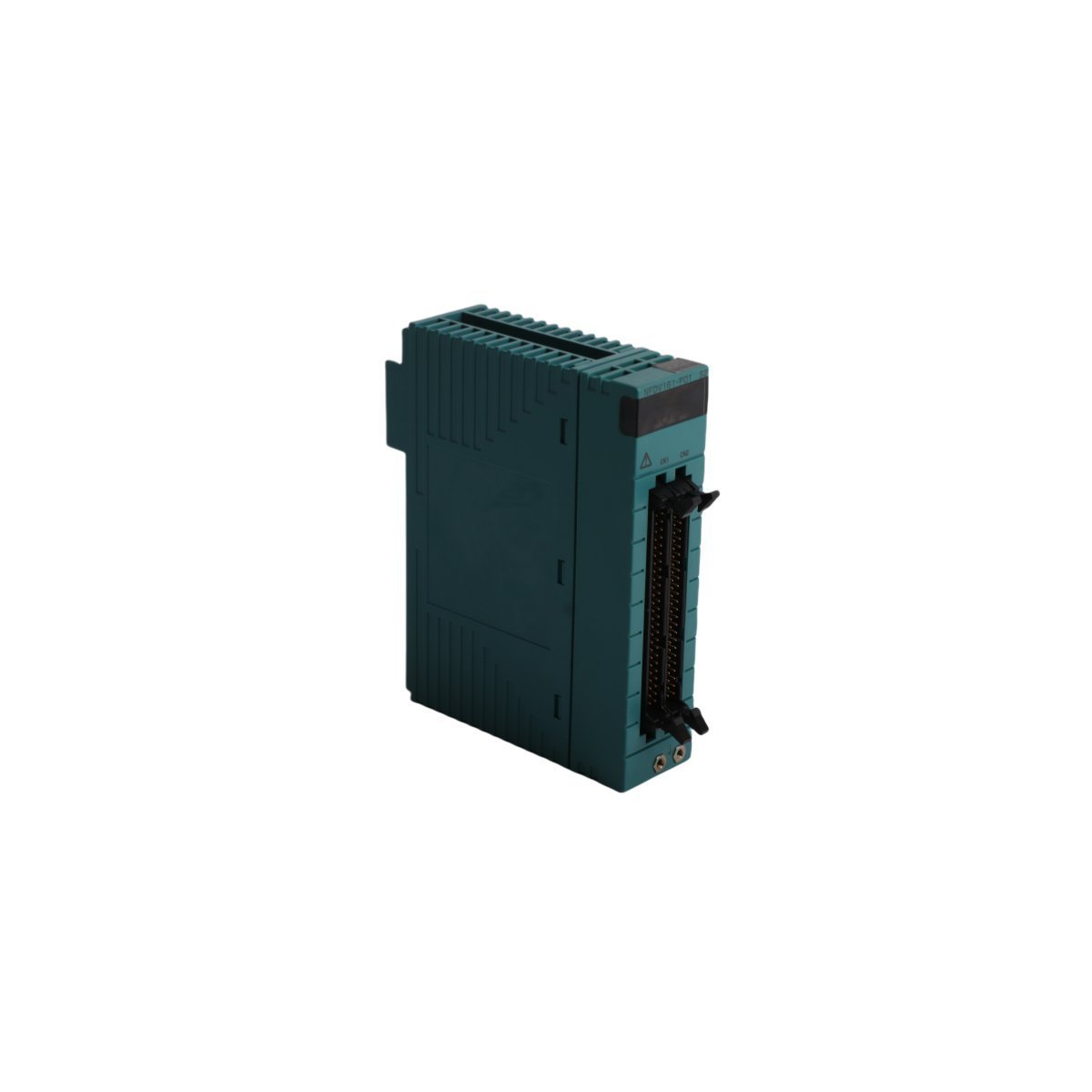

Yokogawa NFDV161-P01 S2 Digital Input Module

Technical Specifications

The Yokogawa NFDV161-P01 S2 functions as a high-density digital input interface for the CENTUM VP Distributed Control System (DCS). This module specializes in detecting the status of 24 V DC ON/OFF signals from field devices such as limit switches, pushbuttons, and valve position feedback sensors. By converting these physical voltage states into digital data for the control processor, the NFDV161-P01 S2 allows the system to execute logic based on real-time field conditions. While often associated with valve monitoring, its primary role involves broad-spectrum discrete signal acquisition across the automation network.

Advanced Filtering and Signal Integrity

To ensure data accuracy in electrically noisy industrial environments, the NFDV161-P01 S2 incorporates sophisticated noise rejection and signal filtering. Each input channel undergoes rigorous processing to eliminate debouncing and transient interference, which prevents false triggering within the control logic. Furthermore, the module supports dual-redundant configurations. When technicians install a secondary unit, the system gains a fail-safe layer that ensures continuous input monitoring even if one module requires replacement. This redundancy is vital for high-availability sectors like power generation and petrochemical refining.

Key technical attributes include:

• 16-channel high-density digital input capacity.
• Support for 24 V DC dry contact and voltage inputs.
• Enhanced signal isolation to protect the DCS backplane.
• Hot-swappable hardware architecture for zero-downtime maintenance.
• Robust 0.24 kg chassis designed for standard Yokogawa I/O nests.

Industrial Durability and Compliance

Yokogawa manufactures the NFDV161-P01 S2 in Japan to withstand the mechanical and thermal stresses of modern plant floors. The module operates efficiently across a broad temperature range and maintains high reliability in high-vibration areas. Its compact dimensions (3.2 x 10.6 x 13 cm) allow for dense hardware packing within control cabinets, optimizing the physical footprint of the automation system. Moreover, the module complies with global standards for hazardous area installation, making it suitable for deployment in volatile environments where signal stability is a safety requirement.
