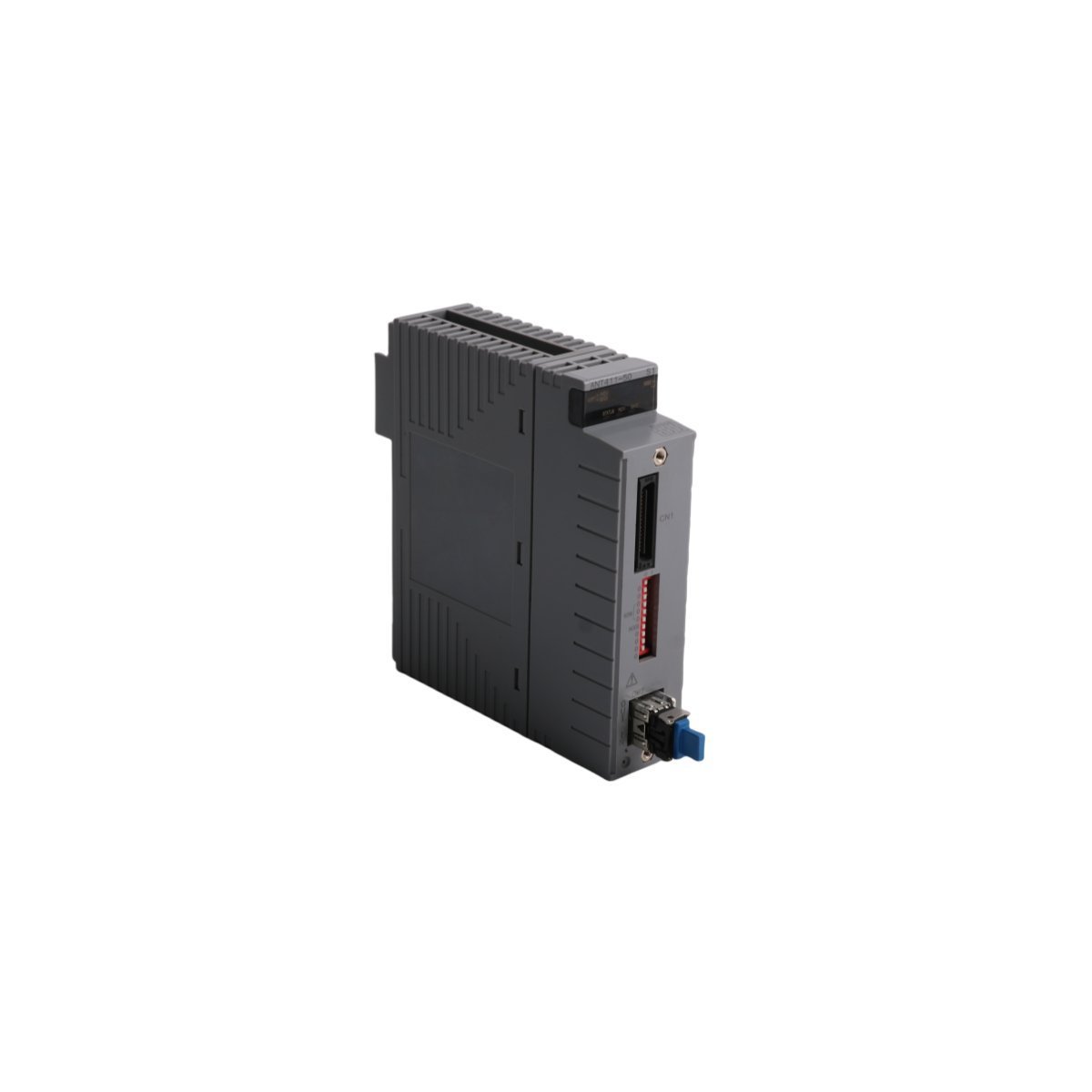

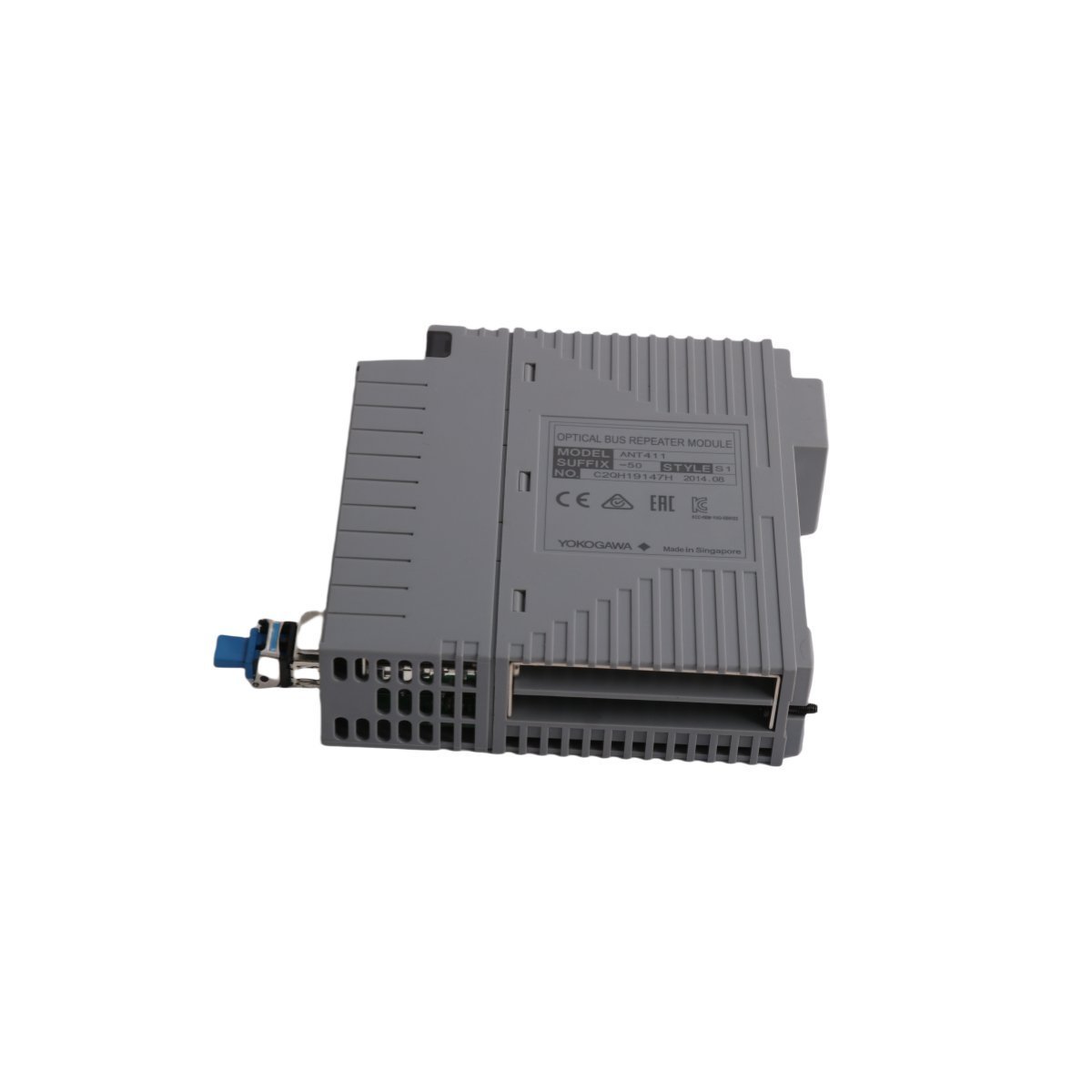

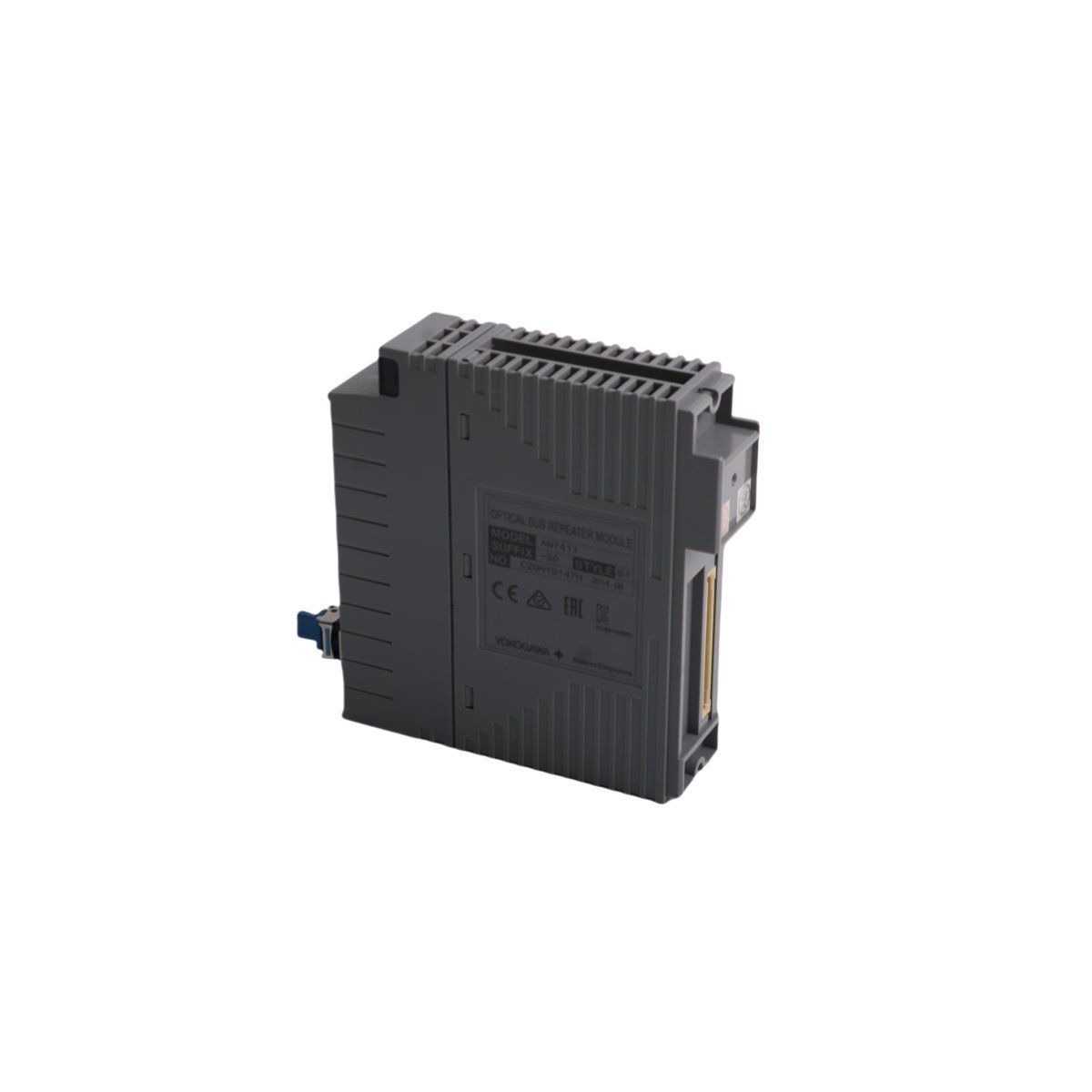

Yokogawa ANT411-50 S1 Optical ESB Bus Repeater Module

The Yokogawa ANT411-50 S1 serves as a high-performance communication link within the CENTUM VP DCS architecture. Specifically, this module extends the ESB bus over long distances using optical fiber technology. It facilitates seamless data exchange between a Field Control Station and remote I/O nodes. By converting electrical signals into optical pulses, it eliminates electrical noise interference effectively. This repeater ensures reliable system expansion for complex industrial plant layouts.

Technical Specifications

Key Technical Characteristics

Signal integrity remains a top priority for this optical bus repeater module. The device supports high-speed data transmission across significant physical spans. Furthermore, its fiber optic interface provides superior galvanic isolation between system segments. This protection is vital for maintaining uptime in lightning-prone or high-voltage areas. The module also features advanced diagnostic capabilities to monitor link health constantly. Its compact design allows for high-density installation within standard Yokogawa cabinets.

Operational Reliability and Maintenance

Yokogawa engineered the ANT411-50 S1 for continuous service in demanding industrial environments. The robust circuitry minimizes signal latency during the conversion process. Additionally, the unit integrates easily with standard CENTUM VP configuration tools. Maintenance remains simple due to the module’s stable electronic architecture. This reliability reduces the total cost of ownership for large-scale automation projects. It supports hot-swap functionality when configured in redundant pairs for maximum safety.

Industrial Applications

Heavy industries rely on this module for stable distributed control operations. It is widely used in oil and gas refineries and chemical processing plants. Power generation facilities also utilize this technology for remote monitoring tasks. The module excels in any environment requiring long-distance, noise-free bus communication. It meets the rigorous safety standards necessary for critical infrastructure protection globally.
