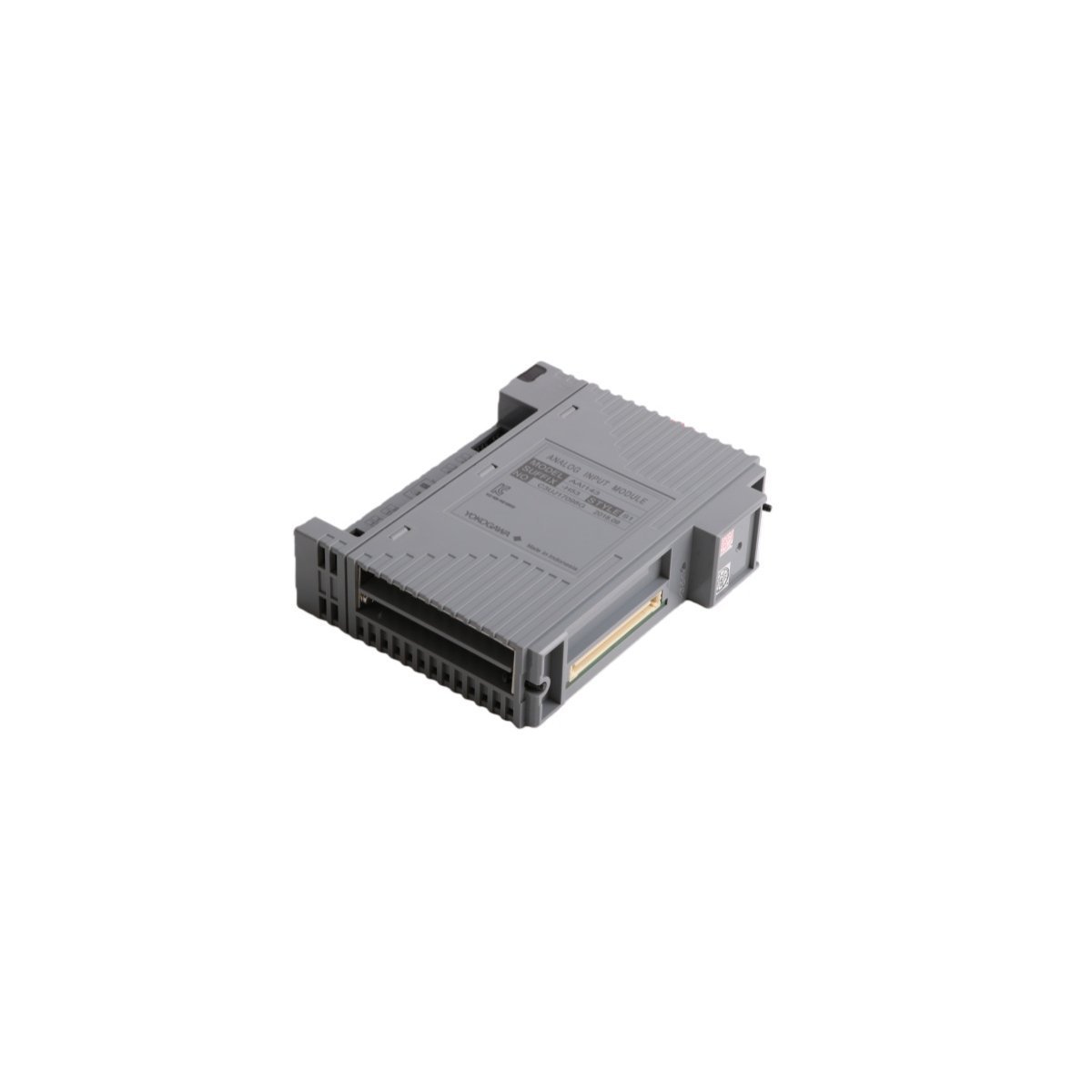

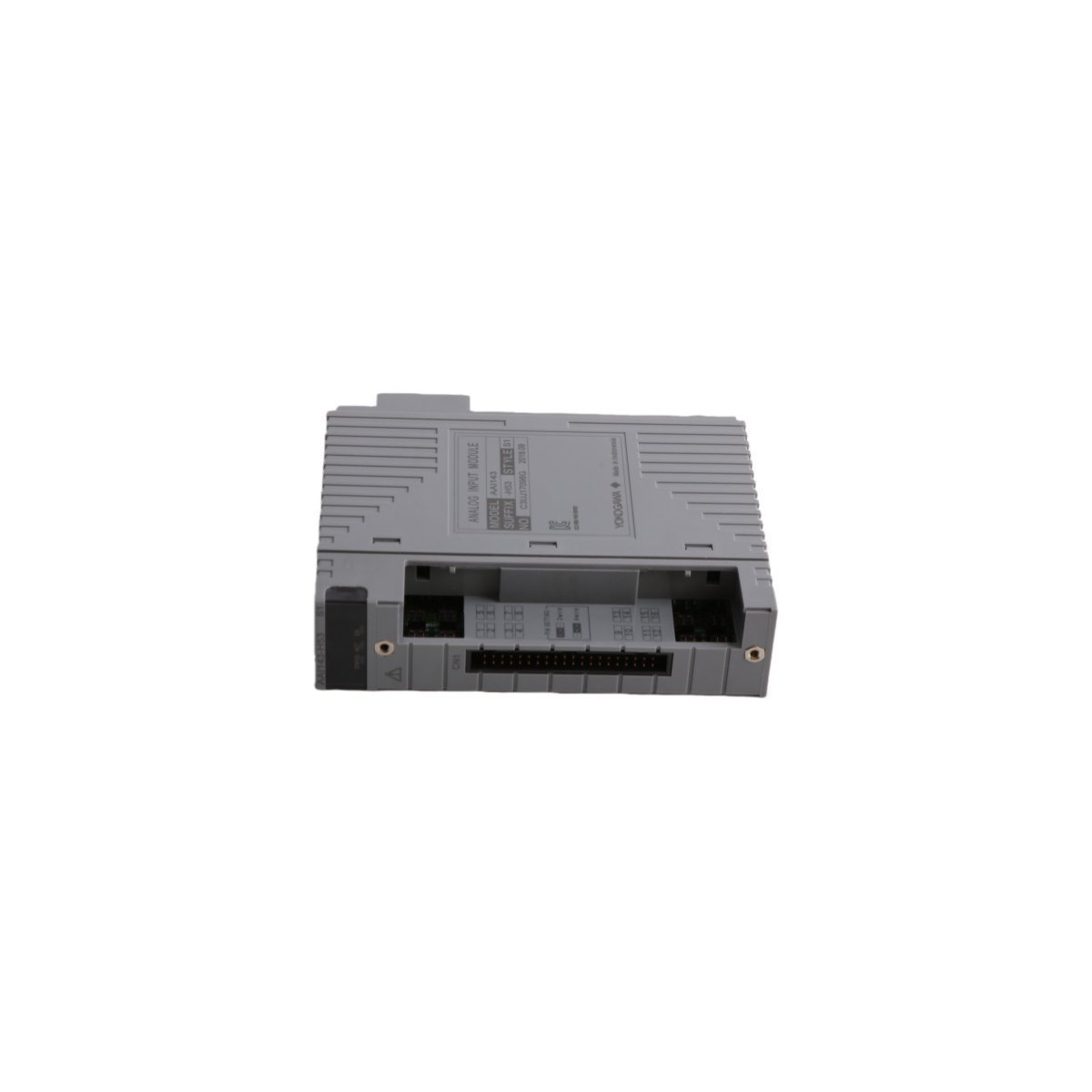

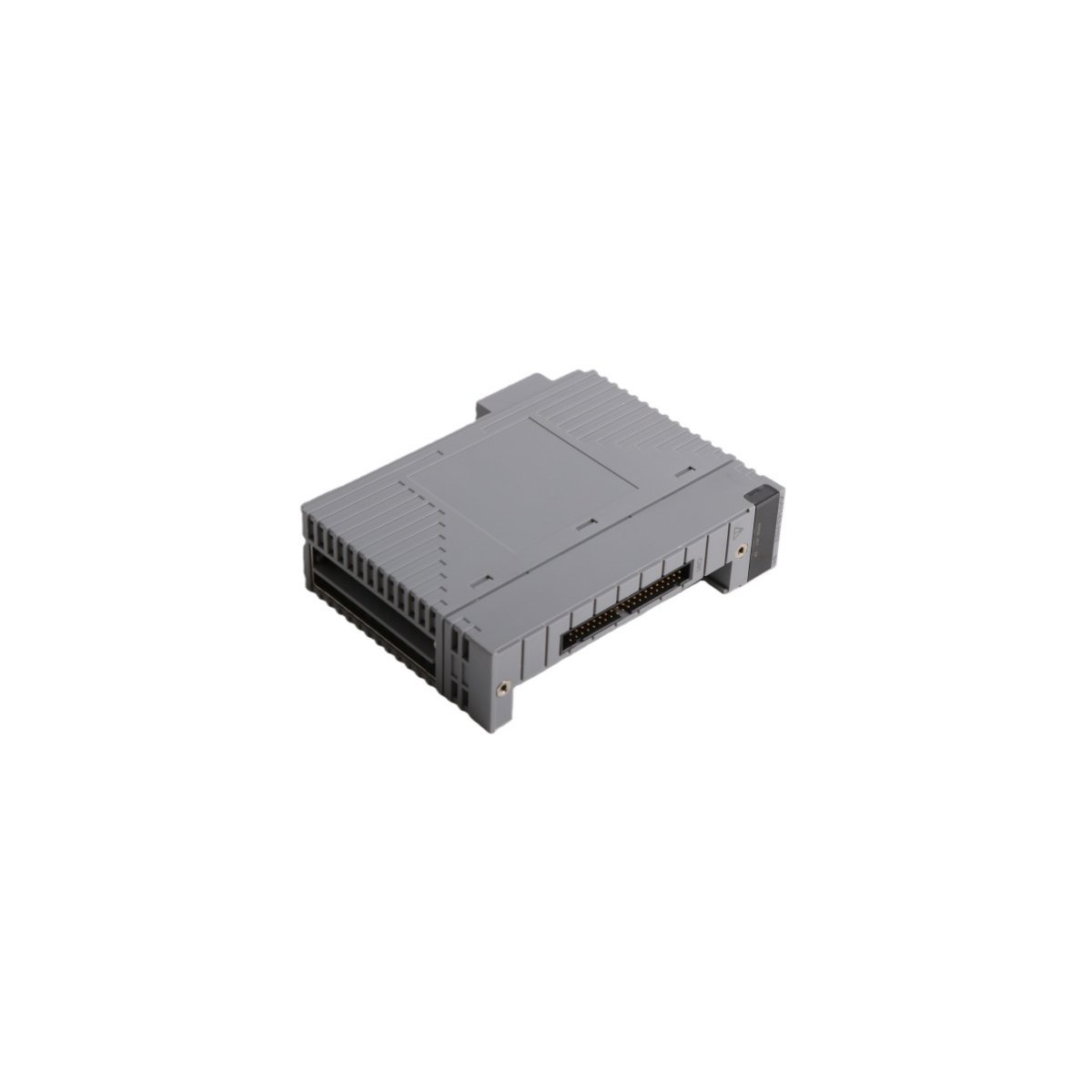

The Yokogawa AAI143-H53 S1 functions as a high-performance data acquisition component for modern DCS environments. This 16-channel module accurately processes 4 to 20 mA signals from diverse field transmitters. It translates real-time analog variables into precise digital values for control logic. Consequently, the module supports critical monitoring in sectors like energy and chemical processing. The hardware ensures seamless communication with the broader control network.
Essential Technical Specifications
| Feature | Details |
| Manufacturer | Yokogawa |
| Model Number | AAI143-H53 S1 |
| Input Channels | 16 (Isolated) |
| Input Signal | 4 to 20 mA DC |
| Accuracy | $\pm$ 0.05% of full scale |
| Sampling Rate | 2 kHz high-speed acquisition |
| Isolation | Channel-to-channel optical separation |
| Power Supply | 24V DC Nominal |
| Weight | 0.3 kg |
| Dimensions | 3.3 x 10.7 x 13.0 cm |
Signal Integrity and Protection
Maintaining data purity remains a priority for the AAI143-H53 S1 electronic design. Each input channel utilizes independent optical isolation to eliminate ground loop issues. This protection effectively blocks electrical noise in high-voltage industrial zones. Furthermore, the module features robust signal conditioning circuits for every sensor path. These components guarantee high-fidelity measurements even during rapid process fluctuations. The design ultimately improves the stability of complex automation loops.
Reliability in Harsh Environments
Yokogawa engineered this module to survive rigorous plant floor conditions. The hardware operates reliably within a broad temperature range from -20°C to +70°C. Additionally, it resists high humidity levels up to 95% without performance loss. The module carries international CE and UL certifications to verify its safety. Its compact mechanical footprint allows for high-density installation in standard control cabinets. This durability ensures a long service life with minimal maintenance needs.
