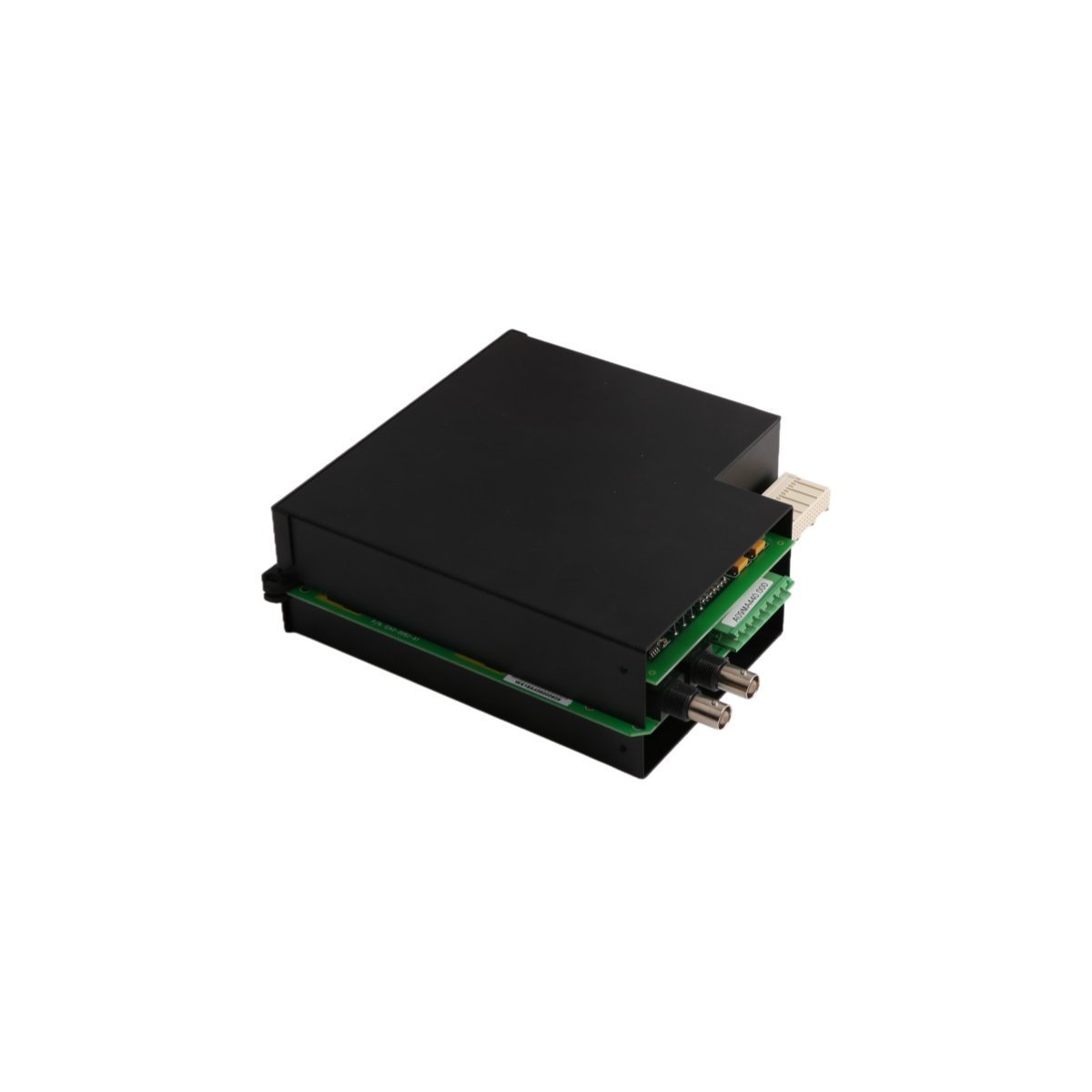

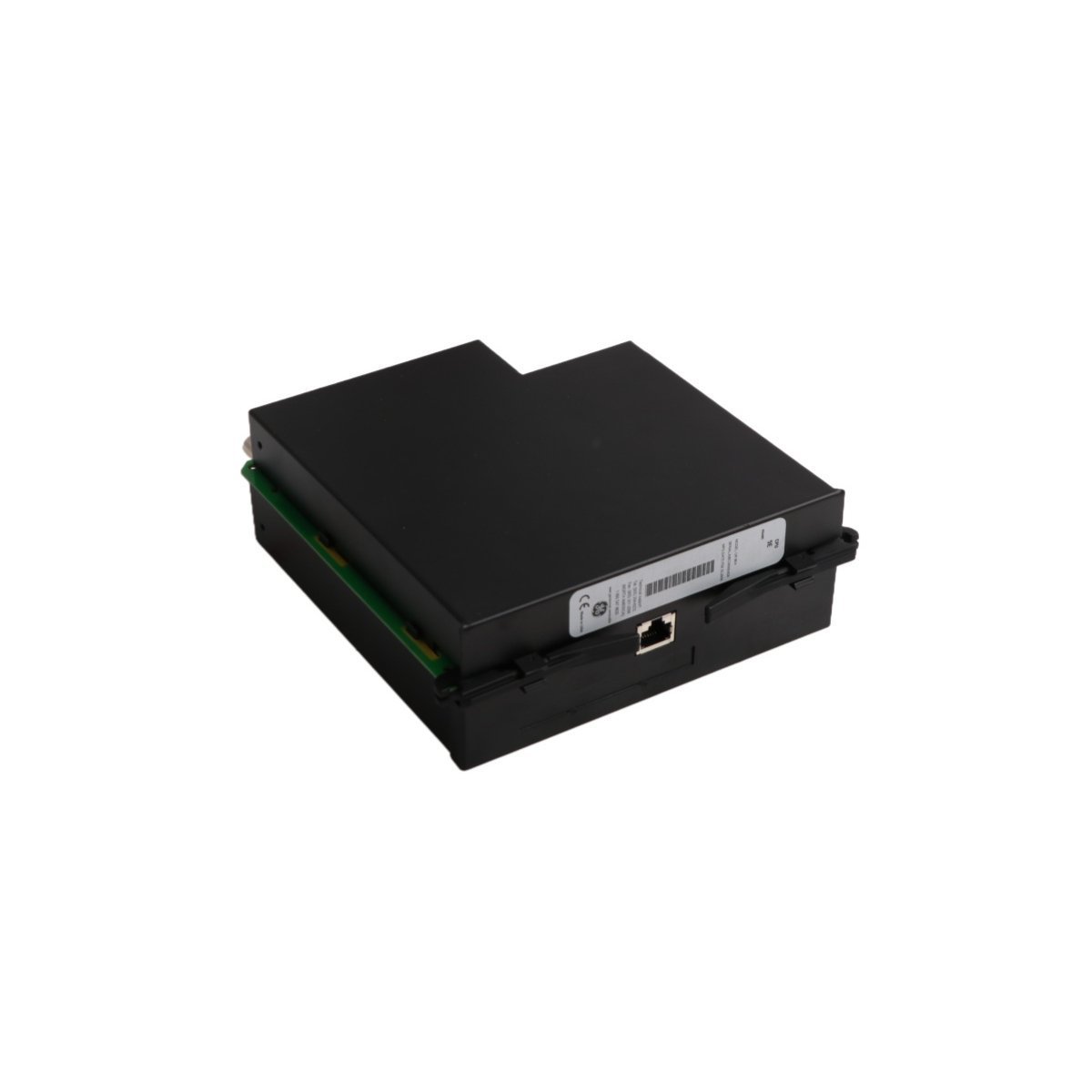

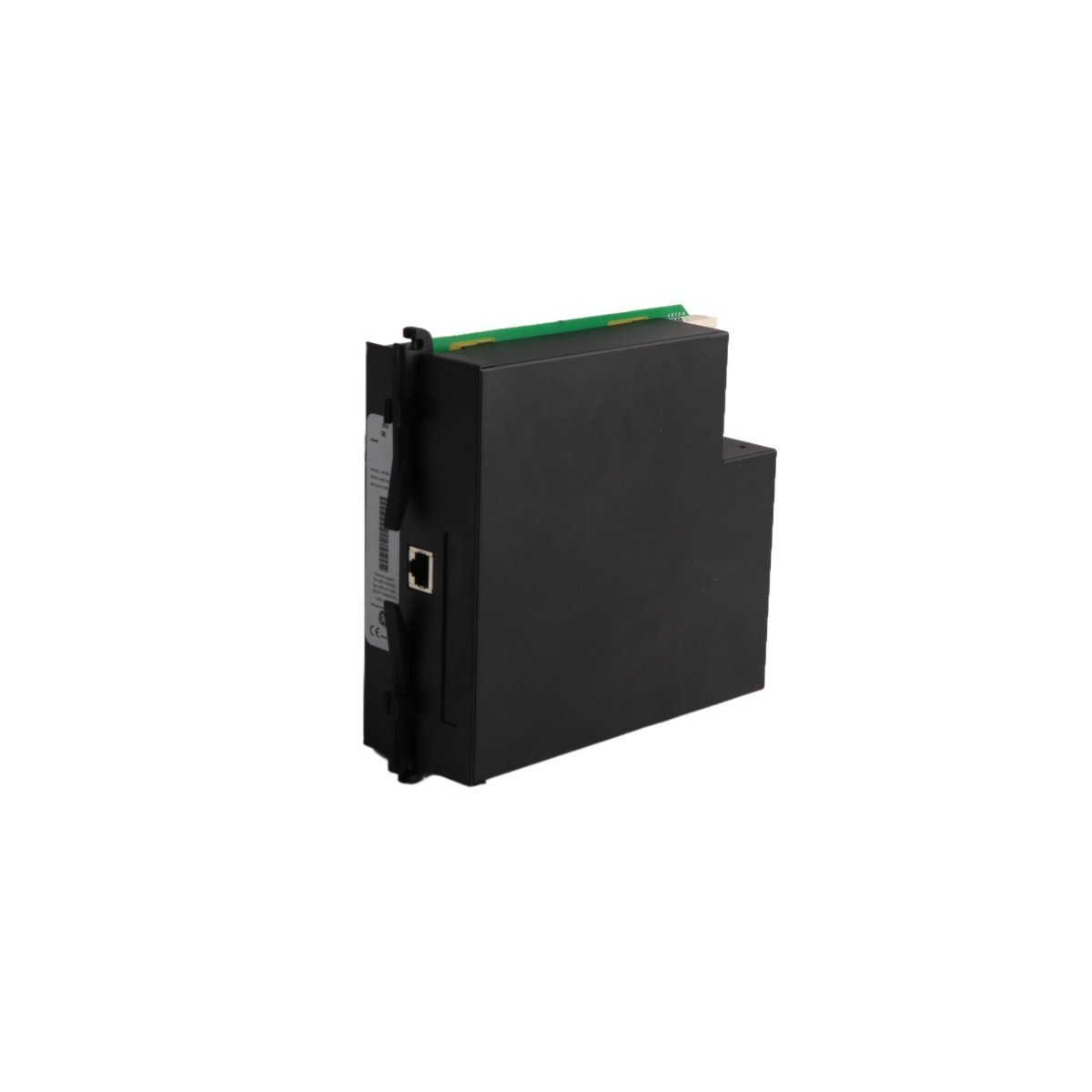

General Electric UR5EH Transducer I/O Module

The GE UR5EH operates as a specialized input/output interface for the Multilin Universal Relay (UR) platform. This module converts analog transducer signals into digital data for the relay processor. It manages precise signal acquisition within complex power distribution networks and industrial control loops. By supporting both voltage and current inputs, the unit offers high flexibility for various monitoring tasks. This hardware ensures that the control system receives accurate real-time data from field sensors.

Signal Processing and Hardware Performance

The UR5EH module utilizes advanced circuitry to maintain signal integrity in noisy environments. It features a high input impedance in voltage mode to prevent signal loading. Meanwhile, the current mode provides a stable 250 Ω path for standard industrial transducers. The 2.5 kV RMS isolation protects internal relay logic from external electrical surges. Consequently, the module delivers consistent performance during transient events or fault conditions.

Environmental Resilience and Reliability

GE engineered the UR5EH to withstand the most demanding industrial climates. The module functions perfectly in extreme temperatures from -40°C to +70°C. Furthermore, its compact 0.36 kg design allows for easy installation in high-density relay chassis. This durability makes it ideal for utility substations and heavy manufacturing plants. The module also supports rapid data exchange through the primary system backplane for immediate protection responses.

Applications and System Integration

This Transducer I/O card excels in monitoring non-electrical parameters through external sensors. It typically tracks temperature, pressure, or flow rates within power plant systems. Because it integrates natively with the UR series, setup requires minimal configuration time. Engineers often use the UR5EH to bridge the gap between SCADA systems and mechanical equipment. Therefore, this module remains a fundamental component for comprehensive grid automation and equipment protection.
