VersaMax Profinet Scanner Modules GE IC200PNS001

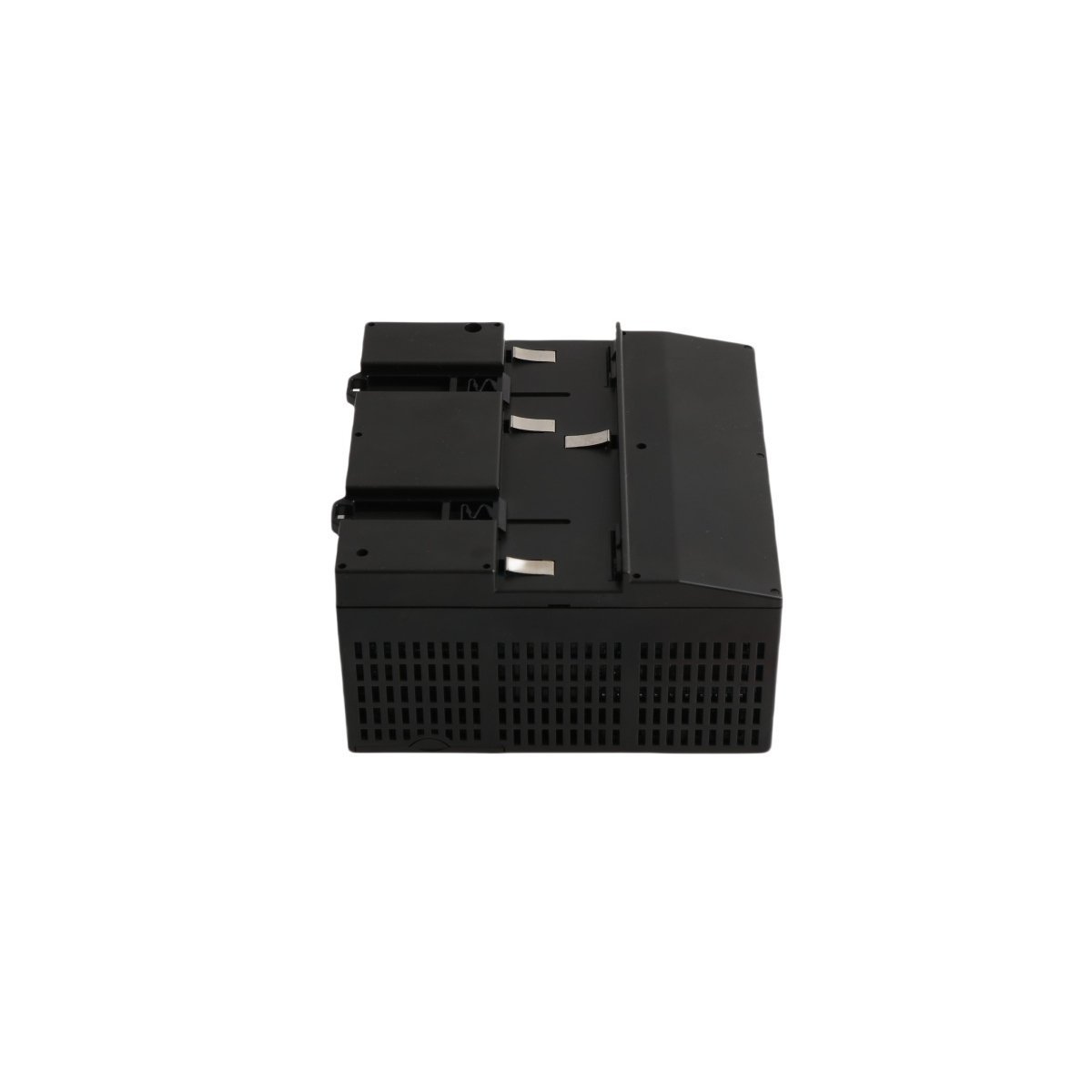

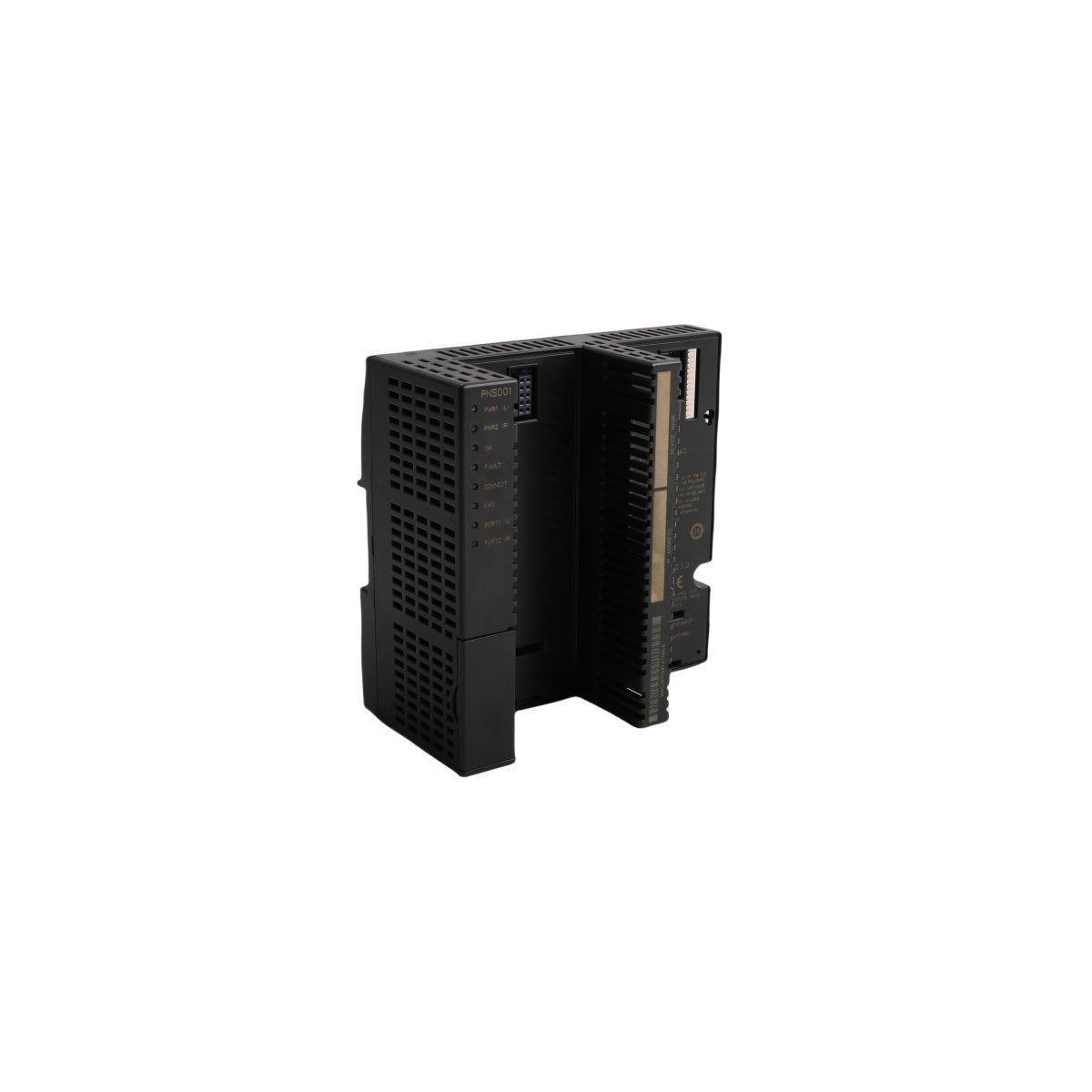

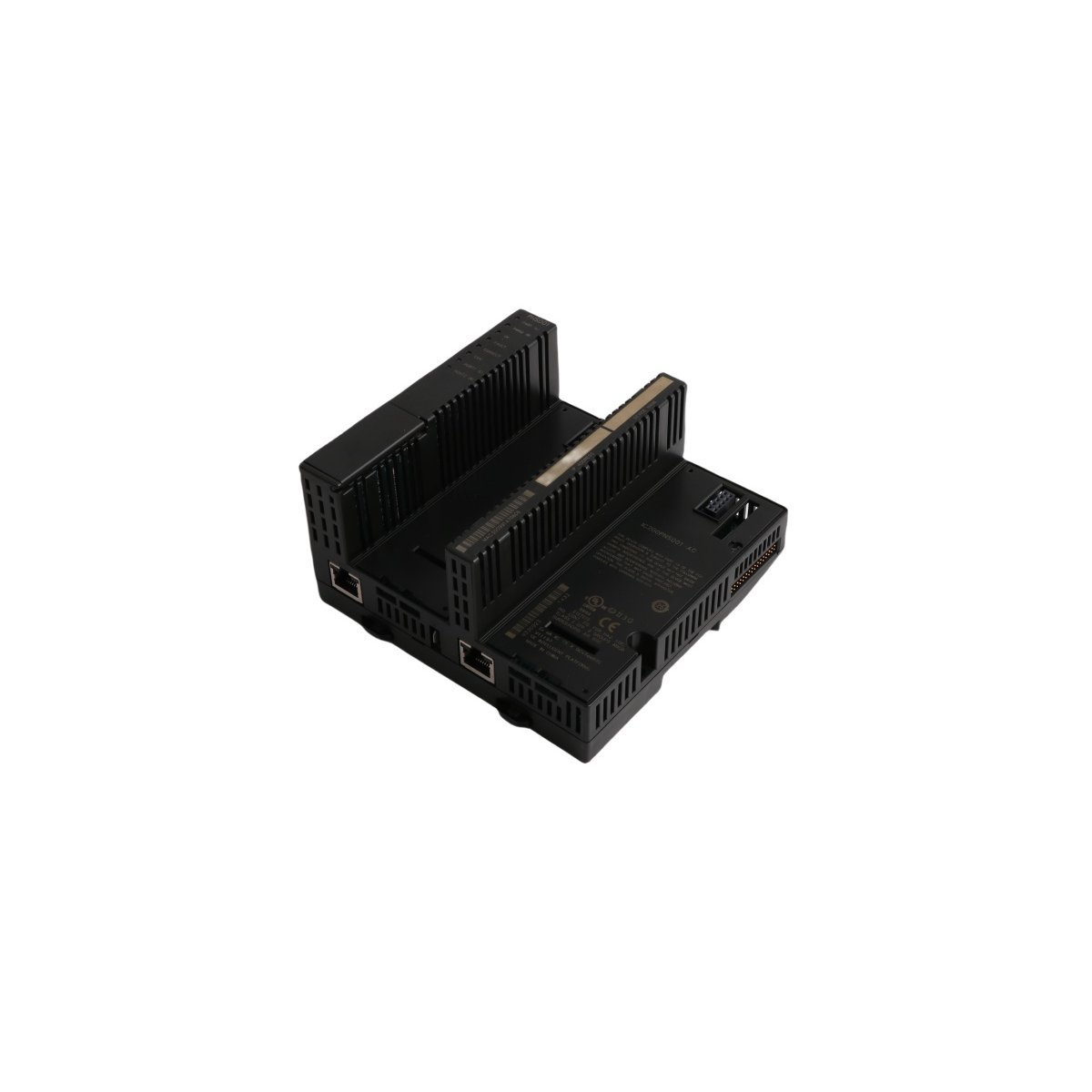

GE IC200PNS001 Profinet Scanner Module

Configured for distributed I/O management in industrial Ethernet networks, the GE IC200PNS001 (IC200PNS001 Scanner Module) provides direct physical/electrical execution of Profinet communication protocols between I/O racks and network controllers.

Hardware Specifications

Industrial Network and Communication Attributes

The IC200PNS001 maintains Profinet deterministic networks by acting as an embedded switch with a dual-port RJ45 interface, which supports star, linear, and ring topologies without requiring external switching hardware. The module enforces strict protocol conversion latencies to ensure sub-millisecond I/O update consistency across distributed nodes. It manages firmware flash compatibility via a dedicated USB port, allowing for system-wide updates during maintenance cycles. Furthermore, the unit facilitates I/O density scaling by supporting up to eight VersaMax modules per scanner instance while providing granular diagnostic status bits for real-time fault isolation.

Frequently Asked Questions (FAQ)

Q: Does the module support hot-swapping during network operation?

A: Yes, the module supports hot-swapping of I/O modules; however, you must ensure that the backplane remains energized and that the configuration software recognizes the physical change to prevent communication timeouts.

Q: How do you configure the module for different subnets?

A: The scanner supports Classless InterDomain Routing (CIDR), allowing you to assign specific subnet masks through the Proficy Machine Edition software during the initial network commissioning.

Q: What are the cable length limitations for the Ethernet ports?

A: Each 10/100BASE-T segment permits a maximum cable distance of 100 meters. You must use shielded twisted-pair cabling to maintain data integrity over these distances in high-EMI environments.

Field Installation Guidelines

1. Mounting Stability: Secure the module onto a standard DIN-rail. Ensure the locking latch engages fully to prevent vibration-induced disconnection, which might disrupt communication.
2. Grounding Protocols: Connect the protective earth terminal on the rack carrier to a common ground bus. This grounding step minimizes induced surge voltage protection limits and stabilizes the internal network interface.
3. Network Cabling: Route Profinet communication cables through separate cable trays, away from AC power lines or variable frequency drive (VFD) output leads, to minimize cross-talk and transmission errors.
4. Firmware Verification: Before commissioning, confirm the controller firmware version meets the 7.0 or later requirement. Perform firmware updates exclusively via the local USB port to avoid network interruptions.
