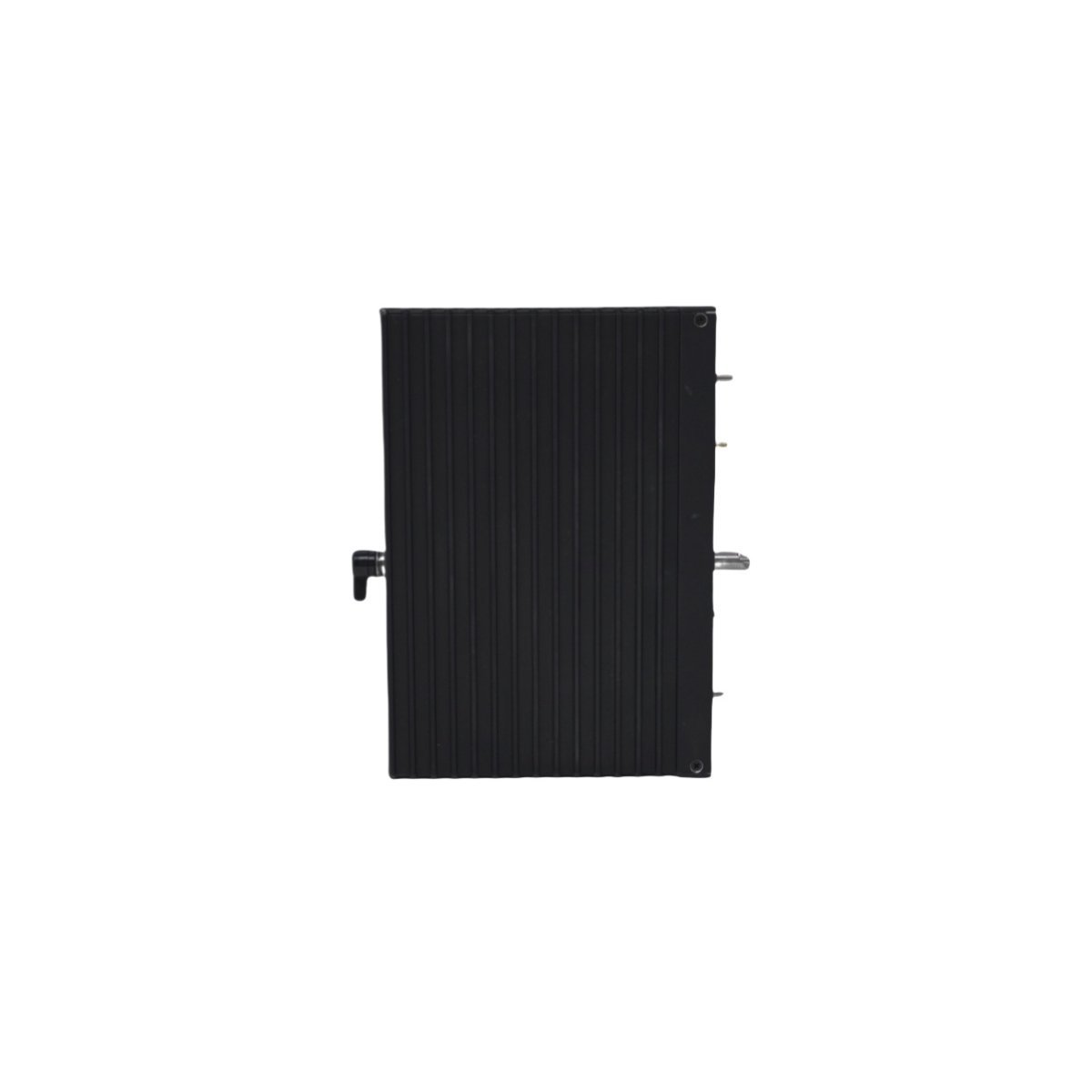

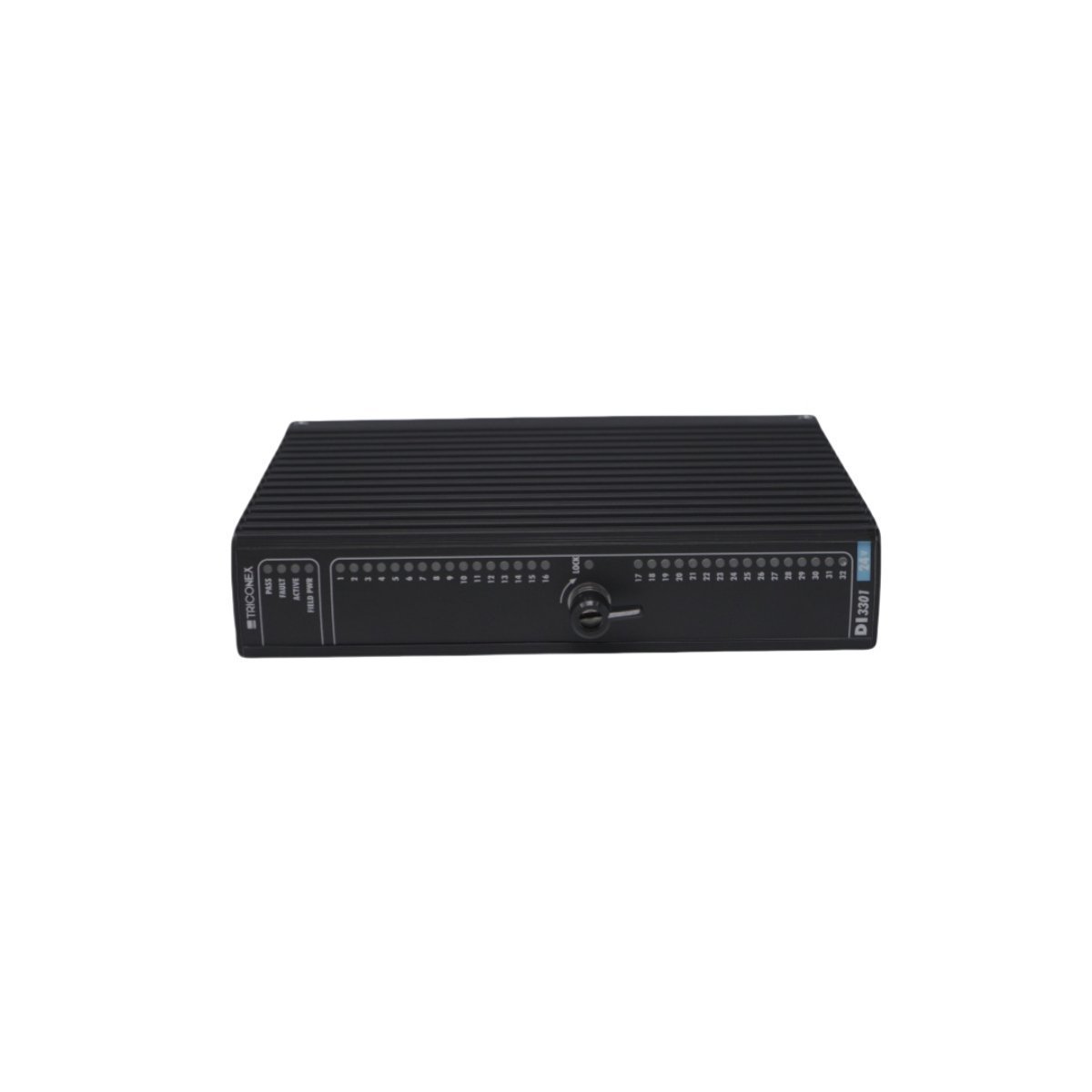

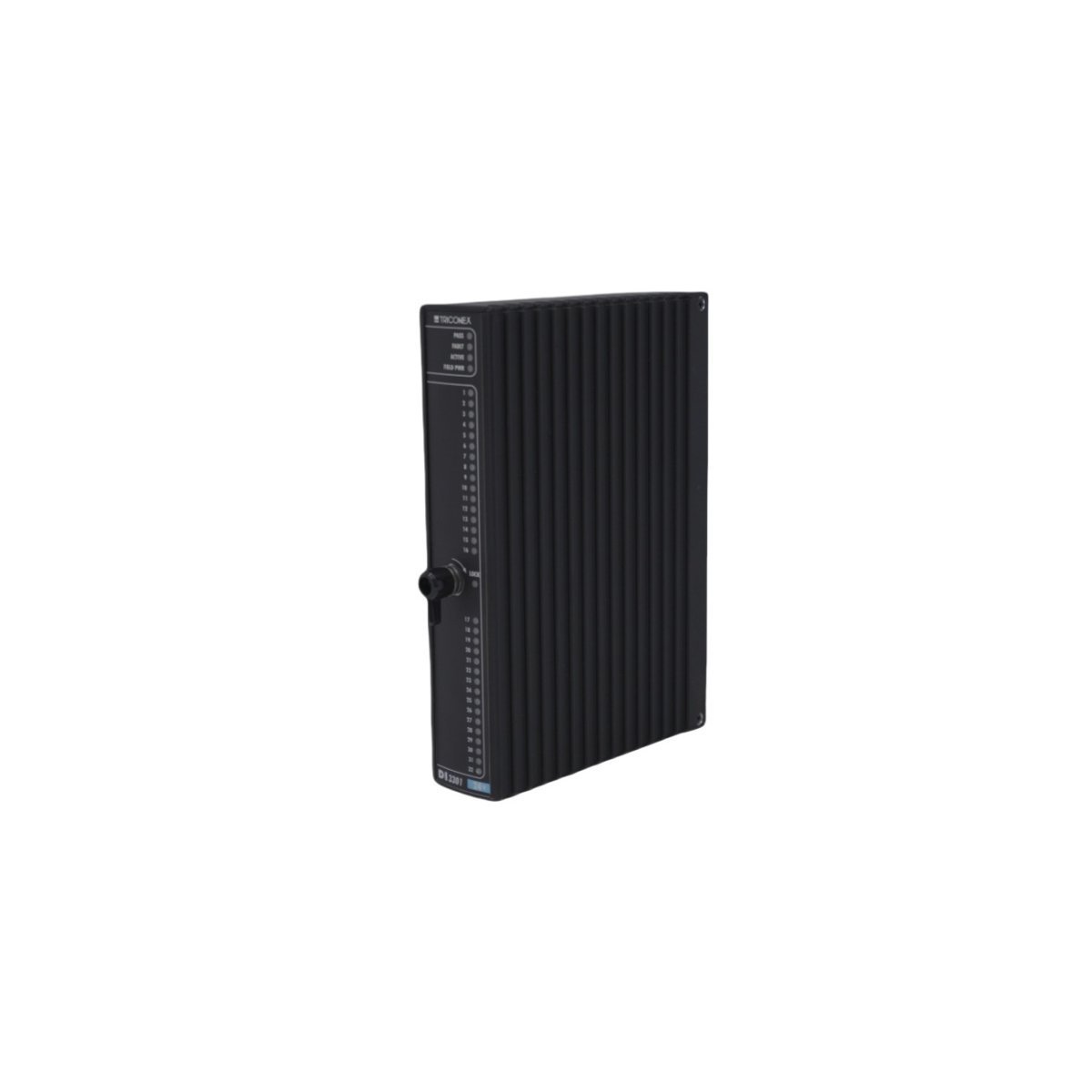

Primary Technical Specifications
| Feature | Detailed Specification |
| Manufacturer | Triconex (Schneider Electric) |
| Model Number | DI 3301S2 |
| Product Type | TMR Digital Input Module |
| Architecture | Triple Modular Redundancy (TMR) |
| Safety Rating | SIL 3 Certified |
| Input Voltage Range | Supports 24VDC and high-voltage via panels |
| Weight | 1.3 kg |
| Dimensions | 4.3 x 18.8 x 21.8 cm |
| Mounting | Compatible with standard 2301 baseplates |
Industrial Resilience and Maintenance
The rugged construction of the DI 3301S2 allows for operation in demanding environments. It features mechanical keying to prevent incorrect installation into the controller chassis. Moreover, the hardware supports hot-spare configurations for rapid maintenance. Technicians can replace modules without powering down the safety system or stopping the process. The module also integrates seamlessly with TRISTATION 1131 software for detailed status reporting. These characteristics make it ideal for offshore platforms, chemical refineries, and power generation facilities.
Core Operational Advantages
- Triple Redundancy: Three separate paths ensure signal integrity even if hardware fails.
- Online Maintenance: Hot-swap technology permits module replacement during active production.
- Enhanced Safety: SIL 3 certification provides peace of mind for high-risk applications.
- Signal Validation: TMR voting logic effectively filters out transient electrical noise.
- Predictive Diagnostics: Early fault detection identifies issues before they impact plant safety.
