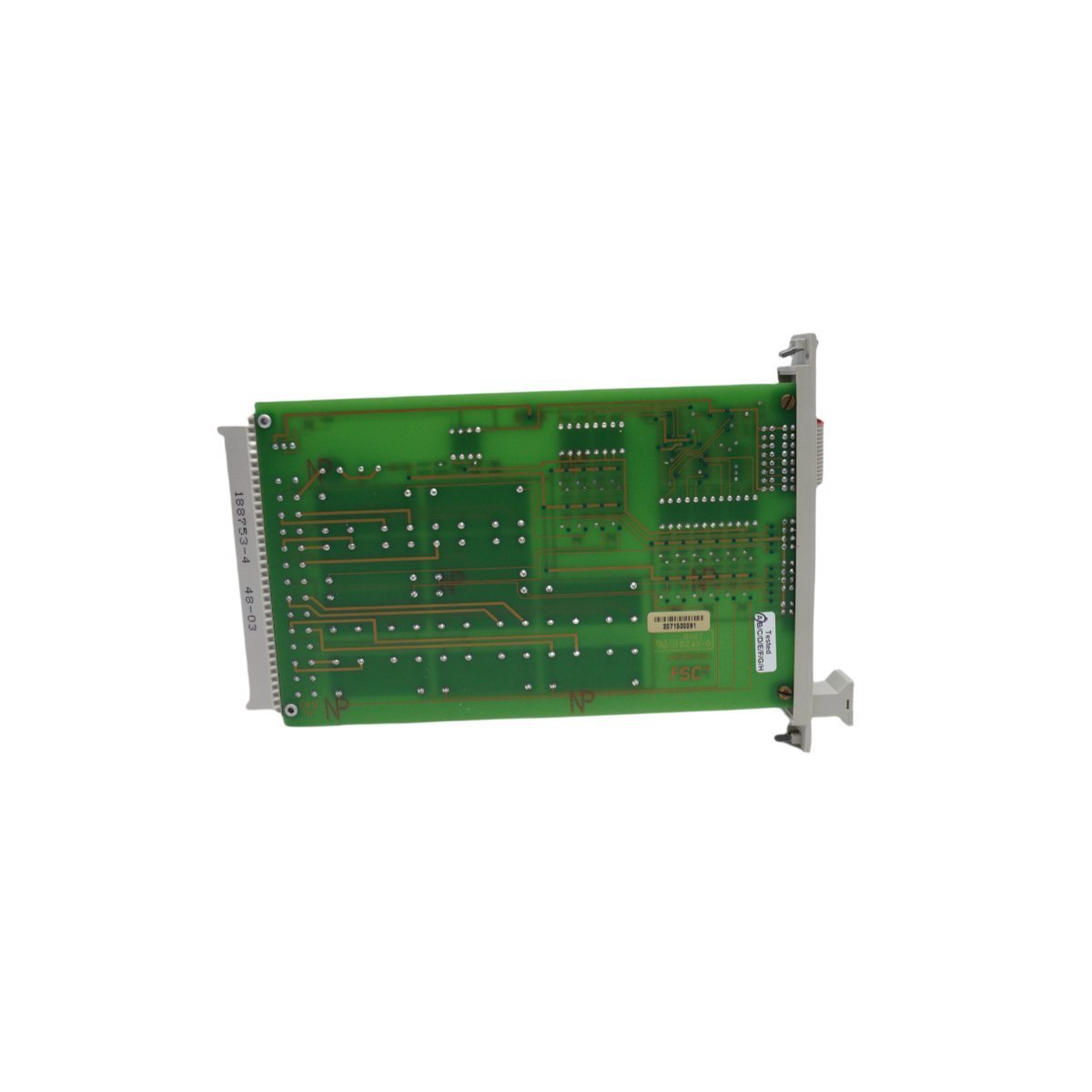

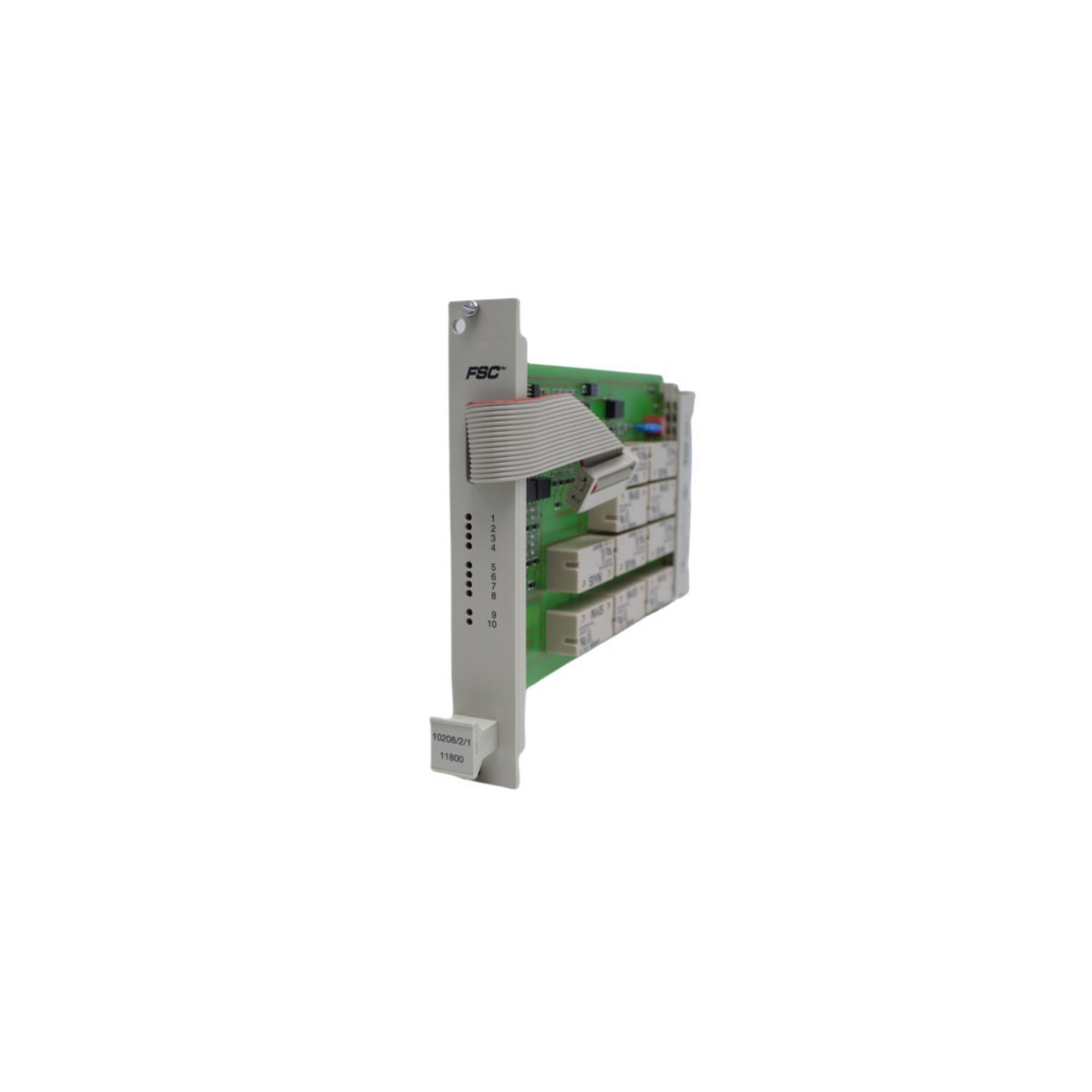

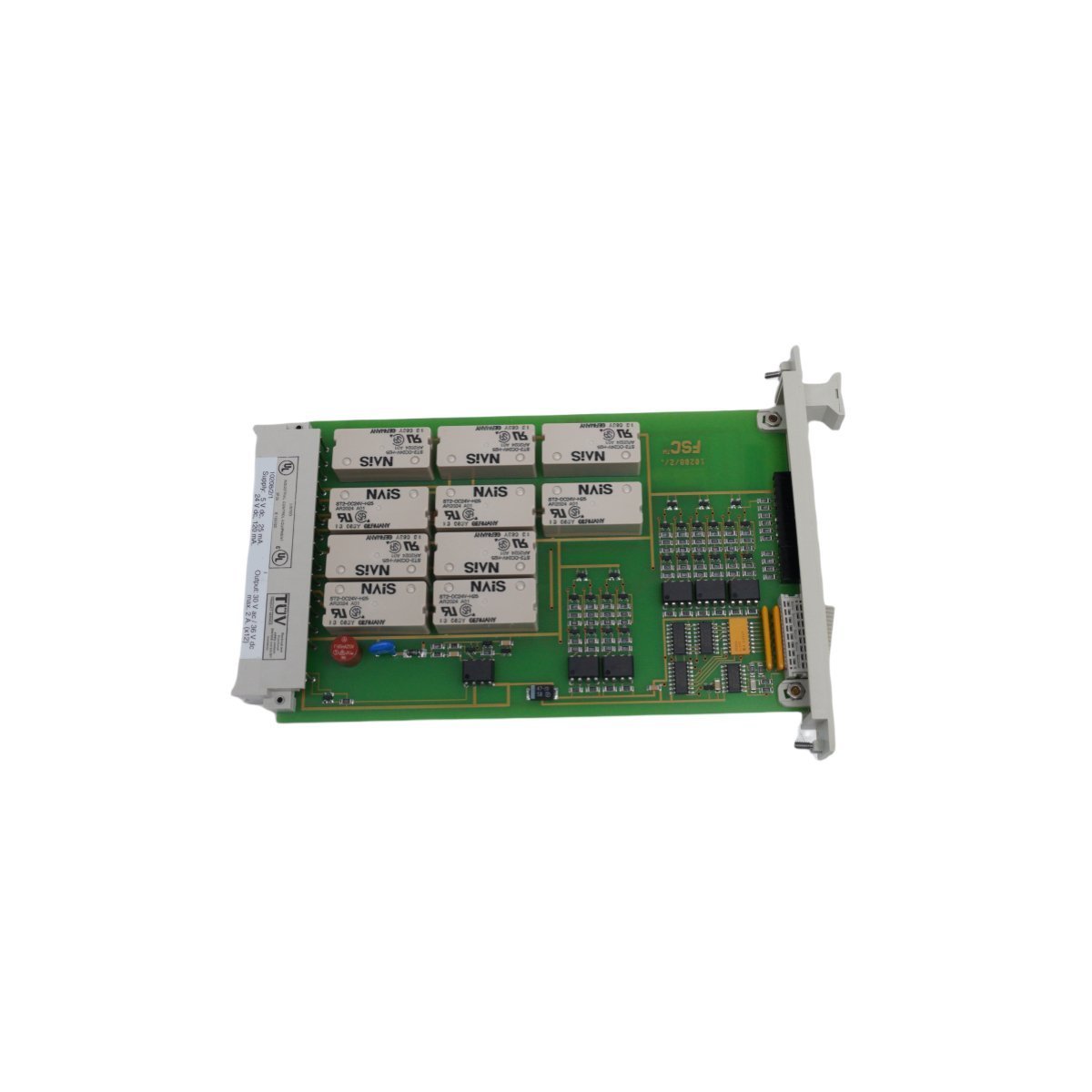

Honeywell 10208/2/1 Relay Output Module

Technical Specifications

Core Functional Characteristics

This relay output module features multiple independent channels for versatile switching tasks. It handles diverse load types, including solenoids, motor starters, and alarm indicators. Furthermore, the 10208/2/1 incorporates advanced diagnostic tools to monitor relay coil health. These onboard sensors detect potential failures before they compromise plant safety. The mechanical design prioritizes low contact resistance for efficient power delivery. Because it uses fail-safe logic, the module defaults to a known state during power loss. Moreover, the slim profile supports high-density installation in standard FSC racks.

Industrial Applications and Integration

Honeywell engineered the 10208/2/1 for emergency shutdown (ESD) and fire and gas (F&G) systems. It performs reliably in hazardous zones like offshore platforms and chemical refineries. The module integrates seamlessly with Honeywell’s Ethernet router services for centralized monitoring. This connectivity allows operators to track switching cycles and estimate relay lifespan. Additionally, the unit meets stringent international standards for functional safety. Its ability to switch both AC and DC loads offers significant flexibility for plant engineers. Consequently, it supports complex logic sequences required for modern safety instrumented systems.
