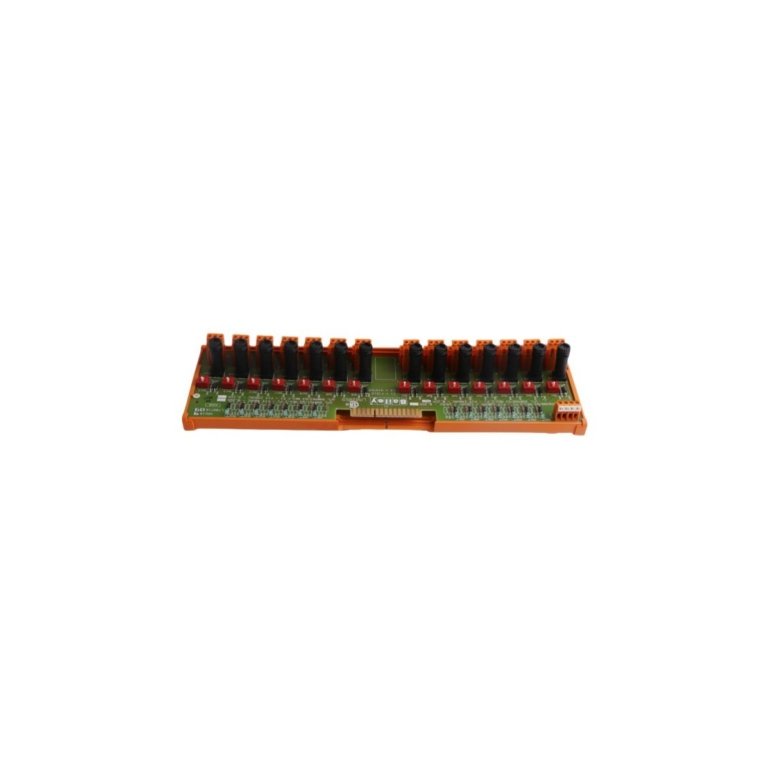

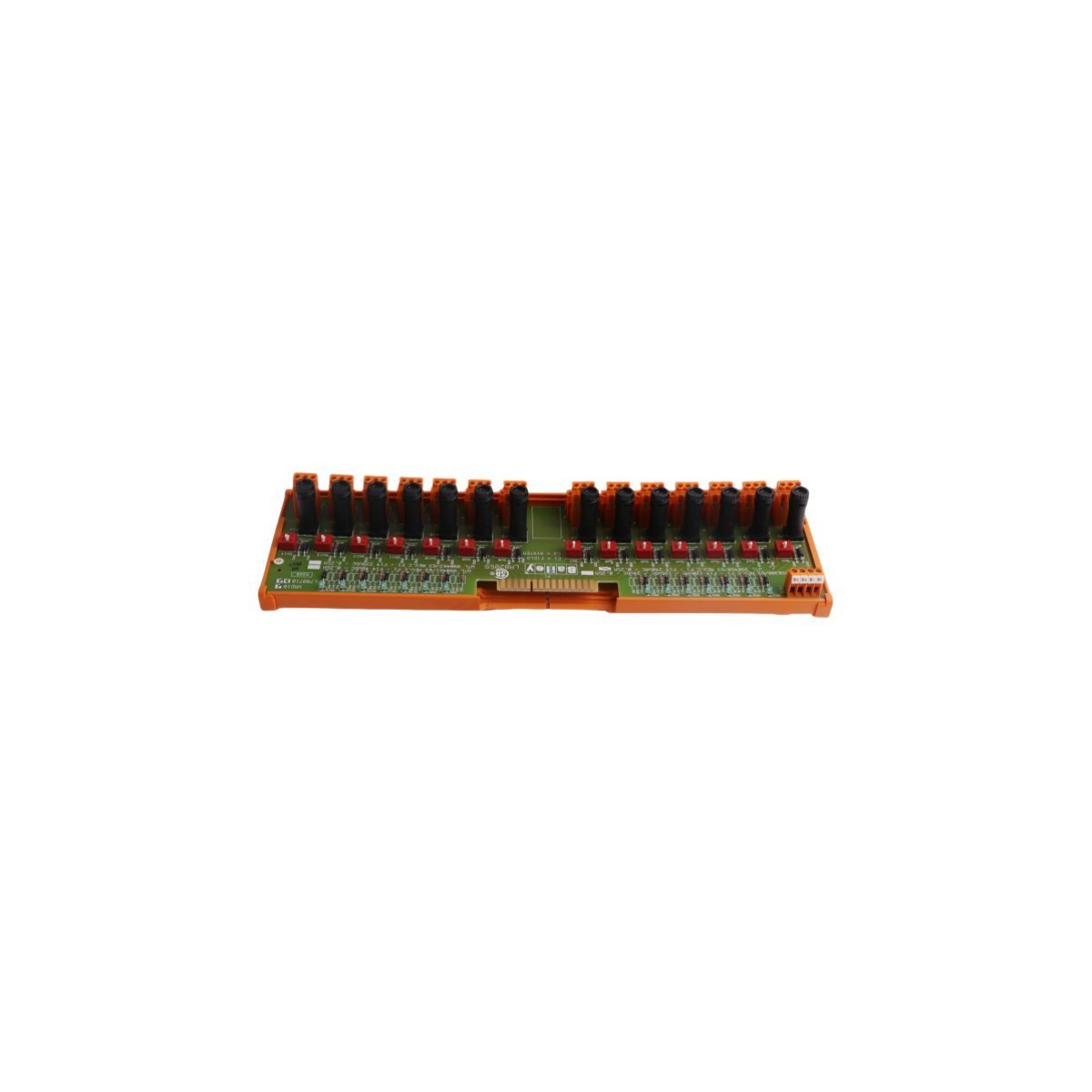

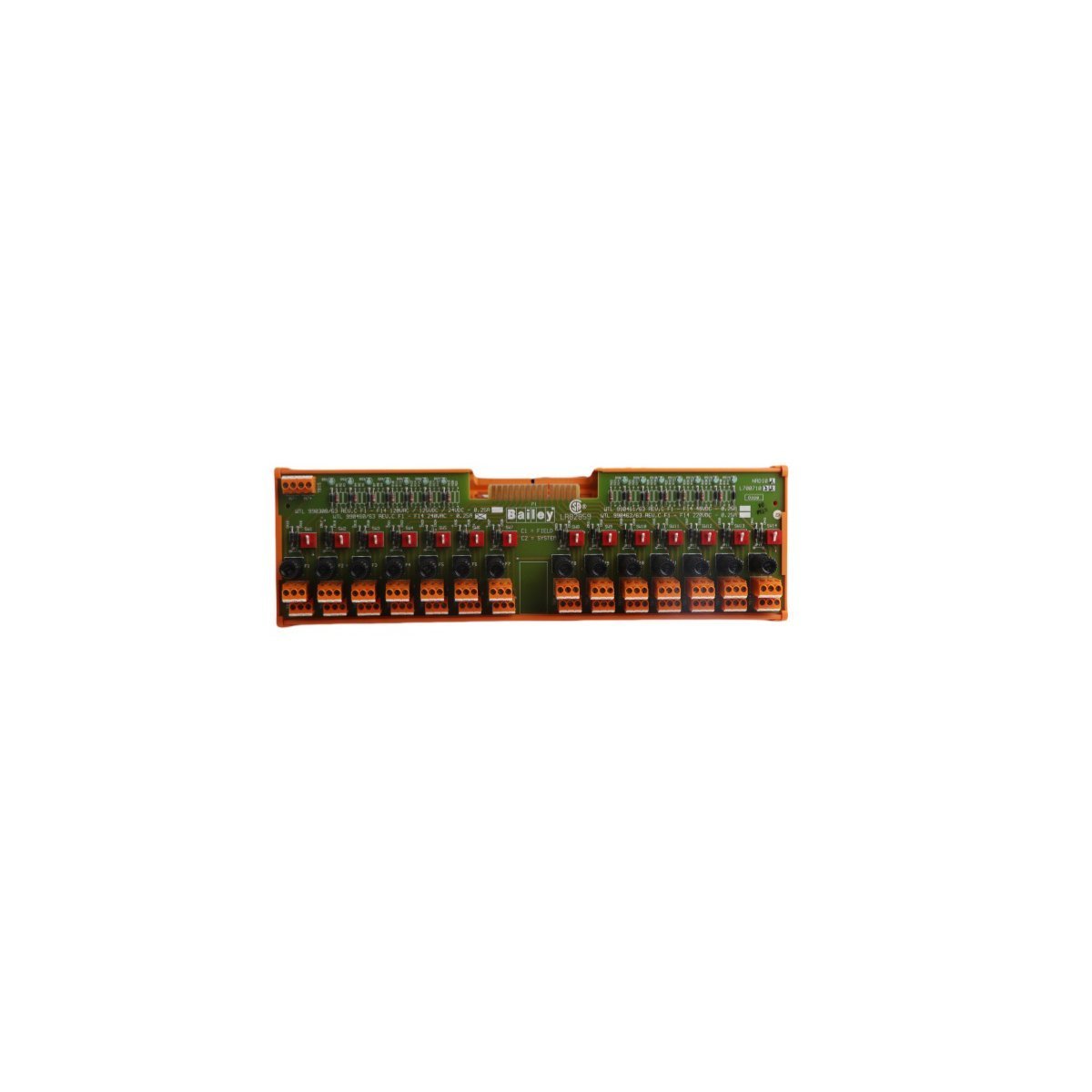

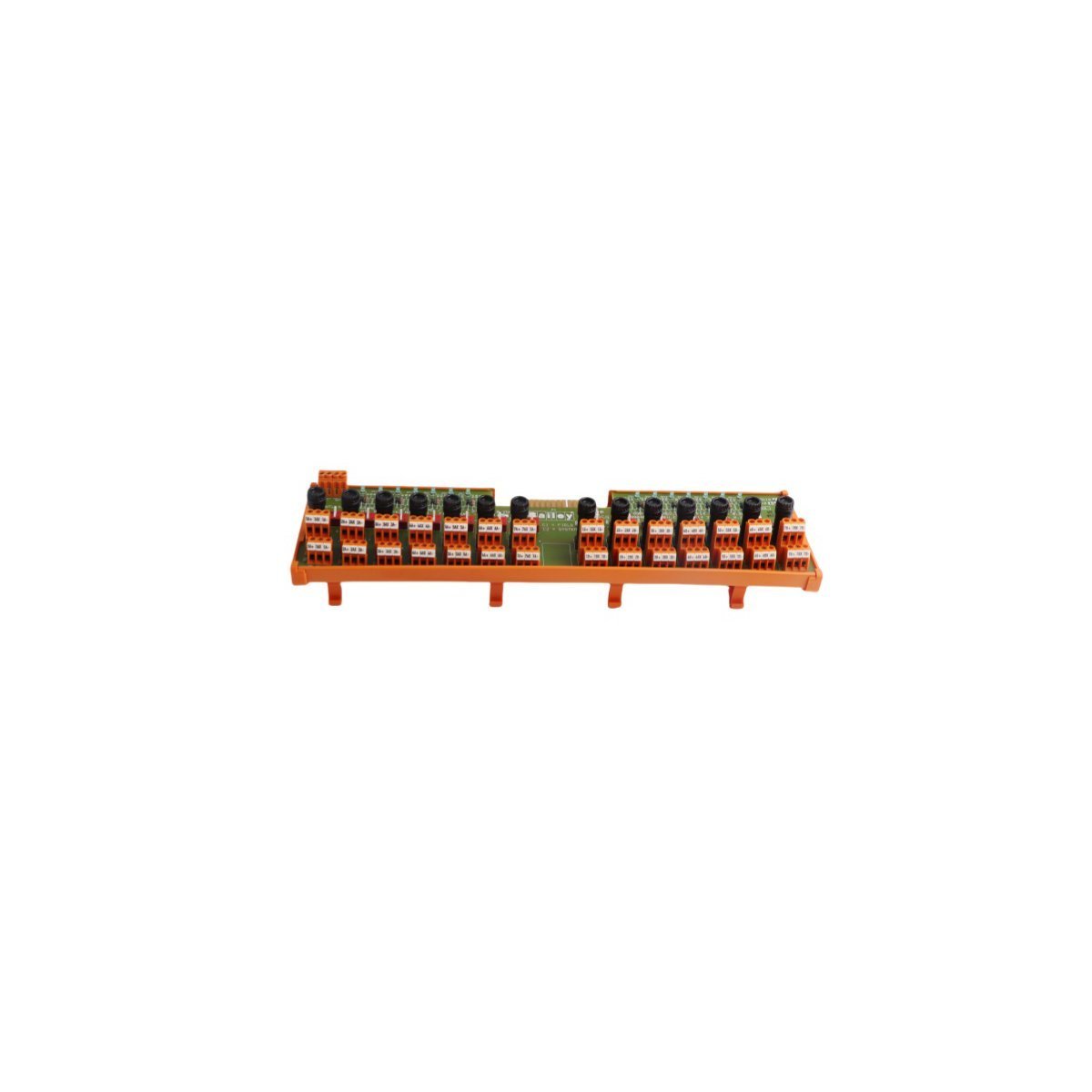

The ABB NRDI02 serves as a specialized digital input termination unit within the Symphony Harmony DCS ecosystem. This module provides 16 isolated channels to capture field signals with high temporal accuracy. It translates physical switch states into logical data for the controller to process. Consequently, the unit ensures dependable monitoring for complex industrial sequences and machinery interlocks.
Furthermore, the hardware architecture focuses on maintaining signal purity in electrically noisy environments. Each input path features electrical isolation to prevent ground loops and protect the central controller. The NRDI02 remains a cornerstone for legacy system support and modern industrial expansions.
Key Technical Characteristics
- Manufacturer: ABB
- Model Identifier: NRDI02
- Product Series: Symphony Harmony
- Input Configuration: 16 Isolated Digital Channels
- Voltage Rating: 240V AC compatible versions available
- Operating Temperature: -20°C to +55°C
- Hardware Mass: 0.6 kg
- Unit Dimensions: 35.4 x 11 x 7.5 cm
- Communication Support: DeviceNet, Profinet, and EtherCAT compatible
- Origin: Sweden
Network Compatibility and Integration
The NRDI02 supports diverse communication protocols to bridge field devices with the control layer. It facilitates seamless data exchange through DeviceNet, Profinet, or EtherCAT interfaces. This versatility allows engineers to integrate the module into various distributed control architectures.
Additionally, the modular design simplifies the connection between field wiring and the I/O bus. The internal circuitry handles high-speed pulse detection without compromising data stability. Therefore, the module provides a bridge between high-voltage field equipment and low-voltage control logic.
