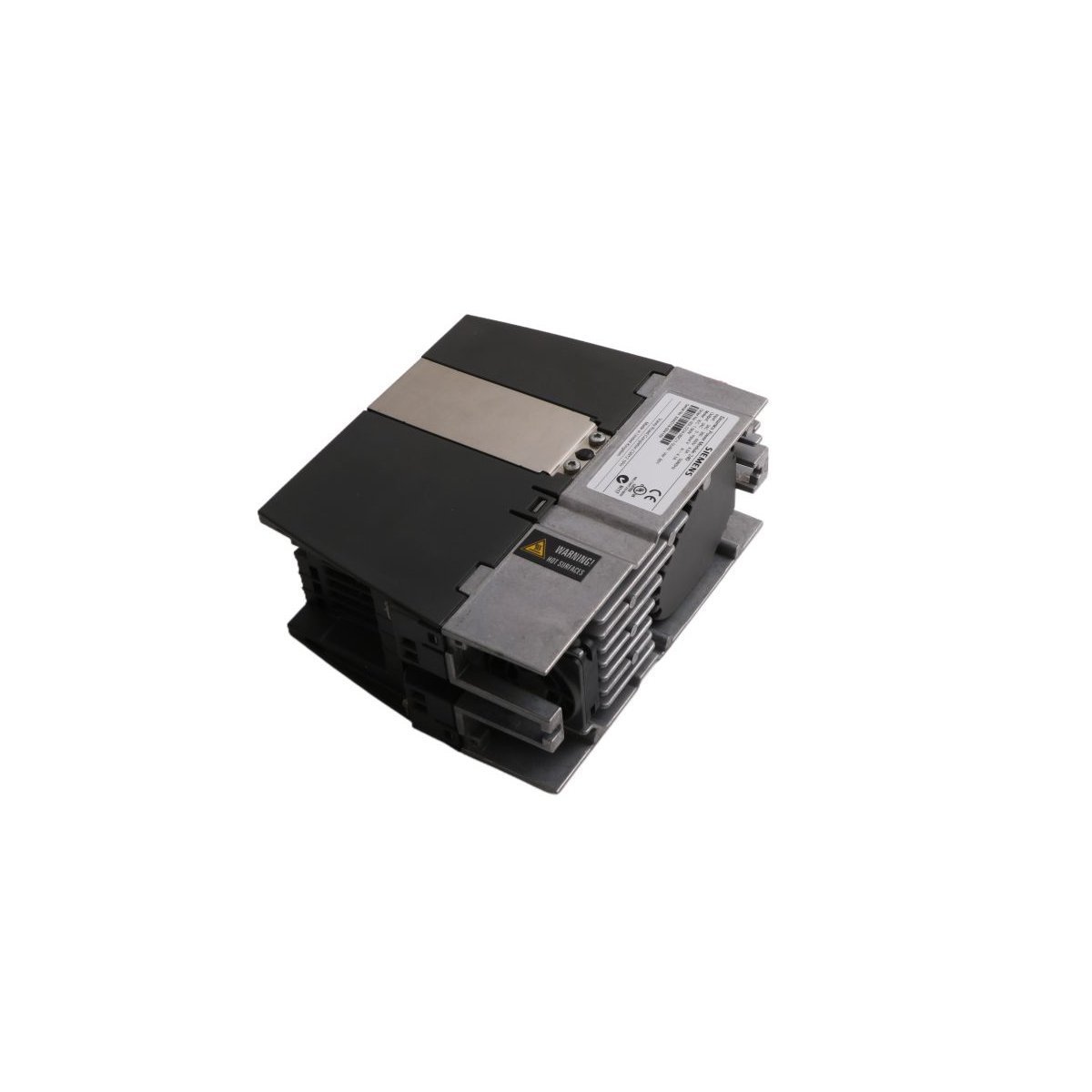

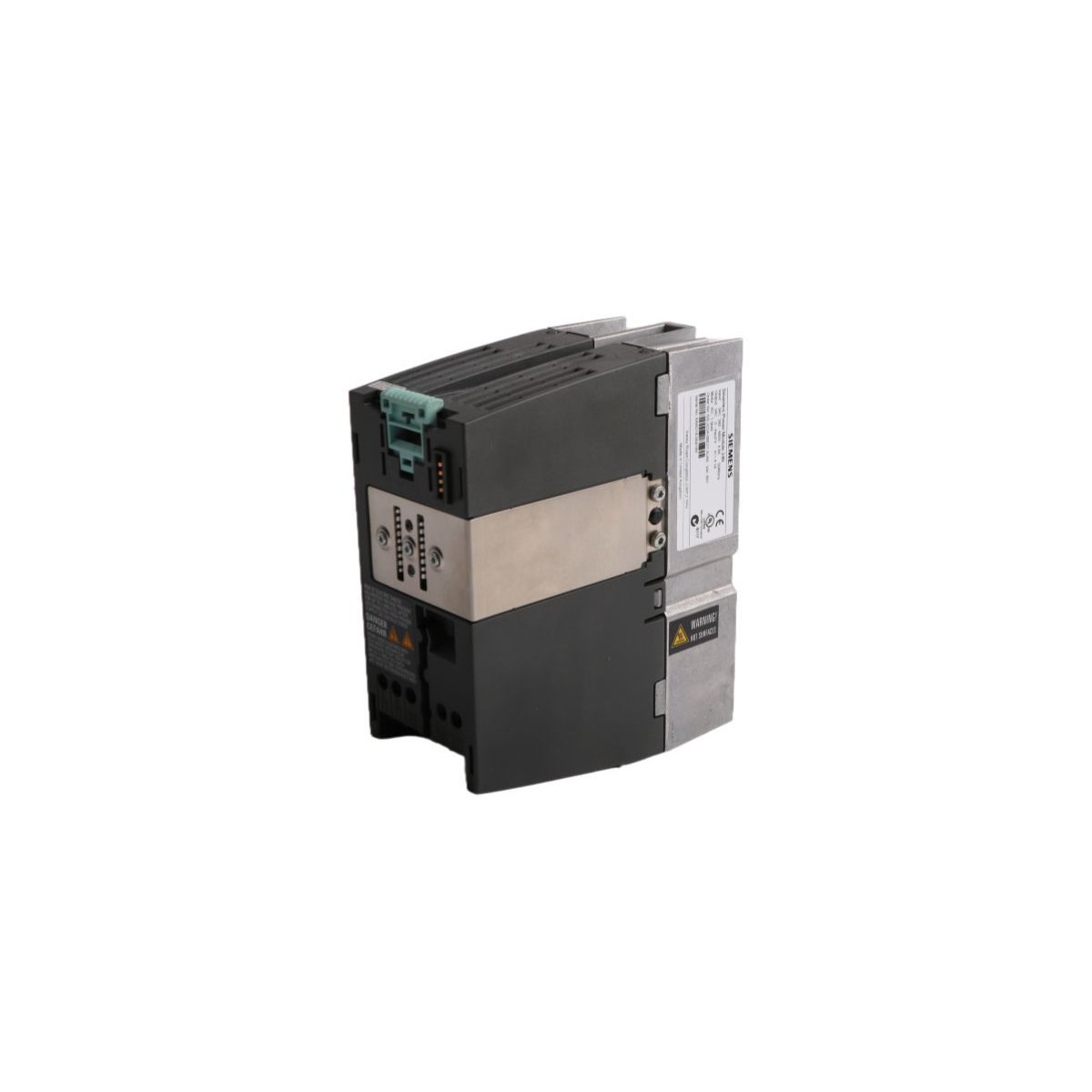

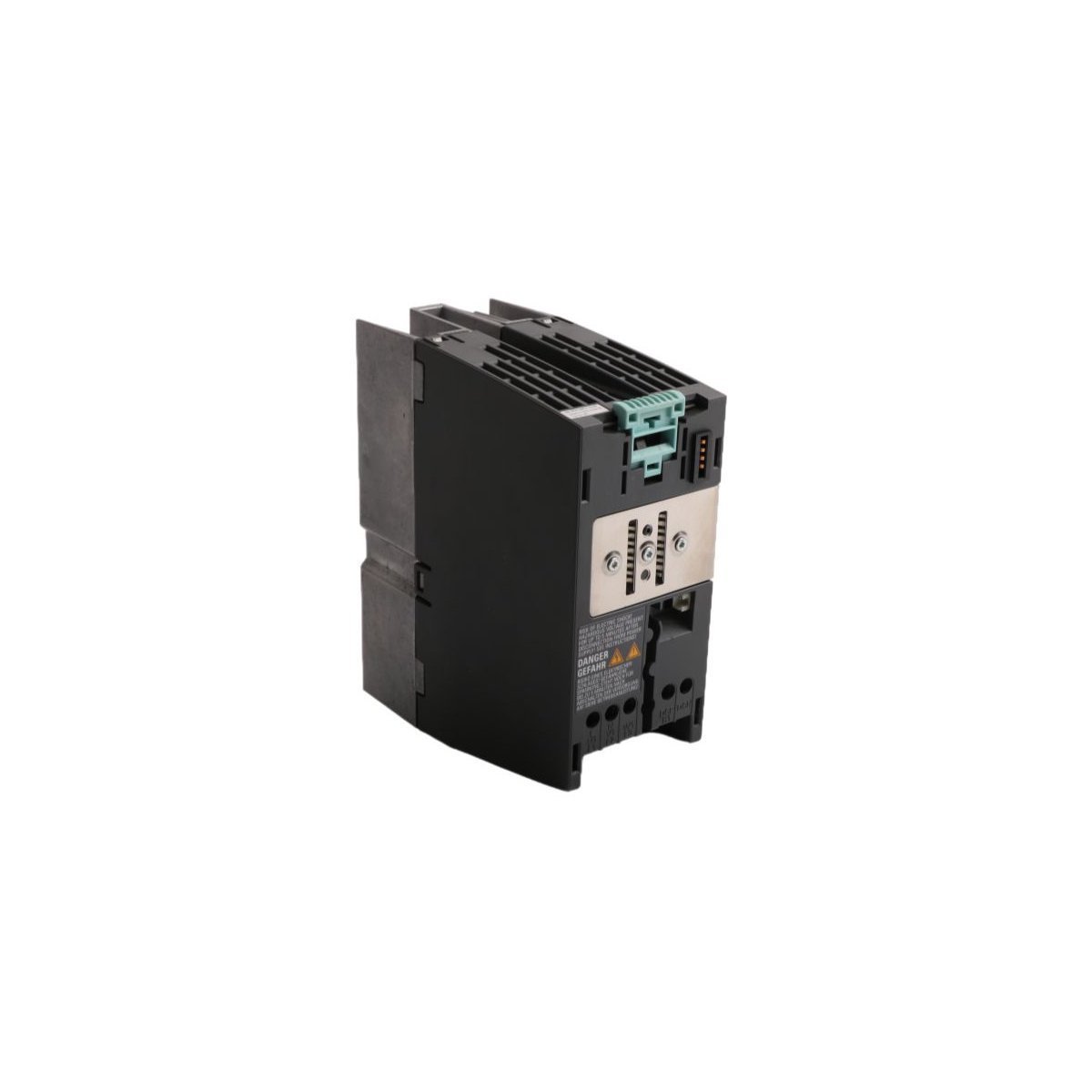

Siemens 6SL3224-0BE21-5UA0 PM240 Power Module

The Siemens 6SL3224-0BE21-5UA0 belongs to the respected SINAMICS G120 family. This PM240 power module converts three-phase AC input into a variable frequency output. It provides a rated power of 1.5 kW for driving induction motors. The unit operates within an input voltage range of 380V to 480V AC. Furthermore, the module features an integrated braking chopper to manage regenerative energy effectively. This internal component eliminates the need for external braking units in many standard applications. The hardware serves as the power stage for modular inverter systems.

High Overload Capacity and Dynamic Performance

Performance stays consistent even under heavy mechanical strain. This module handles a 200% overload for short durations of 3 seconds. Additionally, it sustains a 150% overload for nearly one minute during duty cycles. These characteristics make it ideal for machinery with high starting torque requirements. The processor supports both simple V/f control and sophisticated vector control methods. Consequently, users achieve precise speed and torque regulation for diverse industrial tasks. An internal fan provides active air cooling to maintain safe operating temperatures.

Robust Design and Installation Flexibility

Siemens engineered the 6SL3224-0BE21-5UA0 for space-saving cabinet integration. The compact Frame Size A (FSA) housing minimizes the required footprint. It carries an IP20 protection rating for installation in standard control enclosures. The module functions reliably in ambient temperatures between -10°C and +50°C. Moreover, its power factor of 0.85 ensures energy-efficient operation across the load range. This unit pairs with various SINAMICS Control Units to meet specific logic needs. It remains a preferred choice for existing plant maintenance and system expansions.

Technical Specifications
