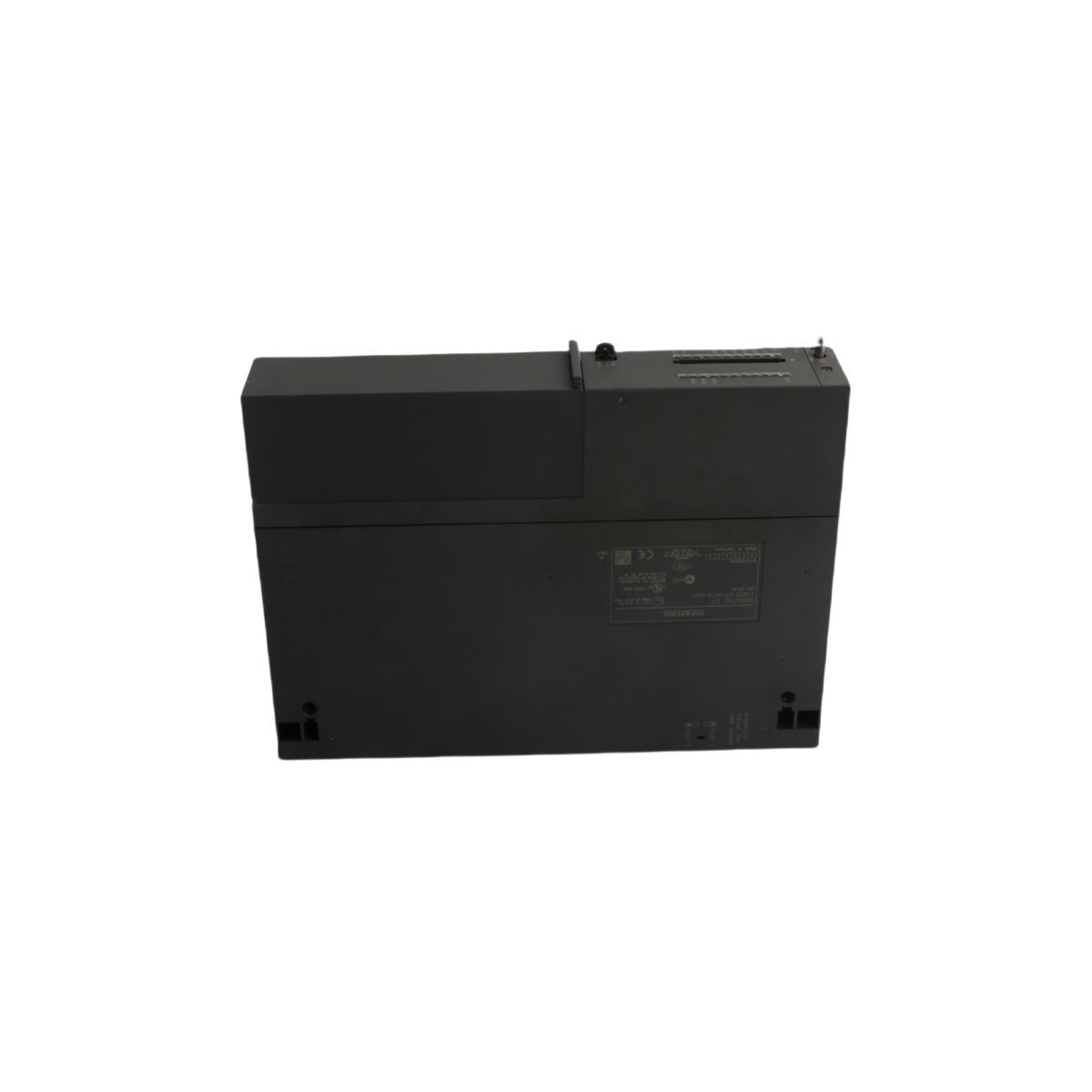

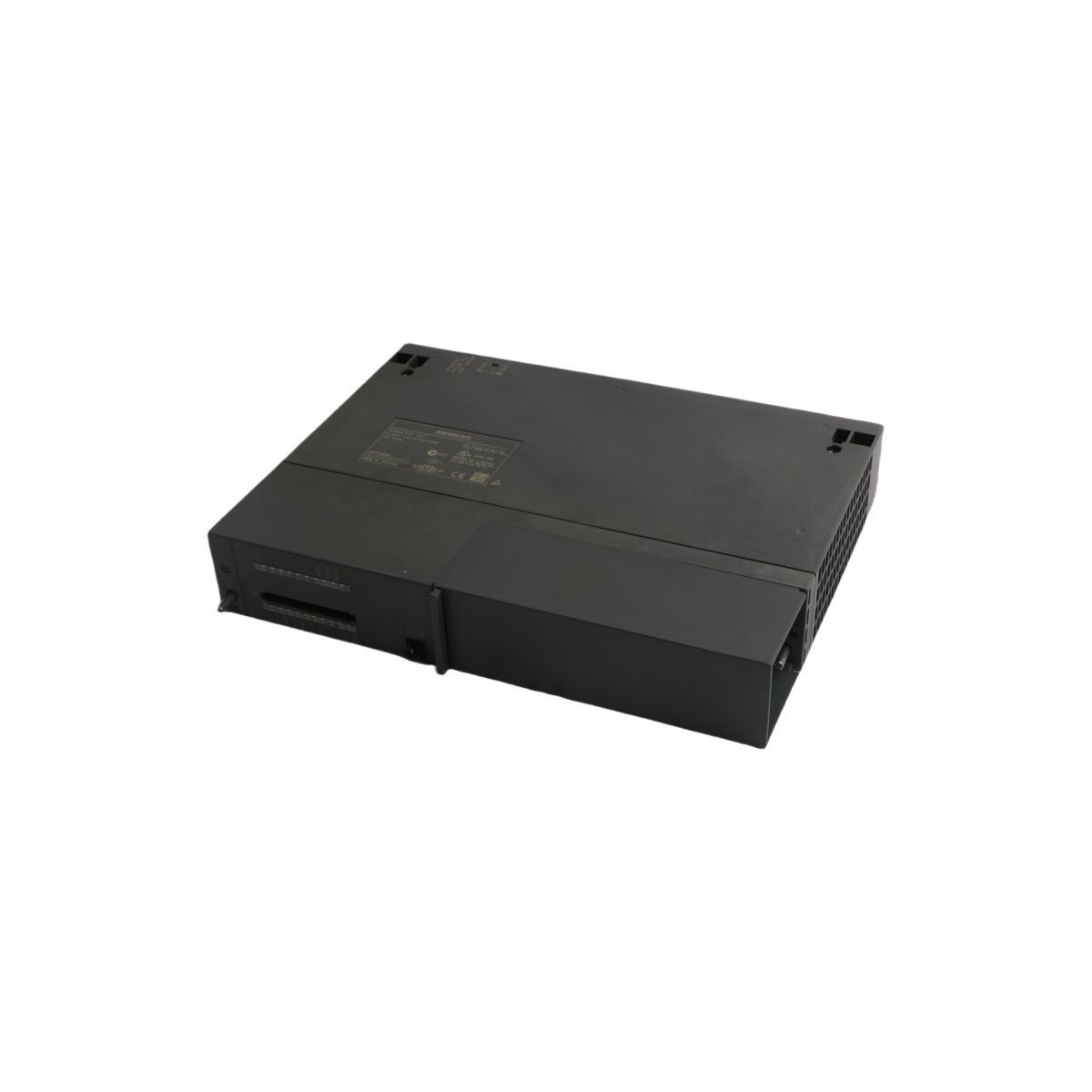

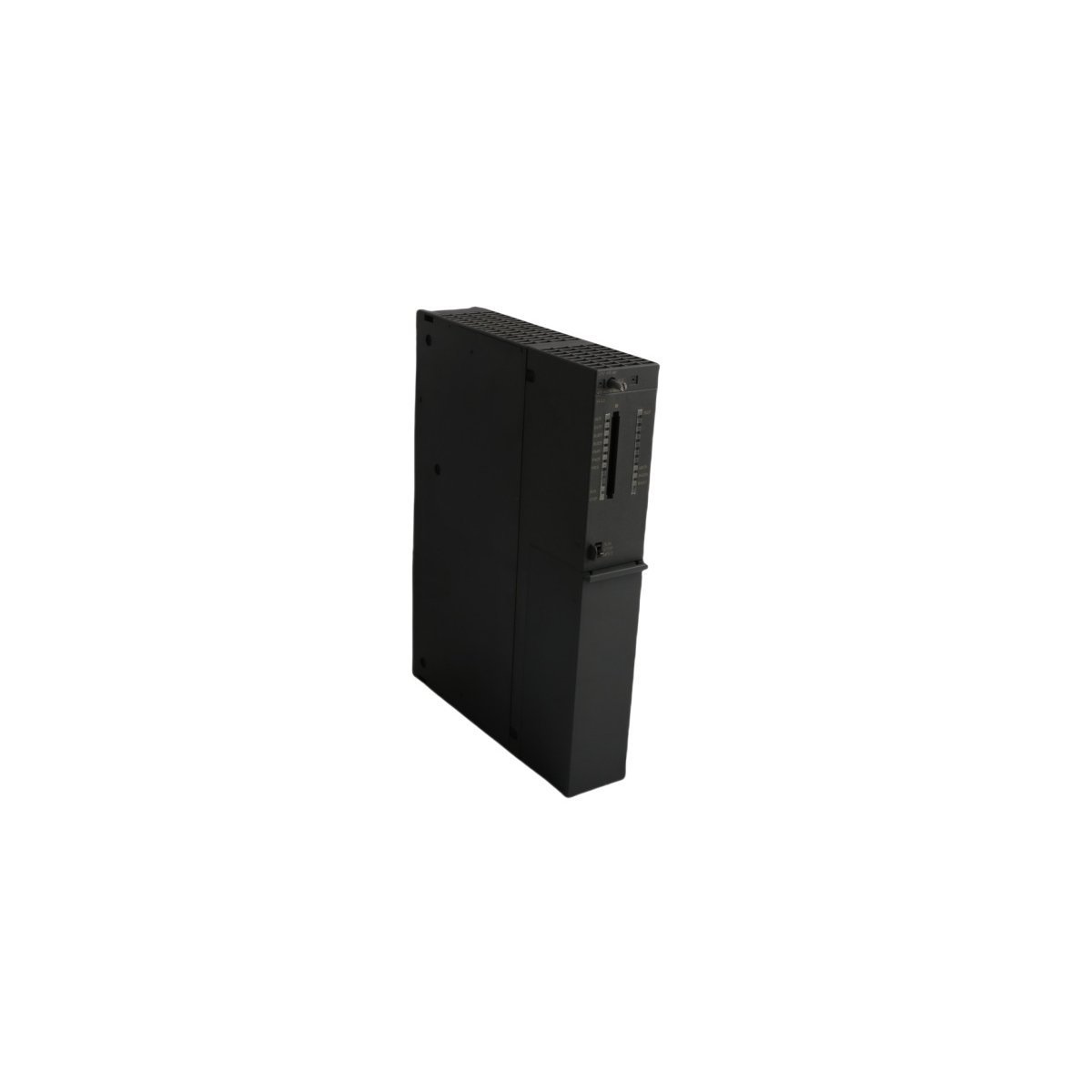

Siemens 6ES7417-4HT14-0AB0 Central Processing Unit

The Siemens 6ES7417-4HT14-0AB0 stands as the flagship processor for the SIMATIC S7-400H fault-tolerant system. This high-performance CPU manages the most demanding automation tasks in critical industrial sectors. It provides a massive 30 MB total work memory to handle complex logic. This capacity splits evenly with 15 MB for user programs and 15 MB for data. Consequently, the unit executes intricate control algorithms without performance bottlenecks. The processor ensures system continuity in environments where downtime causes significant financial loss. It serves as a reliable core for power generation and chemical processing plants.

Comprehensive Communication and Synchronization

This central processing unit features a versatile interface array to support complex network topologies. It includes an integrated MPI/DP port and a dedicated PROFIBUS DP interface. Furthermore, the hardware provides two slots for fiber-optic synchronization modules. These modules maintain perfect data alignment between paired CPUs in a redundant setup. The system performs bumpless switchovers if a primary processor encounters a hardware failure. This architecture supports up to 128,000 digital and 8,000 analog I/O points. Therefore, the CPU scales effortlessly for large-scale distributed automation projects.

Industrial Durability and Fault Tolerance

The 6ES7417-4HT14-0AB0 thrives in harsh manufacturing conditions with extreme temperature variations. Its fanless design reduces mechanical wear and simplifies routine maintenance schedules. The processor utilizes a bit execution time of just 0.018 µs for lightning-fast logic processing. Additionally, the unit supports extensive diagnostic functions to identify potential field errors quickly. Engineers can program the module using standard STEP 7 software for seamless integration. This CPU represents the pinnacle of Siemens’ commitment to safety and system reliability. It delivers unmatched uptime for oil refineries and water treatment facilities worldwide.

Technical Specifications
