Advanced Signal Processing Features
This digital module operates on a standard 24 VDC power supply. The input channels detect signals accurately with delays between 2.0 and 4.5 milliseconds. Moreover, the 0.5A output channels feature integrated electronic short-circuit protection. This safeguard prevents hardware damage during unexpected electrical faults. The unit also manages different load types effectively. Specifically, it supports 100 Hz switching for resistive loads and 0.5 Hz for inductive loads. These characteristics ensure stable operation across diverse industrial machinery.
Installation and Maintenance Efficiency

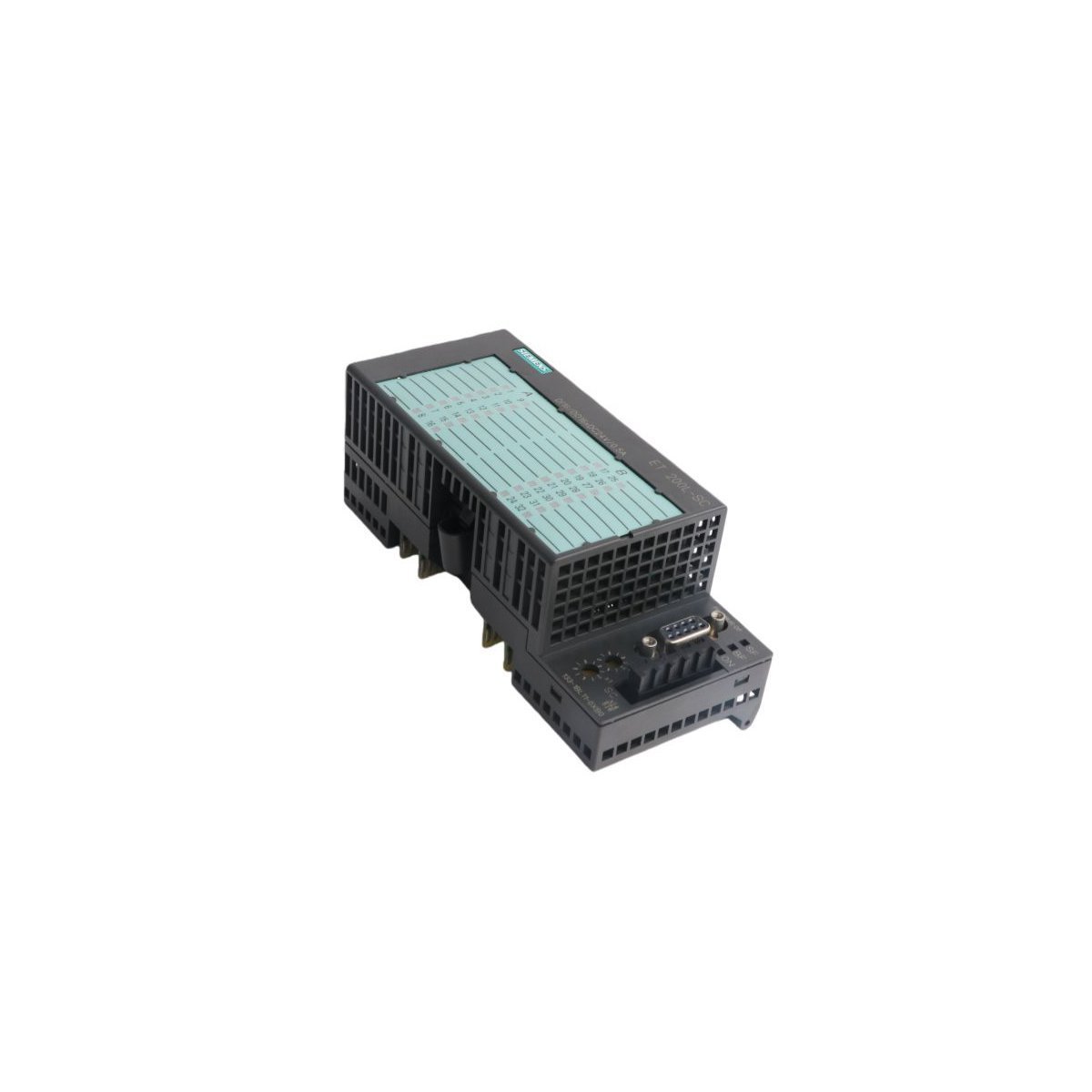

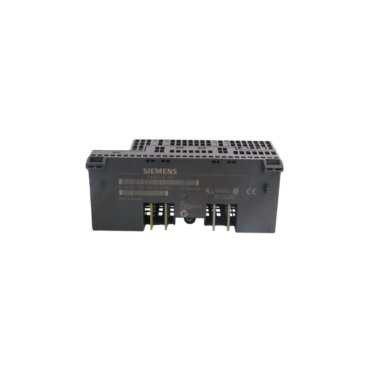

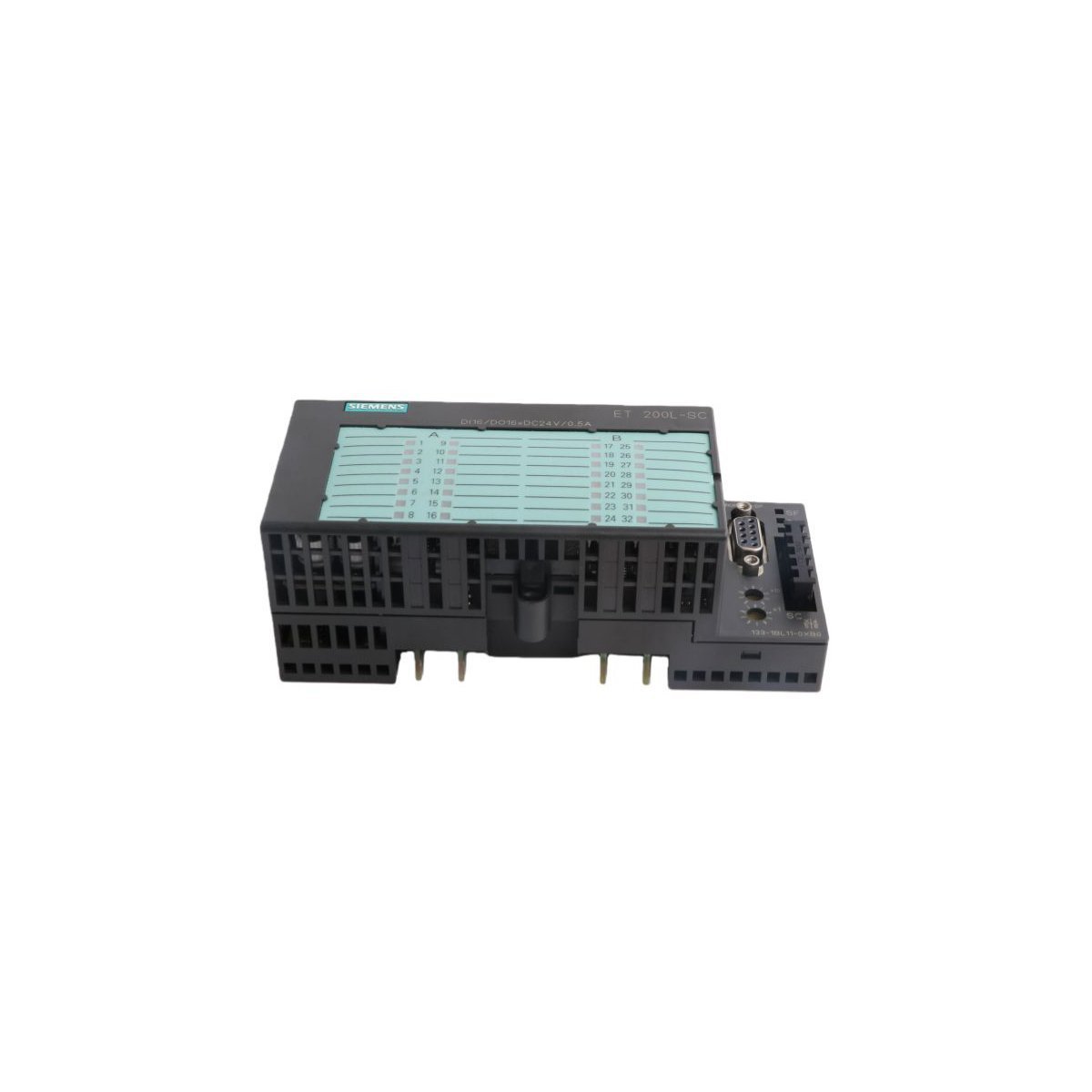

The design of the 6ES7133-1BL11-0XB0 simplifies field deployment and system upgrades. Users set the PROFIBUS station address directly via two integrated rotary switches. This manual configuration method streamlines the commissioning process significantly. Additionally, the separation of electronics from wiring allows module replacement without disconnecting cables. This feature minimizes maintenance downtime in critical production environments. The module remains compatible with both screw and spring-type terminal connections.
Industrial Application and Durability
The Siemens ET 200L series provides a robust solution for harsh factory environments. It handles shielded cable lengths reaching up to 1000 meters for digital inputs. Therefore, it excels in large-scale plant layouts requiring remote signal collection. The module functions within the broader SIMATIC S7 ecosystem seamlessly. It provides a non-expandable but comprehensive solution for focused I/O requirements. This reliability makes it a preferred choice for process control and automotive assembly lines.
Technical Specifications
- Brand: Siemens
- Series: SIMATIC ET 200L
- Model: 6ES7133-1BL11-0XB0
- I/O Count: 16 Digital Inputs / 16 Digital Outputs
- Rated Voltage: 24 VDC
- Output Current: 0.5 Amperes per channel
- Communication: PROFIBUS-DP Protocol
- Protection: Electronic Short-Circuit Protection
- Dimensions: 145 mm x 60 mm x 60.5 mm
- Weight: 0.95 kg
- Country of Origin: Germany
