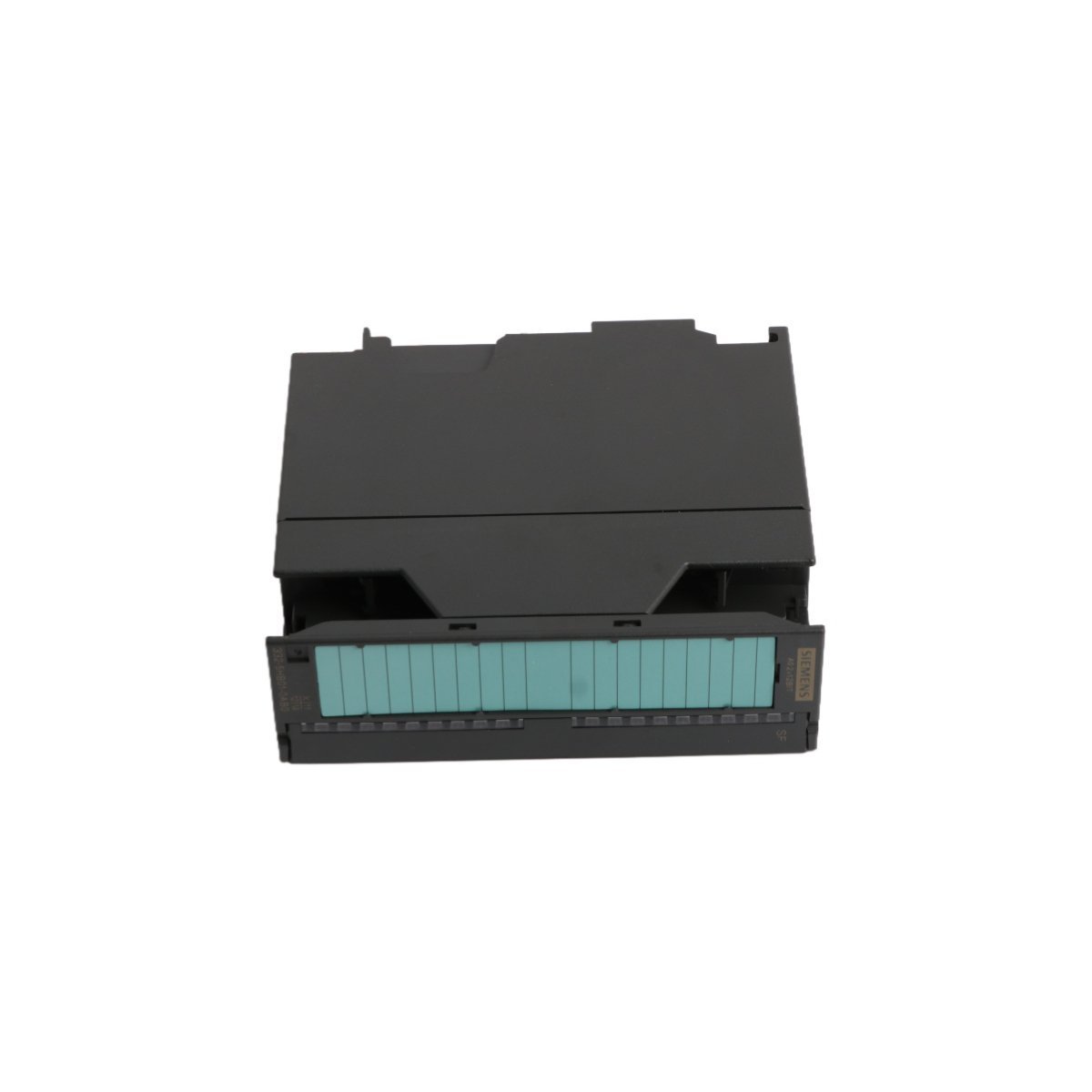

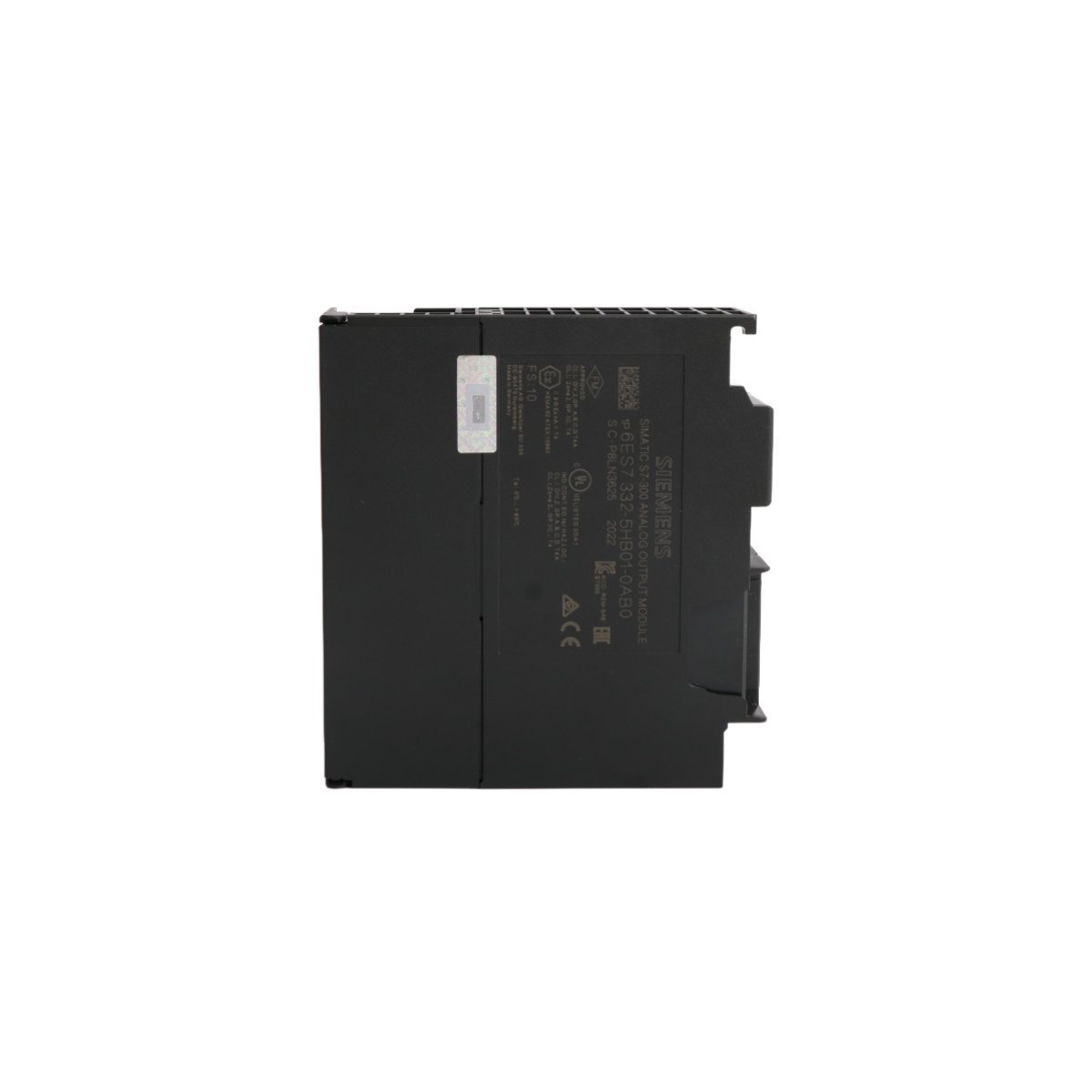

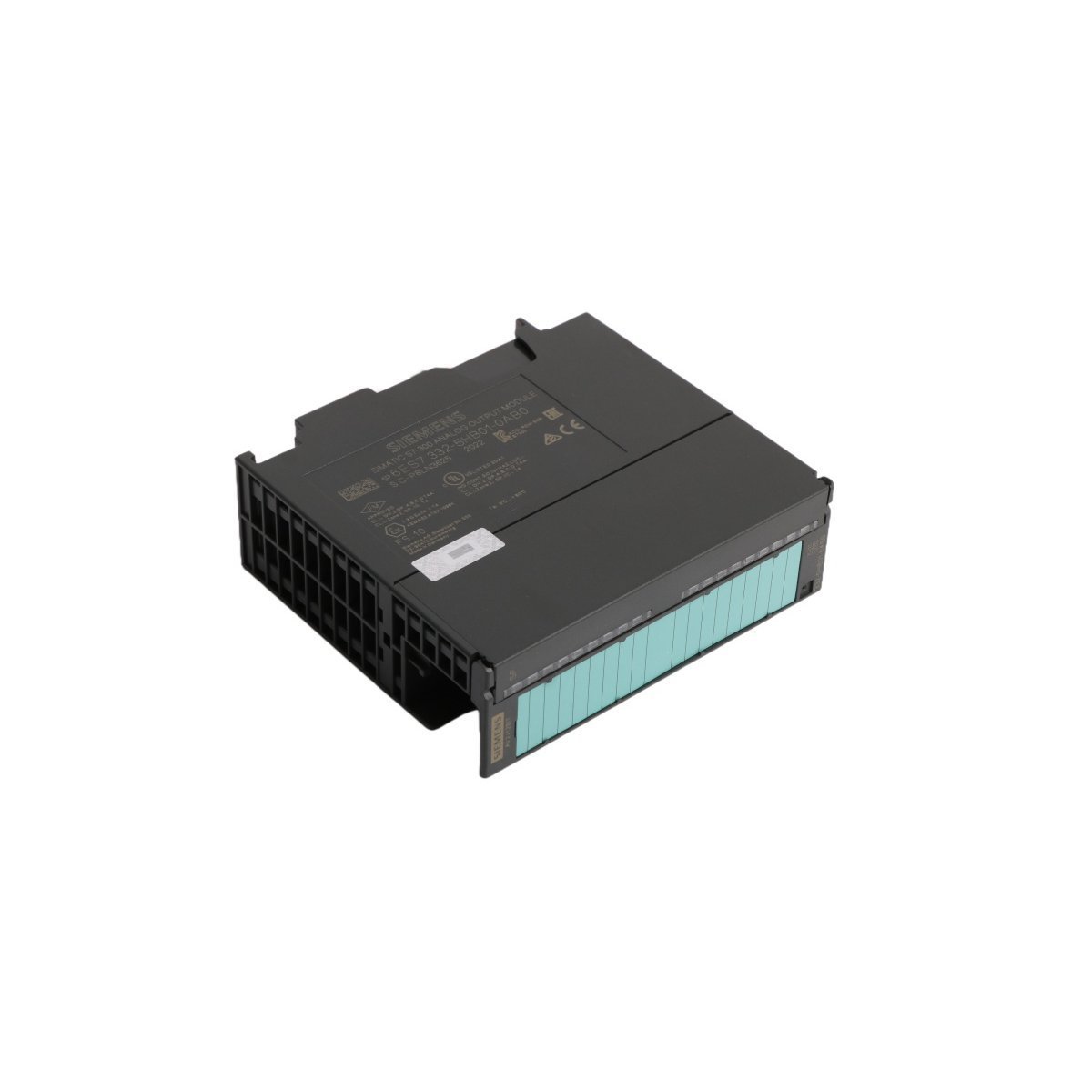

Siemens 6ES7332-5HB01-0AB0 Analog Output Module

The Siemens 6ES7332-5HB01-0AB0 serves as a high-accuracy signal generator for SIMATIC S7-300 systems. This SM 332 module converts digital PLC values into proportional analog signals. It independently manages two isolated output channels for field device control. Engineers typically use this hardware to drive actuators, valves, and speed regulators. Consequently, it provides the essential link between digital logic and physical process adjustments.

Flexible Output Configuration and Resolution

This module supports versatile output ranges for various industrial standards. Users can configure each channel for voltage levels of ±10V or 1-5V. Alternatively, the unit provides current outputs ranging from 0-20mA or 4-20mA. The hardware delivers a 12-bit resolution for voltage and 11-bit for current. Therefore, the module ensures smooth and granular control for sensitive automation tasks. Such precision helps reduce fluctuations in closed-loop control systems.

Robust Electrical Isolation and Protection

Reliability remains a core feature of the 6ES7332-5HB01-0AB0 electrical design. The module provides 500V AC galvanic isolation between the internal bus and channels. This protection prevents field-side interference from reaching the central CPU. Furthermore, the unit features short-circuit protection for voltage outputs. It also includes open-circuit detection for current loops to simplify diagnostics. These safety measures ensure long-term stability in electrically noisy factory environments.

Technical Specifications
