Technical Overview and Functional Description

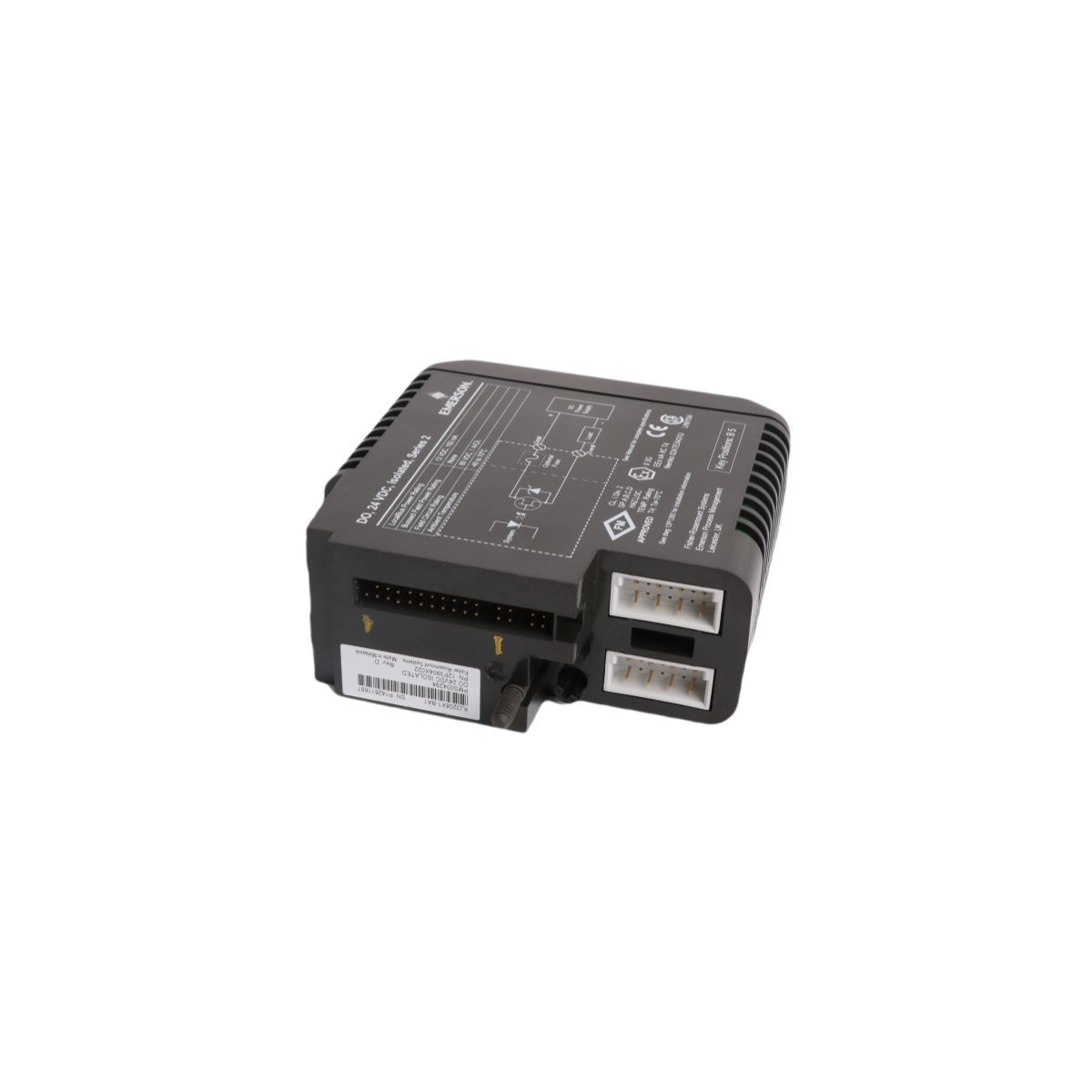

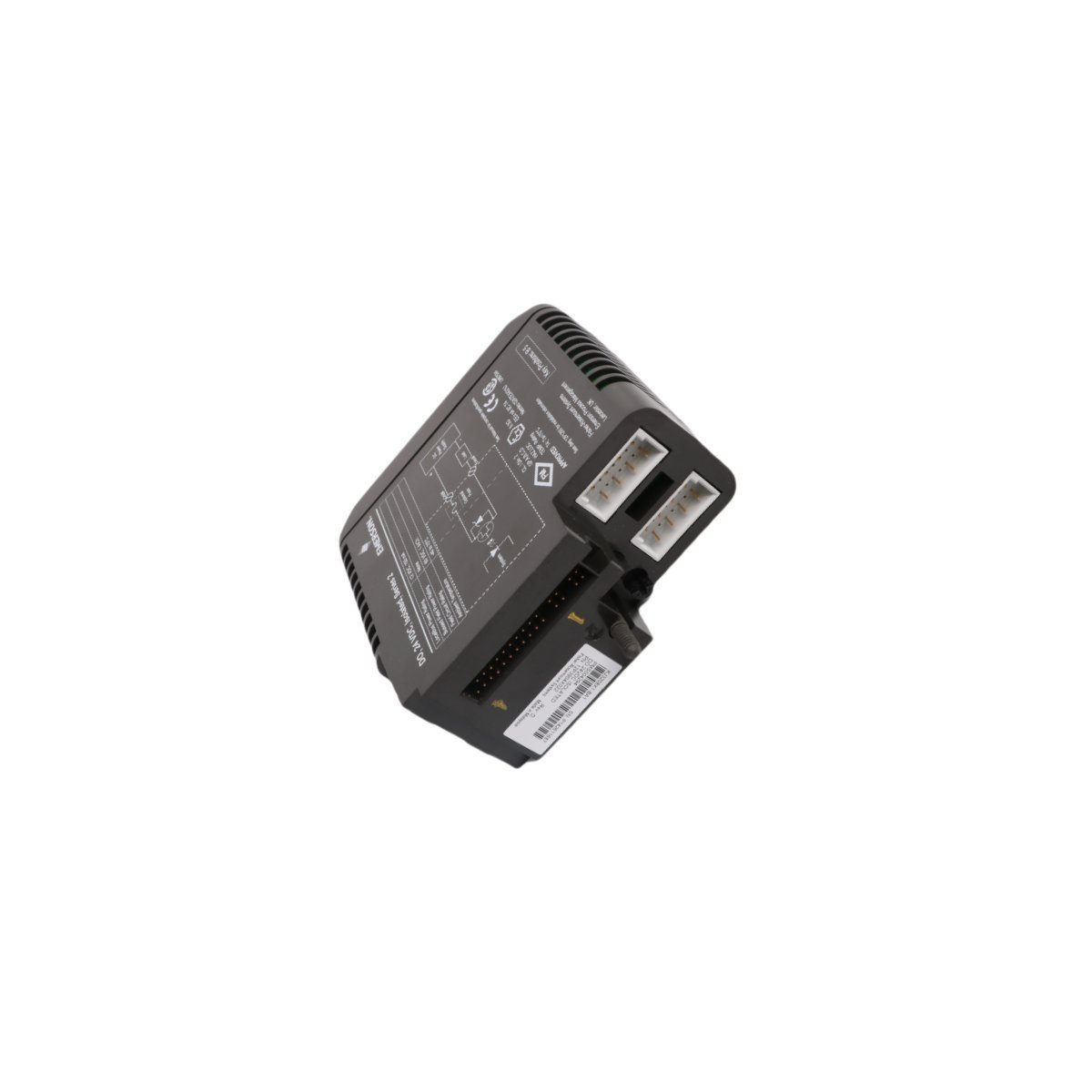

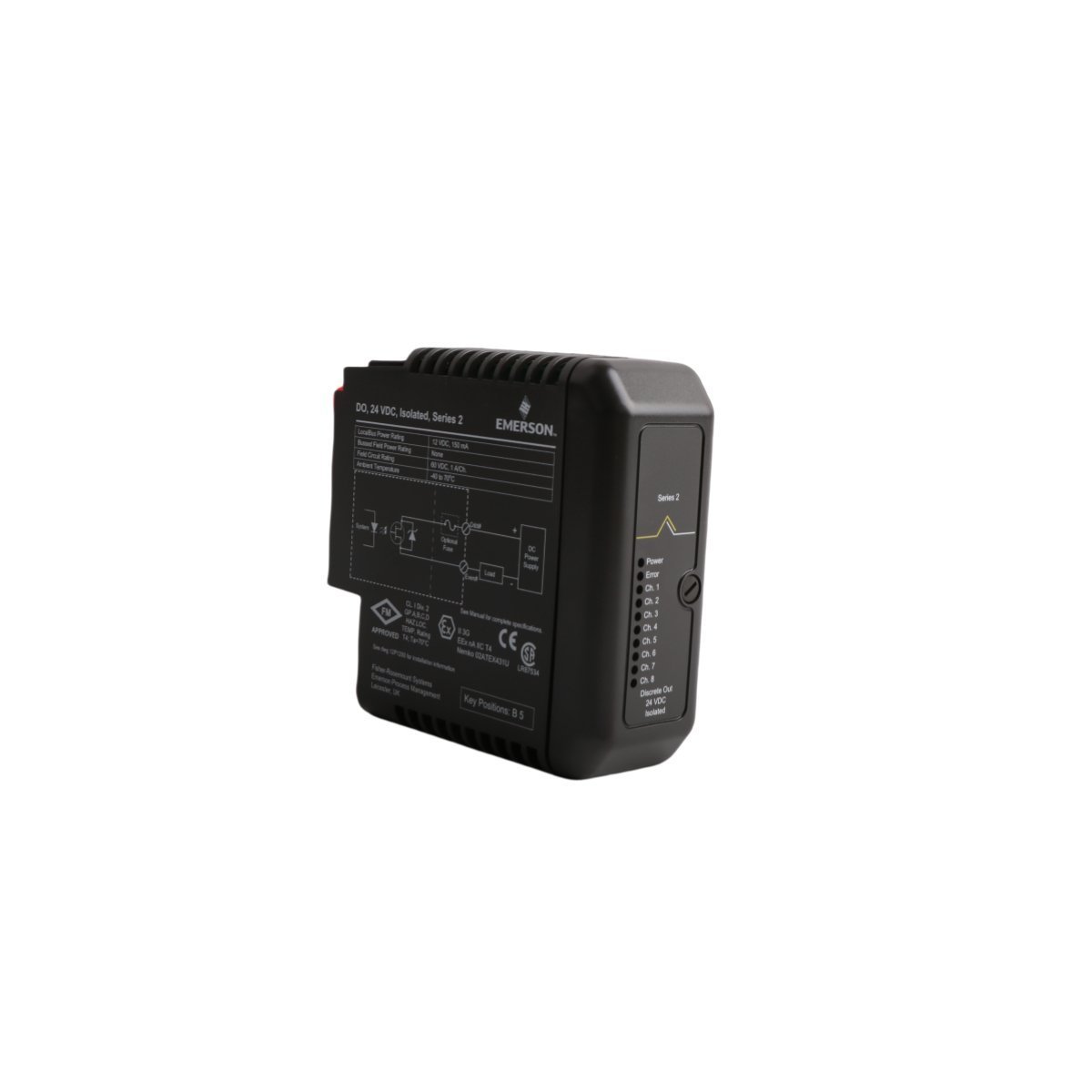

The Emerson KJ3208X1-BA1, also identified by part numbers 12P3904X022 and VE4002S1T1B1, serves as a critical interface within the DeltaV Distributed Control System. This M-series I/O component executes discrete control logic by switching field-side devices such as solenoid valves, motor starters, and pilot lights.
Because the module utilizes 24V DC isolated outputs, it effectively prevents electrical noise and ground loops from affecting the sensitive controller backplane. Furthermore, the card supports online expansion and hot-swapping, allowing maintenance personnel to replace modules without interrupting the broader process control environment.
Key Technical Specifications
- Manufacturer: Emerson Process Management
- Series: DeltaV M-series I/O Subsystem
- Model Number: KJ3208X1-BA1
- Part Number: 12P3904X022 / VE4002S1T1B1
- Output Type: Discrete Output (DO)
- Channel Count: 8 Channels
- Operating Voltage: 24V DC
- Isolation Type: Channel-to-system isolation
- Mounting: I/O Carrier horizontal or vertical mounting
- Physical Dimensions: 16.8 cm x 8.7 cm x 4.4 cm
- Net Weight: 0.2 kg
Performance Characteristics and Applications
The KJ3208X1-BA1 incorporates advanced internal diagnostics to monitor the health of the output circuitry. By utilizing these diagnostic signals, the DeltaV system can alert operators to potential hardware failures before they result in unplanned downtime.
This module is frequently deployed in demanding sectors including:
- Oil and Gas refining and transport
- Chemical and petrochemical processing
- Power generation and distribution
- Water and wastewater treatment facilities
The modular architecture of the VE4002S1T1B1 ensures that it integrates seamlessly with existing DeltaV controllers and power supplies. Consequently, users can scale their I/O capacity as their facility requirements grow, maintaining a cost-effective path for long-term automation lifecycle management.
