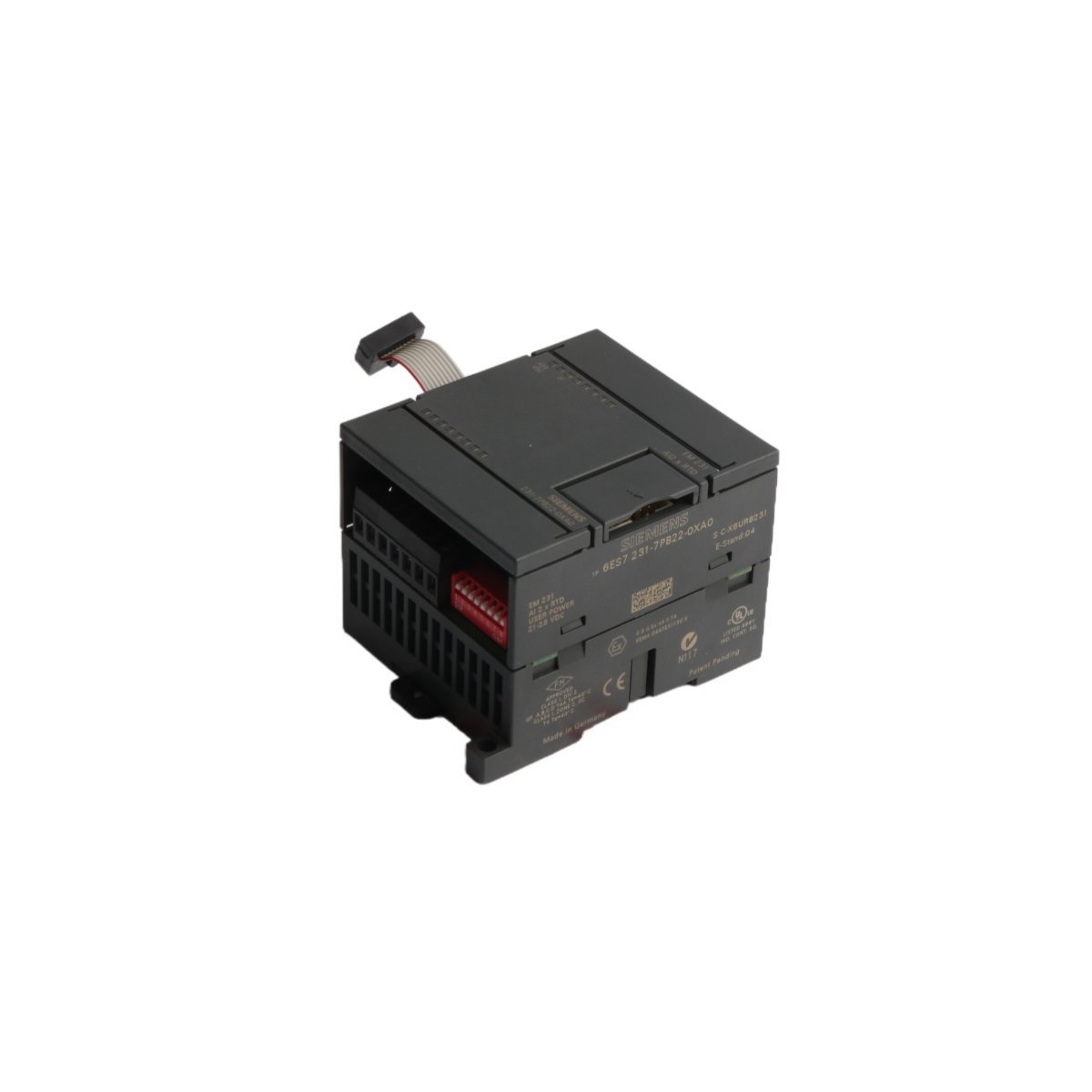

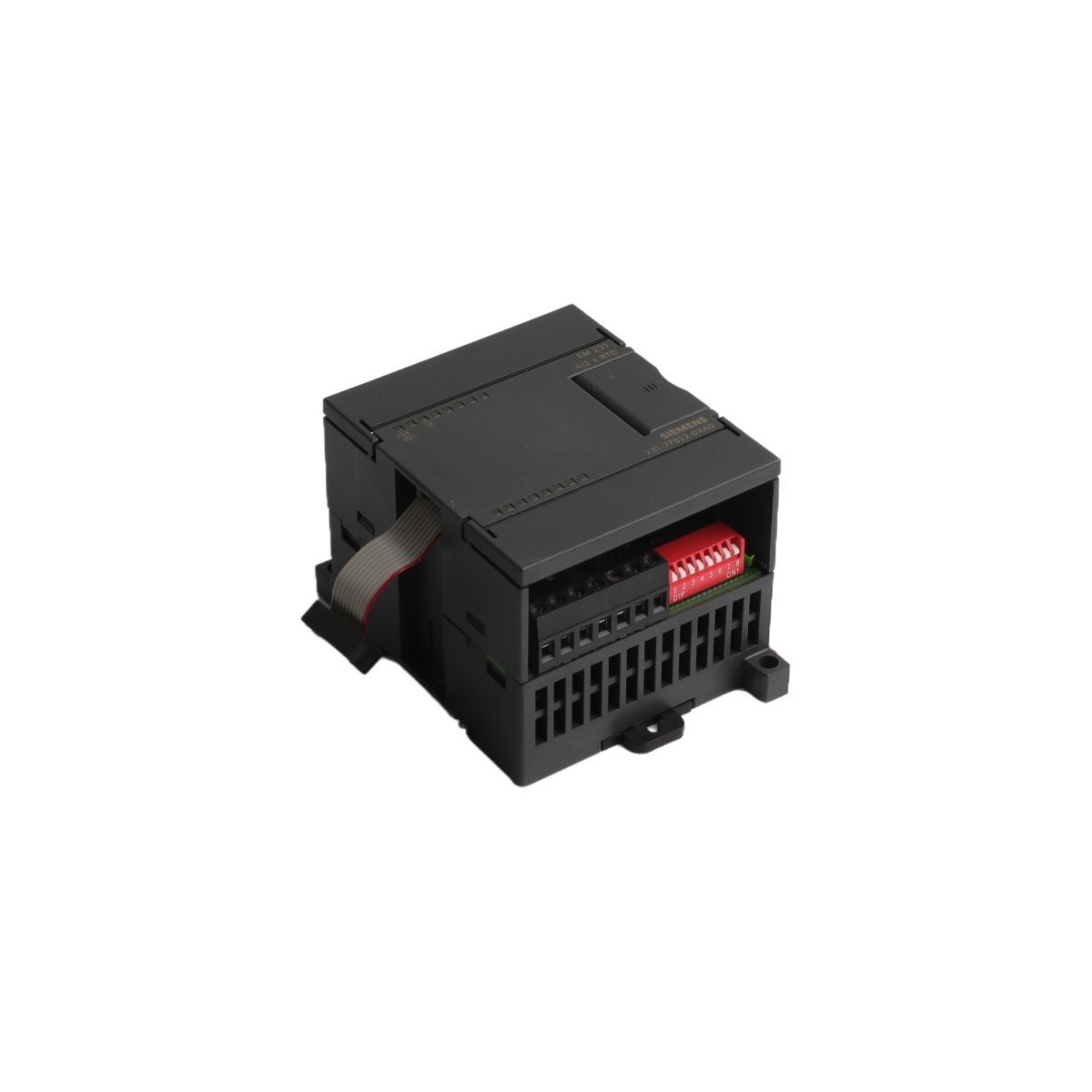

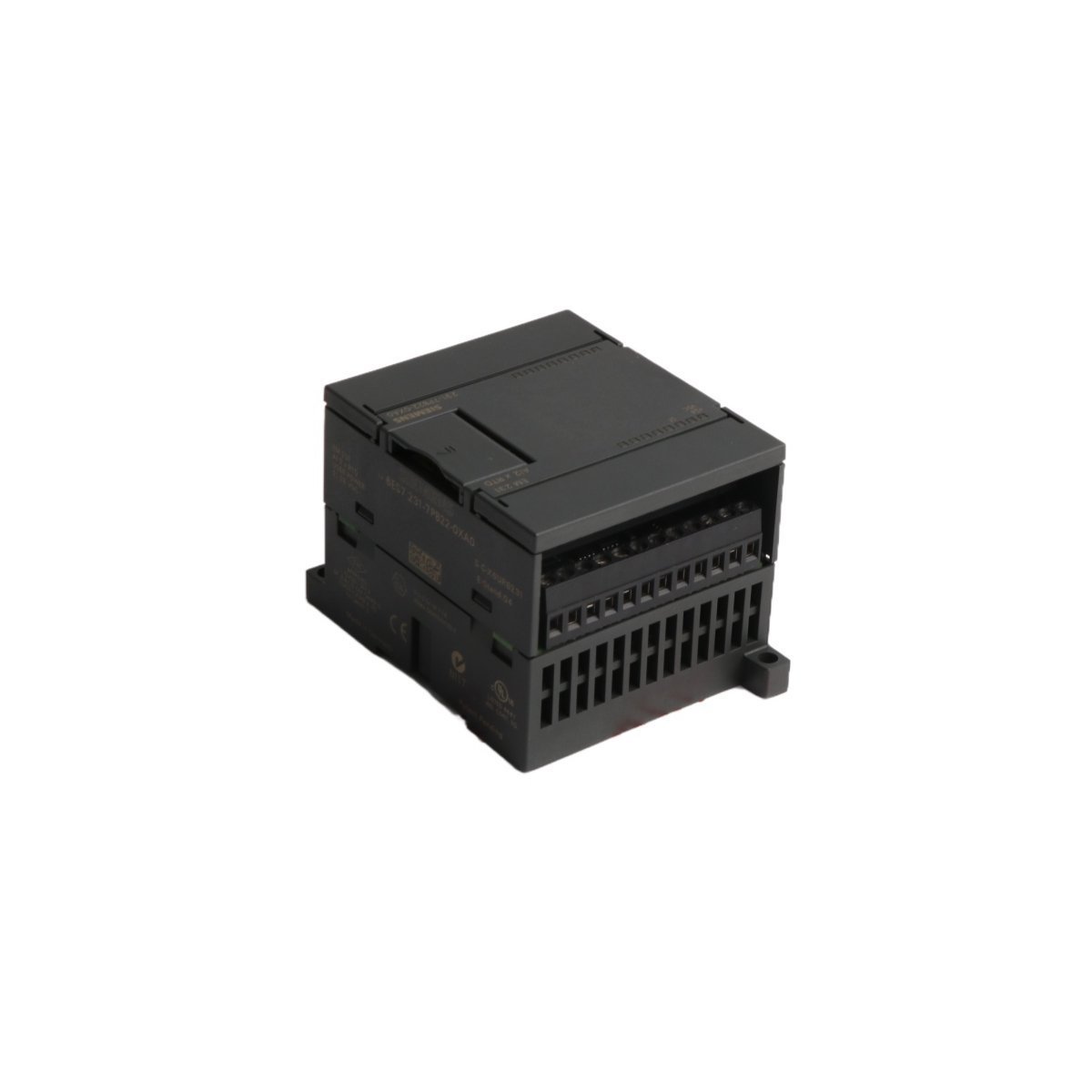

The Siemens 6ES7231-7PB22-0XA0 operates as a specialized expansion module for the legacy SIMATIC S7-200 PLC series. This EM 231 analog unit focus exclusively on Resistance Temperature Detector (RTD) inputs. It provides two high-precision channels to monitor industrial thermal processes. Consequently, users can integrate accurate temperature data directly into their control logic. The module converts analog resistance variations into digital values for the CPU. This conversion ensures reliable data for equipment protection and climate control.
Advanced Signal Conditioning and Noise Immunity
Engineers designed this module to handle sensitive low-voltage signals in harsh electrical environments. The internal circuitry includes robust signal conditioning to ensure measurement stability. Furthermore, the unit features built-in noise suppression to prevent data corruption from electromagnetic interference. These technical attributes make it ideal for manufacturing plants and process industries. The module supports various RTD types for maximum application flexibility. It simplifies system architecture by removing the need for external signal transmitters.
Technical Specifications
- Manufacturer: Siemens
- Model Code: 6ES7231-7PB22-0XA0
- Product Series: SIMATIC S7-200 (EM 231)
- Input Type: RTD (Resistance Temperature Detector)
- Number of Inputs: 2 Analog Channels
- Supply Voltage: 24V DC
- Dimensions: 71 x 80 x 62 mm
- Weight: 0.21 kg
- Country of Origin: Germany
- Status: Active (Available for replacement/expansion)
Professional Automation Application
This EM 231 module excels in food processing and environmental control systems. It provides the high-resolution feedback necessary for precise PID temperature loops. Furthermore, the module integrates easily with existing S7-200 hardware configurations. Users can scale their I/O capacity as their automation needs grow. This hardware remains a trusted choice for maintaining legacy systems with modern precision standards.
