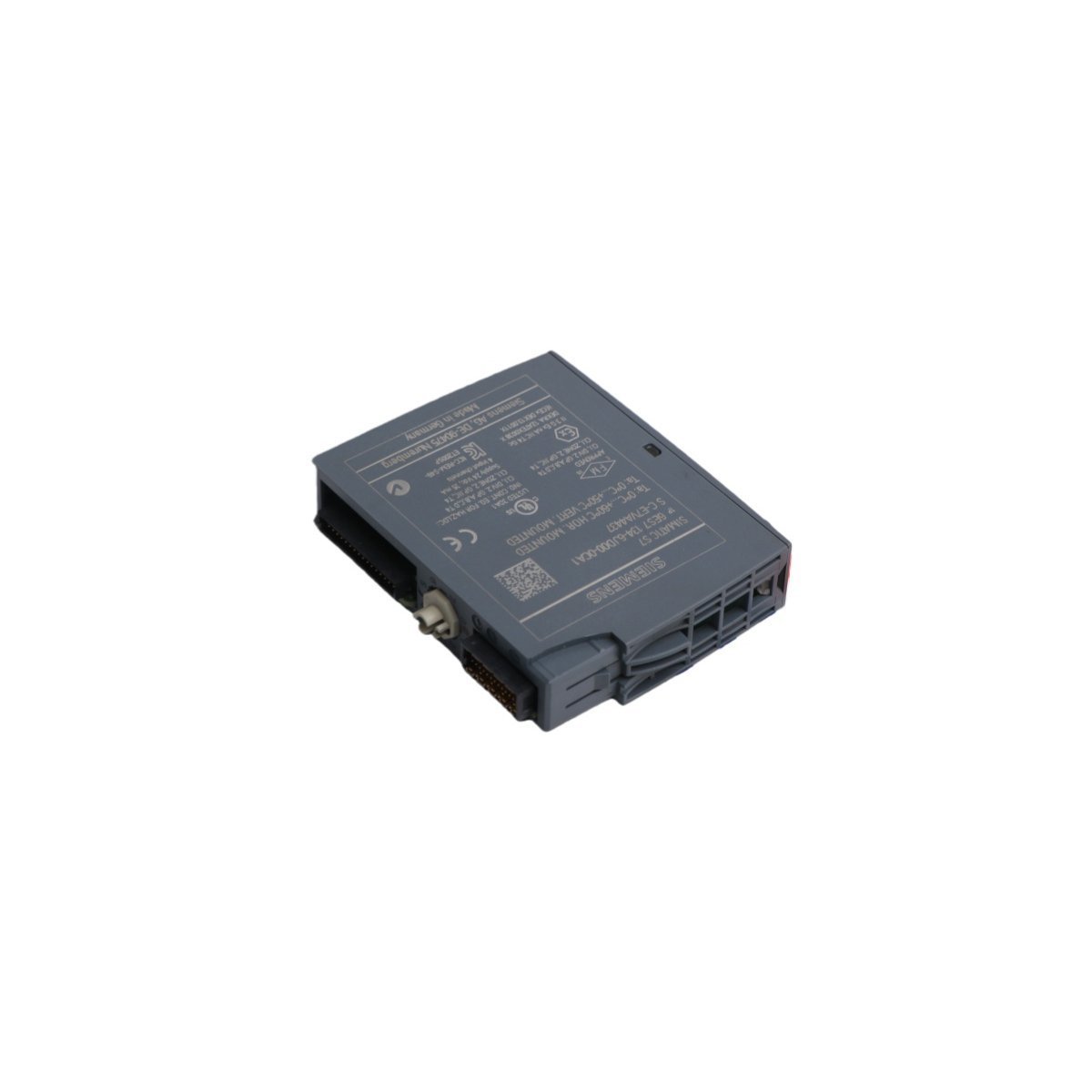

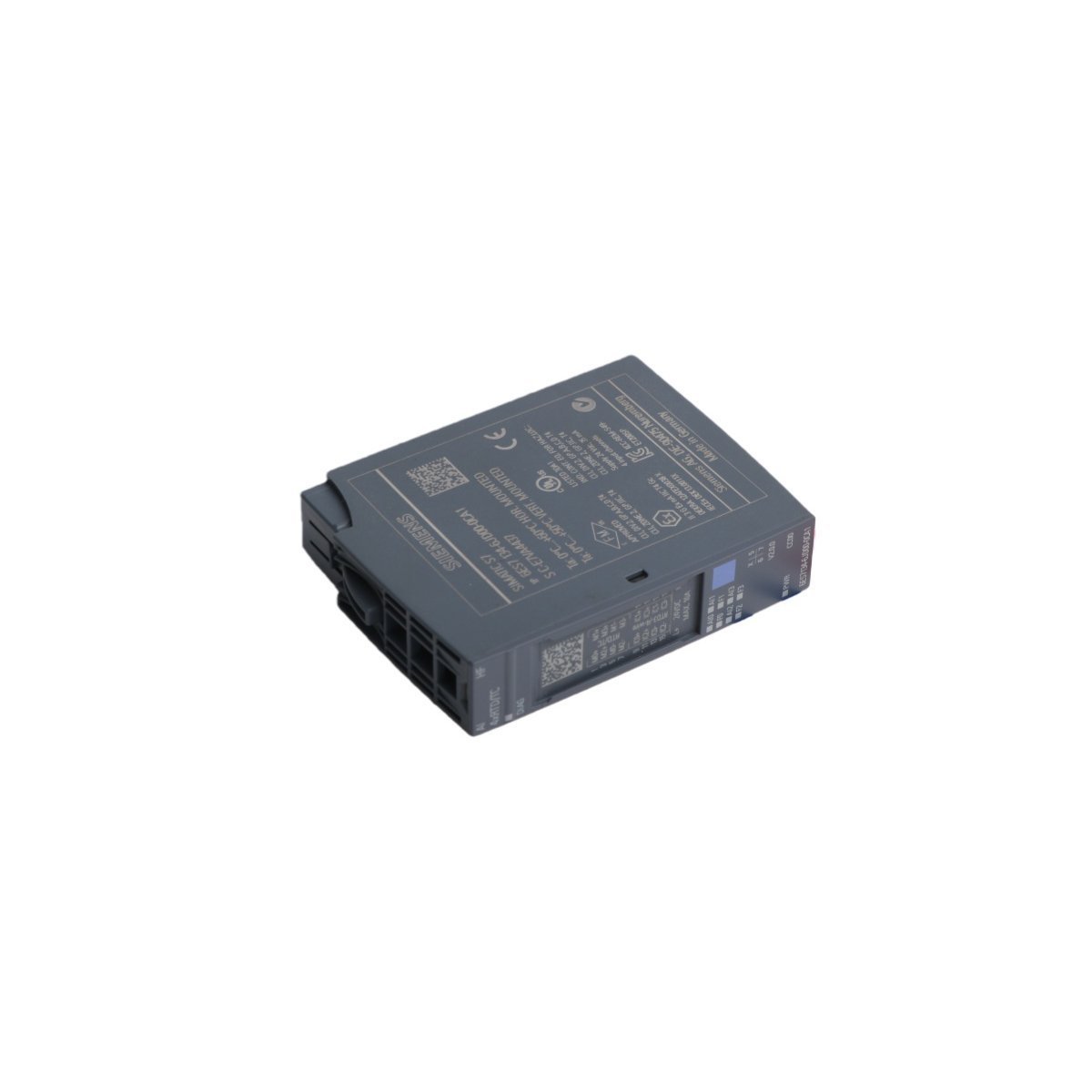

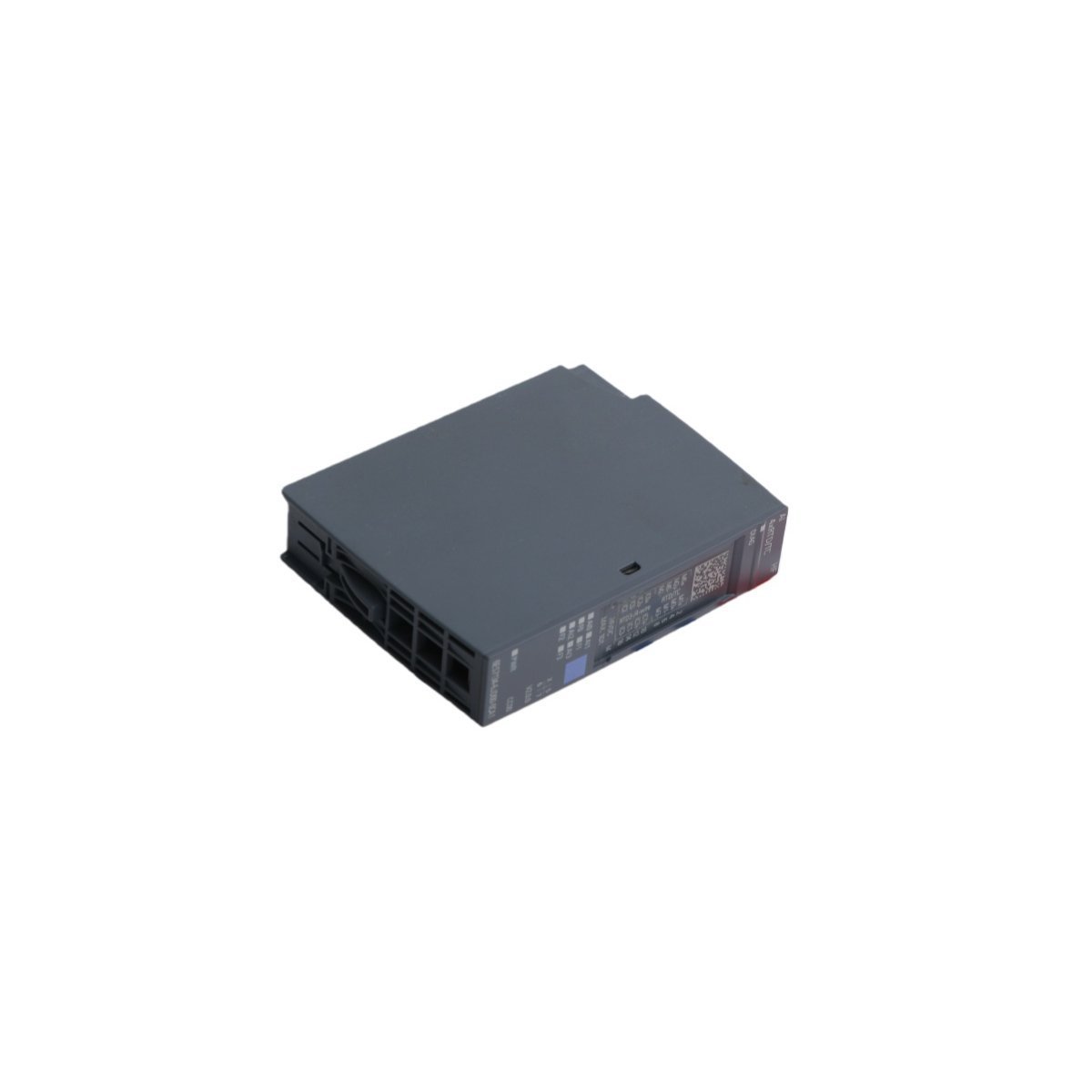

The Siemens 6ES7134-6JD00-0CA1 functions as a high-feature analog interface for the SIMATIC ET 200SP distributed I/O system. This module specializes in high-accuracy temperature sensing across four independent channels. It supports various Resistance Temperature Detectors (RTD) and Thermocouples (TC) for diverse industrial heating applications. Consequently, engineers can implement precise thermal control in complex manufacturing environments.
This hardware achieves a high 16-bit resolution to capture minute temperature fluctuations. It maintains an impressive measurement accuracy of ±0.1% for superior process stability. Furthermore, the internal circuitry provides excellent interference rejection against electrical noise. These technical attributes ensure consistent data quality for critical monitoring tasks in food, chemical, and metal processing.
Key Technical Specifications
- Manufacturer: Siemens
- Order Number: 6ES7134-6JD00-0CA1
- Module Series: SIMATIC ET 200SP (High Feature)
- Input Channels: 4 Analog Inputs
- Resolution: 16 Bits including sign
- Measurement Accuracy: ±0.1%
- Sensor Types: RTD (Pt100, Ni100, etc.) and Thermocouples (Type J, K, T, etc.)
- BaseUnit Compatibility: Type A0 or A1
- Color Identification: CC00
- Dimensions: 15 x 73 x 58 mm
- Net Weight: 0.03 kg
Seamless System Architecture Integration
The 6ES7134-6JD00-0CA1 module fits perfectly into the compact ET 200SP station layout. It uses a push-in terminal system for fast and vibration-resistant wiring. Furthermore, the module supports firmware updates to maintain compatibility with future system enhancements. This long-term hardware support protects your investment in automation infrastructure.
By utilizing this High Feature (HF) module, users gain access to advanced filtering and smoothing functions. These software tools help stabilize readings in environments with high electromagnetic interference. Ultimately, this module provides the precision and durability required for modern, data-driven industrial automation.
