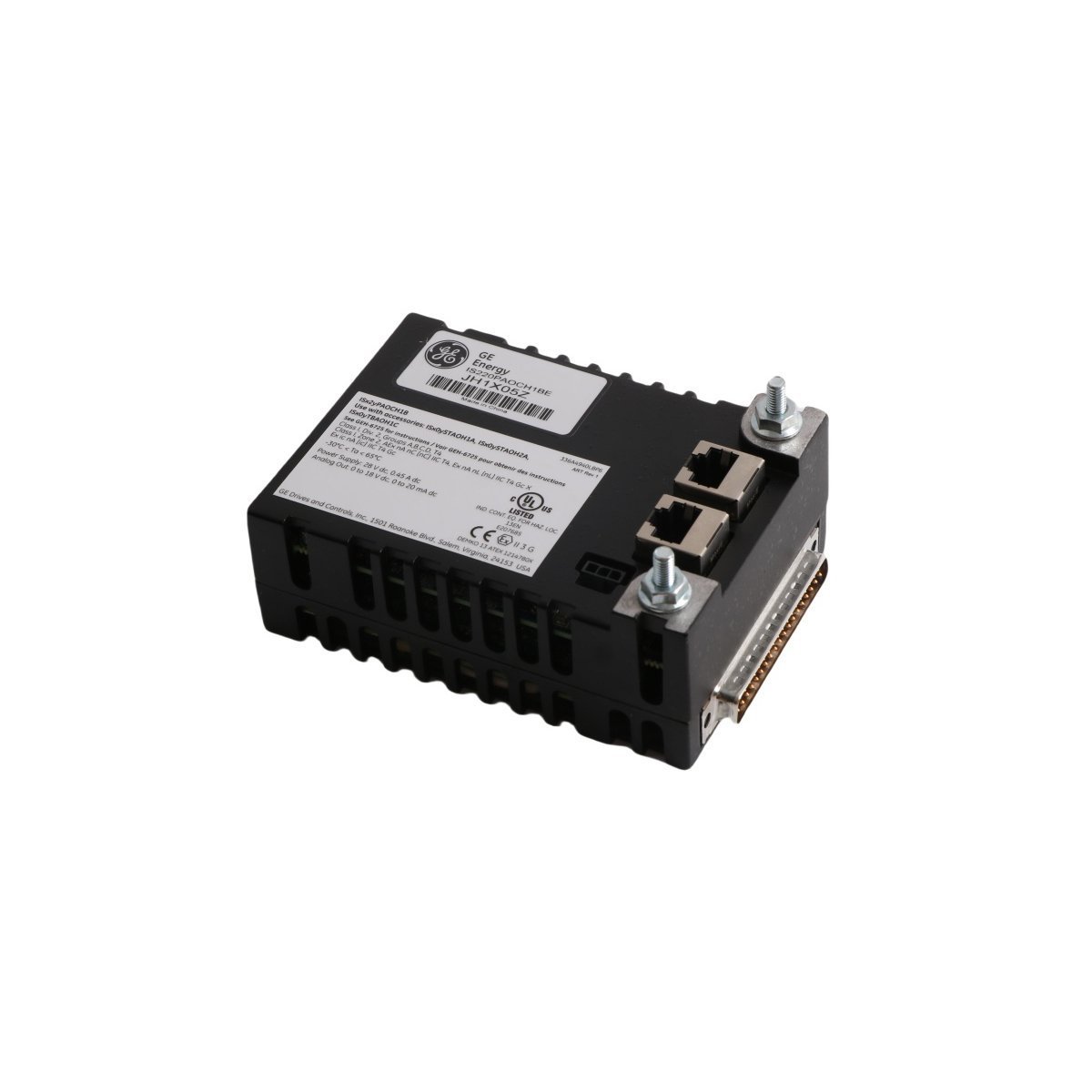

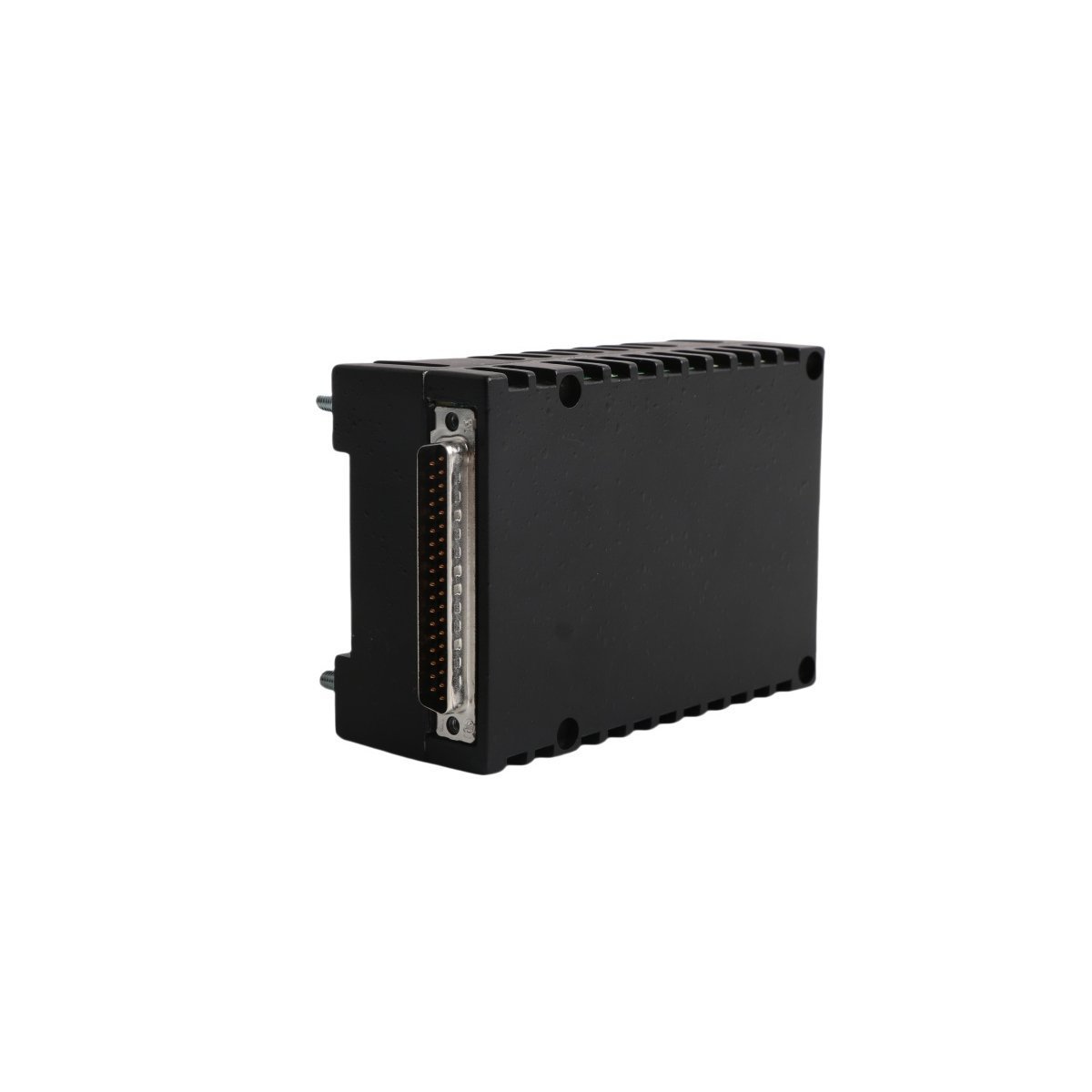

General electric IS220PAICH1B Analog Input/Output Module

The GE IS220PAICH1B serves as a high-performance analog interface within the Mark VI and Mark VIe control platforms. This specific module facilitates the exchange of critical sensor data between field instruments and the controller. It handles both input acquisition and output command execution for various industrial processes. Because it features a B-rated functional revision, this model provides enhanced stability over earlier hardware iterations. Consequently, it remains a standard choice for turbine control and heavy industrial automation systems.

Compatible Hardware and Connectivity

Successful deployment requires integration with specific IS200 series terminal boards. The IS220PAICH1B works seamlessly with the IS200TBAIH1C barrier-type terminal block. Furthermore, it supports the IS200TAIH1A and IS200TAIH2A board variations. When technicians wire the IS200TBAIH1C, they must use a minimum wire size of 22 AWG. This ensures signal integrity and prevents voltage drops across the terminal connections. These combinations allow for flexible mounting in diverse control cabinet architectures.

Advanced Diagnostics and Fault Management

The module includes sophisticated internal monitoring to maintain system uptime. It identifies hardware discrepancies through specific alarm codes, such as the 82-83 output error. This particular alarm often indicates a malfunctioning suicide relay or mismatched command signals. If the acquisition board experiences a relay failure, the system alerts the operator immediately. Most troubleshooting protocols recommend a full I/O pack replacement to resolve persistent hardware alarms. Therefore, these diagnostics help maintain the safety and reliability of the overall turbine control loop.

Environmental Suitability and Compliance

GE designed this I/O pack for both standard industrial and hazardous locations. It holds the UL E207685 certification for use in non-hazardous environments. The robust housing protects internal electronics from typical power plant vibrations and thermal fluctuations. Moreover, the unit occupies a small footprint despite its high-density analog capabilities. This makes it an efficient solution for upgrading legacy Mark V series installations to modern standards.

Performance and Voltage Stability

This functional revision requires a steady power source for optimal performance. The hardware operates effectively at a minimum threshold of 22.5 V DC. Unlike older versions, the IS220PAICH1B maintains precise signal processing even during slight voltage variances. It draws power directly from the system backplane or dedicated distribution modules. This design ensures that the analog-to-digital conversion remains accurate under varying load conditions.

Technical Specifications
