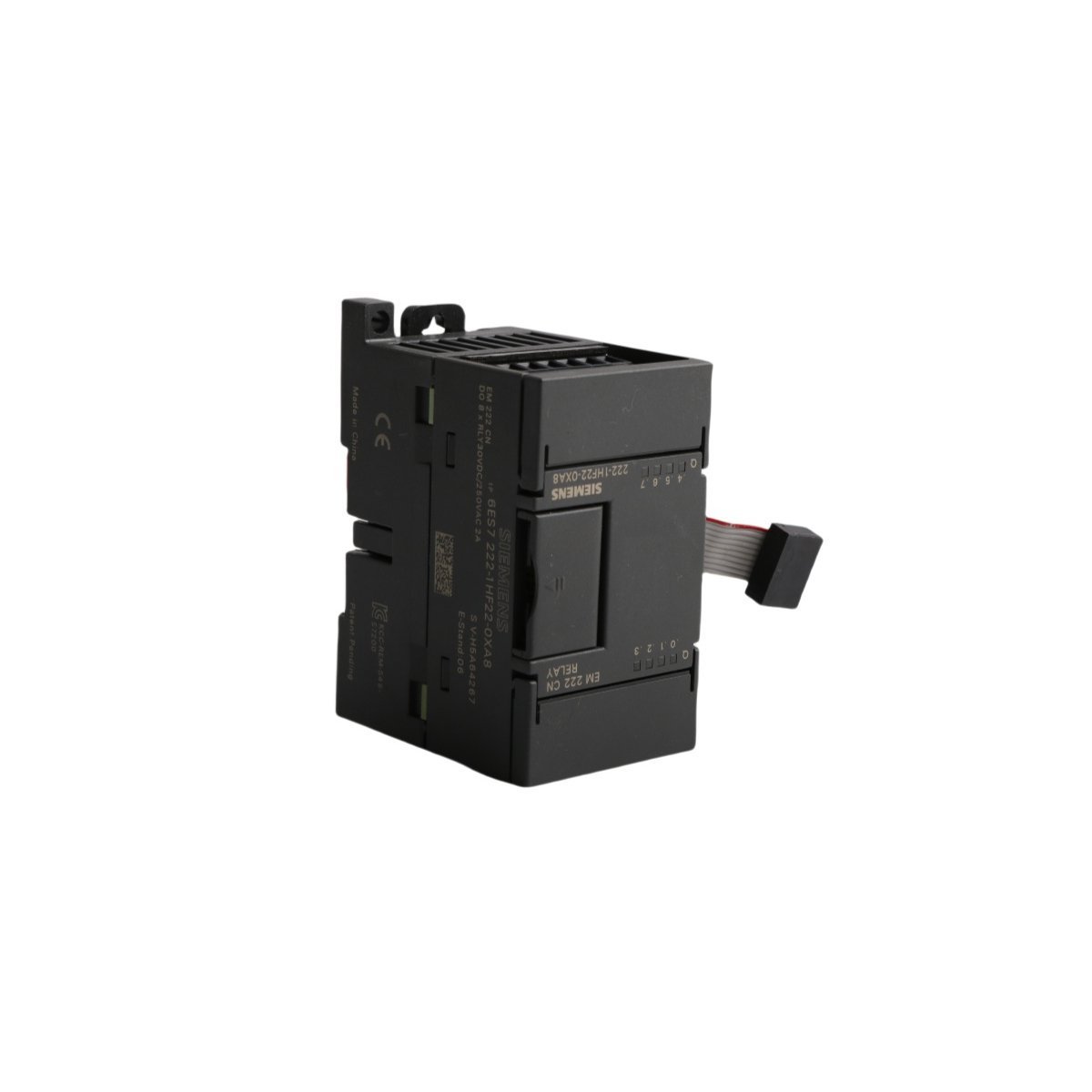

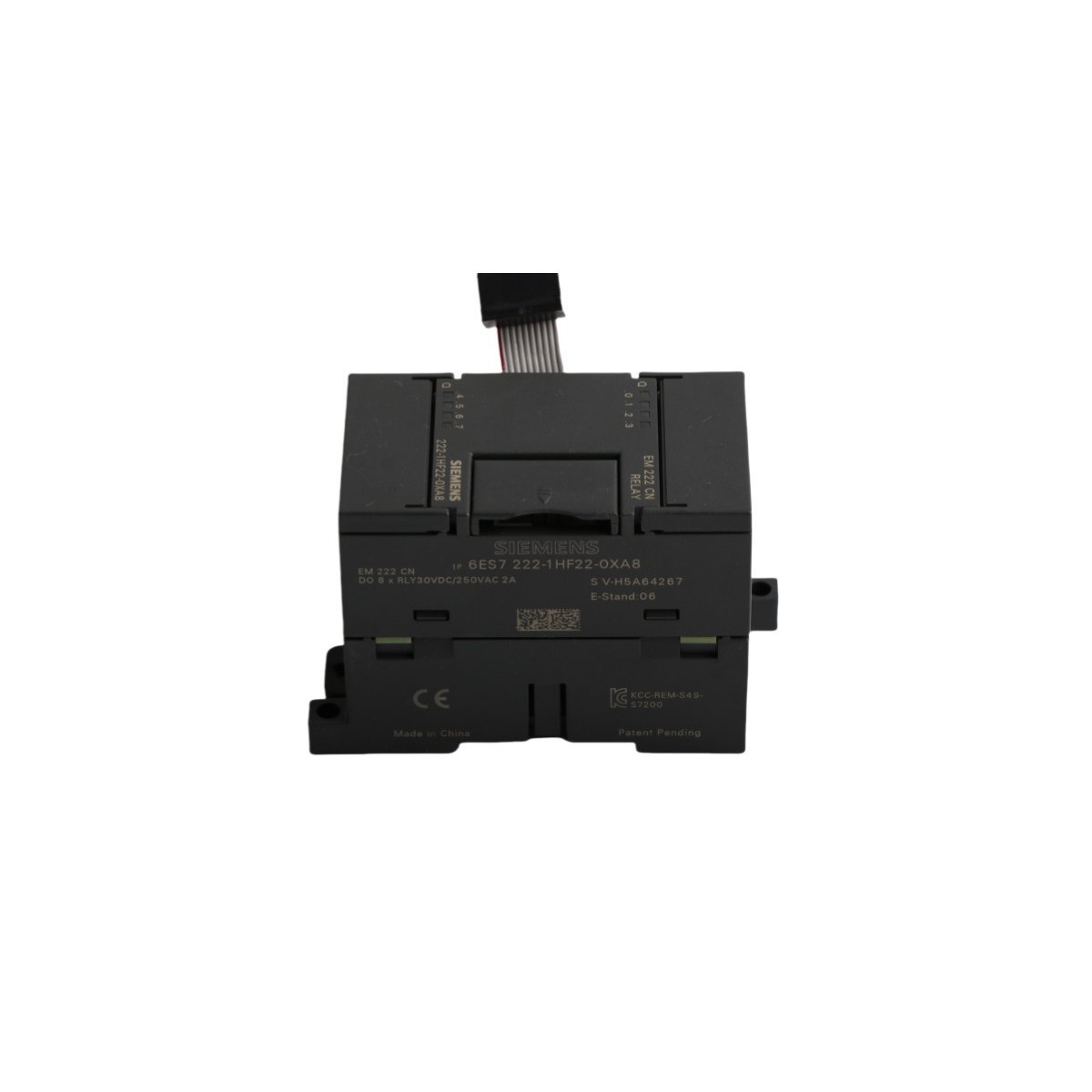

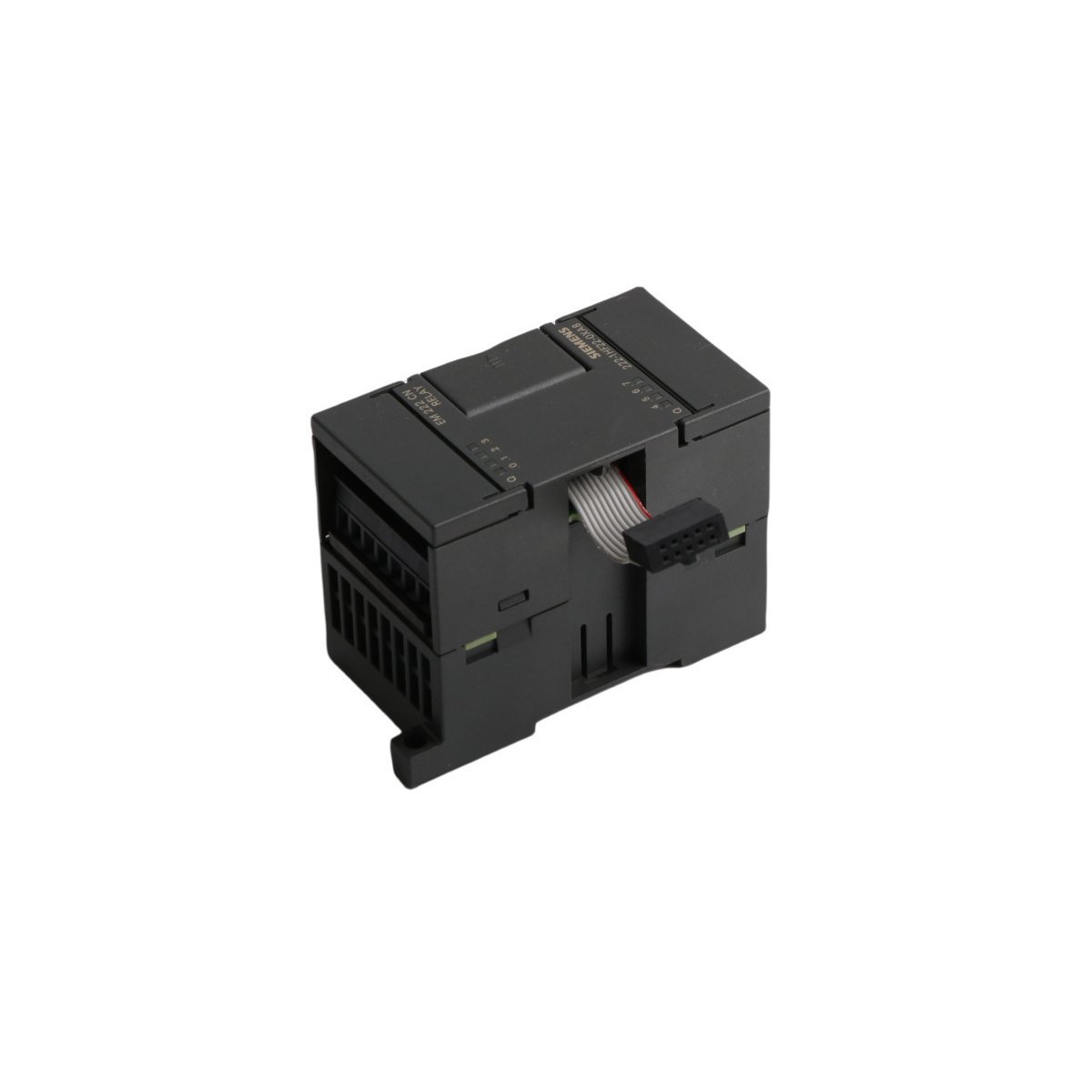

Siemens 6ES7222-1HF22-0XA8 Digital Output Module

The Siemens 6ES7222-1HF22-0XA8 serves as a dedicated expansion unit for the SIMATIC S7-200 CN series. This EM 222 module provides eight independent relay outputs for industrial control tasks. It specifically targets the S7-22X CPU range to increase signal capacity. Consequently, the module allows the controller to manage more peripheral devices effectively. The relay design enables the handling of both alternating and direct current loads. This versatility simplifies the integration of various field components into one automation system.

Electrical Characteristics and Efficiency

The 6ES7222-1HF22-0XA8 module supports diverse voltage requirements for modern machinery. Each relay output manages up to 2A of continuous current safely. Furthermore, it operates with loads reaching 30VDC or 250VAC without performance loss. The internal circuitry limits power consumption to a typical loss of only 2W. This thermal efficiency prevents overheating within crowded electrical cabinets. Integrated LED status indicators also provide immediate visual confirmation of output activity. These features ensure long-term reliability in continuous manufacturing cycles.

Versatile Application in Automation

Industrial engineers utilize this module for equipment monitoring and process control. The relay outputs act as bridges for small motors and solenoid valves. Moreover, the unit supports standard programming languages like Ladder Logic and Statement List. This compatibility allows for rapid deployment in existing Siemens software environments. The module fits perfectly into small-scale projects requiring cost-effective signal expansion. Additionally, the compact 44mm width optimizes DIN rail space in control panels.

Durable Design and Regional Compliance

This specific variant meets the technical requirements of the China-specific S7-200 CN line. It maintains full CE certification for safety and quality assurance. The German-engineered components ensure stable operation even in vibrating industrial settings. Each module ships ready for immediate installation in localized automation systems. Therefore, it represents a reliable choice for system integrators focused on the S7-200 platform. Its robust build quality minimizes the need for frequent maintenance or replacement.

Technical Specifications
