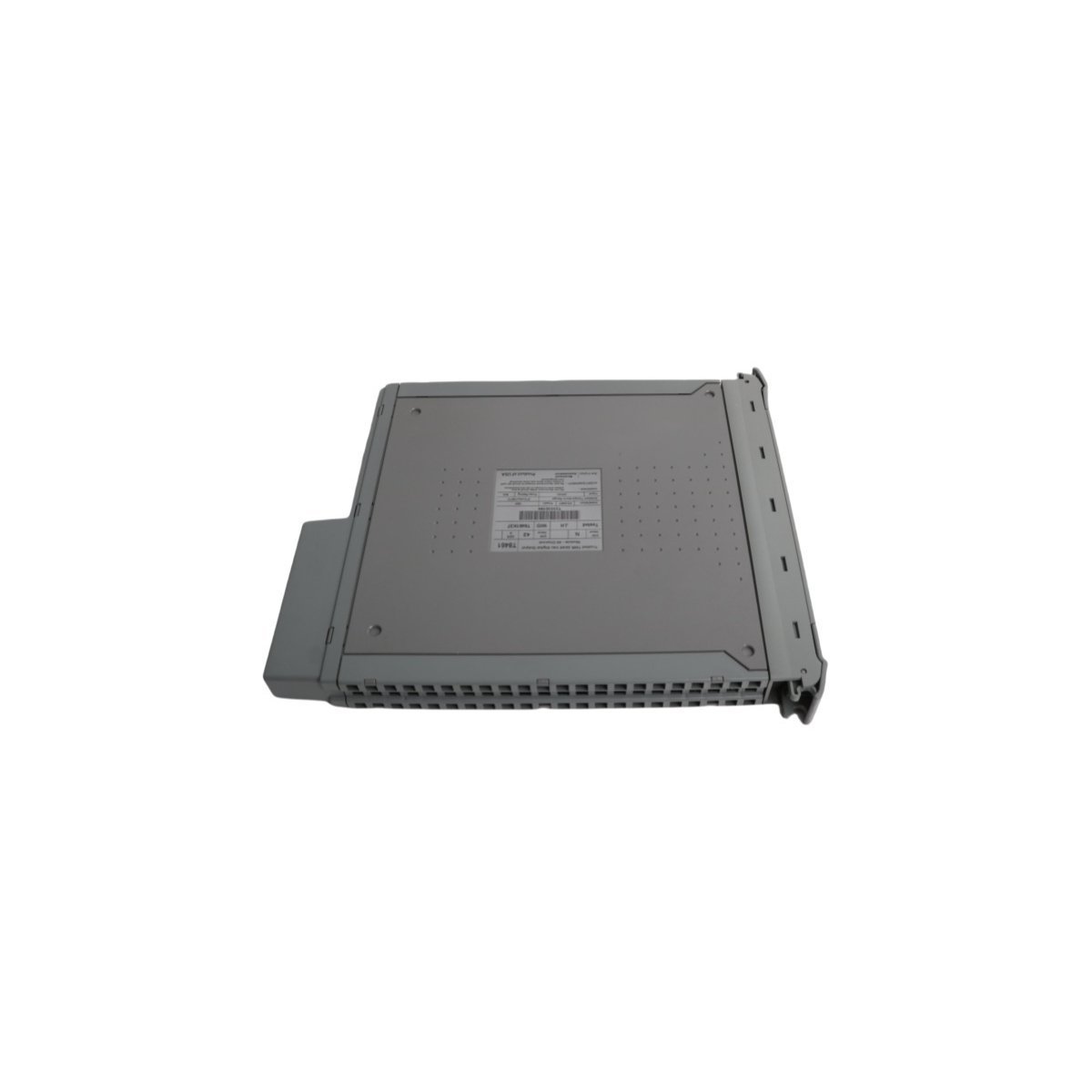

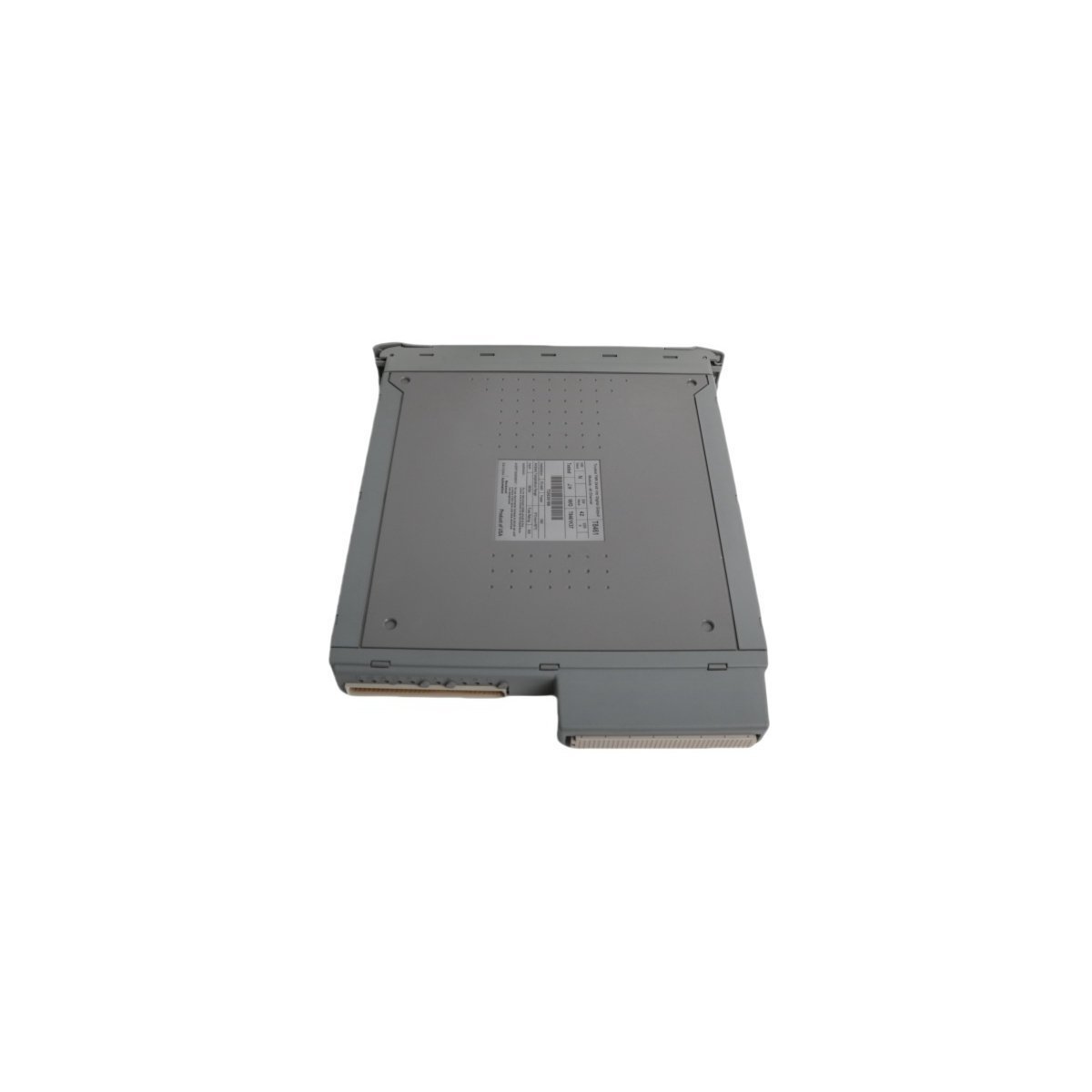

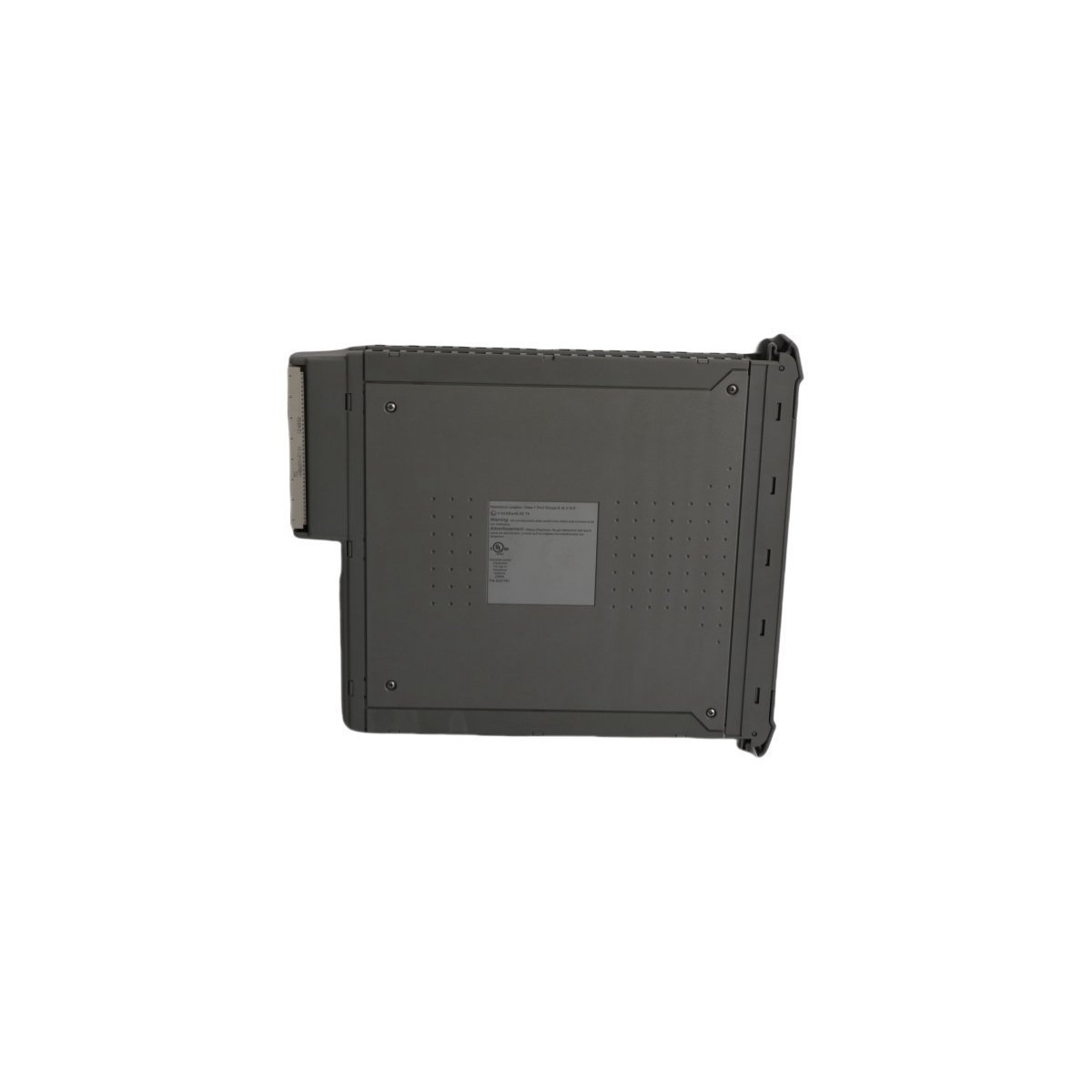

ICS Triplex T8461 TMR 24/48 Vdc Digital Output Module

The T8461 operates as a high-density digital output module within the Trusted Triple Modular Redundancy (TMR) system. This module manages 40 independent channels to drive field loads safely and efficiently. Because it utilizes a TMR architecture, the module ensures continuous operation even during internal hardware faults. It specifically addresses the needs of mission-critical processes requiring extreme reliability. The T8461 facilitates precise switching for devices such as solenoids, relays, and motor starters. Consequently, it maintains system integrity in high-hazard industrial environments.

Technical Performance and Diagnostics

The module supports a flexible supply voltage range between 20 and 32Vdc for standard operations. Furthermore, the T8461 features advanced diagnostic capabilities to monitor the health of every output channel. It performs automated testing to detect open circuits and short circuits in the field wiring. This proactive monitoring allows operators to identify issues before they lead to system downtime. Moreover, the unit incorporates heavy-duty construction to withstand the thermal and electrical stress of industrial cabinets. Its optimized thermal design ensures stable performance across a wide operating temperature spectrum.

System Integration and Scalability

This module integrates seamlessly into existing Trusted controllers via a standard chassis interface. It offers a straightforward configuration process through the system software environment. Because the module supports hot-swapping, maintenance teams can replace units without shutting down the entire process. This capability significantly improves overall plant availability and reduces maintenance costs. Additionally, the T8461 meets rigorous international safety standards for use in SIL 3 applications. It provides a future-proof solution for expanding automation needs in large-scale facilities.
