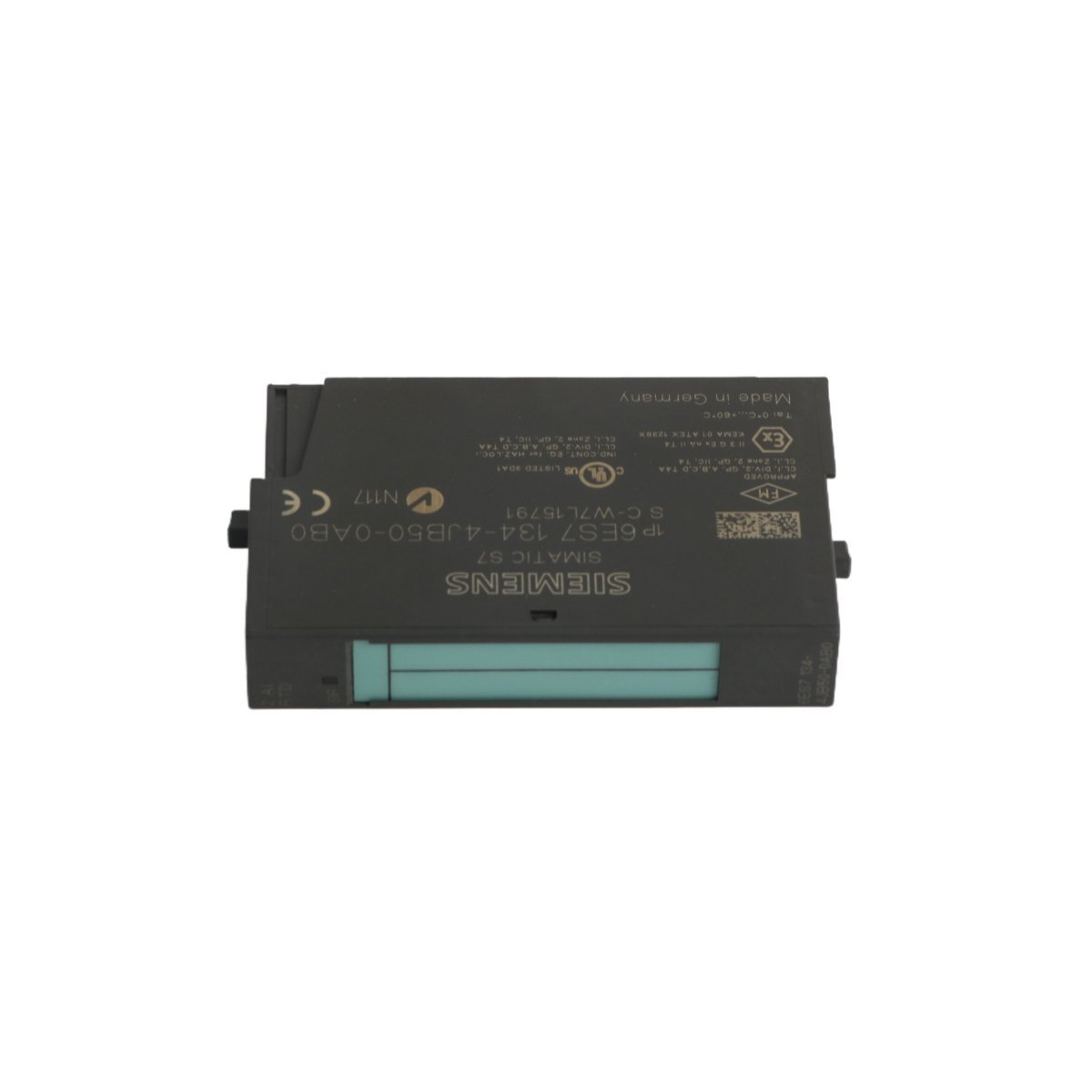

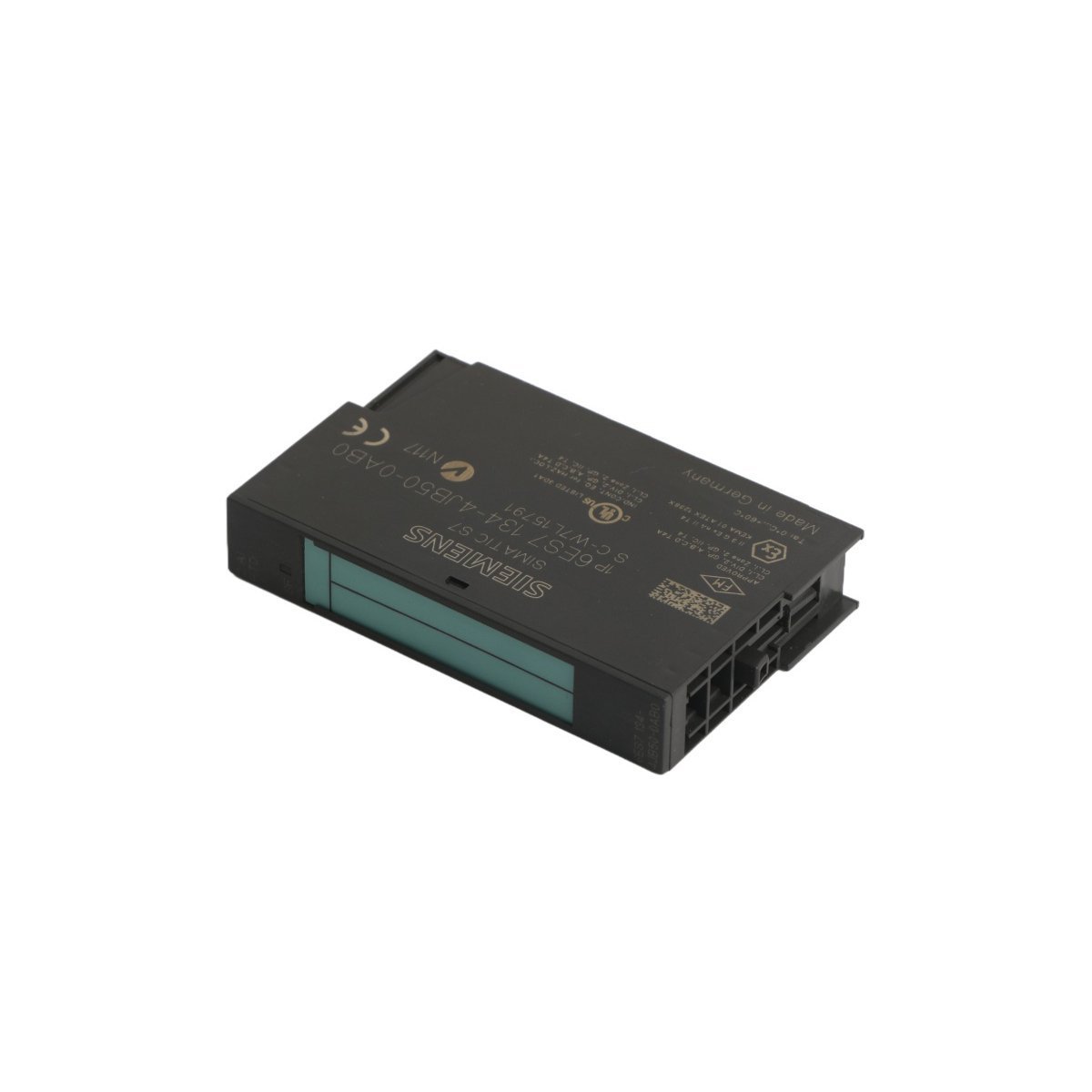

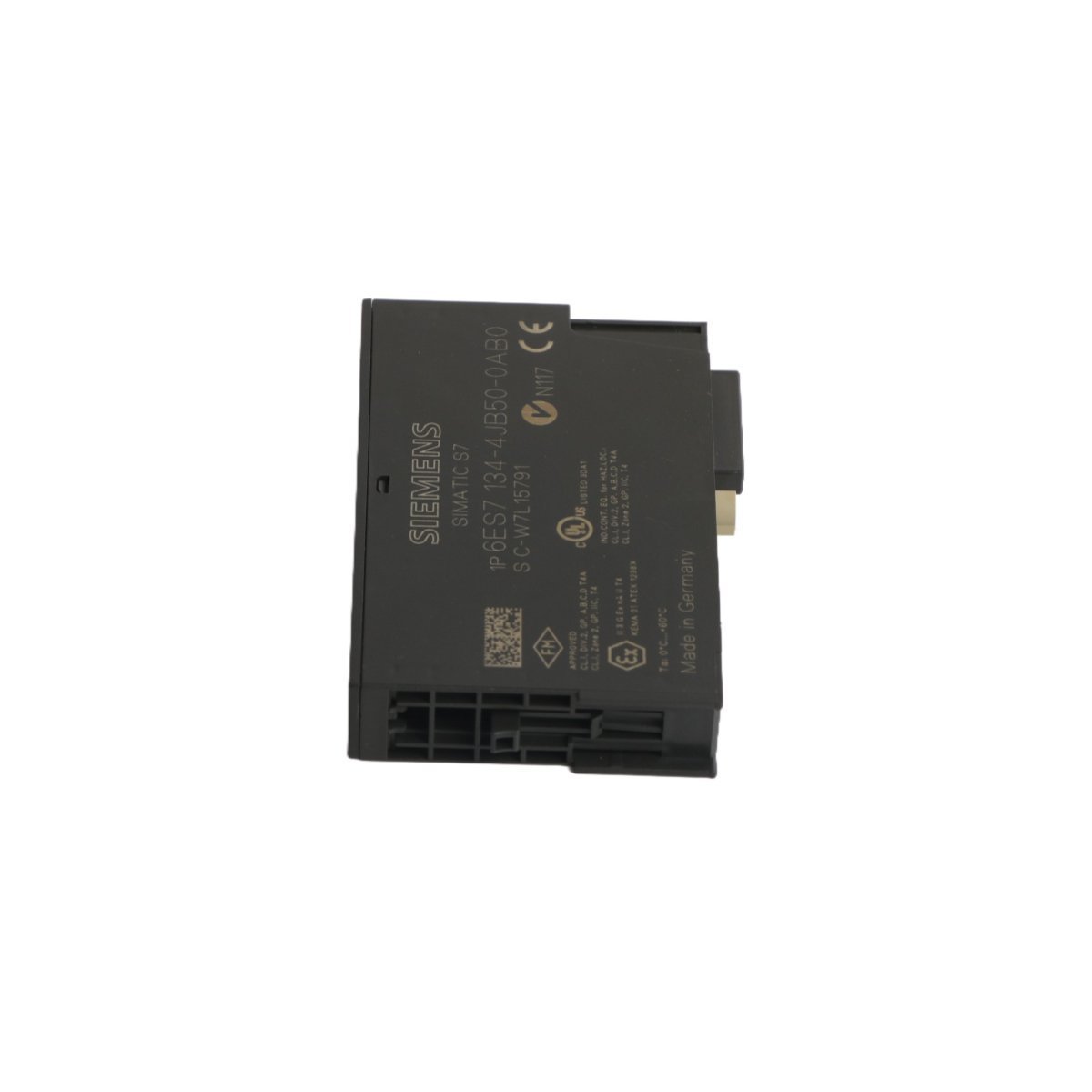

Siemens 6ES7134-4JB50-0AB0 Analog Input Module

The Siemens 6ES7134-4JB50-0AB0 is a high-resolution analog input module designed for the ET 200S distributed station. This specific electronic module provides two dedicated channels for Resistance Temperature Detectors (RTD). It translates minute resistance changes into digital values with 15-bit plus sign precision. Consequently, the module detects even subtle temperature shifts in critical industrial processes. Its 15mm width allows for high-density terminal configurations within control cabinets. Engineers utilize this module to bridge the gap between field sensors and PROFIBUS or PROFINET controllers.

Technical Specifications

Versatile Deployment in Modern Automation

This analog unit integrates seamlessly with existing SIMATIC DP configurations. It serves as a perfect replacement part or an expansion for growing automation networks. Because it fits the standard ET 200S terminal modules, installation requires minimal labor. The module effectively handles the complex thermal monitoring needs of automated assembly lines. It also maintains high accuracy under varying ambient temperatures within the cabinet. Selecting this Siemens component provides a proven path to precise and stable temperature control.

Industrial Reliability and Diagnostic Features

Safety and uptime remain central to the design of the 6ES7134-4JB50-0AB0 module. The unit includes a red “SF” LED to signal group faults immediately. This visual aid simplifies troubleshooting for maintenance teams during system downtime. Additionally, the module offers internal electrical isolation between the backplane bus and the load voltage. This protection layer prevents external surges from damaging sensitive CPU components. The robust German engineering ensures reliable performance in HVAC, chemical, and food production sectors.
