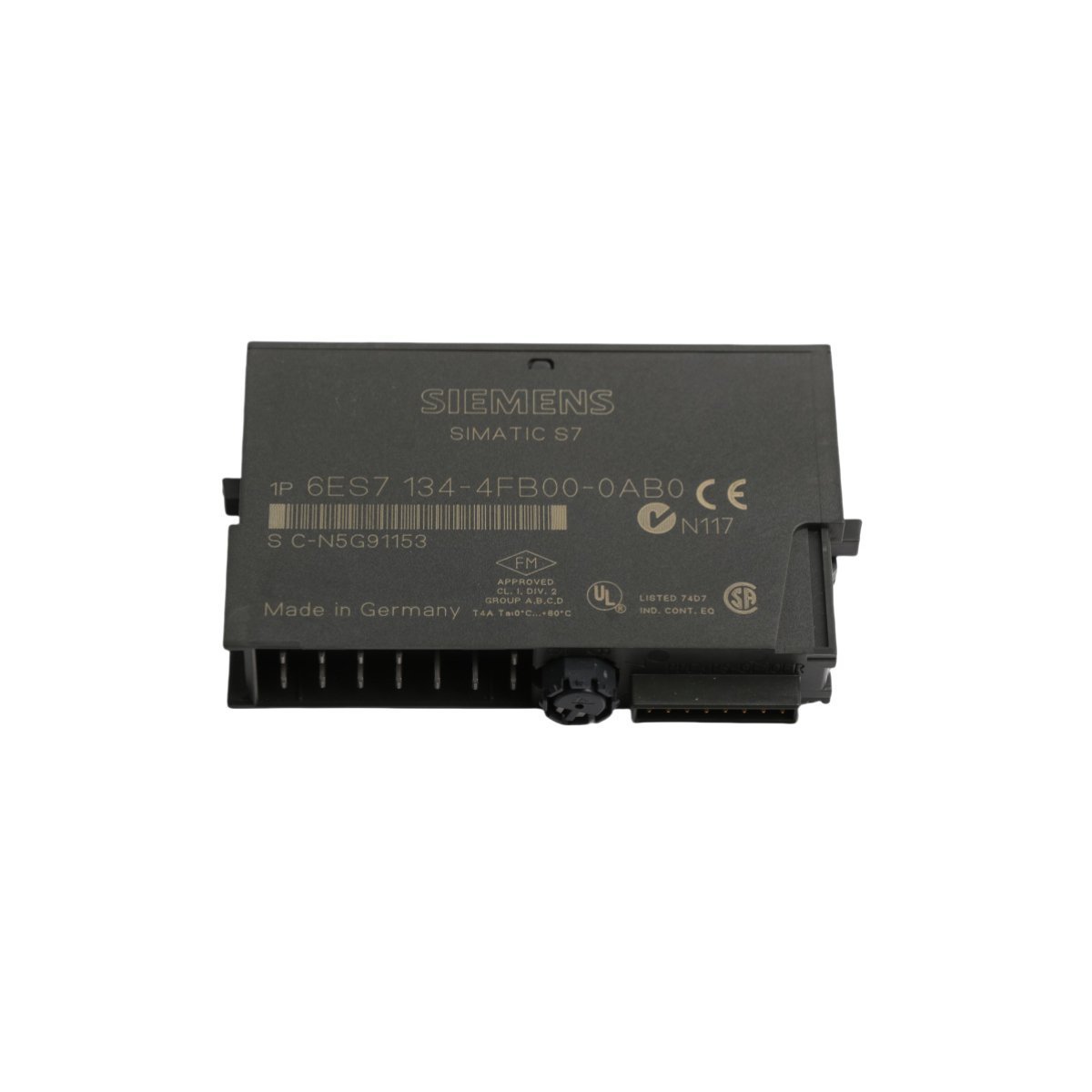

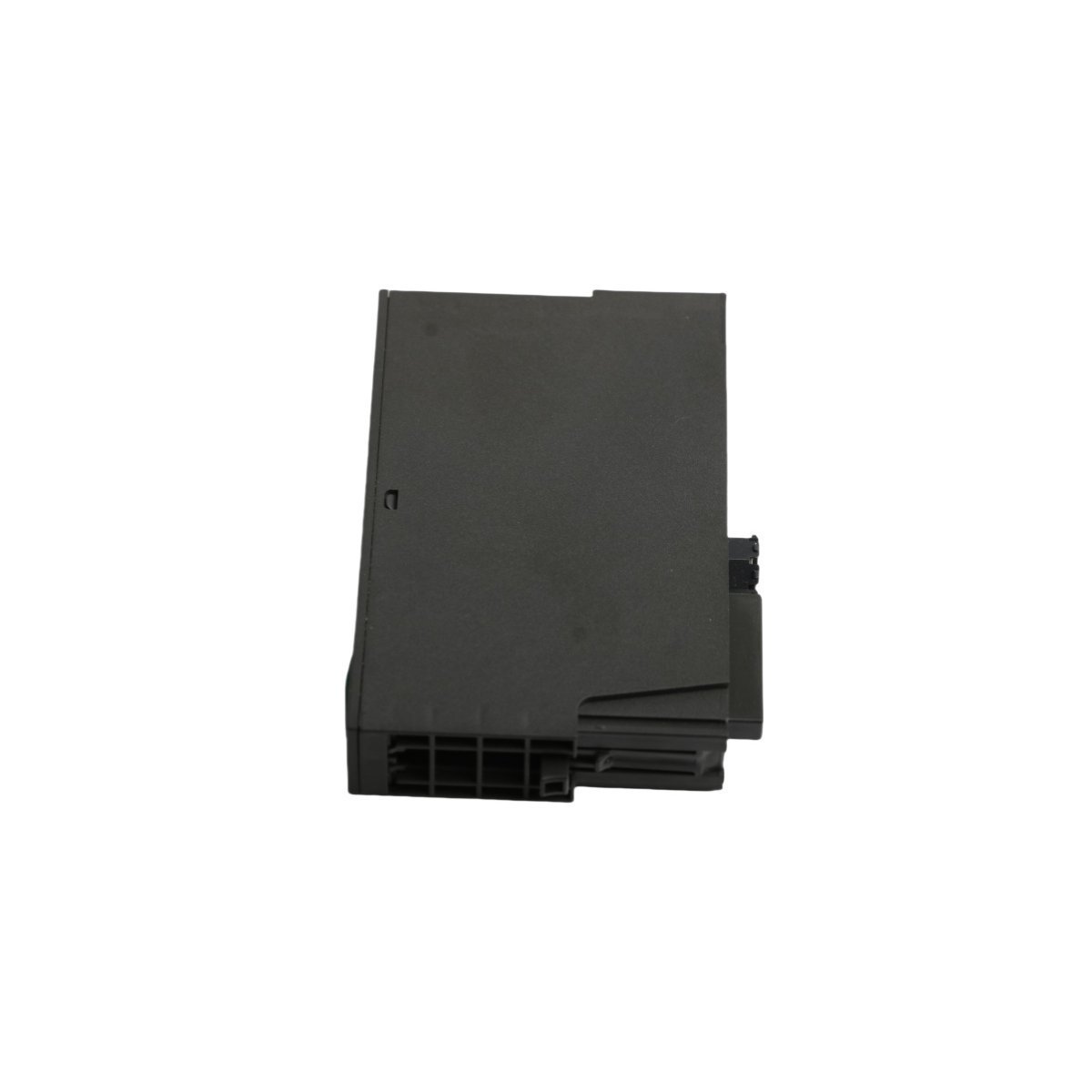

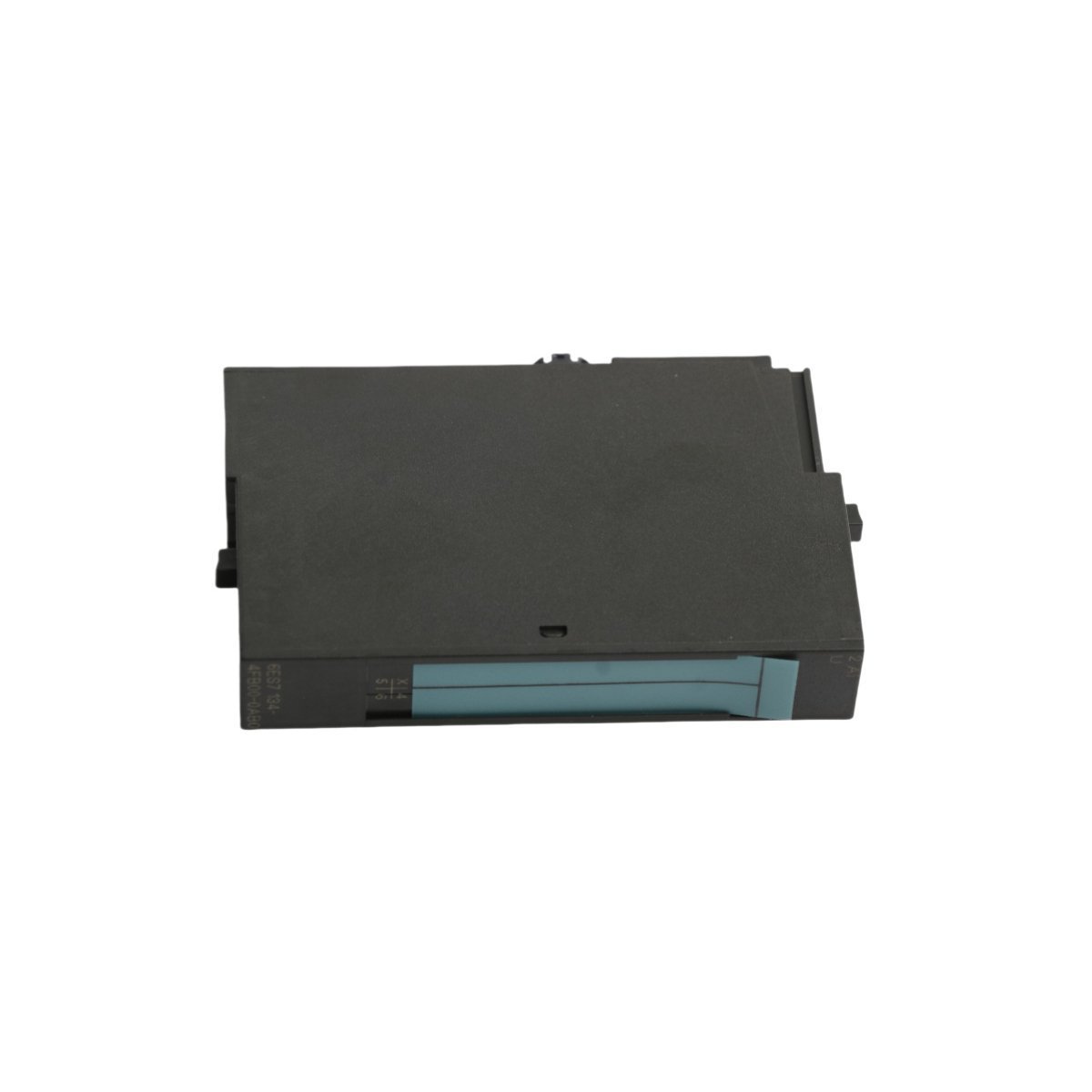

Siemens 6ES7134-4FB00-0AB0 Analog Input Module

The Siemens 6ES7134-4FB00-0AB0 serves as a dual-channel analog electronic module for the ET 200S distributed I/O system. This compact 15mm component captures standard voltage signals with high accuracy. It specifically supports bipolar ranges of ±10V and ±5V. Additionally, the module accommodates unipolar 1-5V signals for varied industrial sensor interfaces. A resolution of up to 13 bits plus sign ensures fine-grained data digitization.³ Consequently, this unit provides the reliable feedback necessary for sensitive closed-loop control tasks.

Technical Specifications

Flexible Input Ranges and Rapid Processing

This SIMATIC DP module offers multiple configuration options to suit specific application needs. Each channel features a conversion time of 65 milliseconds. This speed allows for consistent data refreshing in monitoring systems. The hardware supports ±10V at 13 bits plus sign. Furthermore, it handles ±5V and 1-5V at 12 bits plus sign. Integrated electrical isolation protects the internal backplane bus from external field interference. Thus, the module maintains signal purity in electrically noisy factory environments.

Industrial Diagnostics and Durable Design

Maintenance teams benefit from the comprehensive diagnostic features built into this module. A prominent red Group Fault (SF) LED provides immediate status updates. This feature significantly reduces the time required to locate wiring or hardware errors. The module operates efficiently within a wide range of industrial temperatures. Moreover, the slim housing optimizes space within crowded control cabinets. Although Siemens moved this product to a legacy status, it remains essential for maintaining existing infrastructure. Its robust construction ensures long-term service life in chemical and manufacturing plants.
