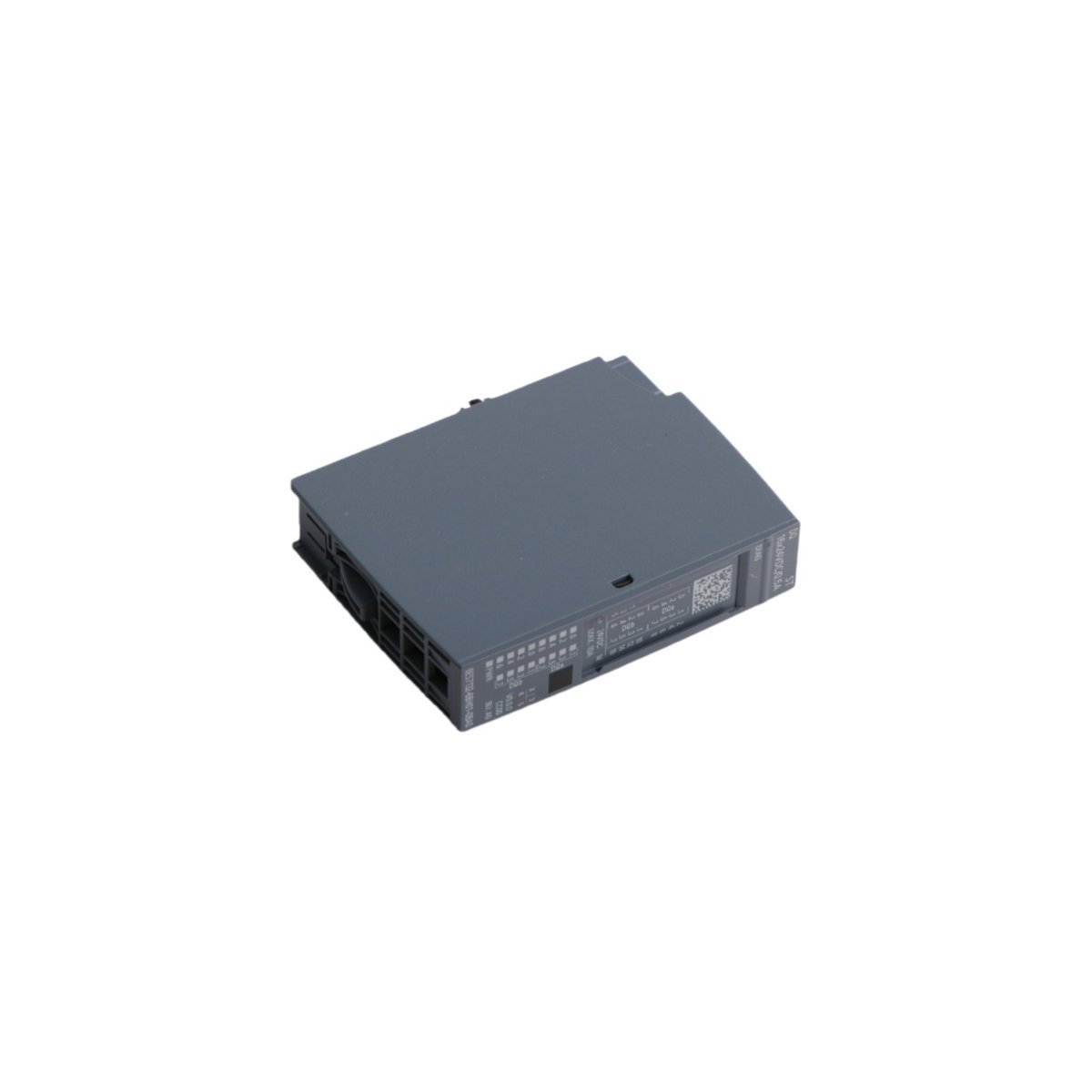

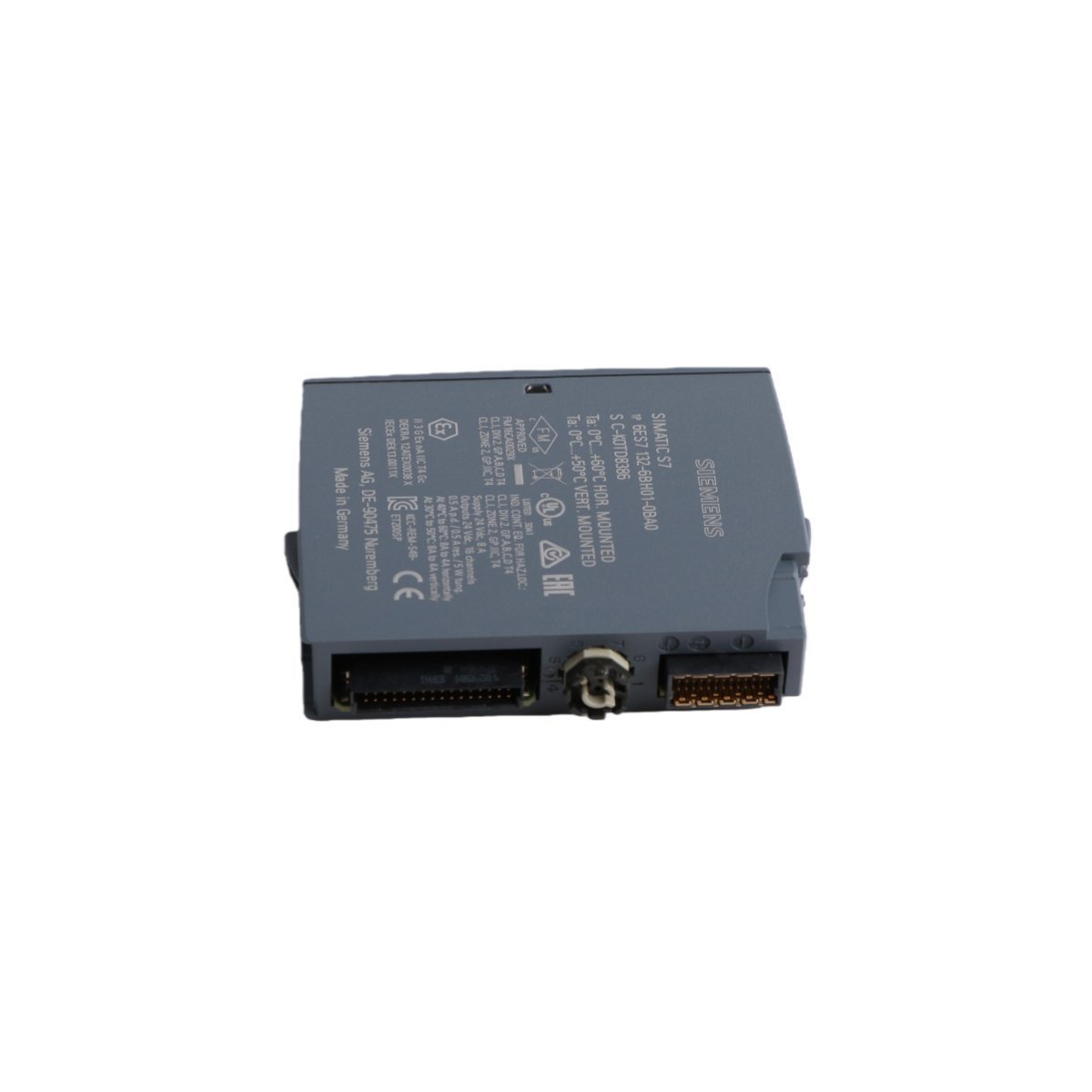

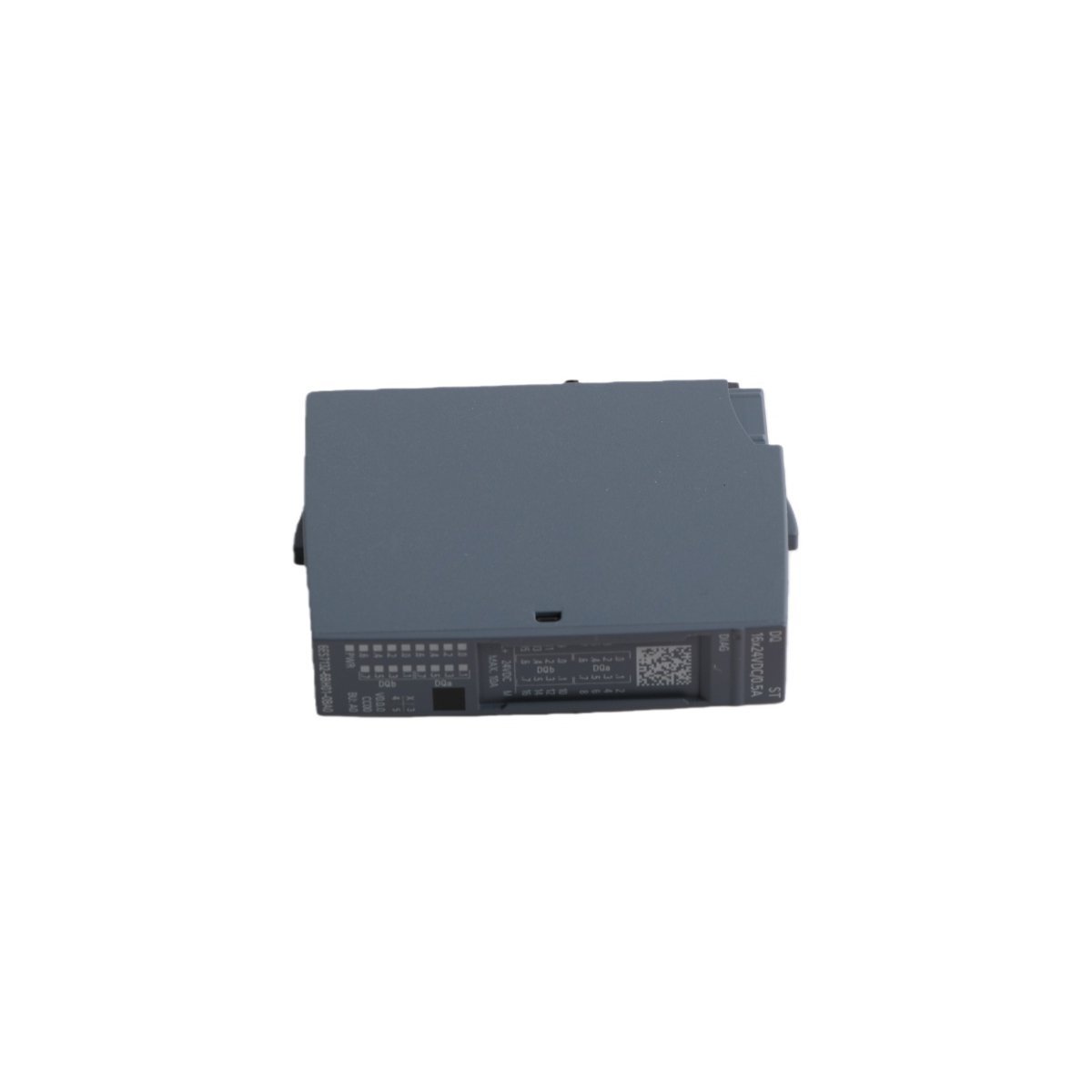

Siemens 6ES7132-6BH01-0BA0 Digital Output Module

The Siemens 6ES7132-6BH01-0BA0 belongs to the modular SIMATIC ET 200SP I/O family. This standard digital output module provides 16 discrete channels for industrial load switching. Each channel delivers a 24V DC source signal at a 0.5A current rating. Consequently, it excels at driving solenoid valves, DC contactors, and signaling lamps. The compact form factor allows users to maximize cabinet space without sacrificing performance. Furthermore, its source-switching design ensures compatibility with a wide range of standard industrial actuators.

Advanced Diagnostics and Safety

Effective system monitoring represents a core advantage of this digital output unit. The module actively detects wire breaks and short circuits to ground or supply voltage. If a communication loss occurs, the device switches to user-defined substitute values for safety. These diagnostic features minimize production downtime by pinpointing hardware faults instantly. Additionally, the module monitors its own supply voltage to prevent erratic behavior during power dips. This proactive approach maintains high system availability in complex automated processes.

Integration and Technical Specifications

Versatile Network Connectivity

Engineers can deploy this module in diverse network architectures using GSD files. It supports I&M data identification (I&M0 to I&M3) for simplified asset management. While the unit maintains a small footprint, it handles significant aggregate currents effectively. Moreover, the hardware design ensures stable operation even in electrically noisy environments. This reliability makes it a staple component for modern factory automation and process control. It bridges the gap between central controllers and peripheral field devices efficiently.
