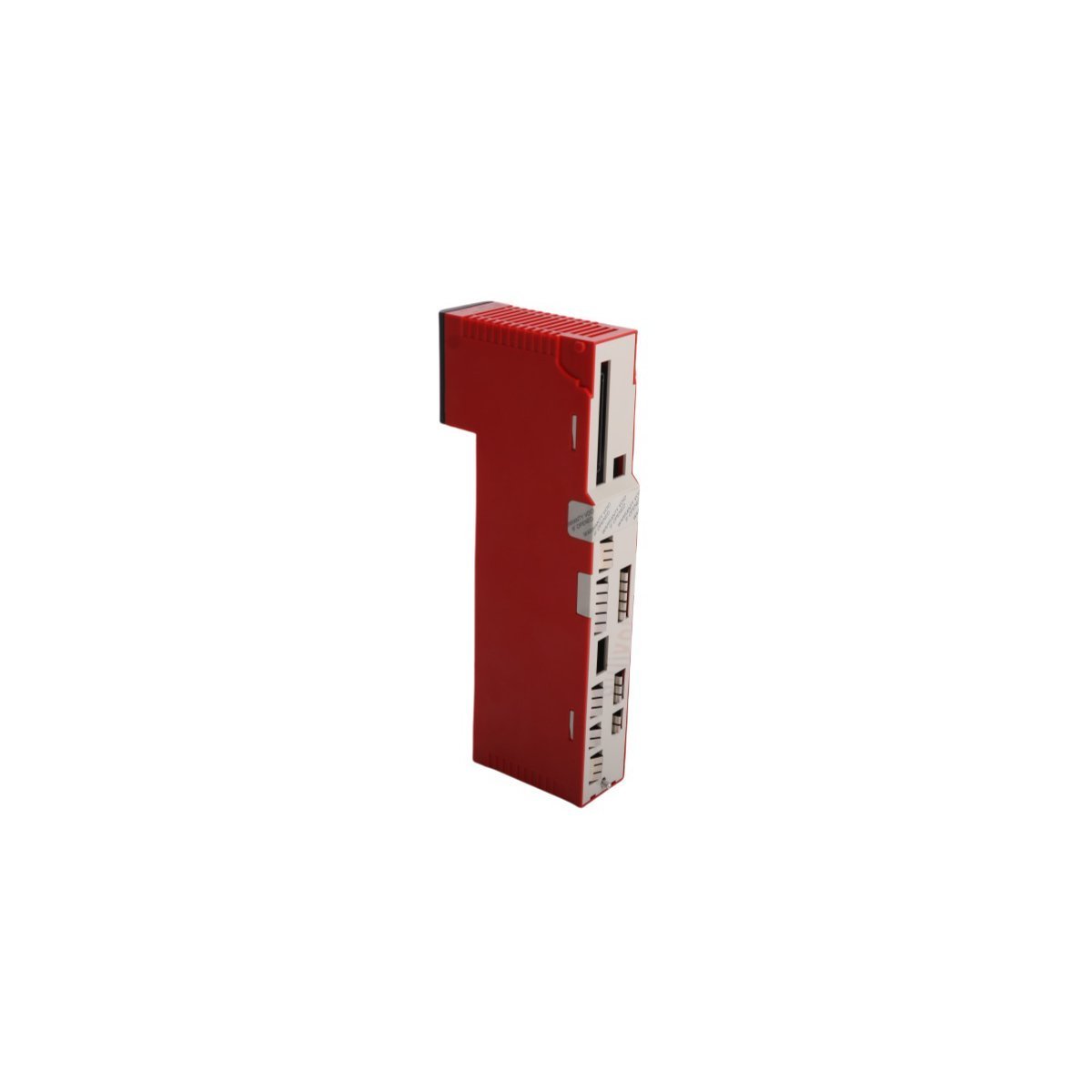

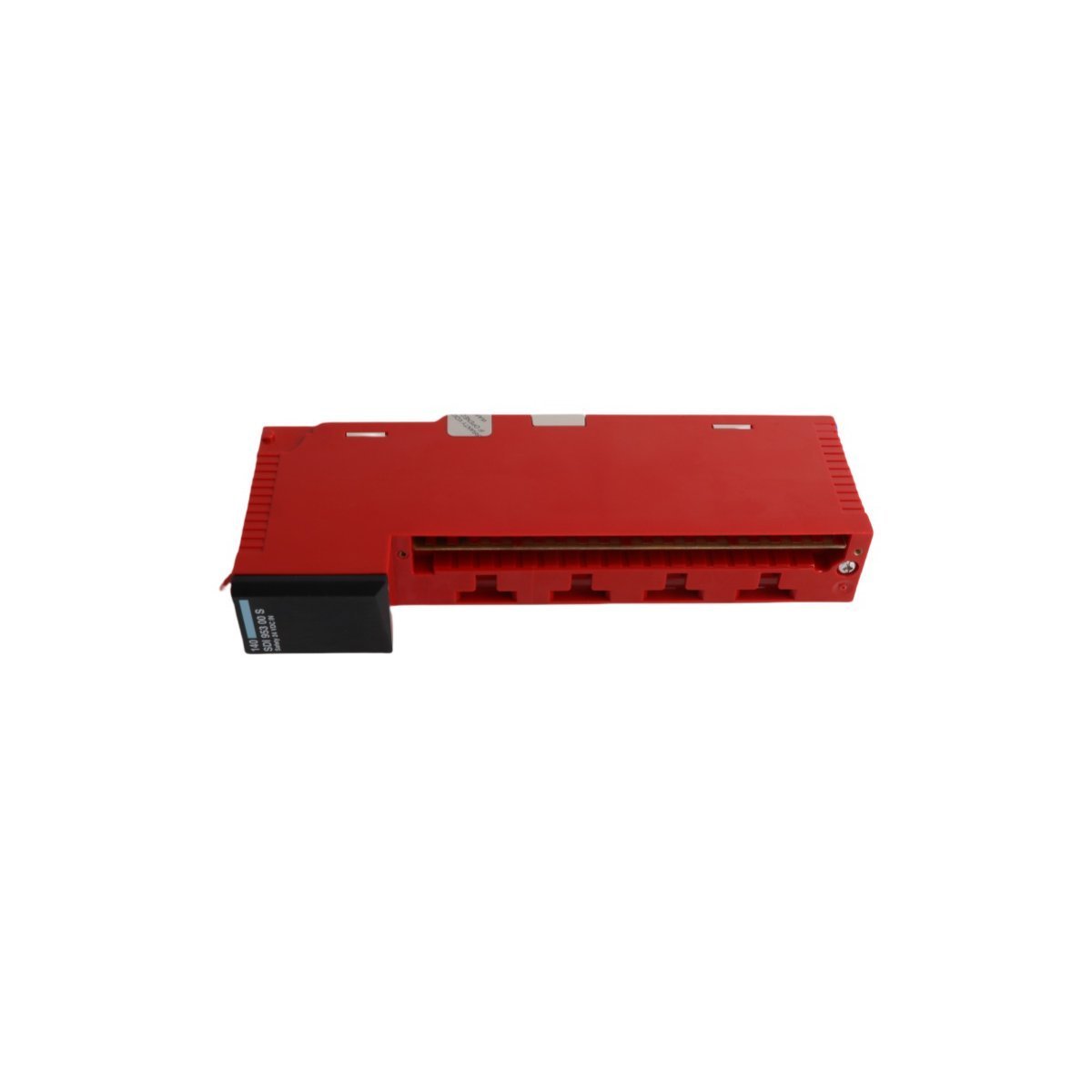

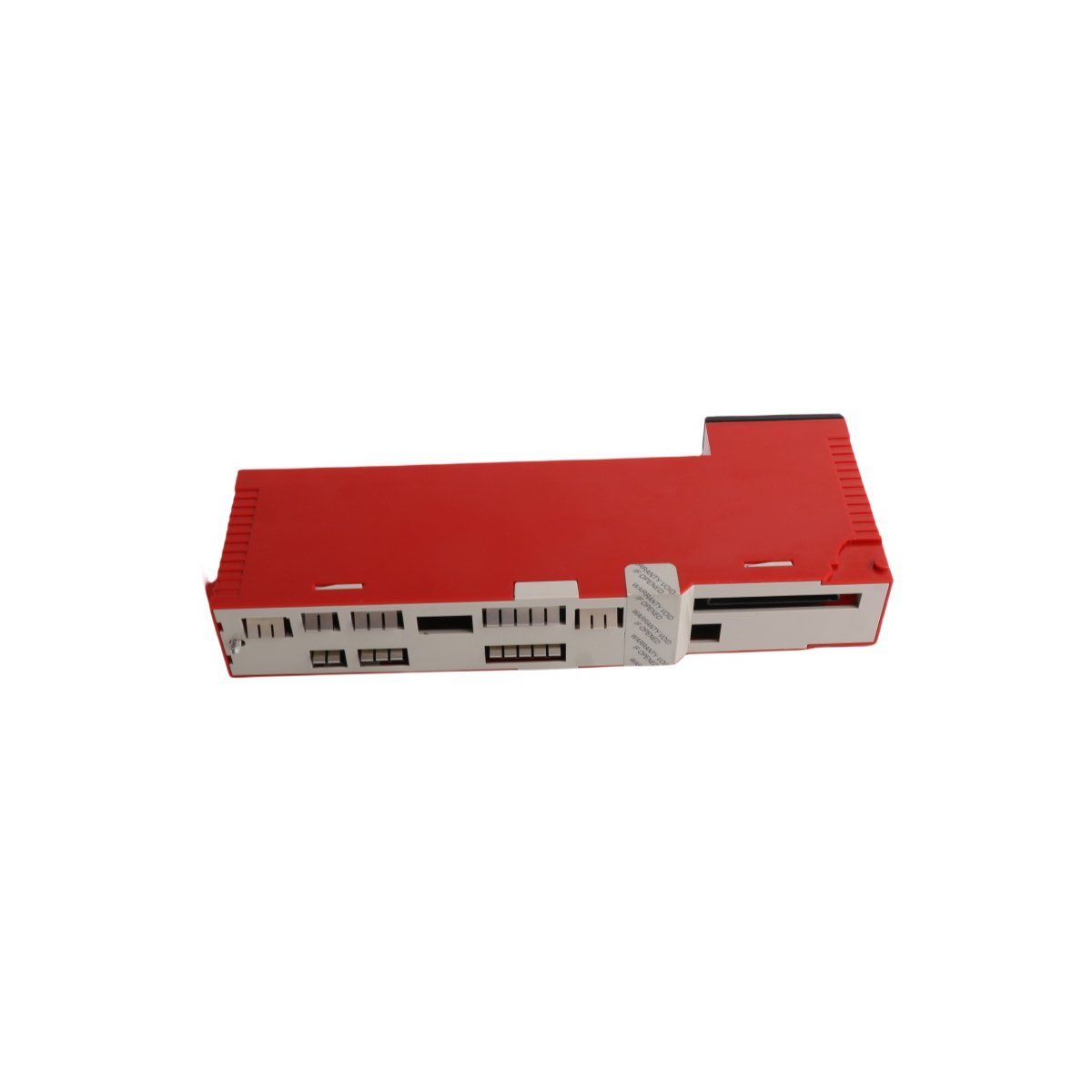

The Schneider Electric 140SDI95300S functions as a critical safety component within the Modicon Quantum automation platform. This discrete input module specifically addresses high-integrity industrial requirements. It provides a secure interface for receiving 24V DC signals from field devices like emergency stops and light curtains. Furthermore, the unit integrates seamlessly into safety-related architectures to protect both personnel and machinery.
Functional Safety and Technical Performance
This module features 16 individual safety-rated digital inputs. Each channel undergoes continuous internal diagnostics to detect wiring faults or hardware failures immediately. Consequently, the system maintains a high level of operational security during process cycles. The module also utilizes advanced signal filtering to eliminate electrical noise and prevent false triggering. These capabilities ensure that the PLC receives only accurate and validated data from the field.
Industrial Applications and Environmental Resilience
The 140SDI95300S excels in demanding industrial sectors where process downtime is costly. Its rugged construction allows for stable operation in temperatures ranging from 0°C to 60°C. Typical application areas include:
- Emergency shutdown (ESD) systems
- Burner management and boiler control
- High-hazard manufacturing zones
- Material handling and automated safety gates
- Critical infrastructure monitoring
Technical Specifications
| Category | Detail |
| Manufacturer | Schneider Electric |
| Model Number | 140SDI95300S |
| Range | Modicon Quantum |
| Input Type | Safety DC Discrete (24V) |
| Number of Inputs | 16 Channels |
| Addressing | 16 bits |
| Typical Current Consumption | 250 mA at 5V DC |
| Isolation | 1500 Vrms for 1 minute |
| Weight | 0.35 kg |
| Origin | France |
Diagnostic Intelligence and Maintenance
The front panel includes comprehensive LED indicators for real-time status monitoring. These lights display the health of each input and the overall module state. Because the unit performs constant self-checks, technicians can identify and resolve wiring issues quickly. This proactive diagnostic approach reduces troubleshooting time and extends the equipment lifecycle. The hot-swappable design further simplifies maintenance by allowing module replacement without stopping the entire system.
